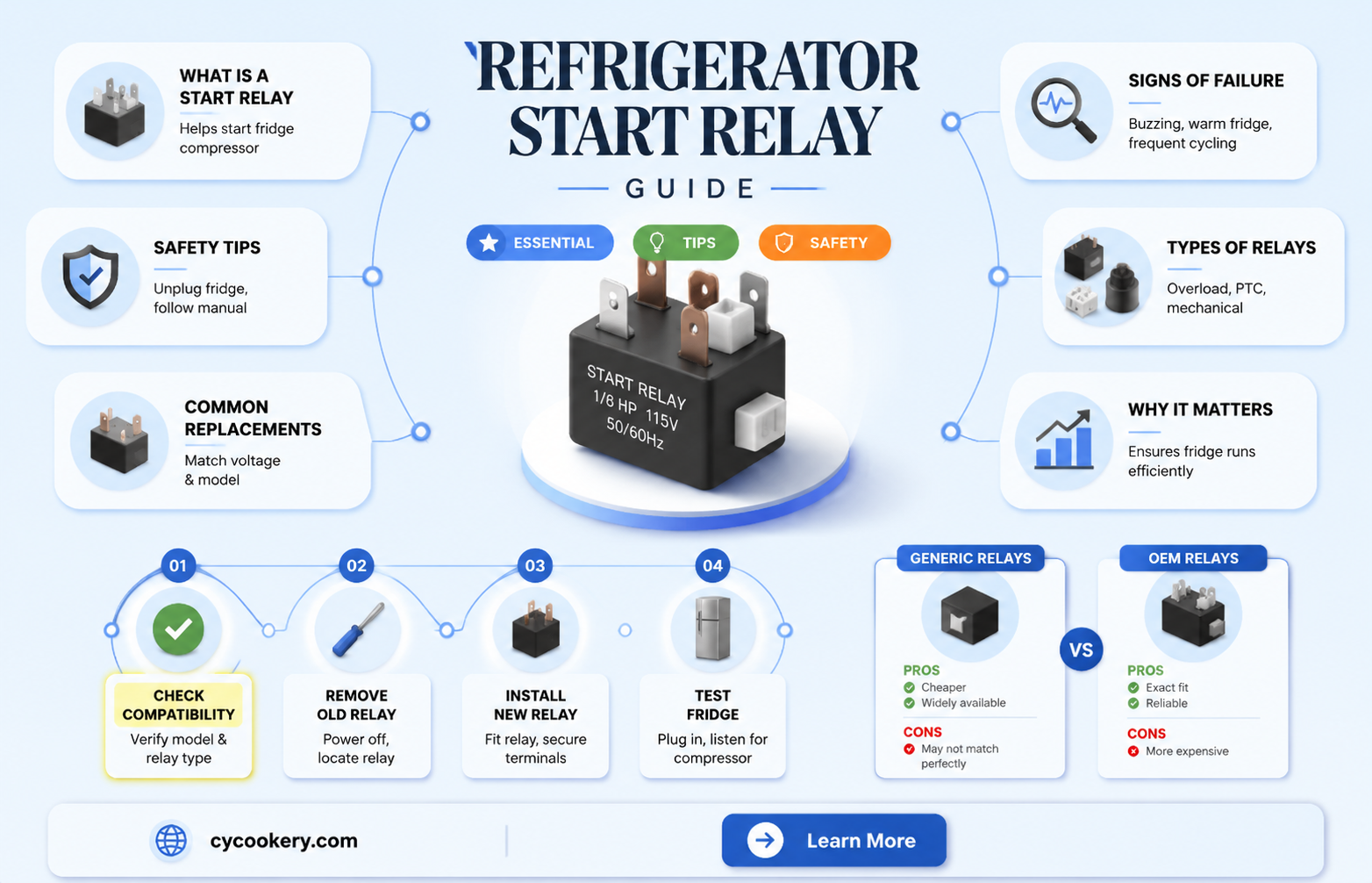

When considering whether all refrigerator start relays are the same, it’s important to understand that while they serve a common purpose—assisting the compressor motor in starting—they are not universally interchangeable. Start relays vary in terms of voltage compatibility, pin configurations, and manufacturer specifications, making it crucial to match the relay with the specific model and requirements of your refrigerator. Using an incompatible relay can lead to improper functioning, damage to the compressor, or even safety hazards. Always consult the appliance’s manual or a professional technician to ensure the correct part is selected for your refrigerator.
Explore related products
What You'll Learn
Compatibility with Different Refrigerator Brands
Refrigerator start relays are not universally compatible across all brands, despite their similar functions. Each manufacturer designs relays with specific voltage ratings, pin configurations, and mounting styles tailored to their models. For instance, a Whirlpool relay may operate at 120V and feature a 3-pin design, while a Samsung relay could require 240V and use a 4-pin setup. Attempting to interchange these without verifying compatibility risks electrical failure or damage to the compressor. Always consult the appliance’s manual or contact the manufacturer to confirm the exact relay specifications before replacement.
When replacing a start relay, consider the brand-specific nuances that dictate compatibility. For example, LG refrigerators often use relays with integrated overload protectors, whereas Frigidaire models may separate these components. Universal relays marketed as "one-size-fits-all" solutions rarely align with proprietary designs, leading to poor connections or insufficient power delivery. To ensure a precise fit, note the model number and serial number of your refrigerator and cross-reference them with the relay’s compatibility list. Online databases like PartSelect or Repair Clinic can streamline this process by filtering relays by brand and model.
Compatibility issues extend beyond physical dimensions to include thermal and electrical tolerances. GE refrigerators, for instance, frequently employ relays rated for higher amperage to accommodate their compressors’ demands. Using a lower-rated relay from another brand could result in overheating or premature failure. Similarly, European brands like Bosch or Miele often require relays compliant with 220-240V systems, which are incompatible with North American 110-120V standards. Verify voltage and amperage ratings to avoid mismatches that compromise performance or safety.
Practical tips for ensuring compatibility include examining the relay’s terminal markings and comparing them to the original part. If the new relay lacks matching terminals or wiring colors, it’s likely incompatible. Additionally, check for brand-specific part numbers—for example, a Whirlpool relay might be labeled "W10613606," while a Kenmore equivalent could be "8201786." When in doubt, opt for OEM (Original Equipment Manufacturer) parts, which are guaranteed to fit and function seamlessly with your refrigerator. Aftermarket alternatives may offer cost savings but often sacrifice precision and reliability.
In summary, compatibility with different refrigerator brands hinges on meticulous attention to voltage, pin configuration, and brand-specific design elements. Ignoring these factors can lead to operational inefficiencies or costly repairs. By prioritizing research, consulting resources, and selecting OEM parts, you can ensure a successful relay replacement that restores your refrigerator’s functionality without compromising its integrity.
Refrigerated Cooked Ham Storage: How Long is it Safe to Keep?
You may want to see also
Explore related products
Voltage and Power Requirements Variations
Refrigerator start relays are not universally compatible due to variations in voltage and power requirements, which are critical for ensuring the compressor operates efficiently and safely. These components are designed to handle specific electrical inputs, and mismatches can lead to overheating, reduced lifespan, or complete failure. For instance, a relay rated for 120V will not function correctly in a 240V system, as the higher voltage can cause excessive current flow, damaging the relay and potentially the compressor.
Analyzing voltage compatibility reveals that refrigerators in North America typically operate on 110-120V systems, while European models often require 220-240V. Start relays must match these voltages to ensure proper functionality. Additionally, power requirements vary based on the compressor’s size and efficiency. A small under-counter fridge may use a relay rated for 1/8 HP, while a large side-by-side model might require one rated for 1/3 HP or higher. Ignoring these specifications can result in insufficient starting torque or excessive energy consumption.
When replacing a start relay, always verify the voltage and power ratings printed on the original part or consult the refrigerator’s manual. For example, if the old relay is labeled "115V, 1/4 HP," ensure the replacement matches these parameters. If the exact model is unavailable, use a universal relay only if it explicitly supports the required voltage and power range. Cross-referencing compatibility charts or consulting a technician can prevent costly mistakes.
Practical tips include checking the relay’s terminal configuration, as voltage and power ratings often correlate with specific wiring setups. For instance, a relay with three terminals may be designed for a different power level than one with four. Additionally, consider environmental factors: refrigerators in areas with voltage fluctuations may benefit from relays with built-in surge protection. Always disconnect power before installation to avoid electrical hazards.
In conclusion, voltage and power requirements are non-negotiable factors when selecting a refrigerator start relay. Mismatches can compromise performance and safety, making it essential to prioritize compatibility over convenience. By understanding these variations and following precise guidelines, homeowners and technicians can ensure reliable operation and extend the appliance’s lifespan.
Unsalted Butter Shelf Life: How Long Can It Sit Out?
You may want to see also
Explore related products
Physical Size and Mounting Differences
Refrigerator start relays are not one-size-fits-all, and physical dimensions play a critical role in compatibility. A typical relay measures between 1.5 to 3 inches in length, 1 to 2 inches in width, and 0.5 to 1.5 inches in height, but these variations can render a seemingly identical relay unusable if it doesn’t fit the mounting bracket or compressor housing. For instance, a relay designed for a compact mini-fridge may be half the size of one intended for a full-sized refrigerator, making interchangeability impossible without modification. Always measure the original relay and compare it to the replacement, ensuring not only electrical compatibility but also physical fit.
Mounting configurations further complicate the assumption that all start relays are interchangeable. Some relays attach directly to the compressor via a bracket, while others mount on a nearby panel or surface. The orientation of mounting holes—whether they’re spaced 1 inch apart or offset at a 45-degree angle—can prevent a relay from securing properly. For example, a Whirlpool relay with vertical mounting holes won’t align with a Frigidaire model requiring horizontal placement. When replacing a relay, inspect the mounting hardware and hole patterns; mismatches here can lead to vibrations that damage the compressor or electrical connections over time.
Material and design differences in mounting brackets also contribute to incompatibility. Older refrigerators often use metal brackets, while newer models may employ plastic or composite materials. A metal bracket designed for a heavy-duty relay might not accommodate the lighter, more compact design of a modern replacement. Conversely, a plastic bracket could warp or crack under the weight of a larger relay. If the bracket itself is damaged, it’s often more cost-effective to replace the entire assembly rather than attempting to retrofit a mismatched relay.
Practical tip: Before purchasing a replacement relay, disassemble the mounting area and take detailed measurements, including hole spacing, bracket thickness, and clearance around the compressor. Cross-reference these dimensions with the manufacturer’s specifications or consult a compatibility chart. If the relay must be mounted at a specific angle or orientation, verify this requirement to avoid overheating or electrical failure. In some cases, using a universal mounting kit can bridge minor size discrepancies, but this should be a last resort, as improper fit can void warranties or reduce efficiency.
In conclusion, while start relays may appear functionally similar, physical size and mounting differences are non-negotiable factors in compatibility. Ignoring these details can lead to installation failures, premature wear, or even safety hazards. Treat relay replacement as a precision task, not a generic swap, and prioritize exact matches over close approximations. When in doubt, consult a technician or refer to the appliance’s service manual to ensure both electrical and mechanical alignment.
Can Panacur Be Refrigerated? Storage Tips for Pet Owners
You may want to see also
Explore related products
Start Relay vs. Overload Relay Functions
Refrigerator start relays and overload relays are distinct components with unique functions, yet their roles are often misunderstood. The start relay’s primary purpose is to provide an initial high-voltage boost to the compressor, enabling it to overcome inertia and begin running. Without this component, the compressor might hum or click but fail to start. In contrast, the overload relay acts as a protective device, cutting power to the compressor if it overheats or draws excessive current, preventing damage. While both are critical to the refrigerator’s operation, their functions are complementary rather than interchangeable.
Consider the start relay as the ignition system of a car, essential for initiating movement. It closes a circuit to send extra voltage to the compressor’s start winding, ensuring it spins up efficiently. Once the compressor reaches operational speed, the start relay disengages, allowing the run capacitor to maintain steady performance. Overload relays, however, monitor temperature and current, akin to a car’s fuse box. If the compressor’s temperature exceeds 250°F (121°C) or current surpasses safe limits, the overload relay trips, breaking the circuit to prevent burnout. This dual-safety mechanism ensures longevity and reliability in refrigeration systems.
A common misconception is that these relays are universal across all refrigerators. In reality, compatibility depends on factors like voltage (110V vs. 220V), compressor type, and manufacturer specifications. For instance, a start relay designed for a 1/3 HP compressor may not function with a 1/2 HP model due to differences in power requirements. Always consult the appliance’s manual or a technician to ensure the correct part is used. Mismatching relays can lead to inefficient operation, increased energy consumption, or even permanent compressor damage.
Practical troubleshooting tips can help differentiate relay issues. If the refrigerator fails to start but emits a humming sound, the start relay may be faulty. Testing with a multimeter for continuity (resistance should be near zero) can confirm this. Overload relay failure, on the other hand, often manifests as frequent compressor shutdowns or a warm exterior. Inspect the relay for visible damage or test its resistance; a reading of infinity indicates an open circuit. Replacing the appropriate relay promptly can restore functionality and prevent further complications.
In summary, while start and overload relays are both vital to a refrigerator’s operation, their roles are distinct and non-interchangeable. Understanding their functions, compatibility requirements, and troubleshooting methods empowers homeowners to address issues effectively. Always prioritize precision in part selection and consider professional assistance when in doubt, ensuring the appliance operates safely and efficiently.
Do Tennessee Rentals Include Refrigerators? What Tenants Need to Know
You may want to see also
Explore related products
![Electromagnetic Power Relay, 8-Pin 10 AMP 24V AC Relay Coil with Socket Base, LED Indicator, DPDT 2NO 2NC - MY4NJ 2PCS [Applicable for DIN Rail System]](https://m.media-amazon.com/images/I/71gVMBrJUrL._AC_UY218_.jpg)
Universal vs. Model-Specific Relay Designs
Refrigerator start relays are not one-size-fits-all components, and the distinction between universal and model-specific designs is critical for proper functionality. Universal relays are engineered to be compatible with a wide range of refrigerator models, offering a cost-effective and convenient solution for repairs. These relays typically feature adjustable voltage settings, such as 120V or 240V, and standardized pin configurations to accommodate various compressor types. However, their versatility comes with a trade-off: they may lack the precision and durability of model-specific relays, which are tailored to the exact electrical and mechanical requirements of a particular refrigerator.
When selecting a relay, consider the compressor’s start-up current, typically measured in amperes (e.g., 5A to 15A). Universal relays often support a broader range of current ratings, making them suitable for multiple applications. However, model-specific relays are designed to match the exact current demands of the compressor, reducing the risk of overheating or premature failure. For instance, a Whirlpool refrigerator may require a relay with a 10A rating, while a Samsung model might need a 12A variant. Always consult the manufacturer’s specifications or appliance manual to ensure compatibility.
Model-specific relays offer advantages in terms of longevity and performance. They are constructed with materials and components optimized for the specific refrigerator’s operating conditions, such as ambient temperature ranges or humidity levels. For example, a relay designed for a high-efficiency inverter compressor may include advanced thermal protection features to prevent damage during frequent start-stop cycles. In contrast, universal relays may not provide the same level of protection, potentially leading to reduced lifespan or inconsistent cooling performance.
For DIY repairs, universal relays can be a practical choice if the exact model-specific part is unavailable or expensive. However, installation requires careful attention to wiring diagrams and voltage settings. For instance, ensure the relay’s voltage selector switch matches your refrigerator’s power supply (e.g., 120V for North American models). Additionally, verify the pin configuration aligns with the compressor’s terminals to avoid short circuits. If in doubt, consult a professional technician to prevent costly mistakes.
In conclusion, while universal relays offer flexibility and affordability, model-specific relays provide superior reliability and performance. The choice depends on factors such as availability, budget, and the specific requirements of your refrigerator. Always prioritize compatibility and safety to ensure your appliance operates efficiently and lasts longer.
Refrigerating Fish Oil Capsules: Benefits, Risks, and Best Practices
You may want to see also
Frequently asked questions
No, not all refrigerator start relays are the same. They vary in terms of voltage, current ratings, pin configurations, and compatibility with specific refrigerator models.
While some universal start relays are available, it’s crucial to match the voltage, current, and pin configuration to your specific refrigerator model to ensure proper functionality.
Check the part number, voltage, and pin configuration of your current relay against the specifications of the replacement relay. Consulting the refrigerator’s manual or manufacturer can also help.
Not always. Start relays are often designed for specific brands or models, so compatibility cannot be assumed across different manufacturers. Always verify before replacing.
