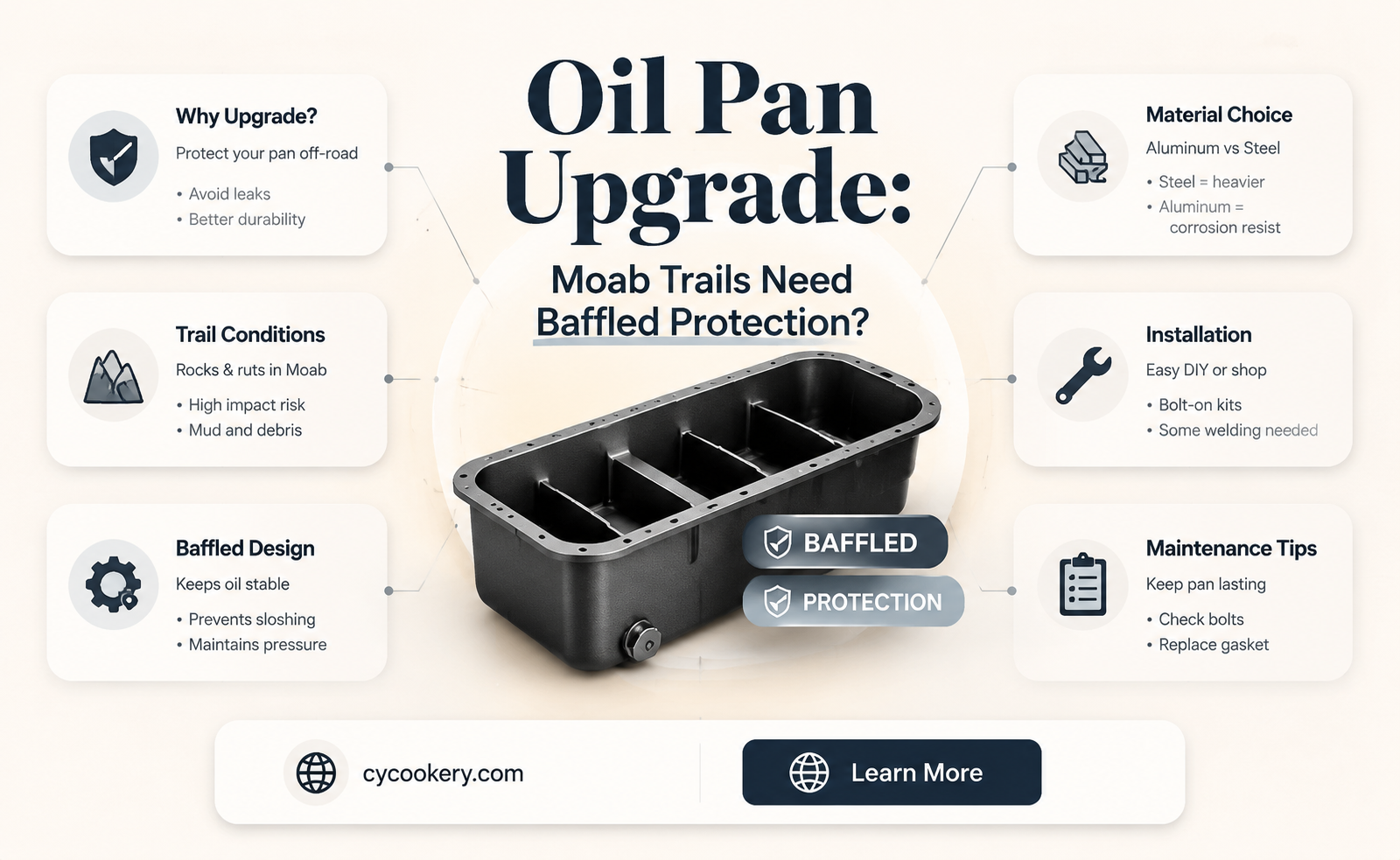

Oil Pan Upgrade: Moab Trails Need Baffled Protection?

Baffled oil pans are an essential upgrade for drivers who want to push their cars to the limit. The pans feature chambers that control oil movement, making it easy for the oil to travel towards the oil pick-up and preventing it from sloshing away during high-speed manoeuvres or extreme driving conditions. This innovation solves the issue of oil starvation, which can lead to engine failure. While some debate the necessity of baffled oil pans, they are a worthwhile investment for those seeking peace of mind and optimal performance on the trails at Moab or any other challenging terrain.

Baffled oil pans prevent oil starvation

Moab is a popular destination for off-roading and rock crawling. The trails at Moab can be challenging and technical, with a variety of terrain that can put a vehicle's performance and durability to the test. While a baffled oil pan is not explicitly mentioned as a recommendation for the trails at Moab, understanding the benefits of a baffled oil pan can help determine its suitability for the trails.

Baffled oil pans are an effective solution to prevent oil starvation, a common issue in vehicles subjected to high g-forces, such as in motorsports and off-roading. Oil starvation occurs when the oil in the pan sloshes to one side due to lateral acceleration, causing the oil pickup to be exposed and unable to draw oil. This leads to excessive engine wear and potential catastrophic failure.

Baffled oil pans address this issue by incorporating chambers that restrict the oil's movement towards the pickup. These chambers are designed with trap doors that only allow oil to flow inward towards the pickup, making it difficult for the oil to slosh away during high-speed maneuvers or challenging terrain. Additionally, baffled oil pans often feature increased capacity, ensuring a more abundant oil supply for the engine.

The benefits of a baffled oil pan are significant in preventing oil starvation and its detrimental consequences. By limiting the oil's movement, the oil pickup can consistently draw oil, even during high g-force turns or off-road conditions. This maintains adequate oil pressure and lubrication within the engine, reducing the risk of excessive wear and engine failure.

For those who enjoy pushing their vehicles to the limits, whether on the race track or the trails of Moab, a baffled oil pan can provide peace of mind and improved performance. By preventing oil starvation, drivers can focus on navigating tight turns and tackling challenging terrain without worrying about engine damage. While a dry sump system is considered the best method to prevent oil starvation, it is also more expensive and may not be feasible for weekend warriors or off-road enthusiasts. In such cases, a baffled oil pan offers a cost-effective solution without compromising performance.

Baffled oil pans are a cheaper alternative to dry sump systems

I could not find sufficient information relating specifically to the trails at Moab, but I did find details about the advantages of using a baffled oil pan.

Baffled oil pans are a good option for those who can't justify the cost of a dry sump system, especially if you are just a track day enthusiast who doesn't have a prepped car. They are a lower-cost alternative that can still help to prevent oil starvation and keep your engine lubricated and cool.

While dry sump systems offer many advantages, such as increased reliability, oil capacity, and improved vehicle handling and stability, they also come with some disadvantages. Dry sump systems can add cost, complexity, and weight to your vehicle. They require additional oil and maintenance and can be tricky to position around the engine and within the engine bay due to their size.

Baffled oil pans, on the other hand, are a more cost-effective solution that can provide similar benefits to a dry sump system. By limiting the movement of oil and increasing the capacity of the oil pan, baffled oil pans can help prevent oil starvation and improve engine lubrication and cooling.

Overall, if you are looking for a cheaper alternative to a dry sump system, a baffled oil pan is a great option that can provide similar benefits at a lower cost.

Baffled oil pans are recommended for high-performance driving conditions

To prevent oil starvation, some high-performance cars use a "dry sump" system, where the oil is stored in an external reservoir. However, this system is expensive and may not be feasible for all drivers. A more affordable alternative is to use a baffled oil pan, which has chambers that make it easier for oil to travel towards the oil pump and prevent it from sloshing away. Baffled oil pans also tend to increase the capacity of the oil pan, providing more oil for the system.

When choosing a baffled oil pan, factors to consider include the type of engine, stroke, oil pump, chassis, and intended use of the car. The shape and depth of the oil pan are also important, as kickouts can increase oil pan capacity but may require baffling to keep the oil at the pickup. Trap-door baffles, for example, are one-way hinged baffles that promote oil movement in one direction while impeding flow in the other, helping to keep oil around the oil pump pickup inlet.

Overall, baffled oil pans are recommended for high-performance driving conditions to prevent oil starvation and ensure consistent oil pressure. They are a more affordable alternative to dry sump systems and can be customized to fit specific engine and chassis requirements.

Baffled oil pans are available for a variety of vehicles

Another example is the Moroso 5.5-quart steel oil pan, which is compatible with B-series engines. It features baffles with multiple trap doors and is known to resolve oil pressure issues. This pan is also available in aluminum, but the steel version has fewer complaints of leaks.

For Honda B-series engines, PasswordJDM offers a weld-in baffled oil pan kit for around $40. This kit includes extra tabs that provide a solid weld. Honda and Acura enthusiasts recommend this kit for those looking to add baffles to their oil pans.

Additionally, Ford Racing offers a baffled oil pan for the 5.0L Mustang, which is primarily used for drag racing. This pan has two compartments, with the shallow compartment on the right allowing space for the oil pump. The deeper compartment on the left features a square chamber designed to trap oil, and this is where the oil pickup is located.

Finally, Subaru WRX owners have reported that their vehicles do not suffer from oil starvation issues, so a baffled oil pan may not be necessary for this particular model. However, some Subaru owners have expressed interest in adding a baffled oil pan to their vehicles for rallycross, autocross, and track use.

DIY baffled oil pan kits are available

For example, Speedwell Engineering offers a baffle plate assembly kit for Austin-Healey Sprite and MG Midget vehicles. The kit includes a baffle plate, three mounting tabs with welded nut-serts, and six AN3 bolts with drilled heads and washers. The assembly can be installed through MIG or TIG welding, but spot-welding is recommended as the most sanitary method. With a price of $224.95, it's a more affordable option compared to a dry sump system.

Another option is to create your own DIY baffled oil pan using cardboard, sheet metal, and a welder. This method can be more time-consuming but allows for customization to fit your specific pan configuration. It involves using cardboard to create a baffle pattern, cutting out the pattern from sheet metal, and welding it into your oil pan. This DIY approach can be a fun and rewarding project for those who enjoy hands-on work and want to improve their vehicle's performance.

Whether you choose to purchase a kit or create your own DIY solution, upgrading to a baffled oil pan can provide several benefits. Baffled oil pans help prevent oil starvation under high-performance driving conditions, such as hard cornering and braking. They do this by limiting the oil's movement and ensuring it stays where the pump can suck it up into the engine. Additionally, baffled oil pans can increase the capacity of the oil pan, providing more oil available for the system.

In summary, DIY baffled oil pan kits are a cost-effective and customizable option for those looking to improve oil control and prevent oil starvation. With a range of kits and DIY approaches available, vehicle owners can enhance their vehicle's performance and maintain peace of mind while pushing their cars to the limits.
