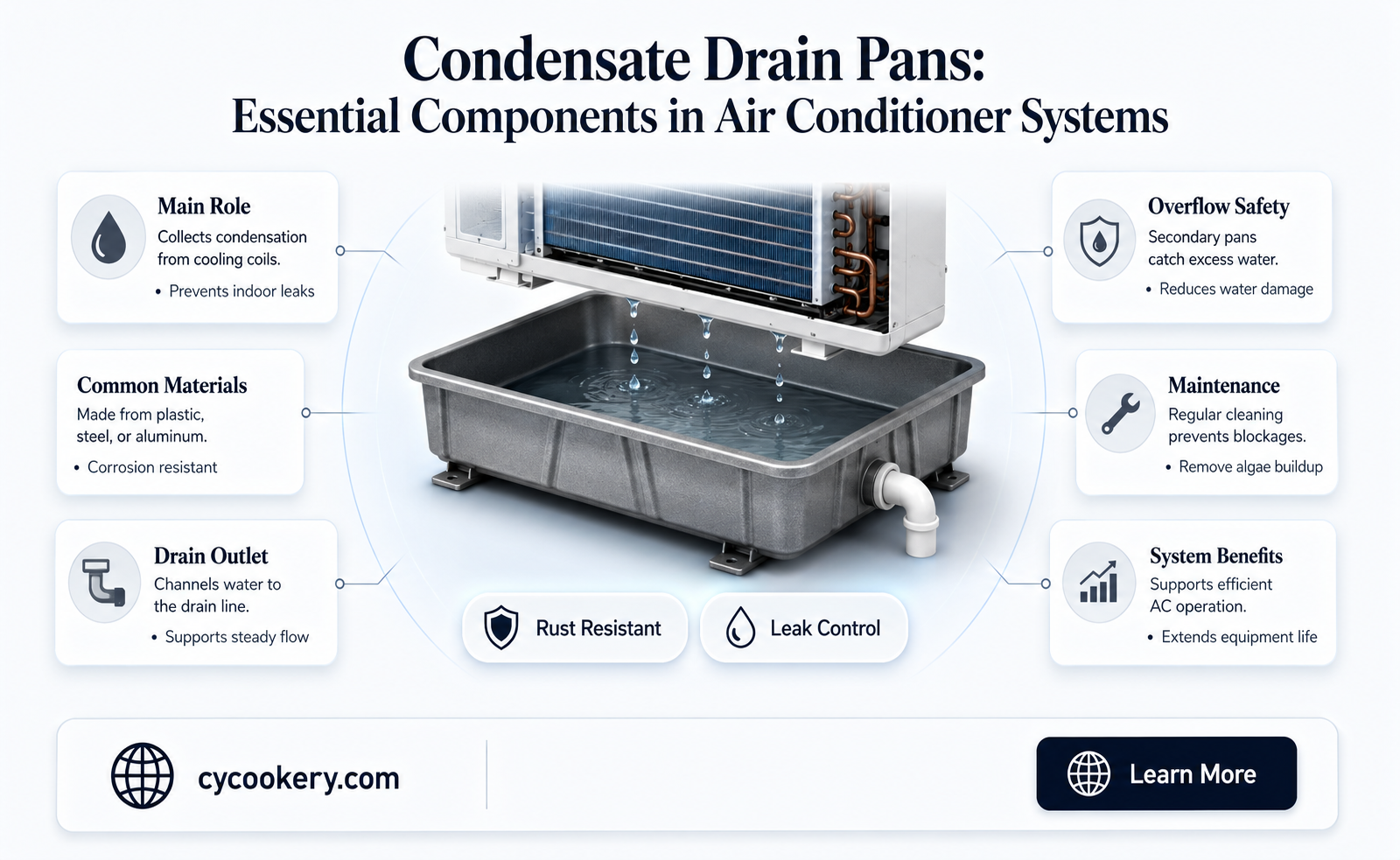

Condensate drain pans are essential components in air conditioning systems, designed to collect and channel the moisture that condenses on the evaporator coils during the cooling process. As warm air passes over these coils, it cools and releases water vapor, which accumulates in the drain pan. This collected water is then directed through a drain line to prevent it from pooling inside the unit or causing water damage. Drain pans are particularly crucial in preventing issues like mold growth, musty odors, and structural damage to the surrounding area. They are commonly used in both residential and commercial air conditioning systems to ensure efficient moisture management and maintain optimal system performance.
| Characteristics | Values |
|---|---|
| Purpose | Collect and channel condensate water from the evaporator coil |
| Location | Beneath the indoor evaporator coil of an air conditioner |
| Material | Typically made of plastic, metal, or a combination of both |
| Shape | Often rectangular or square, designed to fit the unit's dimensions |
| Slope | Sloped towards the drain outlet to facilitate water flow |
| Drain Outlet | Includes an opening or fitting to connect to a drain line |
| Capacity | Sized to hold a sufficient volume of condensate before draining |
| Compatibility | Used in both residential and commercial air conditioning systems |
| Maintenance | Requires periodic cleaning to prevent clogs and mold growth |
| Secondary Function | Acts as a secondary containment to prevent water leaks |
| Installation | Typically installed during the initial setup of the AC system |
| Regulations | Must comply with local building codes and HVAC standards |
| Common Issues | Clogging, overflow, and algae or mold buildup if not maintained |
| Alternatives | Some systems use condensate pumps instead of drain pans |
Explore related products
What You'll Learn
- Purpose of Drain Pans: Collect condensate water from AC evaporator coils to prevent water damage
- Types of Drain Pans: Primary and secondary pans for added leak protection in AC systems
- Installation Locations: Placed beneath indoor AC units or air handlers for efficient water collection
- Maintenance Tips: Regular cleaning to avoid clogs, mold, and overflow issues in drain pans
- Common Issues: Cracks, rust, or improper slope leading to water leakage in AC systems
Purpose of Drain Pans: Collect condensate water from AC evaporator coils to prevent water damage
Condensate drain pans play a crucial role in the proper functioning of air conditioning systems, primarily by collecting condensate water that forms on the evaporator coils. During the cooling process, warm air passes over the cold evaporator coils, causing moisture in the air to condense into water droplets. This condensate water, if not managed properly, can lead to water damage within the system or the surrounding area. The primary purpose of drain pans is to capture this water, ensuring it is safely directed away from sensitive components and structural elements of the building. Without a drain pan, the accumulated water could overflow, causing damage to ceilings, walls, or flooring, and potentially leading to mold growth or electrical issues.
The design of condensate drain pans is specifically tailored to fit beneath the evaporator coils, providing a basin-like structure to hold the water as it drips off the coils. These pans are typically made from durable materials such as metal or plastic, which resist corrosion and withstand the constant exposure to moisture. Proper installation is key to their effectiveness; the pan must be level to ensure all condensate is collected and directed toward the drain outlet. Additionally, drain pans often include a slope or a strategically placed outlet to facilitate the flow of water into the drainage system, preventing stagnation and potential blockages.
Another critical function of drain pans is to protect the air conditioning system itself. Water accumulation near electrical components or sensitive parts of the AC unit can cause short circuits, rust, or other forms of damage, leading to costly repairs or system failure. By containing the condensate, drain pans safeguard the longevity and efficiency of the air conditioner. Regular maintenance, such as cleaning the pan and ensuring the drain line is clear, is essential to prevent clogs and overflow, which could negate the protective benefits of the drain pan.
In addition to their protective role, condensate drain pans contribute to indoor air quality and hygiene. Standing water in an AC system can become a breeding ground for bacteria, mold, and mildew, which can then be circulated into the indoor air, posing health risks to occupants. By efficiently collecting and removing condensate, drain pans help maintain a clean and healthy environment. This is particularly important in humid climates or areas where air conditioning systems are in frequent use, as these conditions can accelerate the growth of harmful microorganisms.
Lastly, the use of condensate drain pans is often mandated by building codes and HVAC standards to ensure safety and compliance. These regulations specify requirements for pan size, material, and installation to guarantee effective water management. Homeowners and HVAC professionals must adhere to these guidelines to avoid legal issues and ensure the system operates safely. In summary, condensate drain pans are indispensable components of air conditioning systems, serving the vital purpose of collecting condensate water from evaporator coils to prevent water damage, protect the system, and maintain indoor air quality.
