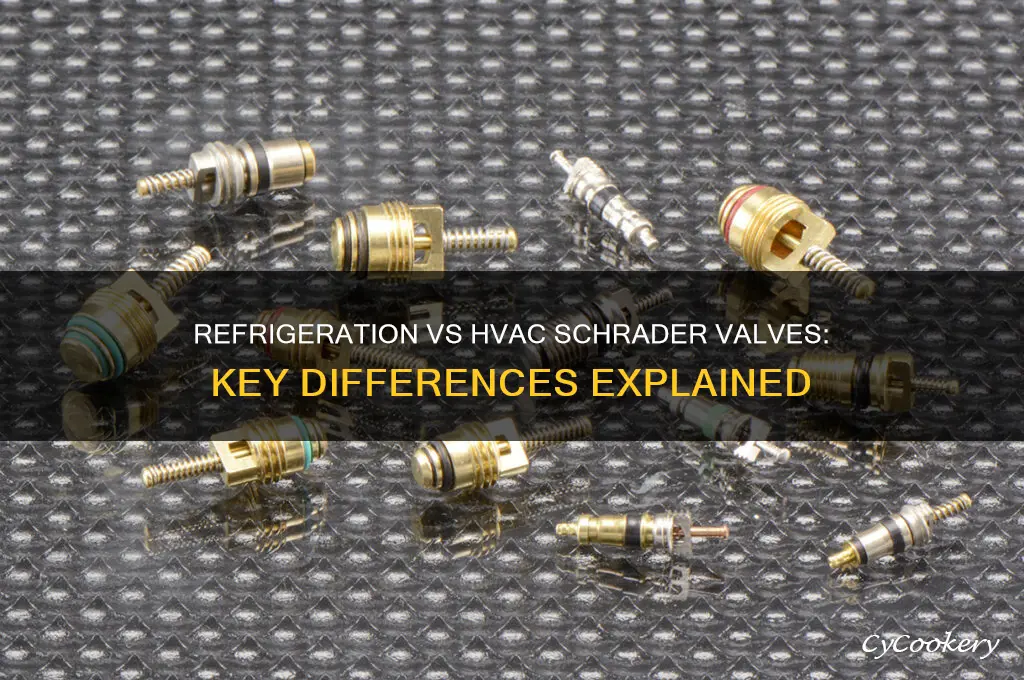

Refrigeration Schrader valves and HVAC Schrader valves, while similar in appearance, serve distinct purposes and are designed for different systems. Refrigeration Schrader valves are specifically engineered to handle the unique pressures and refrigerants used in cooling systems, such as those found in refrigerators, freezers, and air conditioning units. They are typically made from materials resistant to corrosion and compatible with refrigerants like R-134a or R-410A. In contrast, HVAC Schrader valves are often used in heating, ventilation, and air conditioning systems, where they may encounter different pressure ranges and fluids, including refrigerants and oils. While both types share a common core design, their construction, materials, and specifications can vary to meet the specific demands of their respective applications, making them not interchangeable in all cases.
Explore related products
What You'll Learn
- Schrader Valve Types: Automotive vs. HVAC/R Applications
- Pressure Ratings: Differences in PSI Handling for Refrigeration and HVAC
- Seal Materials: Compatibility with Refrigerants vs. HVAC Coolants
- Thread Sizes: Standard Variations in Schrader Valves Across Systems
- Core Designs: Unique Features for Refrigeration vs. HVAC Schrader Valves
Schrader Valve Types: Automotive vs. HVAC/R Applications
Schrader valves, those small yet critical components, play distinct roles in automotive and HVAC/R systems, each tailored to meet specific demands. In automotive applications, Schrader valves are primarily found in tire inflation systems and air conditioning units. These valves are designed to handle higher pressures, typically ranging from 250 to 400 PSI, to accommodate the rigorous conditions of vehicle operation. For instance, a standard car tire Schrader valve must withstand repeated inflation cycles and exposure to road debris, making durability a key feature. Automotive Schrader valves often feature a robust brass construction and a secure seal to prevent air leakage, ensuring optimal tire performance and safety.
In contrast, HVAC/R (Heating, Ventilation, Air Conditioning, and Refrigeration) systems utilize Schrader valves in a different capacity, focusing on precision and compatibility with refrigerants. These valves are engineered to operate at lower pressures, usually between 0 and 300 PSI, depending on the refrigerant type and system design. HVAC/R Schrader valves are often made from materials resistant to corrosion and chemical degradation, such as stainless steel or nickel-plated brass, to ensure longevity in the presence of refrigerants like R-410A or R-134a. Additionally, they may incorporate specialized cores to prevent refrigerant escape during servicing, a critical safety and environmental consideration.
One notable difference lies in the valve cores. Automotive Schrader valves typically use a standard core that can be easily removed and replaced with a tire gauge or air chuck. HVAC/R valves, however, often employ a "high-side" or "low-side" core, depending on the system’s pressure requirements. For example, a high-side valve on an air conditioning unit might have a red core to indicate it handles higher pressures, while a low-side valve with a blue core manages lower pressures. This color-coding system helps technicians avoid errors during maintenance.
When servicing these systems, it’s essential to use the correct tools and follow best practices. For automotive applications, a simple tire gauge or air compressor is sufficient for checking and adjusting tire pressure. In HVAC/R systems, technicians must use refrigerant-specific gauges and recovery equipment to comply with EPA regulations. For instance, when replacing a Schrader valve in an HVAC system, ensure the new valve is compatible with the refrigerant and rated for the system’s operating pressure. Always evacuate the system before opening it to prevent refrigerant release.
In summary, while Schrader valves share a common design principle, their applications in automotive and HVAC/R systems differ significantly in terms of pressure handling, material composition, and core design. Understanding these distinctions ensures proper maintenance and safety, whether you’re inflating a tire or servicing an air conditioning unit. Always refer to manufacturer guidelines and industry standards to select the right valve for the job.
