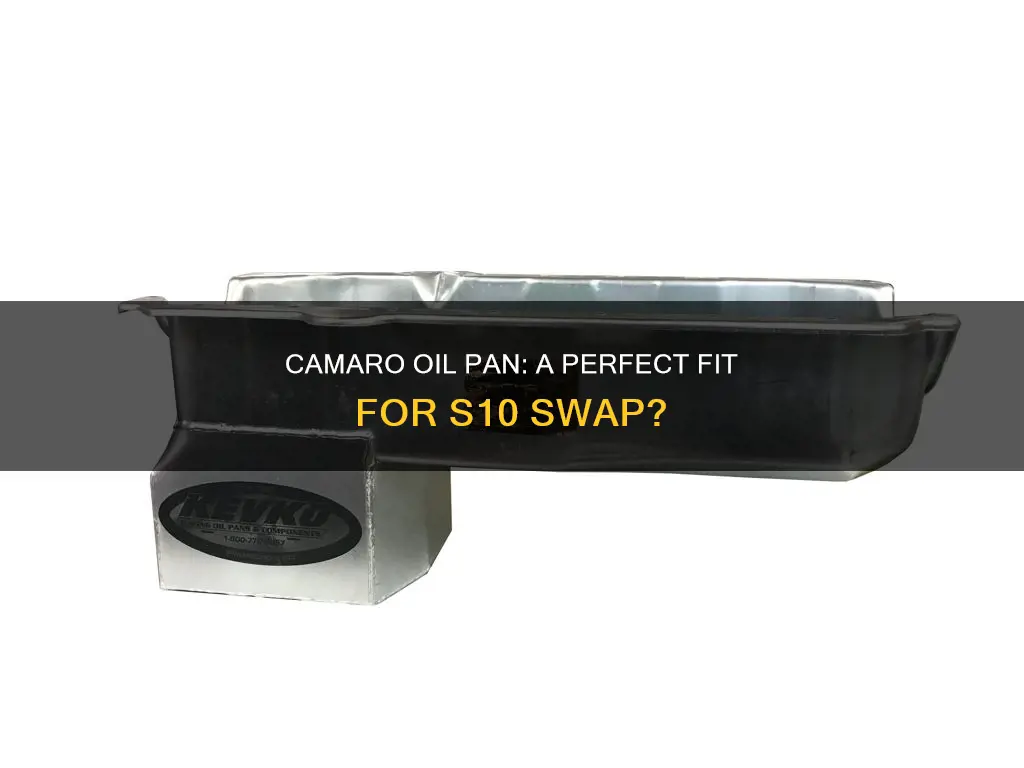

The Camaro and Chevy S10 are two iconic American cars with dedicated fan bases. While both have their unique characteristics, some enthusiasts have explored the possibility of swapping components between the two, specifically the oil pan. The oil pan, also known as the sump, is a critical component of an engine's lubrication system, and ensuring compatibility is essential for the engine's performance and longevity. This topic explores the feasibility and challenges of using a Camaro oil pan in a Chevy S10 swap, considering factors such as engine type, clearance, and modifications required.
Characteristics and Values Table for 'Can a Camaro Oil Pan Work on a S10 Swap'
| Characteristics | Values |
|---|---|
| Oil Pan Type | Stock oil pan, Camaro pan, Holley 302-1 Pan, H3 Alpha pan, GM 19212593 oil pan, Hummer H3 Alpha 5.3 oil pan |
| Vehicle Type | Chevy S10 Family: Chevy LUV, Jimmy, S10, S15, GMC Sonoma, Olds Bravada, Isuzu Hombre, Blazer |
| Engine Type | Small-block engines, V8, V6 |
| Modifications | Cutting/welding oil pan, notching cross member, using motor mount kit, bolting/welding deflector plate |
| Part Numbers | Oil Pan Part#12614821, Pickup Part# 12608593, Tube Part# 12612015, Dipstick Part# 12603506, GM part #14054836 |
Explore related products
What You'll Learn
Using a Camaro oil pan on a Vett engine
When it comes to using a Camaro oil pan on a Vett engine, there are a few things to consider. Firstly, it is important to choose an oil pan that is compatible with the Vett engine and offers a proper fit. In this regard, the Holley 302-2 and 302-3 oil pans are popular choices as they offer the same oil capacity as the F-body pan but with greater flexibility in fitment. This is due to the design of the Holley pans, which have sumps that are bumped outward, allowing for a shorter sump at the front while still maintaining the same oil capacity as the F-body pan.
Another option is the Autokraft pan, which has been mentioned as fitting well in a first-generation Camaro without any modifications. This pan also offers good oil control features, such as baffles and trap doors, which help keep oil around the pickup. Additionally, the CTSV pan has been noted as a successful swap option, using adapter plates and stock SBC mounts.
It is worth noting that some Camaro oil pans may require modifications to fit the Vett engine. For example, one user mentioned notching the front of the F-body pan to clear the centre linc. It is important to carefully measure and plan the swap to ensure a proper fit and avoid any potential clearance issues.
When it comes to oil pickup tubes, the standard V8 part found in a Camaro is different from the part required for a 4X4 V8 conversion. The oil pickup tube used in a Camaro is typically the same as that used in a Caprice or 2WD full-size pickup. However, when converting to a 4X4 V8, a specific oil pickup tube (GM part #14054836) must be installed to prevent the engine from sucking air and dying.
In summary, when using a Camaro oil pan on a Vett engine, it is important to consider the fitment, oil capacity, and any necessary modifications. The Holley pans and Autokraft pan are popular choices for their flexibility and oil control features, respectively. Additionally, the CTSV pan is another successful swap option. By carefully planning the swap and considering the unique requirements of the Vett engine, a Camaro oil pan can be successfully utilised.
Baking Cookies: Pizza Pan vs Cookie Sheet
You may want to see also
Explore related products
Hummer H3 Alpha 5.3 oil pan
The Hummer H3 Alpha 5.3 oil pan has better baffling than the standard 5.3 pan and retains the same capacity. The exhaust manifolds are more "tucked" in at the flange, at least on the driver's side. The H3 Alpha 5.3 oil pan may offer additional opportunities in the LSx conversion arena, especially for 4x4 and Bravada.
The oil pan has a catalytic converter that is close-fit to the exhaust manifold. The part number for the oil pan is 12614821, and it can be purchased for $94.21. The pickup tube with part number 12608593 can be bought for $21.52, and the dipstick with part number 12603506 costs $8.93.
For the Hummer H3 Alpha 5.3 oil pan to work on a Camaro or Firebird S10 swap, the oil pan may need to be cut and welded to give more clearance. This has been done before, and pictures are available online.
When it comes to oil pans for S10 swaps, there are a few options. One option is to use a stock oil pan, which some people have done without any problems. Another option is to use a Camaro pan, which may require a smaller cut in the cross member. Additionally, Stealth Conversions offers three oil pans for the 4x4 V8 swap, with different part numbers depending on the engine year and type of rear main seal.
In conclusion, the Hummer H3 Alpha 5.3 oil pan has improved features compared to the standard 5.3 pan, and it may be suitable for LSx conversions. This oil pan is available for purchase, along with the necessary pickup tube and dipstick. When using it for an S10 swap, modifications may be required, as shown by other users. Additionally, there are alternative oil pans available for S10 swaps, including stock pans and those offered by Stealth Conversions.
Hot Water Pot Rescue: Removing Stains and Restoring Shine
You may want to see also
Explore related products
Holley 302-1 Pan
The Holley 302-1 Pan is an LS Swap Oil Pan designed to fit LS engines into a variety of vehicles. It provides maximum clearance to the chassis and ground, with an OE (Original Equipment) Style fitment for durability and proper sealing. The pan is made from high-quality cast aluminium and includes a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover. It has a maximum crankshaft stroke of 4.25 inches and a sump oil capacity of 5.5 quarts. The total oil capacity with a stock oil filter is 6 quarts.
The Holley 302-1 Pan has received positive reviews from customers, who have praised its quality and fast delivery. One customer review on Amazon mentions that the pan is "very high quality" and that they are "sure it will work fine". Another review highlights the pan's perfect fit and good instructions, with the customer not expecting any issues.
The Holley 302-1 Pan is designed to address the issue of factory LS pans not always fitting or hanging too low for modern hot rods. It provides an improved weight distribution and ideal engine set-back. It is suitable for GM muscle cars and truck chassis, offering OEM fitment, oil filter mounting, oil cooler port provision, and engine NVH suppression.
The Holley 302-1 Pan is part of Holley's commitment to its customers and their cars, continuously innovating late-model and vintage vehicle performance. It is priced at $465.95 and is available from various retailers, including Amazon and Summit Racing.
While I cannot confirm if the Holley 302-1 Pan specifically mentions compatibility with a Camaro oil pan and S10 swap, its versatility in fitting LS engines into a range of vehicles suggests it could be a viable option. It is always recommended to consult with automotive experts or mechanics for specific vehicle compatibility and requirements before making any modifications or swaps.
Who's Rumple's Father? Pan's Dark Secret
You may want to see also
Explore related products
GM 19212593 oil pan set
The GM 19212593 oil pan set is designed for GM Gen III/IV LS engine swaps. It is a muscle car oil pan kit that fits most 1955-1985 GM front engine, rear-wheel drive factory V8 passenger cars. The oil pan is made of aluminium and has a natural finish, with a capacity of 5 quarts. The kit includes a dipstick and tube, gaskets, a pickup tube, a windage tray, and all mounting hardware.
Reviews for the GM 19212593 oil pan set are generally positive, with customers praising the quality and value for money. One customer review states that the product "looks like it belongs in the truck. Plus, it is a GM part, so it's made very well. Also, it came with everything." Another review mentions that the oil pan has "great quality" and includes a "dipstick, oil pan gasket, and new bolts".
However, there are also some mixed reviews regarding the hardware included with the oil pan. One customer mentions that the dipstick was missing, despite being clearly shown and stated as part of the kit. Another customer reports that the product arrived with loose bolts and a little bit of rust.
The GM 19212593 oil pan set is available for purchase on Amazon, with a price of $234.05 at the time of writing. It is also available on other websites, such as Jegs.com and SummitRacing.com, which may offer different prices and include additional parts or accessories.
Regarding the compatibility of a Camaro oil pan with an S10 swap, it is suggested that a Camaro pan can be used on a Vett engine for an S10 swap, as mentioned in a forum discussion. However, specific details and modifications required are not provided. It is always recommended to consult with a professional or refer to manufacturer guidelines for accurate information regarding specific vehicle modifications.
Cleaning a Dissecting Pan: A Step-by-Step Guide
You may want to see also
Explore related products
Stock oil pans
When it comes to stock oil pans, there are a few options and considerations to keep in mind for a Camaro and S10 swap. Firstly, it's important to distinguish between the stock oil pans for a car and a truck. A stock car oil pan can work well, and some users have reported success with using a Camaro oil pan on a Vett engine, requiring a smaller cut in the cross member. However, for a 4x4 V8 swap, a standard stock car or truck V8 oil pan will not clear the front axle/differential, and a special oil pan is required.
Stealth Conversions offers three oil pans specifically for the 4x4 V8 swap. The first is Part # S10-110, which fits 1979 and older engines and includes a dipstick tube mounted on the driver's side. This option tends to be more expensive because of the included dipstick tube. The second option is Part # S10-111, suitable for 1986 and newer engines with a one-piece rear main seal and a passenger's side dipstick. This option uses the stock block-mounted dipstick tube. The third choice is the do-it-yourself version, Part # S10-113, which requires welding an extension onto the stock oil pan. It is also designed for 1986 and newer engines with a one-piece rear main seal and a passenger's side dipstick, utilizing the stock block-mounted dipstick tube.
For those with 1980-1985 oil pans, there is another option: Part # S10-115. This pan fits those older pans and has a two-piece rear main seal and a passenger's side dipstick. It uses the stock block-mounted dipstick tube as well. This particular pan is made from dry-sump racing pans and can accommodate a stroker crank. It also features a chamfered cut-out on the driver's side, providing the necessary clearance between the front differential and the oil pan. This cut-out allows for a lower engine mount, ensuring proper transmission tunnel and hood clearance without the need for a body lift.
Some users have reported success with using stock oil pans without any issues. One user mentioned that they had used two different styles of stock pans without any problems. They also suggested that using the bottom holes (truck holes) instead of the top holes (blazer holes) can lower the motor by about 3/4 of an inch. However, if using a water pump-mounted fan, notching the core support for the fan may be necessary.
The Ever-Boiling Hot Pot: Unveiling the Science Behind its Endurance
You may want to see also
Frequently asked questions
S10 swap refers to the process of swapping out the stock oil pan of a Chevy S10 with an alternative oil pan, such as one from a Camaro.
Using a Camaro oil pan for an S10 swap can provide greater clearance, which is advantageous for certain engine configurations and modifications.
Yes, it is important to ensure compatibility with the engine and chassis configuration. Modifications, such as cutting or welding, may be required to ensure a proper fit and adequate clearance. Additionally, the choice of oil filter and pickup tube should be carefully considered to ensure optimal performance.
