Ella Walter

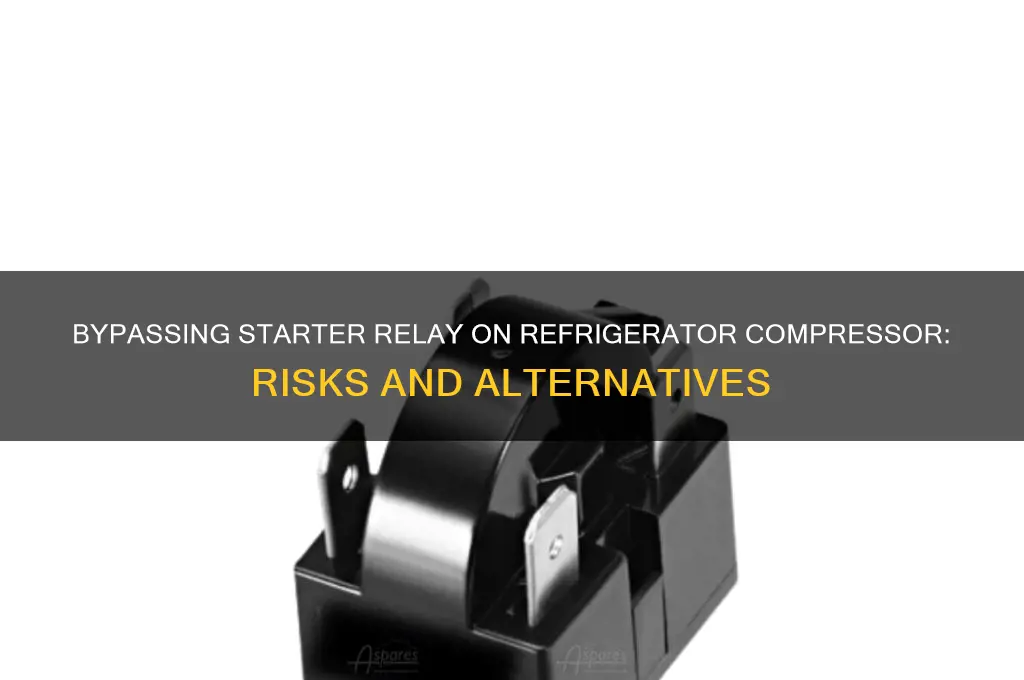

Bypassing the starter relay on a refrigerator compressor is a topic that often arises when troubleshooting or attempting to repair a malfunctioning refrigerator. The starter relay plays a crucial role in initiating the compressor's operation by providing the necessary high current to start the motor. However, in some cases, a faulty relay can prevent the compressor from functioning, leading homeowners or technicians to consider bypassing it as a temporary or permanent solution. While this approach might seem straightforward, it involves understanding the electrical system, potential risks, and whether it’s a viable long-term fix. This discussion will explore the feasibility, safety concerns, and alternatives to bypassing the starter relay on a refrigerator compressor.
| Characteristics | Values |
|---|---|
| Feasibility | Possible in some cases, but not recommended |
| Purpose | To temporarily start a refrigerator compressor without the starter relay |
| Method | Connecting the run and start windings directly |
| Risks | High risk of damaging the compressor, overheating, or electrical hazards |
| Long-term Use | Not suitable; can lead to compressor failure |
| Recommended Use | Emergency troubleshooting only |
| Alternative Solutions | Replace the faulty starter relay, check capacitor, or consult a professional |
| Safety Concerns | High voltage, risk of electrical shock, or fire |
| Technical Knowledge Required | Advanced understanding of electrical systems and refrigeration |
| Tools Needed | Multimeter, wire strippers, and appropriate safety gear |
| Legal and Warranty Implications | May void warranty or violate safety regulations |
| Environmental Impact | Potential release of refrigerants if compressor fails |
| Cost-Effectiveness | Not cost-effective; repairing or replacing the relay is cheaper |
| Common Misconceptions | Bypassing is a permanent fix (it is not) |
| Professional Advice | Always consult a certified technician for compressor issues |
Explore related products
What You'll Learn
Direct Wiring Compressor to Power Source
Direct wiring a refrigerator compressor to a power source is a method some consider when attempting to bypass a faulty starter relay. This approach involves connecting the compressor directly to the power supply, effectively eliminating the relay from the circuit. While this might seem like a straightforward solution, it’s crucial to understand the risks and technical considerations involved. The starter relay plays a vital role in providing the initial high torque needed to start the compressor motor, and bypassing it can lead to excessive current draw, overheating, or even permanent damage to the compressor.
To proceed with direct wiring, first ensure the power source matches the compressor’s voltage and frequency requirements. Most household refrigerators operate on 110-120V or 220-240V, depending on the region. Disconnect the refrigerator from the power supply before beginning any work to avoid electrical hazards. Locate the compressor’s terminals, typically marked as "start" and "run." In a standard setup, the start winding is energized briefly through the relay to initiate the motor, while the run winding keeps it operating. When bypassing the relay, you’ll connect the run winding directly to the power source.
Using appropriate wire gauge and insulation, connect the run winding terminal of the compressor to the live wire of the power source. The neutral wire should be connected to the common or neutral terminal of the compressor. It’s essential to use a properly rated capacitor if the compressor requires one for continuous operation. Without a start winding, the motor may struggle to start, and the capacitor helps provide the necessary phase shift for single-phase motors. Ensure all connections are secure and insulated to prevent short circuits.
While direct wiring can temporarily restore operation, it is not a long-term solution. The compressor may draw excessive current during startup, leading to blown fuses, tripped breakers, or motor burnout. Additionally, the lack of a start winding can reduce efficiency and increase wear on the motor. This method is best used as a diagnostic tool to determine if the relay is indeed the problem or as a temporary fix in emergencies. Always prioritize safety and consider consulting a professional technician for a proper repair.
In conclusion, direct wiring a compressor to a power source bypasses the starter relay but comes with significant risks. It requires careful attention to voltage compatibility, wiring, and the use of a capacitor if necessary. While it can provide temporary functionality, it is not a sustainable solution and may cause further damage. Always weigh the risks against the benefits and consider replacing the faulty relay or seeking professional assistance for a reliable and safe repair.
Refrigerating Frozen Cheese: Safe Practices and Tips for Quality Preservation
You may want to see also
Explore related products
Testing Starter Relay Functionality
When testing the starter relay functionality on a refrigerator compressor, it's essential to understand its role in the system. The starter relay assists the compressor in starting by providing an initial boost of power to the start winding. Over time, the relay can wear out or malfunction, leading to compressor issues. To determine if the starter relay is functioning correctly, you'll need a multimeter, safety gear, and a basic understanding of electrical circuits. Always disconnect the refrigerator from the power source before beginning any tests to ensure safety.
Start by locating the starter relay, which is typically attached to the compressor or nearby. It consists of two main components: the start relay and the overload protector. Using your multimeter set to the ohms (resistance) setting, test the continuity of the start relay contacts. Place one probe on the "S" (start) terminal and the other on the "R" (run) terminal. A properly functioning relay should show continuity (low resistance) when the compressor is off. If there is no continuity, the relay may be faulty and require replacement.
Next, test the overload protector, which is integrated into the starter relay assembly. This component prevents the compressor from overheating by cutting power if it draws too much current. With the multimeter still on the ohms setting, check the continuity between the "C" (common) terminal and the "R" terminal. Continuity should be present, indicating the overload protector is not tripped. If there is no continuity, the overload protector may be open, which could be due to a temporary trip or a permanent failure. Allow the compressor to cool and retest before concluding it needs replacement.
To further assess the starter relay's functionality, perform a live test if you suspect intermittent issues. Reconnect the refrigerator to the power source and set your multimeter to the voltage setting. Measure the voltage across the "S" and "R" terminals while the compressor is attempting to start. You should observe a momentary voltage drop as the relay engages the start winding. If the voltage remains constant or fluctuates erratically, the relay may not be engaging properly, indicating a malfunction.
Finally, consider testing the relay under load conditions if you have access to specialized equipment. This involves simulating the compressor's start-up process to observe the relay's behavior in real-time. While not always necessary for basic troubleshooting, this step can provide definitive proof of the relay's functionality or failure. If all tests indicate a faulty starter relay, bypassing it is not recommended, as it serves a critical safety and operational function. Instead, replace the relay with a compatible unit to ensure reliable compressor performance.
Refrigerating Brittle: Tips for Storing and Preserving Your Treats
You may want to see also
Explore related products
Using Hard Start Kit Alternative
When considering bypassing the starter relay on a refrigerator compressor, one effective alternative is using a Hard Start Kit. This method is particularly useful if the starter relay is faulty or if you want to improve the compressor’s starting performance. A Hard Start Kit works by providing an additional boost of power to the compressor during startup, reducing the strain on the motor and extending its lifespan. While bypassing the starter relay entirely is not recommended due to safety and efficiency concerns, using a Hard Start Kit serves as a reliable and safe alternative.
To implement a Hard Start Kit, start by identifying the correct kit for your refrigerator model. Most kits are universal but ensure compatibility with your compressor’s voltage and horsepower. The installation process involves connecting the Hard Start Kit in parallel with the compressor’s run and start windings. Begin by turning off the power to the refrigerator and locating the compressor terminals. Carefully disconnect the wires from the start relay and connect them to the corresponding terminals on the Hard Start Kit. Follow the manufacturer’s instructions for proper wiring, as incorrect connections can damage the compressor.
Once the Hard Start Kit is installed, it will automatically engage when the compressor starts, providing the necessary boost to overcome high startup loads. This is especially beneficial in situations where the compressor struggles to start due to age, wear, or high ambient temperatures. The kit typically includes a start capacitor and a potential relay, which work together to reduce the inrush current and ensure a smooth startup. This not only protects the compressor but also improves the overall efficiency of the refrigeration system.
It’s important to note that while a Hard Start Kit is a great alternative to bypassing the starter relay, it should be installed by someone with basic electrical knowledge. If you’re unsure about the process, consult a professional technician to avoid risks such as electrical shock or damage to the appliance. Additionally, regularly inspect the Hard Start Kit for signs of wear or malfunction to ensure it continues to function effectively.
In summary, using a Hard Start Kit is a practical and safe alternative to bypassing the starter relay on a refrigerator compressor. It enhances startup performance, reduces motor strain, and prolongs the compressor’s life. By following proper installation guidelines and ensuring compatibility, you can effectively address compressor starting issues without compromising safety or efficiency.
Does Refrigerated Hershey's Caramel Syrup Expire or Stay Fresh?
You may want to see also
Explore related products
Potential Risks of Bypassing Relay
Bypassing the starter relay on a refrigerator compressor may seem like a quick fix to get your appliance running again, but it comes with significant risks that can lead to costly repairs or even permanent damage. The starter relay plays a crucial role in controlling the flow of electricity to the compressor, ensuring it starts and runs efficiently. By bypassing this component, you eliminate the protective mechanisms it provides, exposing the compressor to potential electrical surges and overloads. This can cause the compressor motor to overheat, leading to insulation breakdown, short circuits, or complete motor failure. Without the relay’s control, the compressor may draw excessive current during startup, which can trip circuit breakers or damage other electrical components in the refrigerator.
Another major risk of bypassing the starter relay is the loss of overload protection. The relay is often integrated with an overload switch that cuts power to the compressor if it detects excessive heat or current. By bypassing the relay, you disable this safety feature, allowing the compressor to continue running even under dangerous conditions. This can result in the compressor burning out, releasing refrigerant, or even causing a fire hazard. Refrigerators are designed with these safety mechanisms for a reason, and removing them can have severe consequences for both the appliance and your home.
Bypassing the starter relay can also void the warranty on your refrigerator. Manufacturers include relays and other components to ensure the appliance operates safely and efficiently. Tampering with these parts is often considered unauthorized modification, which can invalidate any warranty coverage. If the compressor or other components fail due to the bypass, you may be left with the full cost of repairs or replacement. Additionally, if a technician discovers the bypass during a service call, they may refuse to work on the appliance due to safety concerns or liability issues.
Furthermore, bypassing the relay can lead to inconsistent performance and reduced efficiency of the refrigerator. The relay helps regulate the compressor’s operation, ensuring it cycles on and off appropriately to maintain the desired temperature. Without it, the compressor may run continuously or fail to start properly, leading to inadequate cooling or excessive energy consumption. This not only affects the appliance’s ability to preserve food but also increases your electricity bills over time. The temporary fix of bypassing the relay can ultimately result in long-term inefficiency and higher operating costs.
Lastly, attempting to bypass the starter relay without proper knowledge or experience can pose personal safety risks. Working with electrical components, especially those in appliances, requires understanding voltage, current, and wiring diagrams. Mistakes during the bypass process can result in electrical shocks, burns, or other injuries. Even if the bypass appears to work initially, it may create latent issues that manifest later, putting you or others at risk. It is always safer and more effective to address the root cause of the relay failure rather than bypassing it, ensuring the refrigerator operates as intended without compromising safety or performance.
Can You Safely Store Oak Bottles in the Refrigerator?
You may want to see also
Explore related products
Compressor Overload Protection Considerations
When considering bypassing the starter relay on a refrigerator compressor, it is crucial to understand the role of compressor overload protection in preventing damage to the system. The starter relay is often integrated with overload protection mechanisms designed to safeguard the compressor from excessive current, heat, or mechanical stress. Bypassing this relay without addressing overload protection can lead to catastrophic failure, including burned-out windings, insulation damage, or even a complete compressor burnout. Overload protection typically consists of thermal or current-sensing devices that interrupt power to the compressor when unsafe conditions are detected. Before attempting any bypass, evaluate whether the existing overload protection can function independently of the starter relay or if additional safeguards need to be implemented.
One of the primary compressor overload protection considerations is the risk of overcurrent during startup. The starter relay assists in reducing the initial surge of current when the compressor starts, which is critical for preventing overload. If the relay is bypassed without an alternative method to limit startup current, the compressor may draw excessive amperage, tripping circuit breakers or damaging internal components. To mitigate this, consider installing a dedicated overload protector or ensuring the compressor’s internal thermal protection is functional. Additionally, verify that the system’s wiring and circuit breakers are rated to handle the compressor’s inrush current without the relay’s assistance.
Another critical aspect of compressor overload protection considerations is thermal management. Compressors generate significant heat during operation, and the starter relay often works in tandem with thermal overload switches to shut off the compressor if temperatures exceed safe limits. Bypassing the relay without ensuring proper thermal protection can lead to overheating, especially in high-ambient temperature environments. Inspect the compressor for built-in thermal protectors and test their functionality. If the relay’s thermal protection is integral to its design, consider installing an external thermal switch or upgrading to a compressor with standalone overload safeguards.
Mechanical stress is also a factor in compressor overload protection considerations. The starter relay helps ensure smooth and controlled startup, reducing strain on the compressor’s motor and internal components. Bypassing the relay may result in abrupt starts, increasing mechanical wear and the likelihood of premature failure. To address this, assess the compressor’s mechanical condition and consider adding a soft-start module or capacitor to ease the startup process. Regular maintenance, such as lubricating moving parts and checking for worn components, can further reduce the risk of mechanical overload.
Finally, compressor overload protection considerations must include compliance with safety standards and manufacturer guidelines. Bypassing the starter relay may void warranties or violate electrical codes, posing legal and safety risks. Always consult the refrigerator’s manual or contact the manufacturer for guidance on modifying the system. If bypassing is deemed necessary, ensure all modifications are performed by a qualified technician and that the system is thoroughly tested for proper operation and safety. Prioritizing overload protection not only preserves the compressor’s lifespan but also ensures the safety and efficiency of the entire refrigeration system.
Storing Food Rations in the Fridge: Best Practices and Tips
You may want to see also
Frequently asked questions
Bypassing the starter relay is not recommended as it can damage the compressor or reduce its lifespan. The relay helps the compressor start efficiently by providing extra power during startup.
Bypassing the starter relay can cause the compressor to draw excessive current during startup, leading to overheating, motor burnout, or premature failure of the compressor.
If the starter relay is faulty, the best solution is to replace it with a new one. Attempting to bypass it is risky and can void warranties or cause further damage. Always consult a professional technician for repairs.
