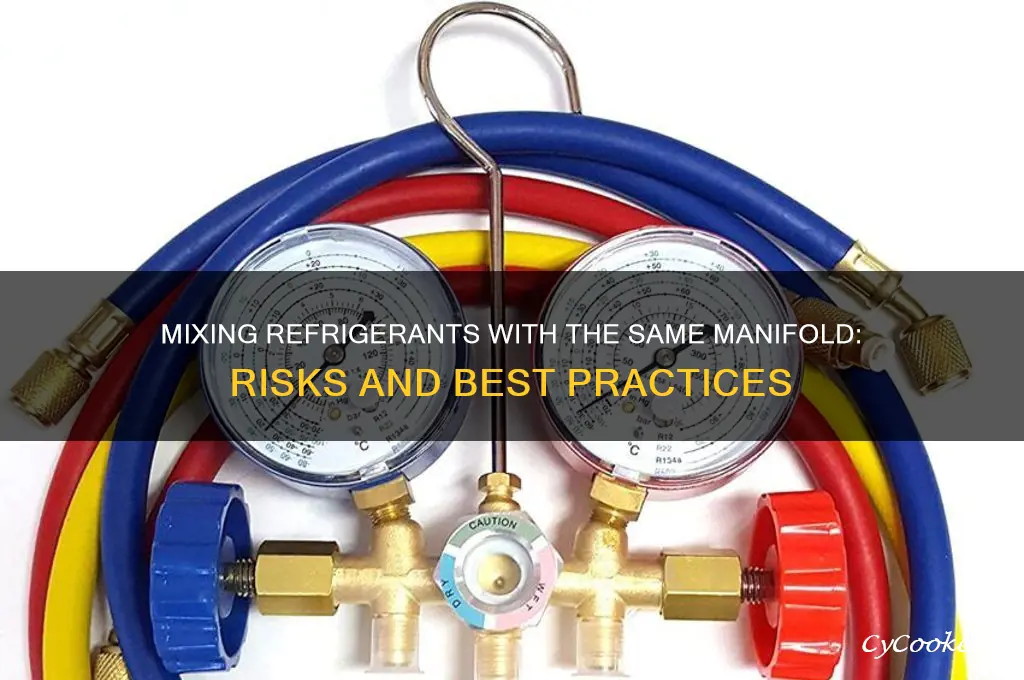

Mixing refrigerants with the same manifold is a common concern among HVAC technicians, as it involves potential risks and compatibility issues. While using a single manifold for different refrigerants might seem convenient, it’s crucial to understand that not all refrigerants are interchangeable. Mixing refrigerants can lead to chemical reactions, reduced system efficiency, or even damage to the equipment. Even refrigerants with similar properties, such as R-22 and R-410A, are not compatible due to differences in oil types and pressure requirements. Always consult manufacturer guidelines and ensure the manifold is thoroughly purged and cleaned before switching between refrigerants to avoid contamination and ensure optimal system performance.
| Characteristics | Values |
|---|---|
| Compatibility | Mixing refrigerants with the same manifold is generally not recommended unless they are chemically compatible. Mixing incompatible refrigerants can lead to chemical reactions, reduced efficiency, or system damage. |
| Oil Compatibility | Different refrigerants often require specific lubricating oils. Mixing refrigerants may result in oil breakdown or inadequate lubrication, causing compressor failure. |
| Pressure and Temperature | Refrigerants have unique pressure-temperature characteristics. Mixing them can lead to unpredictable system pressures, affecting performance and safety. |
| System Efficiency | Mixing refrigerants can reduce the overall efficiency of the HVAC or refrigeration system, leading to higher energy consumption and operating costs. |
| Environmental Impact | Some refrigerant mixtures may have higher Global Warming Potential (GWP) or Ozone Depletion Potential (ODP), violating environmental regulations. |
| Safety Risks | Incompatible refrigerant mixtures can pose safety risks, including increased flammability, toxicity, or explosive hazards. |
| Legal and Regulatory Compliance | Mixing refrigerants may violate industry standards (e.g., ASHRAE, EPA) and manufacturer warranties, leading to legal or financial consequences. |
| System Contamination | Mixing refrigerants can introduce contaminants, leading to clogging, corrosion, or other system issues. |
| Cost Implications | If mixing causes system damage, repairs or replacements can be costly. Additionally, improper mixing may void warranties. |
| Professional Recommendation | HVAC professionals strongly advise against mixing refrigerants unless explicitly approved by the system manufacturer and performed by a certified technician. |
Explore related products
What You'll Learn
Compatibility of Refrigerants with Same Manifold
When considering the compatibility of refrigerants with the same manifold, it's essential to understand that not all refrigerants can be mixed or used interchangeably, even if the manifold is designed to handle multiple types. The primary concern is the chemical composition and properties of the refrigerants, as well as the potential for contamination, which can lead to system inefficiencies, damage, or even failure. Mixing refrigerants with different properties, such as oil solubility, pressure-temperature characteristics, and chemical reactivity, can result in adverse reactions, reduced system performance, and voided warranties.
The manifold itself plays a crucial role in refrigerant compatibility. Manifolds are typically designed with specific materials and seals that are compatible with certain refrigerant types. For instance, manifolds used for R-22 systems may not be suitable for R-410A due to the higher pressures and different oil requirements of the latter. Using a manifold not rated for a specific refrigerant can lead to seal degradation, leaks, and other issues. Therefore, it's vital to consult the manufacturer's guidelines for both the manifold and the refrigerants to ensure compatibility.
In cases where a manifold is labeled as compatible with multiple refrigerants, it is generally safe to use it for those specific types without mixing them in the same system. However, transitioning between refrigerants requires thorough evacuation and recovery of the existing refrigerant to prevent contamination. For example, if switching from R-22 to R-410A, the system must be completely evacuated, and the oil must be changed to a type compatible with R-410A, as R-22 systems typically use mineral oil, while R-410A requires POE (polyol ester) oil. Failure to do so can result in oil breakdown, acid formation, and system damage.
Another critical aspect is the use of adapters and hoses. When working with different refrigerants, ensure that all components, including hoses and adapters, are rated for the specific refrigerant being used. Some refrigerants, like R-410A, operate at significantly higher pressures than others, requiring thicker hoses and more robust fittings. Using incompatible components can lead to hose bursting, fitting failure, or manifold damage, posing safety risks and increasing repair costs.
Lastly, it’s important to adhere to industry standards and regulations when handling refrigerants. The EPA and other regulatory bodies have strict guidelines regarding the recovery, recycling, and disposal of refrigerants to minimize environmental impact. Mixing refrigerants or using improper equipment can violate these regulations, leading to fines and legal consequences. Always use certified equipment and follow best practices to ensure safety, compliance, and system longevity when working with refrigerants and manifolds.
Using Vacuum Pumps for Refrigerant Evacuation: Safe and Effective Methods
You may want to see also
Explore related products
Risks of Mixing Different Refrigerant Types
Mixing different refrigerant types, even when using the same manifold, poses significant risks that can compromise system performance, safety, and longevity. Refrigerants are specifically engineered to work within certain parameters, and combining incompatible types can lead to chemical reactions that produce harmful byproducts. For instance, blending a chlorofluorocarbon (CFC) refrigerant with a hydrofluorocarbon (HFC) refrigerant can result in the formation of acids or other corrosive substances. These byproducts can damage critical components such as compressors, valves, and tubing, leading to costly repairs or system failure. Always consult manufacturer guidelines and refrigerant compatibility charts before considering any mixing.
Another major risk of mixing refrigerants is the potential for reduced system efficiency and performance. Different refrigerants have varying thermodynamic properties, such as pressure-temperature relationships and heat transfer capabilities. When mixed, these properties can become unpredictable, leading to inadequate cooling or heating, increased energy consumption, and uneven system operation. For example, a blend of R-22 and R-410A can cause the system to operate outside its designed pressure range, straining the compressor and reducing overall efficiency. This not only increases operational costs but also shortens the lifespan of the HVAC or refrigeration system.
Safety hazards are a critical concern when mixing refrigerants. Some combinations can create flammable or toxic substances, especially when blending older refrigerants like ammonia (R-717) with newer HFCs or HFOs. In confined spaces, such as residential or commercial HVAC systems, this can pose a fire or health risk to occupants. Additionally, pressure imbalances caused by incompatible refrigerants can lead to leaks or even catastrophic failures, such as compressor explosions. Technicians must prioritize safety and avoid mixing refrigerants unless explicitly approved by the system manufacturer and in compliance with industry standards.
Environmental impact is another significant risk associated with mixing refrigerants. Many refrigerants have high global warming potential (GWP), and improper blending can exacerbate their environmental harm. For example, mixing a low-GWP refrigerant like R-32 with a high-GWP refrigerant like R-404A can negate the environmental benefits of the former. Furthermore, releasing mixed refrigerants into the atmosphere during servicing or disposal can violate environmental regulations, resulting in fines or legal penalties. Proper handling, recovery, and disposal of refrigerants are essential to minimize ecological damage.
Lastly, mixing refrigerants can void warranties and violate industry regulations. Most HVAC and refrigeration system manufacturers explicitly prohibit the use of unapproved refrigerant blends, as they can cause irreversible damage. Technicians who mix refrigerants may also run afoul of regulations like the Clean Air Act or EPA Section 608, which govern refrigerant handling and disposal. Non-compliance can result in severe consequences, including loss of certification, business reputation damage, and financial penalties. Always adhere to industry best practices and consult experts when in doubt about refrigerant compatibility.
Refrigerating Soup Safely: Tips for Storing Cooked Soup Properly
You may want to see also
Explore related products
Proper Manifold Gauge Use for Mixed Refrigerants
When working with mixed refrigerants, proper manifold gauge use is critical to ensure system integrity, safety, and compliance with industry standards. Mixing refrigerants with the same manifold is possible, but it requires careful consideration and adherence to best practices. The first step is to ensure that the refrigerants being mixed are compatible. Not all refrigerants can be combined, and using incompatible types can lead to chemical reactions, system damage, or reduced efficiency. Always consult manufacturer guidelines and refrigerant compatibility charts before proceeding.
Before using a manifold gauge set for mixed refrigerants, it is essential to thoroughly clean and purge the manifold and hoses. Residual refrigerant from a previous job can contaminate the new mixture, leading to unpredictable results. Use a vacuum pump to evacuate the manifold and hoses, ensuring all traces of the previous refrigerant are removed. Additionally, inspect the manifold gauges, hoses, and fittings for leaks or damage. Faulty equipment can compromise the integrity of the refrigerant mixture and pose safety risks.
When connecting the manifold gauge set to the system, ensure that the correct ports are used for high and low pressure. Proper labeling and color-coding of hoses (typically red for high-pressure and blue for low-pressure) are crucial to avoid confusion. For mixed refrigerants, it is often recommended to use dedicated hoses or manifolds to minimize cross-contamination, especially if the same tools are used for different refrigerant types. If a single manifold is used, clearly label it to indicate the specific refrigerant mixture being handled.
During the charging or recovery process, monitor the manifold gauges closely to ensure accurate pressure readings. Mixed refrigerants may have different pressure-temperature relationships compared to single-component refrigerants, so refer to the appropriate PT charts for the specific blend. Avoid overcharging the system, as this can lead to inefficiency or damage. If recovering mixed refrigerants, use a recovery machine that is compatible with the blend and ensure the recovered refrigerant is properly identified and stored to prevent accidental mixing with other types.
Finally, after completing the job, purge the manifold gauge set again to remove any residual mixed refrigerant. Store the manifold and hoses in a clean, dry environment, and clearly label them if they are dedicated to a specific refrigerant blend. Regular maintenance and calibration of the manifold gauges are also essential to ensure accurate readings and safe operation. By following these guidelines, technicians can safely and effectively use manifold gauges for mixed refrigerants while maintaining system performance and compliance with industry standards.
Refrigerating Sushi Overnight: Safe Practices and Freshness Tips
You may want to see also
Explore related products
Identifying Refrigerant Types Before Mixing
When considering whether to mix refrigerants with the same manifold, the first and most critical step is identifying the refrigerant types involved. Mixing incompatible refrigerants can lead to system damage, reduced efficiency, or even safety hazards. Refrigerants are classified by their chemical composition, properties, and intended applications. Common types include R-22, R-410A, R-134a, and newer blends like R-32 or R-454B. Each refrigerant has unique characteristics, such as pressure-temperature relationships, lubricating oil requirements, and chemical reactivity, which must be understood before attempting any mixing.
To identify refrigerant types, start by checking the system labels or markings. Most HVAC or refrigeration systems have a label indicating the refrigerant type used. If the label is missing or unclear, consult the equipment’s manual or contact the manufacturer. Additionally, use refrigerant identifiers—handheld devices that analyze the chemical composition of the refrigerant. These tools provide accurate results and are essential for confirming the refrigerant type, especially in older systems where documentation may be incomplete.
Another method for identifying refrigerants is observing system components and oils. Different refrigerants require specific lubricating oils, such as mineral oil, alkylbenzene (AB), or polyol ester (POE). Inspecting the compressor or oil type can offer clues about the refrigerant used. For example, R-22 systems typically use mineral oil, while R-410A systems require POE oil. Mismatched oils and refrigerants can cause system failure, so this step is crucial for compatibility assessment.
Pressure and temperature behavior can also help identify refrigerants. Each refrigerant has a unique pressure-temperature curve, which can be compared to standard charts. By measuring the system’s pressure and temperature during operation and cross-referencing these values, you can narrow down the refrigerant type. However, this method is less precise than using identifiers and should be used as a supplementary check.
Finally, consulting industry standards and guidelines is essential. Organizations like ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) provide detailed information on refrigerant properties and compatibility. Refer to their resources to ensure accurate identification and avoid mixing refrigerants that are not designed to work together. Proper identification is the foundation for making informed decisions about refrigerant mixing and system maintenance.
Refrigerating Zucchini Bread Batter: Tips for Freshness and Flavor
You may want to see also
Explore related products
Potential System Damage from Incorrect Mixing
Mixing refrigerants with the same manifold, even if they are of the same type, can lead to significant potential system damage. Different refrigerants have varying chemical compositions, lubricating oil requirements, and operating pressures. When incompatible refrigerants are mixed, they can create chemical reactions that degrade system components. For instance, blending R-22 with R-410A can cause acids to form, leading to corrosion of copper tubing, valves, and other critical parts. This corrosion not only reduces the efficiency of the system but can also result in costly repairs or premature system failure.
Another critical issue arises from the incompatibility of lubricating oils used with different refrigerants. Each refrigerant type requires a specific oil to ensure proper lubrication of the compressor and other moving parts. Mixing refrigerants can cause the oils to separate or become ineffective, leading to inadequate lubrication. This can result in compressor burnout, as the lack of proper lubrication causes excessive friction and heat buildup. Replacing a compressor is a major expense and can often be avoided by adhering to proper refrigerant handling practices.
Pressure differentials between refrigerants also pose a significant risk when mixing. For example, R-410A operates at higher pressures than R-22, and using a system designed for R-22 with R-410A can cause seals, hoses, and other components to fail under the increased stress. Similarly, using a refrigerant with a lower pressure than the system is designed for can lead to inefficient operation and potential damage due to inadequate pressure levels. These pressure-related issues can compromise the integrity of the entire HVAC or refrigeration system.
Furthermore, mixing refrigerants can void warranties and violate manufacturer guidelines. Most HVAC and refrigeration systems are designed and tested to work with specific refrigerants, and deviating from these specifications can lead to unpredictable outcomes. Manufacturers often disclaim liability for damages caused by improper refrigerant mixing, leaving the system owner responsible for repair or replacement costs. Adhering to recommended practices ensures not only the longevity of the system but also compliance with warranty terms.
Lastly, incorrect refrigerant mixing can lead to environmental hazards and regulatory non-compliance. Many refrigerants are subject to strict regulations due to their impact on the ozone layer and global warming potential. Mixing refrigerants can result in the release of harmful chemicals into the atmosphere, contributing to environmental degradation. Additionally, improper handling and disposal of mixed refrigerants can lead to fines and penalties under environmental laws. Proper refrigerant management, including avoiding mixing, is essential for both system integrity and environmental stewardship.
Using Wood for Refrigerator Shelves: Pros, Cons, and Safety Tips
You may want to see also
Frequently asked questions
No, you should not mix refrigerants with the same manifold unless they are compatible and approved for use together. Mixing incompatible refrigerants can cause contamination, damage to the system, or reduced efficiency.
Mixing different refrigerants can lead to chemical reactions, system inefficiencies, or damage to components like the compressor, valves, or seals. Always ensure the refrigerants are compatible before mixing.
No, R-22 and R-410A are not compatible and should not be mixed or serviced with the same manifold. Using the wrong manifold can cause cross-contamination and system failure.
Refer to the manufacturer’s guidelines or consult the refrigerant’s safety data sheet (SDS). Only mix refrigerants if they are explicitly stated as compatible and approved for use together.
Yes, thoroughly clean and purge the manifold with nitrogen or the appropriate refrigerant to prevent cross-contamination when switching between different types of refrigerants.
