Ella Walter
Basement windows are often designed to be challenging to remove, with some even suggesting that they are not meant to be removed at all. However, there are ways to do so, and it is possible to alter the window to make it removable in the future. The process can be tricky, and there are various methods depending on the type of window, but a common approach involves removing the sash and altering the bottom track. For windows with a vertical bar holding the fixed panel, removing the sliding panel first and then using a hammer and screwdriver to gently tap the bar towards the opening until it can be removed is also an option.

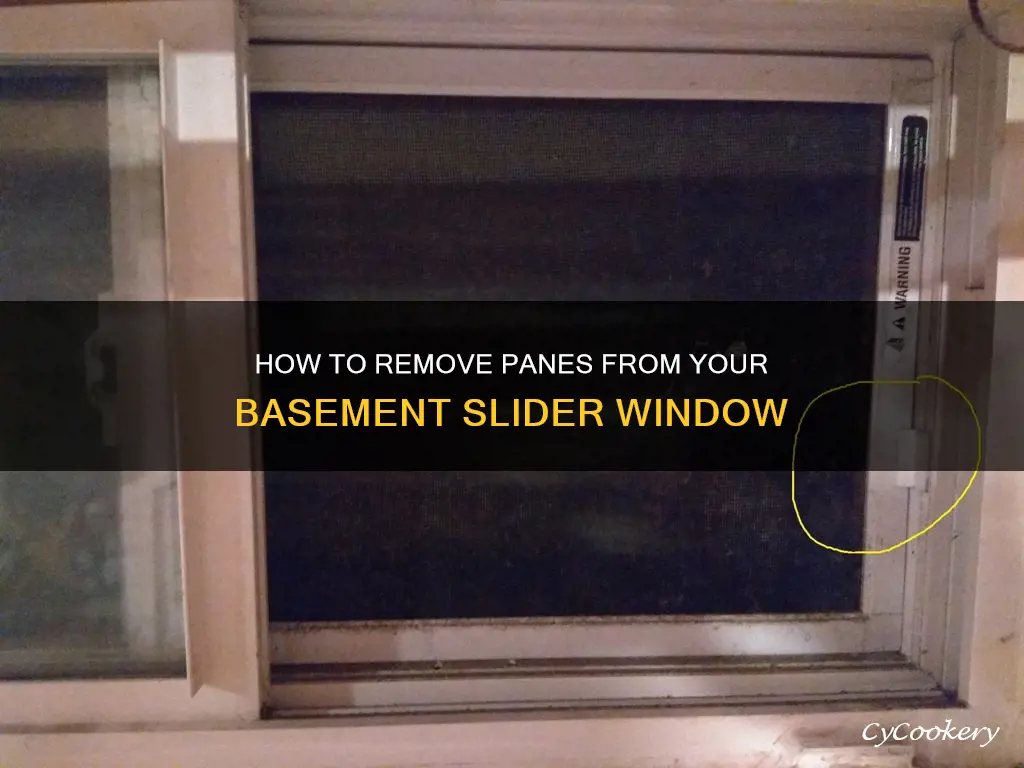

Basement Slider Window Pane Removal Characteristics
| Characteristics | Values |
|---|---|
| Pane Removal | Basement slider window panes can be removed by first removing the sliding panel, then using a screwdriver and hammer to gently tap the vertical bar holding the fixed panel until it can be angled and removed. |
| Installation | Basement windows are often installed with both panes locked to prevent frame "racking". |
| Pane Types | Basement windows can be single- or double-paned, with vinyl or aluminum frames. |
| Standard Heights | Basement windows typically come in standard heights of 12", 16", 20", and 36". |
| Width | The standard width for basement windows is 31". |
| Brands | Common brands include Columbia, Monarch, and Kewanee. |
| Alterations | To make panes removable, alterations to the bottom track or sash may be required, but this could impact window functionality and may not always be possible. |
Explore related products
What You'll Learn
Removing the non-sash pane
To remove the non-sash pane from a basement slider window, you will need to identify the type of window you have and the specific mechanism that holds the panes in place. Here is a step-by-step guide to help you through the process:
Identify the Window Type
Determine if your window is a single-hung or double-hung sliding window. A single-hung window has one movable sash, while a double-hung window has two movable sashes. This will impact the specific steps you need to take for removal.
Remove Window Cords (For Older Windows)
If your basement slider window is an older model that uses cords to open and close, begin by removing these cords. Pull the bottom sash out of the windowsill to access the cords attached to its sides. Unhook them and tie the cords in knots to prevent them from retracting into the pockets where the weights hang.
Unlock the Window
Make sure the window is unlocked before you begin the removal process. This will ensure that you can freely move the sashes and access the necessary components.
Remove Sash Stops
Sash stops are small pieces of wood or metal located at the top corners of the window frame. They prevent the window from opening too far, but they can also hinder sash removal. Carefully pull out the sash stops and set them aside so you can proceed with removing the non-sash pane.
Deal with Painted Sash Stops
If your sash stops have been painted over, you may need to use a putty knife to carefully break the painted seal. Gently run the putty knife between the sash and the window frame to loosen the painted connection.
Remove any Dowel Rods
Some windows may have a stick or dowel rod propped up against the sash to restrict its movement. Remove this rod and set it aside temporarily to allow for sash removal.
Address Removal Clips or Tilt Latches
Basement slider windows typically have one of two mechanisms for holding the sashes in place: removal clips or tilt latches. For removal clips, open them by popping them out after removing the sash stops. If your window has tilt latches, slide them towards the centre of the window to disengage the sash from the track.
Lift Out the Sash
Once you have addressed the clips or latches, you can carefully lift out the sash. This will involve sliding the sash upwards and then lifting it away from the window frame. Be gentle and cautious during this step to avoid damaging the sash or the surrounding frame.
Clear the Lower Track
As mentioned by some users, basement slider windows may have bracket-like objects or PVC rails in the centre corners that prevent the non-sash pane from being lifted out. You may need to address these obstructions by removing or altering them to clear the lower track for pane removal.
Reinstall Carefully
After completing your work or passing through materials, remember to carefully reinstall the sash and any components you removed, such as sash stops or dowel rods. Ensure that everything is secure and functioning properly before considering your task complete.
Remember to work cautiously and only proceed with each step if you feel confident and comfortable. If you encounter significant resistance or if any step seems overly complicated, consider seeking professional advice or assistance.
Parchment Paper in Square Pan: Easy Steps
You may want to see also
Explore related products
Using suction cups to handle larger windows
Basement slider windows that are set directly into the concrete foundation of a house may not be easily removable. While some suggest shaving down the head jamb rail, altering the bottom track, or cutting the window, these methods may not be ideal if you want to avoid installing a new window.
If you need to remove a large window pane, using suction cups can be a safe and efficient method. Glass suction cups, also known as glass or vacuum lifters, are an essential tool for handling glass surfaces. They create a vacuum seal on the glass, allowing for secure handling. Here are some tips for using suction cups to handle larger windows:
- Select the right suction cups: Choose high-quality rubber suction cups that match the size of your glass surface. Larger cups provide a stronger grip by covering a larger area. Consider the weight and size of the window pane, as well as the weight-bearing capacity of the suction cups.
- Prepare the window surface: Ensure the glass surface is clean, dry, and free of any lingering debris or dirt particles. You can scrub the surface gently with soap and water, then wipe it down with a lint-free cloth and alcohol or methylated spirit to remove any remaining grime.
- Apply the suction cups: Press the suction cups firmly against the glass, ensuring even pressure to create a strong vacuum seal. For larger windows, you may need to use multiple suction cups to distribute the weight evenly. Check for any air bubbles or air pockets between the suction cup and the glass surface.
- Handle with care: Once the suction cups are securely attached, you can carefully lift and handle the window pane. Always wear proper safety gear and regularly check the suction cups to ensure they remain attached.
- Maintain the suction cups: After each use, clean the suction cups with mild detergent and water, then let them air dry before storing them in a clean, dry place away from extreme temperatures. Regular cleaning and proper storage will help maintain the performance and longevity of your suction cups.
By following these steps, you can safely and effectively use suction cups to handle larger window panes.
Oil Pan Socket Size for 2004 Dodge Dakota Revealed
You may want to see also
Explore related products
Removing the tapcons
First, it is important to inspect the Tapcon screw in the concrete and determine how deep it is impacted. Check if the head of the screw is intact and in good shape. If the head is damaged, you may need to use a chisel to remove the screw, as a drill bit might not be effective.
If the head is in good condition, you can try using an external screw extractor. Connect this extractor to a drill and drill out the area around the screw. This will create space and allow you to remove the Tapcon properly. Make sure to use the appropriate drill bit size, depending on the Tapcon screw size. Put the drill in reverse, line it up with the head of the screw, press firmly, and turn on the drill to remove it.
In some cases, you might need to try more forceful methods. One approach is to use a hammer and chisel to uncover the screw. Once it is exposed, grip it with vise grips and carefully turn it out. This method is useful when the screw is severely impacted, and a drill alone is not sufficient for removal.
Another method, especially if you have about 1/4 to 3/8 inches of the screw protruding, is to use a reciprocating saw with a metal-cutting blade. Cut the screw off at its base, and if there is still a nub left, smash it flat with a hammer.
Alternatively, you can try a more aggressive approach by hitting the Tapcon screw sideways with a hammer. This can cause the screw to snap flush, but be aware that you might chip off a small piece of concrete in the process. If chipping the concrete is a concern, consider using an abrasive wheel in a grinder instead. Remember to wear eye protection for your safety.
Finally, if you have access to a high-torque, slow-speed drill, you can try using it with an appropriate Tapcon installation tool. This method has proven successful for some people. Additionally, when installing Tapcon screws, it is recommended to avoid using a ratchet, as it can increase the likelihood of snapping the screws.
Panning Techniques: Balancing Stereo Field in FL Studio
You may want to see also
Explore related products
Altering the bottom track
If you want to remove the panes on a basement slider window, one possible method is to alter the bottom track. This involves removing the sash, which is the part of the window that holds the panes in place.
First, you need to remove the window itself. Tilt the window towards you slightly and gently pull the bottom part out of the frame. Set the window aside in a safe location, being careful not to scratch or damage it.
Once the window is removed, you can access the bottom track. Insert a flat pry bar at one end of the track and gently pry it up to lift the track from the frame. Once it's loose, carefully pull the track out of the window frame.
With the bottom track removed, you can now alter it to remove the sash. This might involve cutting or shaving down the track to create more space for the sash to be lifted out. However, keep in mind that altering the track may affect the stability and functionality of the window.
After modifying the track, you can reinstall it by guiding the bottom of the window back into its resting position, ensuring it sits securely. Test the window to ensure it still opens and closes smoothly and that the lock is working correctly.
Keep in mind that the specific steps may vary depending on the type of window you have, and there may be other methods for removing the panes besides altering the bottom track. Always exercise caution when making any modifications to your windows, as improper techniques can lead to damage or instability.
Two 8x8 Pans: Equivalent to One 9x13?
You may want to see also
Explore related products
Removing the sash frames
To remove the sash frames from a basement slider window, you will need to first identify the type of sash mechanism your window has. Most vertical sliding windows have a mechanism that helps release the sash, such as a pivot bar or a tilt latch. Once you have identified the mechanism, follow these general steps:
For windows with tilt latches:
- Unlock the window and slide the latches toward the centre of the window.
- Gently tilt the sash inward and lift it away from the frame.
- Set the sash aside carefully.
For windows with removal clips:
- Remove the sash stops by pulling them out from the top corners.
- Pop open the removal clips.
- Pull out the window.
For windows with cords:
- Untie or remove the cord before removing the window.
- Reinstall the cords by pushing them into the slots on the sides of the sash when putting the window back together.
Additional tips:
- Be careful not to damage the wooden strips surrounding the window, as you will need to reinstall them when replacing the sashes.
- If your window has old paint on it, test for lead and remove any contaminated paint.
- Before taking apart the window frame, identify the fasteners holding it in place, such as screws, nails, or clips.
- When removing seals and caulking, use a utility knife to carefully slice through the caulk and peel off any rubber or foam seals.
Repairing DR650 Oil Pan Hole: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Yes, you can. However, the process may be tricky and depend on the type of window you have. Some windows have vertical bars holding the fixed panel in place, which can be removed with a screwdriver and hammer. Others may be designed so that the panes cannot be removed.
First, remove the sliding panel. Then, use a screwdriver and hammer to gently tap the vertical bar towards the opening until you can turn it at an angle and remove it. You can then slide the fixed panel over and remove it.
If your window panes don't have a vertical bar, they may be locked in place to prevent "racking" the frame. Try using suction cups to handle the panes, and ensure everything is level before reinstalling.
If your window panes cannot be removed, you may need to alter the bottom track to remove the sash. Be careful when making any alterations, as you will need to add something back into the track to prevent the panes from being lifted out again.
If you want to remove the entire window, cut the caulk and remove the tapcons. The window should then come out.
