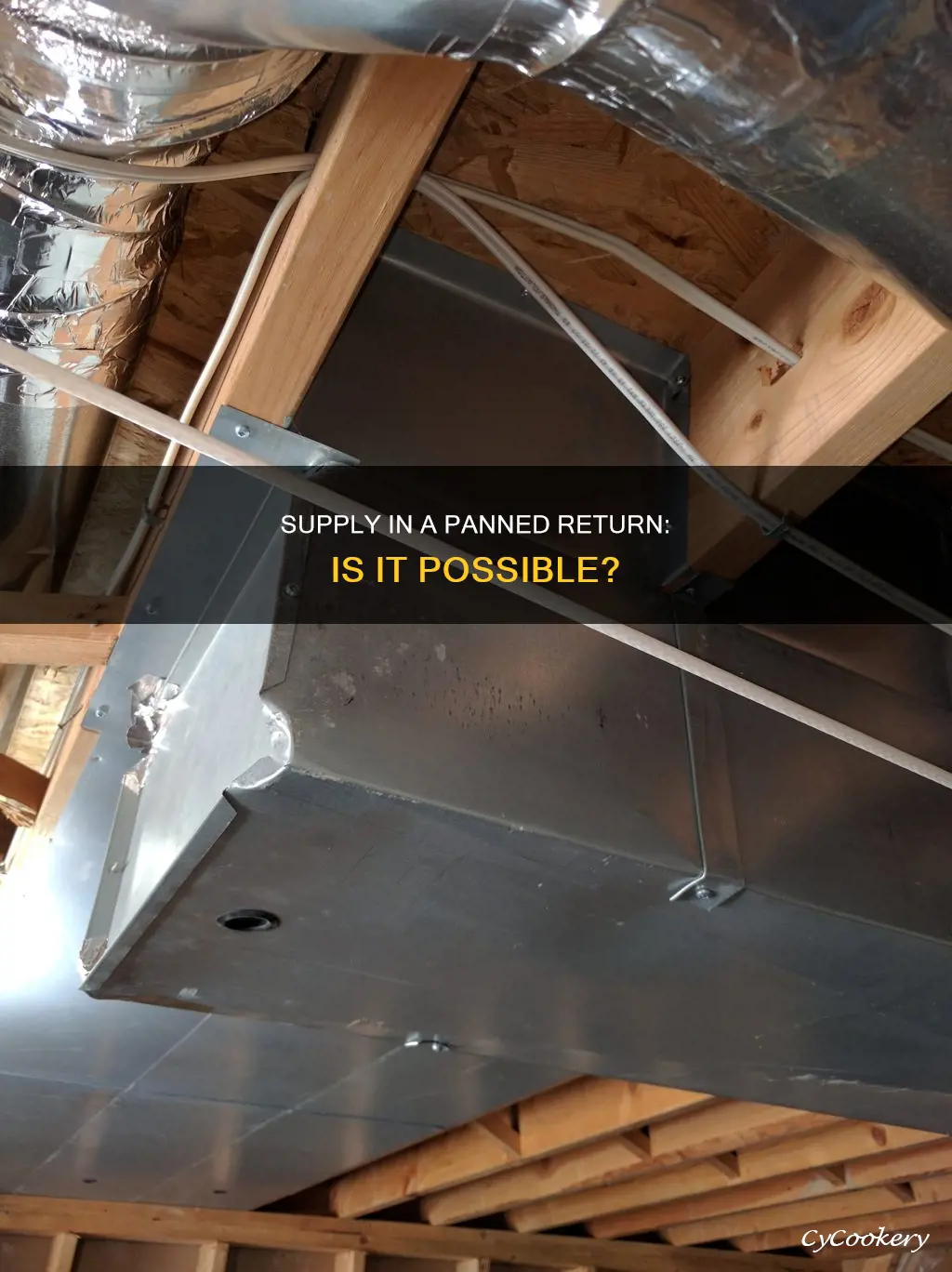

Supply and return vents are a common topic of discussion in HVAC systems. People often wonder about the functionality and efficiency of their setups, sometimes querying whether blocking or adding vents will improve performance. One such query is whether it is possible to run a supply inside a panned return. This is not recommended, as it can cause issues with air pressure and potential contamination of the airstream. However, some people have noted that this installation provides good air mixing, although it may not be the most efficient setup.
Explore related products
What You'll Learn
Potential for galvanic corrosion
Galvanic corrosion, also known as bimetallic corrosion or dissimilar metal corrosion, is an electrochemical process that occurs when two dissimilar metals come into contact with each other in the presence of an electrolyte. This process can lead to accelerated corrosion of the less noble metal, while the corrosion of the more noble metal is inhibited.
The potential for galvanic corrosion is a critical concern when considering the materials used in supply and return systems, especially when different metals are involved. For example, a copper water supply pipe passing through a return air duct with a sheet metal bottom can lead to galvanic corrosion where the copper meets the sheet metal.
To mitigate the risk of galvanic corrosion, it is essential to choose metals with similar electrode potentials or nobility. Metals such as stainless steel alloys tend to rank towards the cathodic end of the scale and are less likely to suffer damage from galvanic corrosion. However, if they are used in conjunction with highly anodic components, the difference in nobility can lead to rapid degradation of the less noble metal.
Additionally, the electrolyte present in the system can significantly influence the risk of galvanic corrosion. For example, the risk is minimal in very pure water, but deploying the same metals in a marine or chloride-rich environment can result in rapid corrosion.
To further reduce the risk of galvanic corrosion, insulating dissimilar materials with non-conductive coatings, greases, paints, or primers can be effective. Another method is to use buffers, such as pipe wraps, clamp liners, or wear pads, between dissimilar metals to interrupt electrical paths. Plating or galvanizing with zinc can also protect base metals by sacrificial anodic action, improving corrosion resistance.
Retinning Your Pans: A Step-by-Step Guide
You may want to see also
Explore related products
Condensation issues
Condensation occurs when humid air comes into contact with a cold surface. In the context of HVAC systems, condensation commonly forms on air ducts during the summer when the air conditioning is running. This happens due to the temperature difference between the cold air flowing through the ducts and the warm air surrounding them.
The supply ducts carry cold air, so condensation usually forms on the outside of these ducts. However, condensation can also occur inside the return ducts, which carry warm air. This is a bigger concern as it can lead to indoor air quality issues.
To prevent condensation in HVAC systems, it is important to address the underlying causes. One reason for condensation is high humidity, which can be mitigated by using dehumidifiers. Another factor is the temperature of the supply vents; if they are too cold, condensation may occur. Ensuring proper insulation and maintaining a balanced temperature can help prevent the formation of condensation.
Additionally, regular maintenance and monitoring of the HVAC system are crucial. This includes checking for leaks and addressing any issues promptly. By taking proactive measures, you can minimize condensation issues and maintain the efficiency and longevity of your HVAC system.
Springform Pan Leaks: Seal and Secure
You may want to see also
Explore related products
Risk of contaminated airstream
When considering running a supply inside a panned return, it is essential to understand the risks associated with a contaminated airstream. A contaminated airstream can occur when dirty air leaks into the system from adjacent spaces, such as the garage or attic, as mentioned in a discussion on HVAC-Talk. This can lead to issues such as dust blowing out of supply vents, indicating a larger problem within the system.
To mitigate the risk of a contaminated airstream, it is crucial to ensure proper ventilation and avoid blocking supply and return vents. Inadequate ventilation can occur when vents are blocked or improperly located, leading to a build-up of contaminants in the airstream. For example, outdoor air intake vents placed near sources of automobile or truck exhaust, boiler emissions, dumpster fumes, or air vented from restrooms can introduce contaminated air into the system.
Return air vent filters play a vital role in maintaining air quality by filtering out particles and impurities before they enter the HVAC unit. These filters capture dust, pollen, viruses, bacteria, and other contaminants, preventing them from circulating throughout the building. However, using a filter in both the return vent and the HVAC unit can lead to low airflow issues, as mentioned on HVACTrainingShop. Therefore, it is essential to carefully consider the placement and type of filters used to maintain optimal airflow while ensuring effective filtration.
Additionally, temperature deltas and air velocities are important factors to consider. As mentioned on GreenBuildingAdvisor, when supply and exhaust vents are located close together, there is a risk of drawing in warm air for cooling instead of cool air, reducing the system's effectiveness. This can lead to inefficient temperature control and potentially impact the quality of the airstream by introducing warm, potentially contaminated air into the supply.
In some cases, central returns can also present challenges. As mentioned on GreenBuildingAdvisor, central returns in a house with supply runouts to perimeter rooms may draw air out of the bedrooms before it has a chance to fully mix. This can result in uneven distribution of conditioned air and potentially impact the overall air quality if the air from the bedrooms is contaminated or stale.
The Science of Non-Stick: What's in Your Pan?
You may want to see also
Explore related products
Temperature deltas and air velocities
Delta T, or the difference between return air temperature and supply air temperature, is a crucial measurement in HVAC systems. It provides insights into the system's efficiency and performance. A high Delta T, generally above 22°F, can indicate issues such as low airflow due to dirty filters, evaporator problems, or inadequate ductwork. On the other hand, a low Delta T can suggest poor system performance or capacity. Monitoring Delta T over time helps identify potential problems and ensures optimal cooling efficiency.
Air velocity is another critical factor in HVAC systems. The supply air velocity depends on the temperature of the air. Cold supply air is typically discharged at a high velocity to avoid excessive velocity in the occupied zone, as cold air moves downward. In contrast, warm supply air should be released at a lower level with a vertical discharge to maintain good ventilation efficiency as hot air rises. The discharge velocity should remain constant in a diffuser to maintain optimal velocity conditions in all operational scenarios.
The proximity of supply and exhaust vents also influences air velocity and temperature deltas. When supply and exhaust are close together, there is a risk of drawing warm air back into the system, reducing effectiveness and causing uneven temperatures in the space. Pushing air out of the supply at high velocity can compensate for this issue, but it is more complex and may not work well at lower fan settings.
To ensure proper airflow and temperature regulation, it is essential to consider the design of the ductwork. Elegant duct design prioritises effectiveness, even temperature distribution, and comfort. Well-designed ductwork also allows for lower ventilation rates while maintaining air quality. Proper duct design considers air velocity and temperature deltas to prevent issues such as short-circuiting, where incoming air is sucked back into the outgoing air stream, reducing system efficiency.
In summary, temperature deltas and air velocities are critical factors in HVAC systems. Delta T measurements help identify system issues and ensure optimal performance, while air velocity considerations ensure comfortable and efficient airflow. Proper duct design, including supply and exhaust placement, is essential to maintaining desired temperatures and preventing issues such as short-circuiting.
Linking PAN Card to Your Account: A Step-by-Step Guide
You may want to see also
Explore related products
Short circuiting
Short-circuiting is a concern when it comes to supply and return vents in HVAC systems. While some configurations may allow for imperceptible short-circuiting, it is important to understand the potential issues and best practices to ensure optimal system performance and indoor air quality.
Supply and return vents play distinct roles in HVAC systems. Supply vents are responsible for supplying conditioned air, either heated or cooled, to a room or area inside a building. On the other hand, return vents suck the air back into the HVAC system, returning it to the ductwork for recirculation or ventilation. The direction of airflow is the primary difference between the two types of vents.
When considering running a supply inside a panned return, several factors come into play. Firstly, temperature deltas and air velocities are crucial. If the supply and exhaust are located close to each other, the system's effectiveness may be reduced. This configuration risks drawing in warm air for cooling or cool air for heating, resulting in decreased efficiency and discomfort in the occupied space.
Additionally, potential issues such as condensation and galvanic corrosion may arise when running a supply line inside a return air duct. While some installations may not experience condensation problems, the presence of uninsulated pipes within ducts can lead to moisture accumulation. This, in turn, creates an environment conducive to galvanic corrosion, which can cause damage to the ductwork and impact the overall performance of the HVAC system.
To mitigate these issues, it is generally recommended to separate supply and return lines and avoid running other systems within the dedicated HVAC ducts. This separation helps prevent potential contamination of the airstream and ensures optimal system functionality. In some cases, central returns may be flawed due to their tendency to draw air out of rooms before it can fully mix, resulting in uneven temperature distribution.
In conclusion, while it may be technically possible to run a supply inside a panned return, it is not advisable due to potential issues with short-circuiting, condensation, and corrosion. Proper ductwork design, including separate supply and return paths, is crucial for maintaining efficient airflow, temperature control, and indoor air quality in HVAC systems.
Steel Cut Oats: Pan-Cooked Perfection
You may want to see also
Frequently asked questions
No, this is not allowed under the Code. You are not supposed to run anything in the return line that could potentially contaminate the air stream.
The biggest risk is likely to be galvanic corrosion, although this has rarely been observed. There is also a risk of condensation from uninsulated pipes inside ducts.
Supply and exhaust close to each other are rated at only 50% effectiveness. You run a high risk of drawing in warm air to reheat instead of cool air and vice versa in cooling mode.
