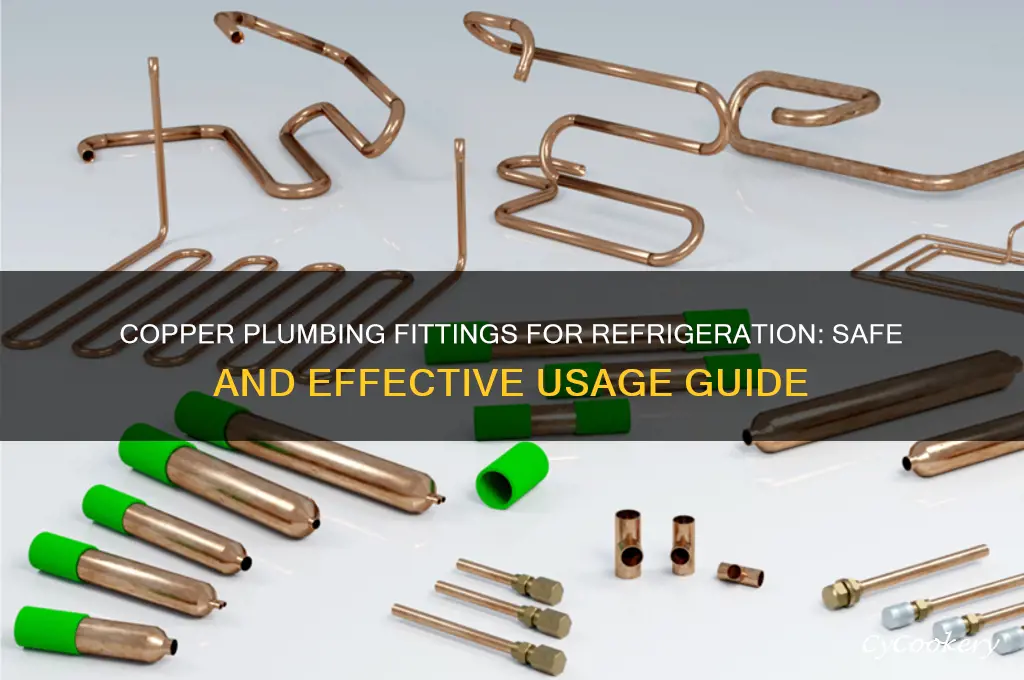

When considering the use of copper plumbing fittings for refrigeration systems, it is essential to evaluate both the material's compatibility and the specific requirements of the application. Copper is widely recognized for its excellent thermal conductivity, corrosion resistance, and durability, making it a popular choice in plumbing and HVAC systems. However, refrigeration systems operate under unique conditions, including exposure to refrigerants, oils, and varying temperatures, which can affect the performance and longevity of the fittings. While copper is generally suitable for refrigeration, factors such as the type of refrigerant used, potential galvanic corrosion when paired with other metals, and compliance with industry standards (e.g., ASTM or ASHRAE) must be carefully considered. Additionally, proper installation and brazing techniques are critical to ensuring leak-free joints and system efficiency. Consulting manufacturer guidelines and industry best practices is highly recommended to determine the suitability of copper fittings for your specific refrigeration needs.
| Characteristics | Values |
|---|---|
| Material Compatibility | Copper is compatible with most refrigerants, including R-134a, R-410A, and natural refrigerants like CO2 and ammonia. |
| Thermal Conductivity | High thermal conductivity (385 W/m·K) allows for efficient heat transfer, beneficial for refrigeration systems. |
| Corrosion Resistance | Excellent resistance to corrosion from water and many refrigerants, especially when properly brazed or soldered. |
| Pressure Rating | Copper fittings can handle high pressures, typically up to 1000-1500 psi, depending on the fitting and tube size. |
| Temperature Range | Suitable for a wide temperature range, from cryogenic temperatures (-196°C) to high temperatures (250°C). |
| Ease of Installation | Easy to bend, flare, and solder, making it a preferred choice for refrigeration systems. |
| Cost | Generally more expensive than some alternatives (e.g., galvanized steel) but offers long-term reliability and performance. |
| Environmental Impact | Recyclable and has a lower environmental impact compared to some other materials. |
| Regulatory Compliance | Meets industry standards such as ASTM B88, ASME B16.22, and ASHRAE guidelines for refrigeration applications. |
| Longevity | Long service life with proper installation and maintenance, often exceeding 50 years. |
| Leak Potential | Low leak potential when properly installed with brazing or soldering techniques. |
| Compatibility with Oils | Compatible with most refrigeration oils, including mineral, alkylbenzene, and POE oils. |
| Expansion and Contraction | Minimal thermal expansion, reducing stress on joints and connections. |
| Availability | Widely available in various sizes and configurations for refrigeration applications. |
| Aesthetic Appeal | Attractive appearance, often preferred in visible installations. |
| Health and Safety | Non-toxic and safe for use in food-grade refrigeration systems. |
Explore related products
What You'll Learn
Compatibility with refrigerants
When considering the use of copper plumbing fittings for refrigeration, one of the most critical factors to evaluate is their compatibility with refrigerants. Refrigerants are the lifeblood of any refrigeration system, and their interaction with materials like copper is essential for system longevity and efficiency. Copper is widely used in refrigeration due to its excellent thermal conductivity, malleability, and resistance to corrosion. However, not all refrigerants react with copper in the same way, and understanding these interactions is crucial.
Copper is generally compatible with many common refrigerants, including R-22, R-134a, and R-410A, which are frequently used in air conditioning and refrigeration systems. These refrigerants do not chemically react with copper under normal operating conditions, making copper fittings a reliable choice. However, it’s important to note that moisture contamination can lead to corrosion, particularly with R-410A, which operates at higher pressures. Proper system dehydration and the use of dryers are essential to prevent moisture-related issues when using copper fittings with these refrigerants.
For systems using natural refrigerants like ammonia (R-717) or carbon dioxide (R-744), copper’s compatibility becomes more complex. Ammonia, for instance, can react with copper to form unstable compounds, leading to potential leaks or system failures. In such cases, copper fittings are not recommended, and alternative materials like stainless steel or coated copper should be used. Carbon dioxide, on the other hand, is generally compatible with copper, but the high operating pressures of CO2 systems require thicker-walled copper fittings to ensure safety and durability.
Another consideration is the use of hydrocarbon refrigerants such as propane (R-290) or isobutane (R-600a). These refrigerants are flammable and operate at higher pressures, which can pose challenges for copper fittings. While copper itself is compatible, the fittings must be designed to withstand the increased pressure and potential mechanical stress. Additionally, the flammability of these refrigerants necessitates careful installation and compliance with safety standards to minimize risks.
In summary, copper plumbing fittings are compatible with many refrigerants commonly used in refrigeration systems, provided that proper precautions are taken to prevent moisture-related corrosion. However, for systems using ammonia or certain hydrocarbons, copper may not be suitable due to chemical reactivity or pressure limitations. Always consult manufacturer guidelines and industry standards to ensure the safe and effective use of copper fittings in refrigeration applications.
Where to Find R-12 Refrigerant for Vintage Tractors: A Guide
You may want to see also
Explore related products
Temperature and pressure limits
When considering the use of copper plumbing fittings for refrigeration, understanding the temperature and pressure limits of copper is crucial to ensure safety, efficiency, and longevity of the system. Copper is widely used in refrigeration due to its excellent thermal conductivity, corrosion resistance, and ease of installation. However, its suitability depends on the specific operating conditions of the refrigeration system. Copper fittings are generally rated for temperatures ranging from -50°F to 250°F (-46°C to 121°C), making them compatible with most refrigeration applications, which typically operate between 20°F and 80°F (-6.7°C and 26.7°C). For systems using refrigerants like R-134a or R-410A, copper remains a viable choice within these temperature limits.
Pressure limits are equally important when using copper plumbing fittings for refrigeration. Copper fittings are typically rated for maximum working pressures ranging from 300 to 1000 psi (20.7 to 68.9 bar), depending on the size and type of fitting. For refrigeration systems, the operating pressure varies based on the refrigerant used. For example, R-134a systems operate at pressures around 150 psi (10.3 bar), while R-410A systems can reach pressures up to 400 psi (27.6 bar). Copper fittings are generally suitable for these pressures, but it is essential to verify the specific ratings of the fittings to ensure they meet or exceed the system requirements. Exceeding the pressure limits can lead to fitting failure, leaks, or system damage.
In low-temperature refrigeration applications, such as those involving cryogenic temperatures below -150°F (-101°C), copper fittings may not be the best choice. At extremely low temperatures, copper can become brittle and lose its ductility, increasing the risk of cracking or failure. For such applications, materials like stainless steel or specialized alloys are more appropriate. However, for standard refrigeration systems operating within the typical temperature and pressure ranges, copper fittings remain a reliable and cost-effective option.
It is also important to consider the compatibility of copper with refrigerants and system oils. While copper is compatible with most common refrigerants, certain chemicals or additives can accelerate corrosion or degradation, particularly under high-pressure or high-temperature conditions. Always consult the manufacturer’s guidelines for the refrigerant and fittings to ensure compatibility and adherence to temperature and pressure limits.
Lastly, proper installation and maintenance are critical to maximizing the performance of copper fittings within their temperature and pressure limits. Over-tightening fittings, using incorrect soldering techniques, or exposing the system to excessive vibration can compromise the integrity of the fittings. Regular inspections and pressure tests can help identify potential issues before they escalate, ensuring the refrigeration system operates safely and efficiently within the specified limits.
Enviro-Safe 22A Refrigerant: Availability and Purchase Options Today
You may want to see also
Explore related products
Corrosion resistance in cooling systems
When considering the use of copper plumbing fittings for refrigeration systems, one of the primary concerns is corrosion resistance in cooling systems. Copper is widely recognized for its excellent thermal conductivity and durability, making it a popular choice in HVAC and refrigeration applications. However, its susceptibility to corrosion under certain conditions must be carefully evaluated. Corrosion in cooling systems can lead to reduced efficiency, leaks, and system failures, so understanding how copper behaves in these environments is crucial.
Copper’s corrosion resistance in cooling systems largely depends on the operating conditions and the composition of the refrigerant and coolant. In refrigeration systems, copper is generally compatible with common refrigerants like R-410A and R-134a, as these substances do not inherently corrode copper. However, the presence of moisture, acids, or other contaminants in the system can accelerate corrosion. For instance, moisture can react with copper to form copper oxides, which degrade the material over time. To mitigate this, refrigeration systems must be properly dehydrated and maintained to ensure minimal moisture exposure.
Another factor affecting corrosion resistance is the pH level of the coolant or refrigerant. Copper is more prone to corrosion in acidic environments. If the system contains acidic components or if the refrigerant breaks down into acidic byproducts, copper fittings may corrode. In such cases, using inhibitors or neutralizing agents in the coolant can help protect the copper. Additionally, ensuring the system is sealed and free from contaminants during installation is essential to prevent acidic conditions from developing.
The choice of soldering materials and techniques also plays a role in corrosion resistance. When installing copper fittings, the use of lead-free solder and flux is recommended to avoid introducing corrosive elements into the system. Improper soldering can leave behind residues that promote corrosion, so clean and precise installation practices are critical. Furthermore, brazing with silver alloys can provide enhanced corrosion resistance compared to traditional soldering methods, especially in demanding refrigeration applications.
Finally, the use of protective coatings or linings can significantly improve copper’s corrosion resistance in cooling systems. For example, applying a thin layer of tin or nickel plating to copper fittings can create a barrier against corrosive agents. Alternatively, using copper alloys specifically designed for enhanced corrosion resistance, such as admiralty brass or cupronickel, can be a viable option in aggressive environments. Regular inspection and maintenance of the system will also help identify and address corrosion issues before they escalate.
In conclusion, while copper plumbing fittings can be used in refrigeration systems, ensuring corrosion resistance requires careful consideration of system conditions, proper installation practices, and preventive measures. By managing moisture levels, avoiding acidic environments, using compatible materials, and applying protective coatings, copper can remain a reliable and efficient choice for cooling systems. Always consult manufacturer guidelines and industry standards to ensure the longevity and performance of your refrigeration system.
Can You Use a Dorm Refrigerator? A Practical Guide
You may want to see also
Explore related products
Installation best practices
When installing copper plumbing fittings for refrigeration systems, it is crucial to adhere to best practices to ensure safety, efficiency, and longevity. Copper is widely accepted for refrigeration due to its excellent thermal conductivity, corrosion resistance, and compatibility with refrigerants. However, improper installation can lead to leaks, reduced system performance, or even failure. Begin by selecting the correct type of copper tubing and fittings, such as Type L or Type K, which are commonly used for refrigeration applications. Ensure all components meet industry standards, such as those set by the Air-Conditioning, Heating, and Refrigeration Institute (AHRI) or local building codes.
Before installation, thoroughly clean and deburr all copper tubing and fittings to prevent contamination. Use a tubing cutter to achieve clean, straight cuts, and remove any burrs or sharp edges that could damage seals or restrict refrigerant flow. Flux and solder joints properly, ensuring a strong, leak-free connection. When soldering, apply heat evenly and avoid overheating, as excessive heat can weaken the copper or damage nearby components. Always use a high-quality refrigeration-grade solder and flux that are compatible with copper and refrigerants. After soldering, wipe away excess flux residue to prevent corrosion or contamination.
Proper insulation is critical for refrigeration systems using copper fittings. Insulate all copper lines to prevent condensation, energy loss, and freezing. Use closed-cell foam insulation with a vapor barrier to protect against moisture infiltration. Pay special attention to joints and fittings, ensuring they are fully covered. Secure the insulation with tape or straps, but avoid over-tightening, as this can damage the tubing. Additionally, install insulation in a way that allows for easy inspection and maintenance of the lines.
Support and secure copper tubing to prevent stress on solder joints, which can lead to leaks over time. Use insulated tubing supports or clamps to hold the lines in place, ensuring they are spaced appropriately to avoid sagging or kinking. Avoid sharp bends in the tubing, as they can restrict refrigerant flow and increase pressure drop. If bending is necessary, use a tubing bender to create smooth, gradual curves. Always follow manufacturer guidelines for minimum bend radii to maintain system integrity.
Finally, conduct a thorough leak test after installation but before charging the system with refrigerant. Use a nitrogen pressure test or an electronic leak detector to check all joints and connections for leaks. Address any issues immediately, as even small leaks can compromise system performance and safety. Once the system passes the leak test, evacuate and dehydrate the lines to remove moisture and air, ensuring optimal refrigerant flow. Following these installation best practices will help ensure a reliable, efficient refrigeration system when using copper plumbing fittings.
Refrigerating Uncooked Rolls: Tips for Freshness and Dough Storage
You may want to see also
Explore related products
Alternatives to copper fittings
While copper fittings have been traditionally used in refrigeration systems due to their excellent thermal conductivity and durability, there are several reasons why you might consider alternatives. Copper can be expensive, prone to corrosion in certain environments, and its extraction and production have environmental impacts. Additionally, some applications may require materials with different properties, such as greater flexibility or resistance to specific chemicals. Below are detailed alternatives to copper fittings for refrigeration systems, each offering unique advantages depending on your specific needs.
Stainless Steel Fittings
Stainless steel is a robust alternative to copper, particularly in environments where corrosion resistance is critical. It is highly resistant to moisture, chemicals, and extreme temperatures, making it ideal for refrigeration systems exposed to harsh conditions. Stainless steel fittings are also durable and long-lasting, reducing the need for frequent replacements. However, they are less thermally conductive than copper, which may require careful consideration in heat exchange applications. Stainless steel is also more expensive than copper but offers superior longevity and low maintenance, making it a cost-effective choice in the long run.
Brass Fittings
Brass, an alloy of copper and zinc, is another viable alternative for refrigeration fittings. It offers good corrosion resistance, especially in water-based systems, and is more affordable than stainless steel. Brass fittings are also easier to work with due to their malleability, making installation simpler. However, brass is less durable than copper or stainless steel and may dezincify over time, leading to reduced structural integrity. It is also less suitable for systems involving acidic or ammonia-based refrigerants. Brass is best used in low-pressure refrigeration systems or applications where cost is a primary concern.
Aluminum Fittings
Aluminum fittings are lightweight and highly cost-effective, making them an attractive alternative to copper. They are also resistant to corrosion and have excellent thermal conductivity, though slightly lower than copper. Aluminum is particularly useful in applications where weight reduction is important, such as in mobile refrigeration units. However, aluminum is less durable than copper and can be prone to fatigue under repeated stress. Additionally, aluminum fittings may not be compatible with certain refrigerants or oils, so compatibility must be carefully checked before use.
Plastic (Polymer) Fittings
For applications where cost and weight are critical factors, plastic fittings made from materials like PEX (cross-linked polyethylene) or PVC (polyvinyl chloride) can be considered. These fittings are lightweight, corrosion-resistant, and easy to install, making them suitable for low-pressure refrigeration systems. However, plastic fittings have poor thermal conductivity and are not suitable for high-temperature applications. They are also less durable than metal fittings and may degrade over time when exposed to UV light or certain chemicals. Plastic fittings are best used in non-critical, low-demand refrigeration systems.
Carbon Steel Fittings with Coatings
Carbon steel fittings, when coated with materials like zinc (galvanized) or epoxy, can serve as a budget-friendly alternative to copper. The coatings provide corrosion resistance, making them suitable for refrigeration systems in humid or corrosive environments. However, carbon steel is less thermally conductive than copper and may not be ideal for heat exchange applications. It is also heavier and requires careful handling to avoid damaging the protective coating. This option is best suited for systems where cost is a primary concern, and thermal efficiency is not critical.
In conclusion, while copper fittings remain a popular choice for refrigeration systems, there are several alternatives available depending on your specific requirements. Stainless steel offers superior durability and corrosion resistance, brass provides affordability and ease of use, aluminum reduces weight, plastic fittings are cost-effective for low-demand systems, and coated carbon steel balances cost and functionality. Each material has its strengths and limitations, so careful consideration of your system's needs will help you choose the most suitable alternative to copper fittings.
Using a 15 Amp Outlet for Your Outdoor Refrigerator: Is It Safe?
You may want to see also
Frequently asked questions
Yes, copper plumbing fittings can be used for refrigeration systems, as copper is a common and effective material for refrigerant lines due to its excellent thermal conductivity and corrosion resistance.
Yes, it’s best to use refrigeration-grade copper fittings, which are typically annealed (soft) copper and designed to handle the pressures and temperatures associated with refrigeration systems.
Yes, proper installation requires the use of refrigeration-specific tools, such as flaring or brazing equipment, and adherence to industry standards to ensure leak-free connections and system efficiency.
