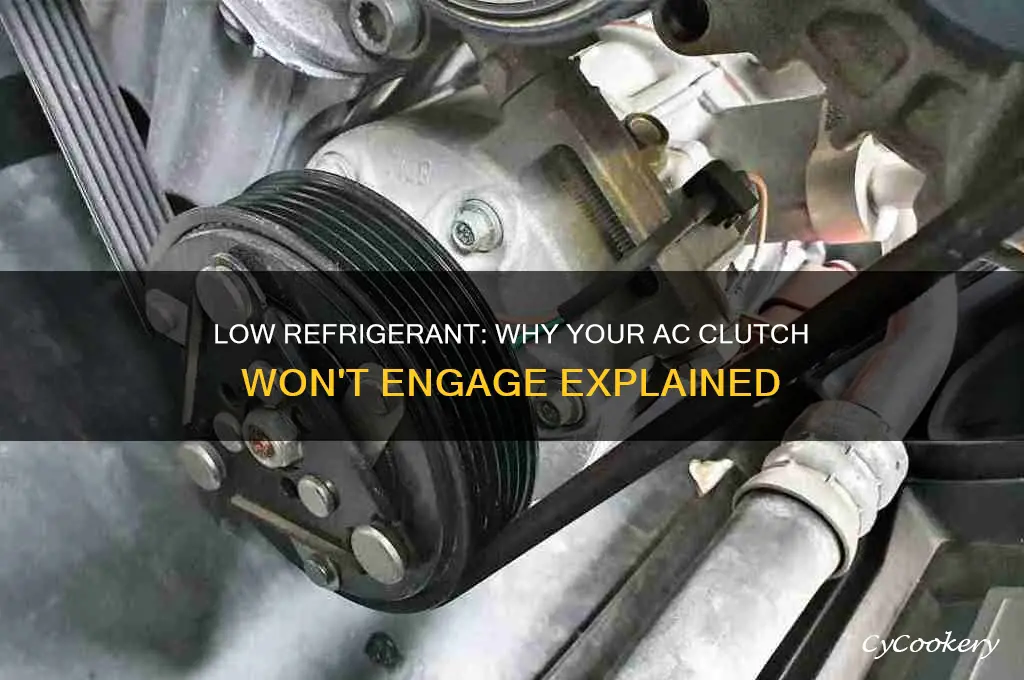

Low refrigerant levels in an air conditioning system can indeed prevent the AC clutch from engaging. The clutch is designed to activate only when the system has sufficient refrigerant pressure, as detected by the low-pressure switch. If refrigerant levels are too low, the switch remains open, cutting power to the clutch and preventing it from engaging. This safety mechanism protects the compressor from damage due to insufficient lubrication and cooling. As a result, symptoms like warm air from the vents or an inoperative AC system may arise, indicating a potential refrigerant leak or undercharge that requires immediate attention.
| Characteristics | Values |
|---|---|
| Cause of Low Refrigerant | Low refrigerant levels can lead to insufficient pressure in the AC system. |
| Clutch Engagement Mechanism | The AC clutch engages based on pressure signals from the system. |
| Effect on Clutch Engagement | Low refrigerant can prevent the clutch from engaging due to low pressure. |
| Pressure Switch Role | The pressure switch disables clutch engagement to prevent compressor damage. |
| Symptoms | AC not blowing cold air, clutch not spinning, warm air from vents. |
| Potential Compressor Damage | Running the AC with low refrigerant can damage the compressor. |
| Solution | Recharge refrigerant to restore proper pressure and clutch function. |
| Prevention | Regularly inspect and maintain refrigerant levels to avoid issues. |
| Diagnostic Tool | Use a manifold gauge to check system pressure and diagnose low refrigerant. |
| Professional Assistance | Consult a certified technician for refrigerant recharge and system checks. |
Explore related products
What You'll Learn
Refrigerant Level Impact on Pressure Switch
The refrigerant level in an air conditioning system plays a critical role in the operation of the pressure switch, which in turn affects the engagement of the compressor clutch. When refrigerant levels are low, the system’s pressure drops significantly, particularly on the low-pressure side. The pressure switch is designed to monitor these pressure levels and prevent the compressor from running under conditions that could damage it. If the refrigerant is insufficient, the low-pressure switch detects the drop in pressure and opens the circuit, preventing the compressor clutch from engaging. This safety mechanism ensures that the compressor does not operate without adequate lubrication and cooling, which are provided by the refrigerant itself.
Low refrigerant levels directly impact the pressure switch by causing it to remain open, effectively cutting power to the compressor clutch. The pressure switch is calibrated to activate at specific pressure thresholds, typically around 20-30 PSI for low-pressure cut-off. When refrigerant is low, the evaporator cannot absorb enough heat, leading to a rapid drop in suction pressure. This drop triggers the pressure switch to open, interrupting the electrical signal to the clutch relay. As a result, the clutch disengages, and the compressor stops running. This prevents potential damage to the compressor due to insufficient refrigerant flow and lubrication.
It’s important to note that the pressure switch’s response to low refrigerant is not just a mechanical failure but a protective measure. Without this safeguard, the compressor could run in a starved condition, leading to overheating, internal damage, or even seizure. Technicians often diagnose low refrigerant issues by checking the pressure switch’s status and verifying refrigerant levels with gauges. If the switch is open and refrigerant is low, recharging the system to the correct level will restore proper pressure, allowing the switch to close and the clutch to engage again.
Another aspect to consider is the relationship between refrigerant charge and system efficiency. A slightly low refrigerant charge may not immediately trigger the pressure switch but can still cause intermittent clutch engagement or reduced cooling performance. Over time, this can lead to unnecessary wear on the compressor and other components. Therefore, maintaining the correct refrigerant level is essential not only for clutch engagement but also for the overall longevity and efficiency of the air conditioning system.
In summary, low refrigerant levels have a direct and significant impact on the pressure switch, which in turn controls the engagement of the compressor clutch. The pressure switch acts as a critical safety device, preventing the compressor from operating under conditions that could cause damage. Understanding this relationship is key to diagnosing and resolving issues related to clutch engagement in air conditioning systems. Always ensure proper refrigerant levels and inspect the pressure switch as part of routine maintenance to avoid potential system failures.
Refrigerating Sourdough Starter Post-Feeding: Best Practices and Tips
You may want to see also
Explore related products
Clutch Engagement Mechanism and Low Pressure
The clutch engagement mechanism in an automotive air conditioning system is a critical component that controls the operation of the compressor. This mechanism is designed to engage and disengage the compressor clutch based on the system's cooling demands and pressure conditions. At the heart of this system is the clutch coil, which, when energized, allows the compressor to operate, circulating refrigerant through the system. The decision to engage or disengage the clutch is influenced by several factors, including the refrigerant pressure levels. Low refrigerant levels can significantly impact this mechanism, often preventing the clutch from engaging properly.
Low refrigerant pressure is a common issue that can disrupt the normal operation of the clutch engagement mechanism. The system is equipped with a low-pressure switch, a safety feature designed to protect the compressor from damage. When refrigerant levels drop below a certain threshold, the low-pressure switch opens, cutting power to the clutch coil. This action prevents the clutch from engaging, as operating the compressor with insufficient refrigerant can lead to severe damage, such as compressor burnout due to lack of lubrication and cooling. Therefore, the low-pressure switch acts as a safeguard, ensuring the system does not operate under conditions that could cause long-term harm.
The relationship between low refrigerant pressure and clutch engagement is further complicated by the role of the thermal expansion valve (TXV) or orifice tube, which regulates refrigerant flow into the evaporator. With low refrigerant levels, the TXV or orifice tube may not allow enough refrigerant to pass through, resulting in low suction pressure at the compressor inlet. This low suction pressure reinforces the signal to the low-pressure switch, keeping it open and the clutch disengaged. Consequently, the system enters a protective mode, halting the compressor's operation until the refrigerant levels are restored.
To address clutch engagement issues caused by low refrigerant, it is essential to diagnose and rectify the root cause of the refrigerant loss. Common culprits include leaks in the system, which can occur at various points such as hoses, connections, or components like the evaporator or condenser. Once the leak is identified and repaired, the system must be evacuated and recharged with the correct amount of refrigerant. After recharging, the low-pressure switch will close, allowing the clutch coil to energize and the clutch to engage, restoring normal operation of the air conditioning system.
In summary, low refrigerant levels directly affect the clutch engagement mechanism by triggering the low-pressure switch to disengage the clutch, preventing potential damage to the compressor. Understanding this relationship is crucial for diagnosing and resolving air conditioning system issues. Proper maintenance, including regular inspections for leaks and ensuring correct refrigerant levels, is key to maintaining the functionality and longevity of the clutch engagement mechanism and the overall air conditioning system.
Replacing Yellow LED Refrigerator Bulbs: A Simple DIY Lighting Upgrade
You may want to see also
Explore related products
Safety Features Preventing Clutch Activation
In modern automotive air conditioning systems, several safety features are designed to prevent the clutch from engaging under conditions that could cause damage or inefficiency, such as low refrigerant levels. One of the primary safety mechanisms is the low-pressure switch, which monitors the refrigerant pressure in the system. When refrigerant levels drop below a certain threshold, this switch automatically cuts power to the clutch, preventing it from engaging. This is crucial because operating the compressor with insufficient refrigerant can lead to overheating, damage to the compressor, or even complete system failure. The low-pressure switch acts as a fail-safe, ensuring the clutch remains disengaged until the refrigerant level is restored to a safe operating range.
Another critical safety feature is the high-pressure switch, which works in tandem with the low-pressure switch to protect the system. While its primary function is to prevent the clutch from engaging if the refrigerant pressure becomes too high, it also indirectly supports the system in low-refrigerant scenarios. If the system is low on refrigerant, it may struggle to maintain proper pressure, leading to fluctuations that could trigger the high-pressure switch. This dual-switch system ensures that the clutch remains inactive in both low and high-pressure conditions, safeguarding the compressor and other components from potential harm.
The clutch cycling switch is another important safety feature that prevents the clutch from engaging continuously, especially in low-refrigerant situations. This switch monitors the temperature of the compressor and disengages the clutch if the system begins to overheat. In cases of low refrigerant, the compressor may work harder to compensate, leading to increased temperatures. The clutch cycling switch interrupts power to the clutch, allowing the compressor to cool down before re-engaging. This prevents thermal damage and extends the lifespan of the compressor.
Additionally, many vehicles are equipped with an AC control module that integrates data from various sensors to manage clutch engagement. This module assesses factors such as refrigerant pressure, engine temperature, and cabin cooling demands to determine when it is safe to activate the clutch. If the system detects low refrigerant levels, the control module will override the clutch engagement, even if the AC is turned on. This intelligent system ensures that the clutch only operates under optimal conditions, minimizing the risk of damage and maintaining efficiency.
Lastly, some advanced systems incorporate a variable displacement compressor with built-in safety features. These compressors can adjust their capacity based on cooling demands and system conditions. In low-refrigerant scenarios, the compressor may reduce its output or disengage entirely to prevent strain on the system. This adaptive technology complements the other safety features by providing an additional layer of protection against clutch engagement when refrigerant levels are insufficient. Together, these safety mechanisms ensure that the clutch remains inactive in low-refrigerant conditions, preserving the integrity and functionality of the air conditioning system.
Can Latanoprost Be Refrigerated After Opening? Storage Tips Revealed
You may want to see also
Explore related products
Symptoms of Insufficient Refrigerant in AC
Insufficient refrigerant in an air conditioning (AC) system can lead to a cascade of issues, one of which is the failure of the AC clutch to engage. The clutch, a critical component in the AC system, relies on proper refrigerant levels to function correctly. When refrigerant levels are low, the pressure within the system drops, causing the low-pressure switch to deactivate the clutch. This safety mechanism prevents damage to the compressor, but it also means the AC system will not operate. As a result, one of the most noticeable symptoms of low refrigerant is the complete lack of cool air from the vents, even when the AC is turned on.
Another symptom of insufficient refrigerant is warm air blowing from the vents instead of cold air. This occurs because the refrigerant is responsible for absorbing heat from the cabin and releasing it outside. With low refrigerant levels, the system cannot effectively transfer heat, leading to inadequate cooling. Drivers may notice that the air feels slightly cooler than the outside temperature but not cold enough to provide comfort, especially during hot weather. This gradual decrease in cooling efficiency is a clear indicator that the refrigerant levels need to be checked.
In addition to poor cooling performance, low refrigerant can cause the AC system to cycle on and off frequently. This erratic behavior is due to the system struggling to maintain proper pressure levels. When the refrigerant is insufficient, the compressor may turn off prematurely to prevent damage, only to turn back on again shortly after. This not only affects the comfort of the vehicle occupants but also places additional strain on the AC components, potentially leading to premature wear and tear.
A less obvious but equally important symptom is the presence of frost or ice on the evaporator coils, which are located inside the vehicle. When refrigerant levels are low, the evaporator coils can become too cold, causing moisture in the air to freeze. This ice buildup restricts airflow and further reduces the system's ability to cool the cabin. If left unaddressed, this issue can lead to more serious damage, such as a cracked evaporator coil, resulting in costly repairs.
Lastly, drivers may notice unusual noises coming from the AC system when refrigerant levels are low. These noises can range from hissing sounds, which may indicate a refrigerant leak, to rattling or banging noises caused by the compressor struggling to operate under low-pressure conditions. Ignoring these sounds can lead to compressor failure, a major and expensive repair. Therefore, any unusual noise from the AC system should prompt an immediate inspection to check refrigerant levels and overall system health.
In summary, insufficient refrigerant in an AC system manifests through multiple symptoms, including the clutch failing to engage, warm air from the vents, frequent cycling of the AC, frost on evaporator coils, and unusual noises. Addressing these symptoms promptly by checking and refilling refrigerant levels can prevent further damage and ensure the AC system operates efficiently. Regular maintenance and inspections are key to avoiding these issues and maintaining a comfortable driving experience.
Upgrade Your Fridge: Can You Replace Refrigerator Light with LED?
You may want to see also
Explore related products
Troubleshooting Clutch Failure Due to Low Charge
When troubleshooting clutch failure in an air conditioning system, one common issue to consider is low refrigerant charge. The AC compressor clutch relies on proper refrigerant levels to function correctly. If the refrigerant is low, the system’s low-pressure switch may prevent the clutch from engaging as a protective measure to avoid damage to the compressor. This safety mechanism is designed to shut down the clutch when the refrigerant pressure drops below a certain threshold, ensuring the compressor doesn’t run dry and overheat. Therefore, low refrigerant is a direct and common cause of clutch failure to engage.
To begin troubleshooting, start by checking the refrigerant level using a manifold gauge set. Connect the gauges to the low and high-pressure ports of the AC system and observe the readings. If the low-side pressure is significantly lower than the recommended specifications for your vehicle, it indicates a low charge. Additionally, inspect the AC system for visible leaks using a UV dye or electronic leak detector. Even small leaks can lead to gradual refrigerant loss, causing the clutch to disengage over time. Addressing leaks is crucial before recharging the system to prevent recurring issues.
Another step in troubleshooting is to test the low-pressure switch, which is responsible for cutting power to the clutch when refrigerant levels are insufficient. Disconnect the switch and use a multimeter to check for continuity. If the switch remains open (no continuity) even when the refrigerant pressure is normal, it may be faulty and needs replacement. However, if the switch functions correctly, the issue is likely due to low refrigerant. In such cases, evacuate and recharge the system according to the manufacturer’s specifications, ensuring the correct amount of refrigerant is added.
During the troubleshooting process, it’s essential to inspect the wiring and fuses related to the AC system. A blown fuse or damaged wiring can mimic symptoms of low refrigerant by preventing the clutch from engaging. Check the fuse box for any blown fuses and inspect the wiring harness for signs of wear, corrosion, or disconnection. Repair or replace any damaged components before proceeding with further diagnostics. This step ensures that electrical issues are not overlooked, providing a comprehensive approach to resolving clutch engagement problems.
Finally, after addressing low refrigerant levels and related issues, verify the clutch operation by turning on the AC system. With the engine running and the AC switch activated, observe whether the clutch engages. If it does not, recheck the refrigerant charge and system pressures to ensure they are within the correct range. If all parameters are normal and the clutch still fails to engage, the issue may lie within the clutch itself or the compressor, requiring further inspection or replacement. Systematic troubleshooting ensures that low refrigerant-related clutch failure is accurately diagnosed and resolved.
Refrigerating Cooked Vegetables: Best Practices for Freshness and Safety
You may want to see also
Frequently asked questions
Yes, low refrigerant levels can prevent the AC clutch from engaging. Most systems have a low-pressure switch that disables the clutch to protect the compressor from damage when refrigerant is insufficient.
Low refrigerant reduces the pressure in the AC system, triggering the low-pressure switch to cut power to the clutch. This prevents the clutch from engaging to avoid running the compressor dry, which can lead to internal damage.
Adding refrigerant may resolve the issue if low refrigerant was the sole cause. However, the system must be properly charged, and any leaks or other issues should be addressed to ensure the clutch engages reliably.
