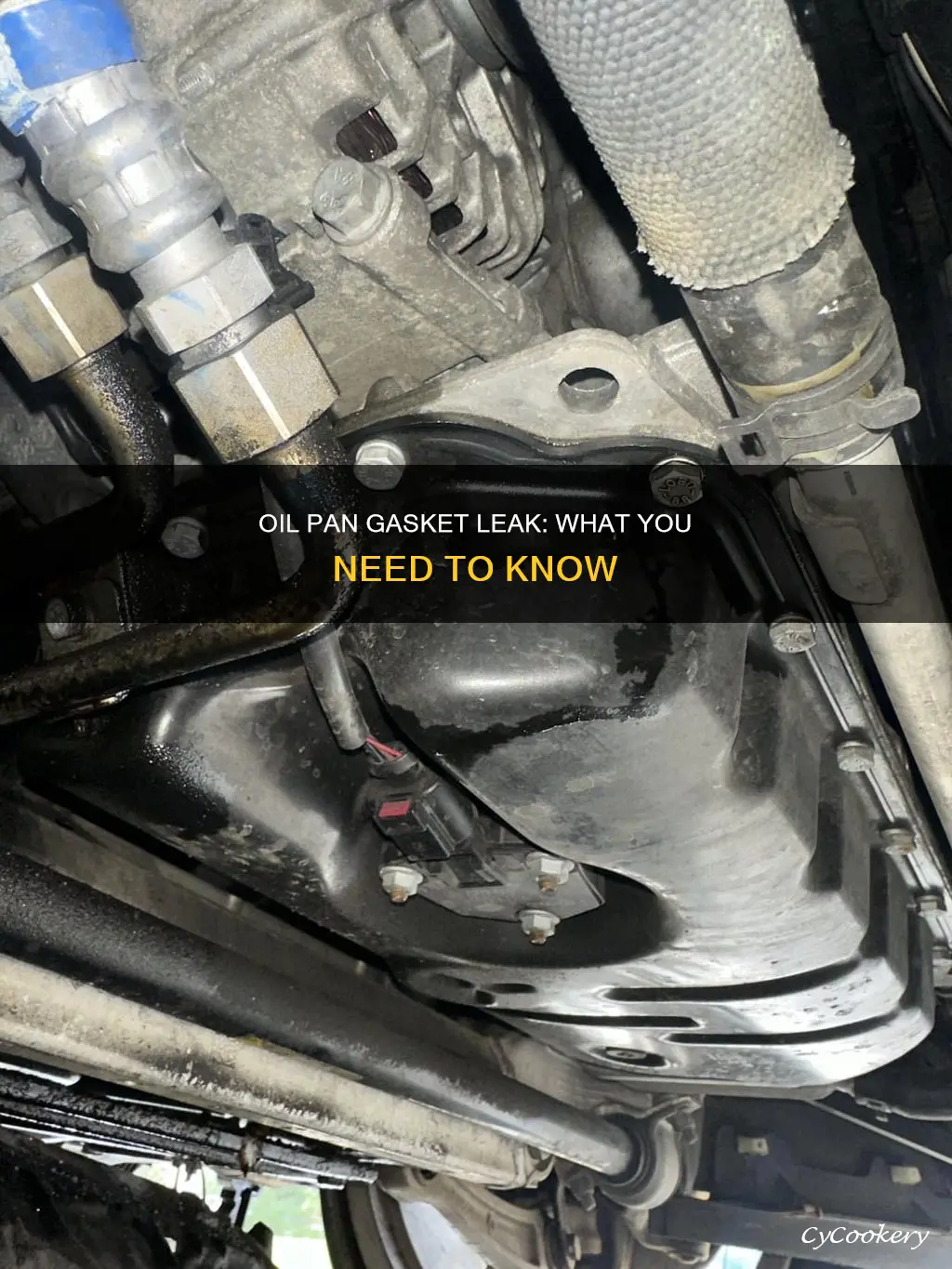

The oil pan gasket, located at the bottom of the engine, is vulnerable to damage due to its proximity to the ground. Oil leaks from the oil pan can be traced by cleaning the engine with a degreaser and following the trail to its highest point. If the oil pan is the source of the leak, replacing the gasket can be done in a few simple steps. The process involves removing the oil pan by detaching any accessories and locating all the bolts, which can be challenging as some may be obscured. Once the oil pan is removed, the old gasket residue must be scraped off, and the surface cleaned thoroughly. It is important to follow the instructions for the specific gasket and oil pan to ensure a proper replacement.
Oil Pan Gasket
| Characteristics | Values |
|---|---|
| Oil Leak | If oil is leaking from the oil pan, it may be necessary to replace the oil pan gasket. |
| Gasket Materials | Gaskets vary depending on the type of metal they are intended to seal. Gaskets can be made of cork, paper, or silicone. |
| Sealants | Gaskets use different sealants to stay attached to the oil pan. Some use grease, gasket glue, or plastic pins to hold the gasket in place. |
| Oil Pan Replacement | Replacing a leaking oil pan ensures the engine receives the oil it needs. |
| Oil Pan Cleaning | When replacing the gasket, it is important to clean the inside of the oil pan and remove any debris or old engine oil. |
| Bolt Locations | Oil pan bolts fasten the oil pan to its mounting spots. A service manual can help identify all bolt locations, as some may be hidden behind other parts. |
| Removal Techniques | To remove a stuck gasket, soaking it in brake fluid or using a blow torch or gasket remover may be effective. |
Explore related products
What You'll Learn
Oil pan gasket replacement
Oil leaks from the oil pan gasket are a common problem, and replacing the gasket is one of the best ways to ensure your engine is receiving the oil it needs. This can sometimes be done in a few simple steps, but it can be a difficult job, so you may need to hire a professional.
Firstly, you need to be sure that the oil pan is where the leak is coming from. Leaks from above the gasket can make you think the oil pan gasket is leaking when it's not. To trace the oil leak, clean the engine with a degreaser and when the external oil reappears, follow the trail to its highest point.
If the evidence leads to the top of the oil pan, you will need to remove the oil pan. A service manual is a valuable resource when removing the oil pan, as it will help you identify all the oil-pan bolt locations. Some bolts may be obscured behind other parts. Removing the wheel-well-liner pieces will ease access to the outboard passenger's side bolts. Once all bolts are removed, the pan can be dropped. If necessary, tap it lightly with a mallet to break the seal.
Next, scrape off any gasket residue and clean all sealing surfaces thoroughly with a solvent. Clean the inside of the oil pan and inspect it for cracks. Then, install the new gasket per its instructions. Some gaskets rely on grease or gasket glue to seal them in place.
Finally, use thread sealer, if specified, then torque the oil pan bolts to spec in a spiral pattern, beginning in the center.
Exploring Chicago's Pan-Asian Food Scene
You may want to see also
Explore related products
Oil leak detection
Oil leaks from the oil pan gasket are a serious issue that can lead to engine failure and potential safety hazards for the driver and other road users. It is important to detect and address oil leaks promptly to avoid costly and complex repairs. Here are some steps to help with oil leak detection:
Firstly, it is important to confirm that the oil pan is indeed the source of the leak. Leaks from above the gasket can sometimes mislead you into thinking that the gasket is leaking when it is not. To trace the leak, start by cleaning the engine with a degreaser and then follow the trail of external oil to its highest point. If the trail leads to the top of the oil pan, you may need to consult a service manual for guidance on replacing the oil pan.
If you suspect a leak from the oil pan gasket, there are several indicators to look out for. Start the car and let it run for a few minutes, then check for any oil drops on the ground. Placing cardboard underneath the car can help spot any leaking fluid. Another sign of a potential oil pan gasket leak is a lower-than-normal oil level. Check the oil dipstick to identify any anomalies. If you notice a significant decrease in oil level over a short period, there is likely an issue with the oil pan gasket, and replacement may be necessary.
When replacing the oil pan gasket, it is important to follow the instructions specific to your vehicle's make and model. The oil pan gasket's materials vary depending on the type of metal it is intended to seal. Some gaskets use grease or gasket glue to seal them in place, while others come with special plastic pins to hold them in place temporarily. Always clean the oil pan's surface and inspect it for any signs of damage before installing a new gasket.
Oil pan bolts fasten the oil pan to its mounting spots, and they can be challenging to access. Refer to your vehicle's service manual to identify all the bolt locations, as some may be hidden behind other parts. Once all the bolts are removed, separate the oil pan from the vehicle. If it is stuck, gently tap it with a rubber mallet to dislodge it. Remember to clean any gasket residue from the sealing surfaces before installing the new gasket.
Steaming Secrets: Perfect Pan-Steamed Dumplings
You may want to see also
Explore related products
Oil pan gasket sealant
An oil pan gasket will need to be replaced at some point, as it is located at the bottom of the engine and is vulnerable to damage. Gaskets use different sealants to stay attached to the oil pan. Some gaskets rely on grease, while others use gasket glue. Gaskets can also be sealed with silicone, gasket cement, or Indian Head. Some gaskets come with special plastic pins to hold the gasket until the pan is installed, and then the pins can be screwed out.
When replacing an oil pan gasket, it is important to obtain the appropriate replacement. Gasket materials vary depending on the types of metals they are intended to seal. Name-brand gaskets typically come with any necessary sealants. Before installing a new gasket, it is important to clean the oil pan thoroughly and inspect it for damage.
If you are unsure about which sealant to use, it is best to consult an auto parts store or a service manual. Some sources recommend using silicone sealant only where two gaskets meet, as it is not required to make a gasket seal. However, others suggest applying small dabs of silicone sealant where the gasket and seals meet.
It is important to note that oil will cause silicone to not stick, so both surfaces must be clean before applying any silicone. Additionally, some oil pans require the application of thread sealer to their bolts. This fills the gap between threaded connectors and lubricates the threads.
Wagyu Pan-Searing Perfection
You may want to see also
Explore related products
Oil pan gasket removal
The first step in the process is to identify the source of the leak. Just because there is a leak, it doesn't mean that the oil pan gasket is the culprit. Clean the engine with a degreaser and follow the trail of oil to its highest point. If the evidence does indeed lead to the oil pan, then it's time to get to work.
Before beginning the removal process, it is important to obtain the appropriate oil pan gasket replacement. Gasket materials vary depending on the type of metal used in the oil pan, so it is crucial to get the right one. Name-brand gaskets typically come with any necessary sealants. While the oil is draining, remove the splash shield and bellhousing cover. In front-wheel-drive vehicles, the oil pan is often mated to the transaxle, and other accessories may need to be detached as well.
The next step is to locate and remove the oil pan bolts. This can be challenging as some bolts may be hidden behind other parts. A service manual can be extremely helpful at this stage, as it will illustrate the locations of all the bolts. Once all the bolts have been removed, the oil pan can be separated from the vehicle. If it refuses to budge, a light tap with a rubber mallet can help dislodge it. Be careful not to use too much force, as this can crack the pan if all the bolts aren't out.
After removing the oil pan, use a plastic scraper to remove the old gasket and any residue it has left behind, especially if the oil pan is made of aluminum. Then, clean the inside of the oil pan thoroughly and inspect it for any signs of damage or fractures. Finally, install the new gasket according to its instructions. Some gaskets may require the use of thread sealer on the bolts, so be sure to follow the correct procedure.
Cleaning Dark Spots from Plastic Hot Pots: A Comprehensive Guide
You may want to see also
Explore related products
Oil pan gasket installation
Oil leaks from the oil pan can be caused by a variety of factors, including a loose oil-pan drain plug, a dipstick tube that has become unseated from the engine block, or an oil filter that is either not screwed in or has a cracked gasket. If the oil pan gasket is the source of the leak, replacing it is one of the best ways to ensure your engine is receiving the oil it needs.
Before installing a new oil pan gasket, it is important to clean the oil pan thoroughly and inspect it for any signs of damage. All gasket residue should be scraped off, and the sealing surfaces should be cleaned with a solvent. It is also important to refer to the service manual for your vehicle, as different models may have bolts in different locations, and some parts and brackets may need to be removed first to access the pan and its bolts.
When installing the new gasket, follow the instructions provided with the replacement. Some gaskets may require the use of gasket glue or grease to seal them in place, while others may come with special plastic pins to hold the gasket until the pan is installed. If your gasket uses silicone sealer, allow it to harden before replacing the oil cover.
Once the new gasket is in place, use thread sealer if specified, and torque the oil pan bolts to the specified level in a spiral pattern starting from the centre.
Creating Timelapse Pans: The Ultimate Guide to Smooth Moves
You may want to see also
Frequently asked questions
Yes, oil can leak out of an oil pan gasket. This can happen if the gasket is damaged or worn out.
To determine if your oil pan gasket is leaking, clean the engine with a degreaser and then follow the trail of external oil to its highest point. If the trail leads to the top of the oil pan, the oil pan gasket may be the source of the leak.
If your oil pan gasket is leaking, you will need to replace it. This can sometimes be done in a few simple steps, but many oil pans are difficult to remove, so you may need to hire a professional.
To replace an oil pan gasket, follow the instructions in your vehicle's service manual. The basic steps are to remove the oil pan by locating and removing all the bolts, clean the sealing surfaces, and then install a new gasket with the appropriate sealant.
