Emilie Meyer

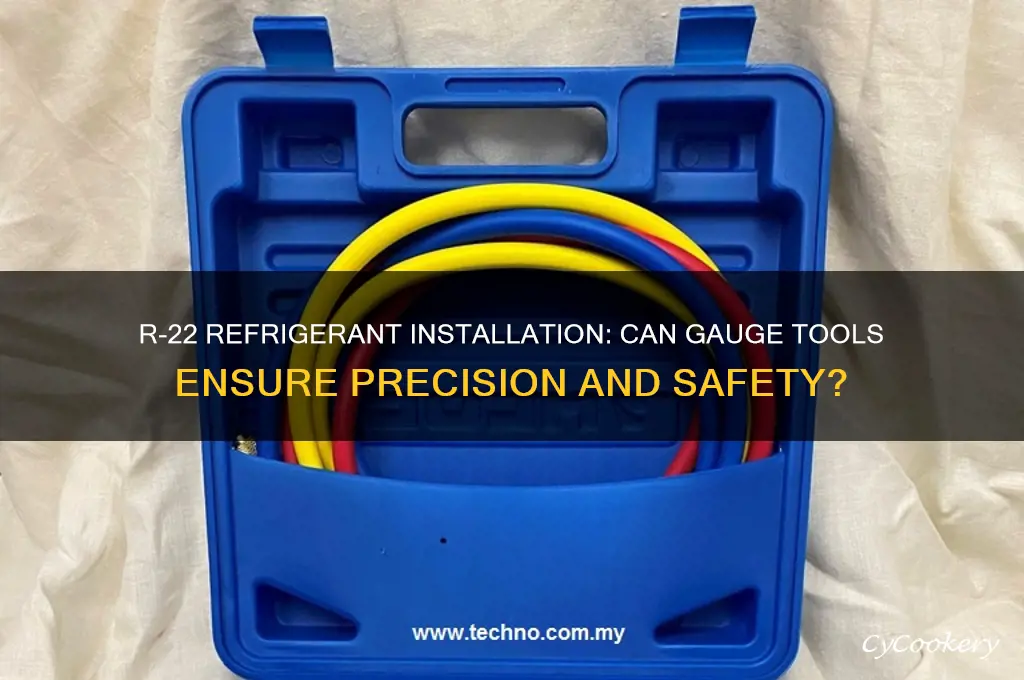

The R-22 refrigerant, commonly known as Freon, has been a staple in air conditioning and refrigeration systems for decades, but its installation and maintenance require precise tools, such as the R-22 refrigerant installation gauge. This gauge is essential for accurately measuring pressure levels during the charging or servicing of systems that use R-22, ensuring optimal performance and compliance with safety standards. As R-22 is being phased out due to environmental concerns, understanding the proper use of this gauge remains crucial for technicians working on older systems or during the transition to more eco-friendly refrigerants. The gauge not only aids in preventing overcharging or undercharging but also helps diagnose potential issues, making it an indispensable tool in the HVAC industry.
Explore related products
What You'll Learn
R-22 Gauge Compatibility
R-22 refrigerant systems require specific gauges to ensure accurate pressure readings and safe operation during installation or maintenance. Using incompatible gauges can lead to system damage, inaccurate diagnostics, or even safety hazards. The primary concern with R-22 gauge compatibility lies in the refrigerant’s chemical properties and the materials used in gauge construction. R-22, also known as HCFC-22, is a chlorofluorocarbon that can degrade certain elastomers and metals over time. Therefore, gauges designed for R-22 must feature components resistant to its corrosive effects, such as brass, steel, or aluminum, and seals made from materials like Viton or Buna-N.
When selecting a gauge for R-22 systems, verify that it is explicitly labeled as R-22 compatible. Gauges intended for newer refrigerants like R-410A often use different materials and pressure ratings, making them unsuitable for R-22. For instance, R-410A gauges typically have higher pressure ratings (up to 800 PSI) compared to R-22 gauges (up to 500 PSI). Using an R-410A gauge on an R-22 system may result in inaccurate readings or gauge failure due to material incompatibility. Always check the gauge’s specifications and ensure it meets the requirements for R-22 refrigerant.
Another critical aspect of R-22 gauge compatibility is the hose and fitting connections. R-22 systems use specific fittings, such as the standard 1/4-inch SAE flare connections, which must match the gauge’s ports. Mismatched fittings can lead to leaks or improper sealing, compromising the system’s integrity. Additionally, ensure the hoses are rated for R-22 and can withstand its operating pressures. Hoses with incompatible materials may degrade, leading to refrigerant leaks or system contamination.
For technicians working on older R-22 systems, it’s essential to inspect gauges regularly for signs of wear or corrosion. Over time, exposure to R-22 can cause seals to harden or crack, and metal components may corrode. Replace gauges or hoses showing signs of deterioration immediately to prevent system failures. When in doubt, consult the manufacturer’s guidelines or seek advice from a certified HVAC professional to ensure compatibility and safety.
In summary, R-22 gauge compatibility hinges on material resistance, pressure ratings, and proper fittings. Using the correct gauge not only ensures accurate diagnostics but also protects the system from damage and extends its lifespan. As R-22 systems phase out due to environmental regulations, maintaining compatibility becomes even more critical for those still in operation. Always prioritize safety and precision by choosing the right tools for the job.
Can Wegovy Be Stored Outside the Fridge? Safety Tips Revealed
You may want to see also
Explore related products
Proper Gauge Installation Steps
Installing gauges for R-22 refrigerant systems demands precision to ensure accurate pressure readings and system safety. Begin by selecting the correct gauge set compatible with R-22, as using incompatible gauges can lead to inaccurate measurements or equipment damage. Always verify the gauge set’s pressure rating, ensuring it exceeds the maximum working pressure of the system to prevent failure under stress.
Next, purge the gauge set of air and moisture by attaching it to a vacuum pump and evacuating for at least 10 minutes. Residual air or moisture can compromise the refrigerant’s purity and system efficiency. After purging, connect the gauge set to the system, starting with the low-side hose to the suction service valve and the high-side hose to the liquid service valve. Tighten connections hand-tight, then use a wrench to secure them, avoiding overtightening that could damage threads or seals.
Once connected, open the valves slowly to allow refrigerant to flow into the gauges. Monitor the readings carefully, ensuring they align with expected pressures for the system’s operating conditions. If the gauges show abnormal readings, immediately close the valves and inspect for leaks using a soap solution or electronic leak detector. Address leaks before proceeding to prevent further issues.
Finally, after completing the installation or service, close the service valves and disconnect the gauge set. Store the gauges in a clean, dry environment to prevent contamination. Regularly calibrate the gauges annually or after heavy use to maintain accuracy. Proper installation and maintenance of R-22 refrigerant gauges not only ensures system longevity but also safeguards against costly repairs and environmental hazards.
Can You Refrigerate NyQuil? Storage Tips for Cold Medicine
You may want to see also
Explore related products
Reading R-22 Pressure Levels
R-22 refrigerant, commonly known as Freon, operates within specific pressure ranges that vary with ambient temperature. For instance, at 75°F (24°C), the saturated pressure of R-22 is approximately 145 PSI. Understanding this relationship is critical because pressure gauges are calibrated to reflect both temperature and system performance. A technician must cross-reference the gauge readings with a temperature-pressure chart to ensure accuracy. Misinterpreting these values can lead to overcharging or undercharging the system, compromising efficiency and longevity.
To read R-22 pressure levels effectively, follow these steps: first, attach the gauge manifold to the system’s service ports, ensuring all connections are secure. Next, allow the system to stabilize for 10–15 minutes to achieve consistent readings. Then, compare the high-side and low-side gauge pressures to the ambient temperature using a PT chart. For example, if the outdoor temperature is 95°F (35°C), the high-side pressure should read around 218 PSI for a properly charged system. Deviations indicate issues such as leaks, blockages, or incorrect refrigerant levels.
One common mistake is ignoring the impact of ambient temperature on pressure readings. A system operating at 80°F (27°C) will show different pressures than one at 60°F (15°C), even if both are functioning correctly. Technicians often overlook this, leading to misdiagnosis. For instance, a high-side pressure of 250 PSI might seem excessive, but if the outdoor temperature is 100°F (38°C), it falls within normal range. Always account for environmental conditions before making adjustments.
Advanced gauges with digital temperature compensation can streamline this process, but they are not foolproof. Manual verification remains essential. For residential systems, target a superheat of 10–12°F (5.5–6.5°C) on the low side and a subcooling of 10–15°F (5.5–8.5°C) on the high side. Commercial systems may require tighter tolerances. Regularly calibrate gauges and replace damaged hoses to maintain accuracy. Proper pressure readings are not just about diagnostics—they are the foundation of safe, efficient refrigerant handling.
Can You Power Your Fridge with a Solar Generator?
You may want to see also
Explore related products
Gauge Maintenance Tips
Regular calibration is the cornerstone of accurate gauge performance. Over time, exposure to pressure fluctuations, temperature extremes, and refrigerant chemicals can cause gauges to drift from their original settings. Annual calibration by a certified technician ensures readings remain precise, preventing overcharging or undercharging of R-22 systems. For DIY enthusiasts, investing in a calibration kit and following manufacturer guidelines can extend gauge life and reliability.
Dirt, debris, and refrigerant residue are silent gauge killers. Contaminants can clog ports, damage seals, and compromise readings. After each use, flush gauges with a solvent approved for R-22 systems, such as isopropyl alcohol, and dry them thoroughly with compressed air. Inspect hoses for cracks or wear, replacing them immediately if compromised. A clean gauge is a functional gauge.
Storage conditions significantly impact gauge longevity. Extreme temperatures, humidity, and direct sunlight accelerate wear on internal components and seals. Store gauges in a dry, climate-controlled environment, ideally in a protective case. For added protection, attach dust caps to ports when not in use, preventing debris ingress and maintaining internal pressure integrity.
Even with meticulous care, gauges have a finite lifespan. Cracked faces, sticking needles, or inconsistent readings signal the need for replacement. While some components, like seals or hoses, can be repaired, a gauge with structural damage compromises system safety and efficiency. Prioritize quality replacements compatible with R-22 refrigerants, ensuring they meet industry standards for accuracy and durability.
DIY Guide: Replacing Your Maytag Refrigerator's Ice Maker Easily
You may want to see also
Explore related products
Safety Precautions for R-22 Handling
R-22 refrigerant, while phased out in new production, remains prevalent in older HVAC systems, necessitating careful handling during installation and maintenance. Direct skin contact with R-22 can cause frostbite due to its extremely low temperature, while inhalation of vapors may lead to respiratory irritation or asphyxiation. Proper safety precautions are not optional—they are critical to preventing injury and ensuring compliance with environmental regulations.
Personal Protective Equipment (PPE) is non-negotiable. Always wear nitrile or butyl rubber gloves to prevent skin exposure, as R-22 can absorb moisture from the skin, exacerbating its harmful effects. Safety goggles or a face shield are essential to protect against accidental splashes, particularly when working with pressurized systems. In confined or poorly ventilated areas, use a respirator with cartridges rated for organic vapors to avoid inhaling refrigerant fumes.
Ventilation and workspace preparation are equally vital. R-22 is heavier than air, so it tends to accumulate in low-lying areas. Work in well-ventilated spaces, and if indoors, use exhaust fans to maintain airflow. Before beginning any work, evacuate the area of unnecessary personnel and ensure fire extinguishers are readily accessible, as R-22 is flammable under certain conditions.
Handling and storage require precision. Store R-22 cylinders in a cool, dry, and upright position, away from direct sunlight or heat sources. Secure cylinders to prevent tipping, and always cap valves when not in use to avoid leaks. When transferring refrigerant, use a dedicated recovery machine to minimize exposure and comply with EPA regulations, which prohibit venting R-22 into the atmosphere.
Emergency preparedness cannot be overlooked. In the event of skin exposure, immediately flush the affected area with lukewarm water for at least 15 minutes. For inhalation, move the individual to fresh air and seek medical attention if symptoms persist. Keep a copy of the R-22 Safety Data Sheet (SDS) on hand for quick reference during emergencies, and ensure all team members are trained in proper response protocols.
By adhering to these safety precautions, technicians can mitigate the risks associated with R-22 handling, protecting both themselves and the environment while maintaining the functionality of legacy HVAC systems.
Refrigerating Stainless Steel: Safe Practices and Potential Risks Explained
You may want to see also
Frequently asked questions
An R-22 refrigerant installation gauge is used to monitor and control the pressure and temperature of R-22 refrigerant during the installation, servicing, or repair of air conditioning and refrigeration systems.
No, R-22 gauges are specifically designed for R-22 refrigerant. Using them with other refrigerants, such as R-410A, can lead to inaccurate readings and potential system damage.
Calibration should be done by a professional using specialized equipment. Ensure the gauge is disconnected from the system, and follow the manufacturer’s instructions or consult a technician for accurate calibration.
Signs of a faulty gauge include inconsistent readings, failure to hold pressure, visible damage to the gauge face or connections, or leaking refrigerant when connected to the system.
No, it is not safe or recommended. A gauge is essential for ensuring proper refrigerant levels, preventing overcharging or undercharging, and maintaining system efficiency and safety. Always use a gauge during installation or servicing.
