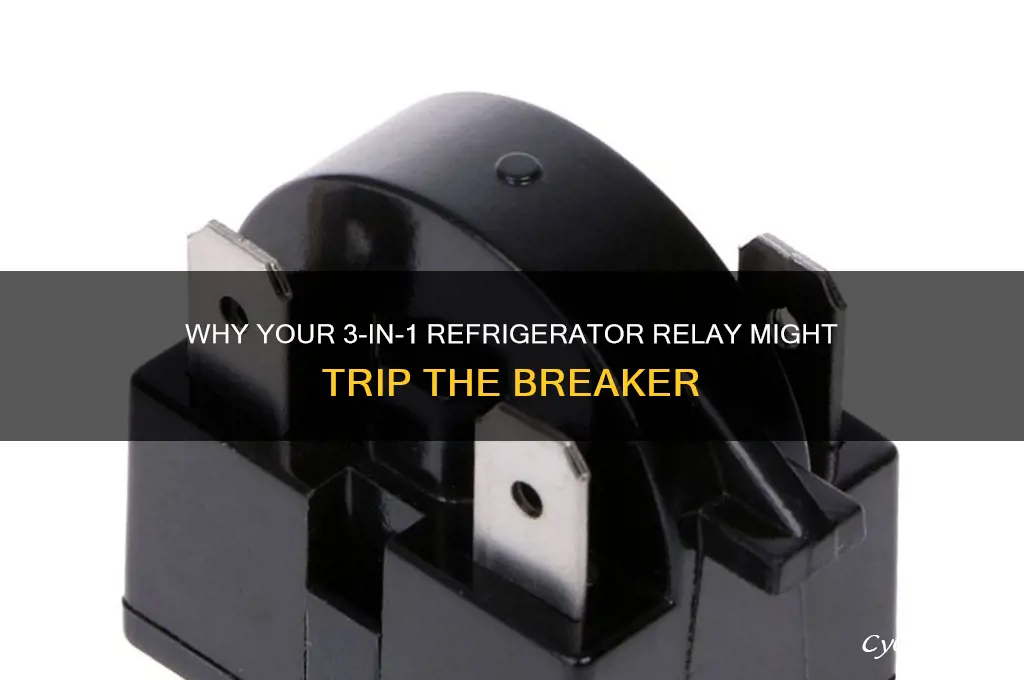

The issue of a refrigerator's 3-in-1 relay tripping a breaker is a common concern among homeowners, often leading to frustration and inconvenience. This problem arises when the relay, which controls the compressor, condenser fan, and evaporator fan, draws excessive current, causing the circuit breaker to trip as a safety measure. Understanding the underlying causes, such as a faulty relay, overloaded circuit, or improper wiring, is crucial in diagnosing and resolving the issue. By addressing these factors, homeowners can prevent frequent breaker trips, ensure the refrigerator operates efficiently, and avoid potential damage to the appliance or electrical system.
Explore related products
What You'll Learn
Overload Protection Mechanisms
Modern refrigerators often integrate a 3-in-1 relay to manage the compressor, fan, and defrost heater circuits efficiently. However, this consolidation can increase the risk of overloading the electrical system, particularly if the relay malfunctions or if the appliance draws excessive current. Overload protection mechanisms are critical to prevent circuit breakers from tripping and to safeguard both the refrigerator and the home’s electrical infrastructure. These mechanisms typically include thermal overload protectors, bimetallic strips, and electronic current sensors, each designed to respond to abnormal current levels before they cause damage.
Thermal overload protectors are commonly embedded within the 3-in-1 relay itself. These devices use a temperature-sensitive alloy that expands when exposed to excessive heat generated by high current. Once the alloy reaches a threshold, it triggers a mechanical switch to disconnect the circuit, preventing further current flow. For instance, a typical thermal protector might activate at 120°C, a temperature often reached when the compressor draws 150% of its rated current for more than 30 seconds. Regularly inspecting these protectors for discoloration or deformation is essential, as they degrade over time and may require replacement every 5–7 years, depending on usage.
Electronic current sensors offer a more precise alternative to thermal protectors. These sensors continuously monitor the current flowing through the relay and send data to a microcontroller. If the current exceeds a predefined limit—say, 12 amps for a standard 10-amp compressor—the microcontroller signals a solid-state relay to cut power. This method is faster and more accurate than thermal protection, reducing the risk of breaker trips. However, it relies on the integrity of the refrigerator’s control board, which can fail due to power surges or manufacturing defects. Installing a dedicated surge protector for the refrigerator can mitigate this risk.
Comparatively, bimetallic strips are simpler and more cost-effective but less precise. These strips consist of two metals with different thermal expansion coefficients bonded together. When overheated, the strip bends and trips a mechanical switch. While effective for basic overload protection, they are slower to respond and less adjustable than electronic sensors. For example, a bimetallic strip might take 10–15 seconds to trip at 130% of the rated current, whereas an electronic sensor could react in milliseconds. Homeowners should prioritize models with electronic sensors for better reliability, especially in regions with unstable power grids.
In practice, combining these mechanisms provides layered protection. For instance, a refrigerator could use a thermal protector for the compressor and an electronic sensor for the fan and defrost heater circuits. Additionally, ensuring the appliance is plugged into a dedicated 15-amp circuit with a properly rated breaker minimizes the risk of trips. If a breaker does trip frequently, it’s crucial to test the relay’s continuity and current draw using a multimeter. Readings above 110% of the rated current indicate a potential overload issue, warranting professional inspection or relay replacement. Proactive maintenance and understanding these mechanisms can extend the refrigerator’s lifespan and prevent costly electrical repairs.
Refrigerating Buttercream Frosting: Overnight Storage Tips and Best Practices
You may want to see also
Explore related products
Relay Malfunction Causes
A refrigerator's 3-in-1 relay is a critical component that controls the compressor, fans, and defrost heater. When this relay malfunctions, it can trip the circuit breaker, leaving you with a warm fridge and spoiled food. Understanding the root causes of relay failure is essential for troubleshooting and prevention.
Overheating is a primary culprit. Relays generate heat during operation, and excessive temperatures can damage internal components. Dust accumulation on the relay or inadequate ventilation around the refrigerator can exacerbate this issue. Ensure proper airflow by keeping the area around your fridge clear and regularly cleaning the condenser coils. If the relay feels hot to the touch, consider installing a small fan to improve cooling.
Electrical surges and voltage fluctuations pose another significant risk. Power spikes can overload the relay, causing it to fail or trip the breaker. Protect your refrigerator by plugging it into a surge protector or uninterruptible power supply (UPS). For homes with unstable electrical systems, consult an electrician to install a whole-house surge protector or voltage regulator.
Age and wear are inevitable factors in relay failure. Most relays have a lifespan of 5–10 years, depending on usage and environmental conditions. If your refrigerator is older, inspect the relay for signs of wear, such as discoloration or a burnt odor. Proactively replacing an aging relay can prevent unexpected breakdowns. When purchasing a replacement, ensure it matches the specifications of your refrigerator’s model.
Manufacturing defects or improper installation can also lead to relay malfunctions. Low-quality relays may fail prematurely, while incorrect wiring during installation can cause overheating or short circuits. Always use OEM (original equipment manufacturer) parts and follow the manufacturer’s installation guidelines. If you’re unsure, hire a certified technician to handle the replacement.
By addressing these causes—overheating, electrical surges, age, and installation issues—you can minimize the risk of a 3-in-1 relay tripping your breaker. Regular maintenance and proactive measures will keep your refrigerator running efficiently and extend its lifespan.
Breast Pump Storage: Can You Safely Refrigerate Your Pump?
You may want to see also
Explore related products
Breaker Tripping Solutions
A refrigerator's 3-in-1 relay is a critical component that controls the compressor, fans, and defrost cycles. When this relay malfunctions, it can draw excessive current, causing the circuit breaker to trip. This issue is not uncommon, especially in older units or those subjected to frequent power fluctuations. Understanding the root cause is the first step in resolving the problem effectively.
Diagnosis and Initial Checks
Begin by unplugging the refrigerator and inspecting the 3-in-1 relay for visible signs of damage, such as burnt marks or melted plastic. Use a multimeter to test the relay’s continuity; a failed reading indicates a faulty relay. Additionally, check the compressor’s start capacitor, as a weak capacitor can overburden the relay, leading to breaker trips. If the relay appears intact, examine the wiring for loose connections or fraying, which can cause intermittent overloads.
Replacement and Upgrades
Replacing the 3-in-1 relay is often the most straightforward solution. Ensure the new relay matches the refrigerator’s specifications, typically found in the user manual or on the appliance’s data plate. When installing, follow manufacturer guidelines to avoid incorrect wiring. Consider upgrading to a higher-quality relay with better heat dissipation capabilities, especially if the refrigerator operates in a hot environment. This can reduce the likelihood of future breaker trips.
Preventive Measures and Maintenance
Regular maintenance can extend the life of the relay and prevent breaker trips. Clean the condenser coils every six months to ensure efficient heat exchange, reducing the compressor’s workload. Avoid overloading the refrigerator or blocking airflow around the unit, as this can cause the compressor to run longer and overheat the relay. Installing a surge protector can also safeguard the relay from power spikes, a common cause of premature failure.
Advanced Troubleshooting
If the breaker continues to trip after replacing the relay, investigate other potential culprits. A failing compressor or a malfunctioning control board can mimic relay issues. Consult a professional technician for a comprehensive diagnosis, especially if the refrigerator is under warranty. In some cases, upgrading the dedicated circuit to a higher amperage rating may be necessary, but this should only be done by a licensed electrician to ensure safety and compliance with local codes.
By addressing the 3-in-1 relay issue systematically, homeowners can restore their refrigerator’s functionality and prevent recurring breaker trips. Combining technical repairs with preventive practices ensures long-term reliability and efficiency.
Refrigerating Hot Sauce: Best Practices for Flavor and Shelf Life
You may want to see also
Explore related products
Electrical Circuit Diagnostics
A refrigerator's 3-in-1 relay is a critical component that controls the compressor, fans, and defrost cycles. When this relay malfunctions, it can cause the circuit breaker to trip, leading to a non-functioning appliance. Diagnosing the issue requires a systematic approach to electrical circuit diagnostics, focusing on voltage, continuity, and resistance measurements. Start by unplugging the refrigerator and locating the relay, typically found near the compressor. Use a multimeter to test the relay's terminals for continuity; a lack of continuity indicates a faulty relay. If the relay tests good, move on to inspecting the wiring harness for damage or loose connections, as these can also cause intermittent tripping.
Analyzing the circuit's behavior under load provides deeper insights. Plug in the refrigerator and monitor the amperage draw using a clamp meter. A sudden spike in current, especially during compressor startup, suggests a short circuit or overloaded component. Compare the measured values to the manufacturer’s specifications, typically found in the appliance manual or online. For instance, a compressor drawing 15 amps on startup when the rated current is 10 amps indicates a potential mechanical issue or failing motor. Always ensure the multimeter is set to the correct range to avoid damaging the device or obtaining inaccurate readings.
Persuasive troubleshooting often involves eliminating variables methodically. If the relay and wiring appear intact, consider the possibility of a grounded compressor or a faulty capacitor. Disconnect the compressor leads and test for continuity to ground; any reading indicates a short. Similarly, test the capacitor using a capacitance meter; values significantly below the rated 10–15 microfarads suggest replacement. While these tests require basic tools, they save time and money compared to replacing parts blindly. Remember, safety is paramount—always discharge capacitors before handling to prevent electrical shock.
Comparing symptoms across similar appliances can highlight common failure points. For example, refrigerators with electronic control boards may trip breakers due to board malfunctions, even if the relay is fine. In such cases, inspect the board for burnt components or corrosion, particularly around the relay output pins. If visual inspection is inconclusive, swap the board with a known-good one from another unit (if available) to isolate the issue. This comparative approach not only diagnoses the problem but also builds a diagnostic mindset applicable to other electrical systems.
Descriptive diagnostics often involve recreating failure conditions to observe patterns. If the breaker trips intermittently, log the frequency and circumstances (e.g., during defrost cycles or after prolonged operation). This data can reveal thermal issues, such as a relay overheating due to poor ventilation or a compressor struggling under high ambient temperatures. Practical tips include cleaning condenser coils to improve airflow and ensuring the refrigerator is level to prevent mechanical strain. By combining observation with technical testing, you can pinpoint the root cause and implement targeted repairs, restoring functionality efficiently.
DIY Guide: Unclogging Your Refrigerator's Frost Drain Easily at Home
You may want to see also
Explore related products
Refrigerator Power Consumption Issues
Refrigerators are among the most energy-intensive appliances in a household, typically consuming between 100 to 800 watts depending on size, age, and efficiency. A 3-in-1 relay, which controls the compressor, fan, and defrost heater, can exacerbate power consumption issues if not functioning optimally. For instance, a faulty relay may cause the compressor to run continuously, drawing excessive current and potentially tripping the circuit breaker. Understanding this relationship is crucial for diagnosing and resolving power-related problems.
One common scenario involves the refrigerator’s startup surge, which can momentarily draw up to three times its running wattage. If the 3-in-1 relay is worn or malfunctioning, this surge may exceed the circuit’s capacity, triggering a breaker trip. To mitigate this, ensure the refrigerator is on a dedicated 15-20 amp circuit, free from other high-wattage devices. Additionally, consider using a surge protector designed for appliances to stabilize power delivery during startup.
Another issue arises from the defrost cycle, which activates the heater to melt ice buildup. If the relay fails to cycle the heater properly, it may run longer than necessary, increasing power consumption and heat output. This not only raises energy bills but also risks overloading the circuit. Regularly inspect the relay for signs of overheating or damage, and replace it if it shows symptoms like a burning smell or erratic cycling.
Modern refrigerators with advanced features like ice makers or water dispensers further complicate power consumption. These components draw additional energy, and a malfunctioning relay can cause them to operate inefficiently. For example, a stuck relay might keep the ice maker motor running, consuming extra watts. To address this, unplug non-essential features if they’re not in use, and monitor the appliance’s energy usage via a smart plug or meter.
Finally, age plays a significant role in power consumption issues. Older refrigerators, especially those over 10 years, are less energy-efficient and more prone to relay failures. Upgrading to an ENERGY STAR-certified model can reduce consumption by up to 9%, while also minimizing the risk of breaker trips. If replacing the appliance isn’t an option, prioritize regular maintenance, such as cleaning coils and replacing worn relays, to optimize performance and prevent power-related disruptions.
Refrigerating Strawberries: Best Practices for Freshness and Longevity
You may want to see also
Frequently asked questions
A 3-in-1 relay is a component in a refrigerator that controls the compressor, fans, and defrost heater. It can trip the breaker if it malfunctions, overloads the circuit, or if there’s an issue with the wiring or compressor.
Check for signs like the refrigerator not cooling, unusual noises from the compressor, or a burning smell. Use a multimeter to test the relay for continuity; if it fails the test, it’s likely the cause.
Yes, a faulty relay can cause the compressor to overheat or fail, damage the fans, or lead to inconsistent cooling, potentially affecting the entire refrigeration system.
Replace the faulty relay with a compatible new one. Ensure the wiring is secure and the compressor is functioning properly. If the issue persists, consult a professional technician.
