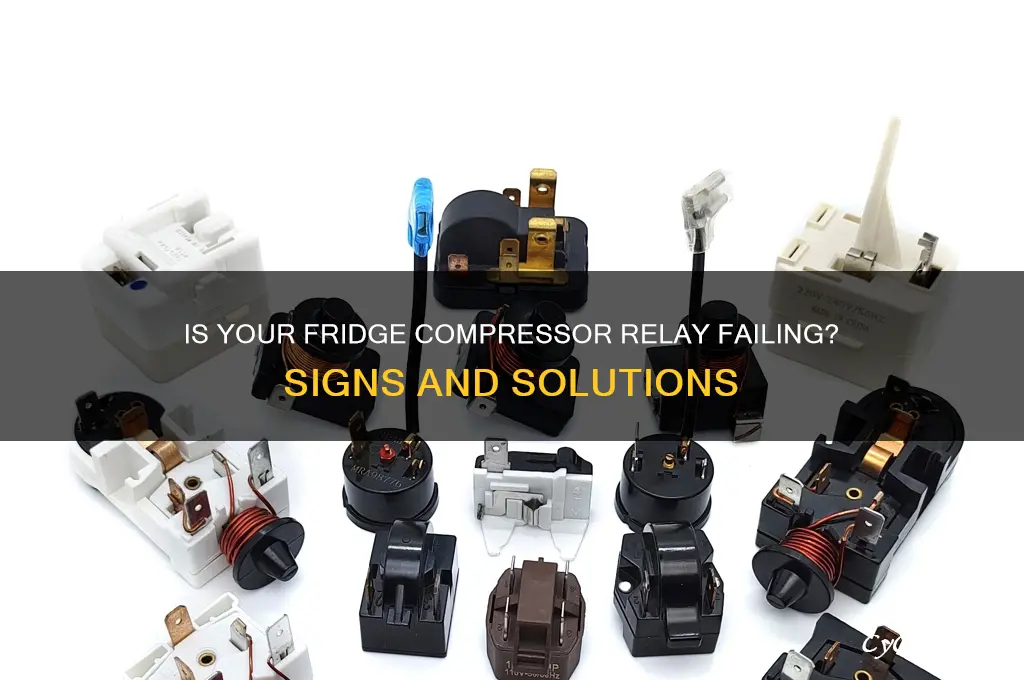

When troubleshooting a refrigerator that’s not cooling properly, one common component to inspect is the relay on the compressor. The relay acts as a switch, controlling the flow of electricity to the compressor motor, and if it malfunctions, the compressor may fail to start or run inconsistently. A bad relay can cause symptoms like the refrigerator not cooling, the compressor clicking on and off, or the unit humming without engaging the compressor. Over time, relays can wear out due to heat, electrical surges, or age, making them a frequent culprit in cooling issues. Testing the relay with a multimeter or replacing it entirely is often a straightforward way to determine if it’s the source of the problem.
| Characteristics | Values |
|---|---|
| Symptoms of a Bad Relay | Compressor not starting, clicking noises, intermittent cooling, or no cooling at all. |
| Common Causes of Relay Failure | Overheating, electrical surges, age-related wear, or manufacturing defects. |
| Testing the Relay | Use a multimeter to check for continuity in the relay pins; a lack of continuity indicates a fault. |
| Location of the Relay | Typically mounted on the side of the compressor or within the compressor housing. |
| Replacement Cost | Relay replacement costs $10–$50 for the part; professional repair may add $100–$200 in labor. |
| DIY vs. Professional Repair | DIY is possible with basic electrical knowledge, but professional repair is recommended for safety and accuracy. |
| Prevention Tips | Avoid frequent power surges, ensure proper ventilation around the refrigerator, and perform regular maintenance. |
| Compatibility | Relays must match the specific make and model of the refrigerator compressor. |
| Lifespan of a Relay | Typically lasts 5–10 years, depending on usage and environmental conditions. |
| Impact on Refrigerator | A bad relay can lead to compressor failure if not addressed promptly, causing complete system breakdown. |
Explore related products
What You'll Learn
Relay Overheating Causes
Relay overheating in refrigerator compressors often stems from electrical overloads, a common yet overlooked issue. When the compressor cycles on and off too frequently, the relay endures repeated high-current surges, causing it to heat excessively. This can occur due to a malfunctioning thermostat, improper voltage supply, or a compressor struggling to start under heavy load. For instance, a refrigerator set to its coldest setting in a hot environment forces the compressor to work harder, increasing the relay’s stress. To mitigate this, ensure the thermostat is calibrated correctly and the unit operates within the manufacturer’s recommended voltage range (typically 110–120V for U.S. models).
Another significant cause of relay overheating is physical wear and tear, particularly in older refrigerators. Over time, the relay’s contacts degrade, increasing resistance and generating heat during operation. Dust, debris, or corrosion on the contacts exacerbate this issue, as they hinder efficient current flow. A practical tip is to inspect the relay for visible signs of damage or discoloration, which often indicate overheating. Cleaning the contacts with isopropyl alcohol and a soft brush can temporarily restore functionality, but replacement is usually the most reliable solution for relays over five years old.
Environmental factors also play a critical role in relay overheating. Refrigerators placed in poorly ventilated areas, such as tight corners or enclosed cabinets, trap heat around the compressor and relay, preventing proper dissipation. Similarly, high ambient temperatures, especially in kitchens near ovens or in warm climates, increase the relay’s operating temperature. To address this, ensure the refrigerator has at least 2–3 inches of clearance on all sides and avoid placing it near heat sources. Using a thermometer to monitor the area around the compressor can help identify overheating risks before they escalate.
Lastly, incorrect wiring or incompatible relays can lead to overheating, even in newer units. Using a relay with insufficient current ratings or improper coil voltage causes it to work beyond its design limits, generating excessive heat. Always verify the relay’s specifications match the compressor’s requirements, typically found in the appliance’s manual or on the original part. If replacing a relay, opt for an OEM (Original Equipment Manufacturer) part to ensure compatibility. DIY enthusiasts should exercise caution, as improper installation can void warranties or create safety hazards. When in doubt, consult a professional technician to diagnose and resolve relay-related issues.
Can You Relocate the Meat Drawer in Your Frigidaire Fridge?
You may want to see also
Explore related products
Testing Relay Continuity
A faulty relay on a refrigerator compressor can cause the appliance to stop cooling, leading to food spoilage and frustration. Testing relay continuity is a straightforward way to diagnose whether the relay is the culprit. This process involves checking if the electrical circuit within the relay is complete, allowing current to flow. If the relay fails this test, it’s likely defective and needs replacement.
To test relay continuity, you’ll need a multimeter, a common tool for electrical diagnostics. Start by disconnecting power to the refrigerator to ensure safety. Locate the relay, typically found on the side of the compressor, and identify its terminals. Set your multimeter to the continuity or resistance mode (usually denoted by a diode symbol or the Greek letter omega). Touch the multimeter probes to the relay’s input and output terminals. A functioning relay will show low resistance (near zero ohms) or emit a continuous beep, indicating a complete circuit. If there’s no continuity, the relay is bad and should be replaced.
While testing, pay attention to the relay’s condition. Overheating, burning smells, or visible damage are red flags that often accompany a failed continuity test. However, a relay may appear fine externally but still fail internally, making the continuity test essential. For example, a relay with a cracked internal coil might show no continuity despite looking intact. Always compare readings to a known good relay or consult the manufacturer’s specifications if unsure.
One practical tip is to test the relay at room temperature, as cold conditions can sometimes mask intermittent issues. Additionally, if the relay has multiple sets of contacts (e.g., start and run windings), test each pair individually. A single failed contact can render the entire relay unusable. By systematically checking continuity, you can pinpoint the problem with confidence and avoid unnecessary part replacements.
In conclusion, testing relay continuity is a precise and reliable method to determine if a refrigerator compressor relay is bad. It requires minimal tools, basic electrical knowledge, and attention to detail. By following these steps, you can save time and money, ensuring your refrigerator returns to optimal performance without guesswork.
Refrigerating Hard Pretzels: Tips for Freshness and Crunch Preservation
You may want to see also
Explore related products
Symptoms of Bad Relay
A refrigerator compressor relay acts as a switch, controlling the flow of electricity to the compressor. When it malfunctions, the consequences are immediate and noticeable. One of the most common symptoms is a compressor that fails to start, leaving your refrigerator warm and your food at risk. This issue often presents as a complete lack of cooling, despite the fans and lights functioning normally. If you hear a clicking sound from the compressor area but no hum of operation, a faulty relay is a likely culprit.
Troubleshooting this issue requires a multimeter to test the relay for continuity. A lack of continuity indicates a broken connection, confirming the relay's failure.
Beyond a non-starting compressor, a bad relay can lead to intermittent cooling problems. You might notice temperature fluctuations, with the refrigerator struggling to maintain a consistent cold environment. This can result in spoiled food and frustration. The relay's inability to consistently engage the compressor disrupts the refrigeration cycle, leading to these inconsistencies. Keep a close eye on your refrigerator's temperature gauge and the freshness of your food to identify this subtle but damaging symptom.
While less common, a bad relay can also cause the compressor to run continuously. This not only wastes energy but also puts excessive strain on the compressor, potentially shortening its lifespan. If your refrigerator seems to be running non-stop, investigate the relay as a potential cause.
Diagnosing a bad relay requires a systematic approach. Start by unplugging the refrigerator and locating the relay, typically found near the compressor. Visually inspect it for signs of burning or damage. Then, use a multimeter to test for continuity across the relay's terminals. If continuity is absent, the relay is faulty and needs replacement. Remember, safety is paramount when working with electrical components. Always unplug the refrigerator before attempting any repairs.
Replacing a bad relay is a relatively straightforward task for those comfortable with basic electrical work. Ensure you purchase the correct replacement relay for your specific refrigerator model. Follow the manufacturer's instructions carefully during installation. If you're unsure about any step, consult a qualified appliance repair technician to avoid further damage or safety hazards.
Refrigerating Dye Bath Post-Extraction: Best Practices and Tips
You may want to see also
Explore related products
Replacing a Faulty Relay
A faulty relay on a refrigerator compressor can cause the appliance to stop cooling, leading to food spoilage and inconvenience. Recognizing the symptoms—such as the compressor not running, clicking noises, or intermittent cooling—is the first step in diagnosing the issue. Relays act as switches, controlling the flow of electricity to the compressor, and when they fail, the compressor may not receive the necessary power to operate. Before assuming the relay is bad, however, it’s essential to rule out other potential causes, like a malfunctioning thermostat or a tripped circuit breaker.
The replacement process involves removing the old relay by unsnapping or unclipping it from the compressor. Take note of the wiring configuration to avoid mistakes during reinstallation. Attach the new relay, ensuring all wires are securely connected. Reattach the protective cover and plug the refrigerator back in. Test the compressor by listening for it to engage and checking if the refrigerator begins cooling. If the issue persists, consult a professional to rule out other underlying problems.
While replacing a relay is a manageable DIY task, it’s crucial to exercise caution. Avoid forcing components or mishandling wires, as this can cause further damage. If you’re unsure about any step, refer to online tutorials or seek guidance from a technician. Investing in a quality replacement part and following proper procedures can extend the life of your refrigerator and save on costly repairs. Regular maintenance, such as cleaning condenser coils and monitoring temperature settings, can also prevent relay failure in the future.
Converting R22 to R407C: A Viable Refrigerant Upgrade Option?
You may want to see also
Explore related products
Common Relay Failure Reasons
Relay failure in refrigerator compressors often stems from electrical overloads, a leading cause of malfunction. When the compressor draws excessive current—due to issues like a locked motor, short circuits, or voltage spikes—the relay’s internal components overheat and degrade. Over time, this stress weakens the relay’s contacts, leading to arcing, melting, or complete failure. To prevent this, ensure your refrigerator is plugged into a stable power source and avoid using extension cords or outlets shared with high-wattage appliances. Regularly inspect the power cord for damage and consider installing a surge protector to safeguard against voltage fluctuations.
Another common culprit is mechanical wear and tear, particularly in older refrigerators. Relays operate by opening and closing contacts thousands of times, and this repetitive motion eventually leads to fatigue. Dust, debris, or corrosion can accelerate this process by interfering with the smooth operation of the contacts. A practical tip is to periodically clean the relay and surrounding area with compressed air and a soft brush. If your refrigerator is over a decade old, proactively replacing the relay during routine maintenance can prevent unexpected breakdowns, especially in humid environments where corrosion is more likely.
Manufacturing defects or low-quality components can also contribute to relay failure. Some relays are designed with subpar materials or insufficient insulation, making them prone to cracking or shorting out under normal operating conditions. If your refrigerator is under warranty and the relay fails prematurely, document the issue and contact the manufacturer for a replacement. When purchasing a new relay, opt for OEM (Original Equipment Manufacturer) parts or high-quality aftermarket alternatives to ensure durability. Avoid generic, unbranded relays, as they often lack the necessary specifications for long-term reliability.
Environmental factors play a significant role in relay longevity, particularly temperature extremes. Refrigerators in garages or unheated spaces are at higher risk, as cold temperatures can cause the relay’s internal components to contract and crack, while heat can warp the plastic housing. If your refrigerator is in an unconditioned area, consider using a garage refrigerator kit or insulating the unit to maintain a stable operating temperature. Additionally, avoid placing the refrigerator near heat sources like ovens or direct sunlight, as this can exacerbate thermal stress on the relay.
Lastly, improper installation or handling during repairs can damage the relay. Forcing the relay into place, using incorrect tools, or failing to secure it properly can bend pins, crack the casing, or misalign the contacts. If you’re replacing the relay yourself, follow the manufacturer’s instructions carefully and use the recommended tools. Double-check that all connections are secure and the relay is seated correctly before powering the unit back on. When in doubt, consult a professional technician to ensure the repair is done safely and effectively.
Refrigerating Ready-to-Feed Formula: Safe Practices After Opening Explained
You may want to see also
Frequently asked questions
Yes, the relay on a refrigerator compressor can go bad over time due to wear and tear, overheating, or electrical issues.
Common signs include the compressor not starting, clicking noises from the relay, the refrigerator not cooling properly, or the relay feeling hot to the touch.
You can test the relay using a multimeter to check for continuity or by shaking it to listen for loose parts. If it fails the test or sounds rattly, it’s likely bad.
Yes, you can replace the relay yourself if you’re comfortable working with electrical components. However, ensure the refrigerator is unplugged, and follow safety guidelines or consult a professional if unsure.
