Temperature/Pressure Relief (TPR) valves are safety devices installed on water heating appliances, such as boilers and domestic water heaters. TPRs are designed to automatically release water if the pressure or temperature in the water tank exceeds safe levels. TPR discharge pipes must meet specific requirements to ensure safety and functionality. One critical consideration is whether the TPR discharge pipe can terminate in a drip pan. While it is essential to understand and adhere to local regulations, some general guidelines include ensuring the pipe is not directly connected to the drainage system, discharging through an air gap, and terminating at a readily observable location to detect leaks or failures.
| Characteristics | Values |
|---|---|
| Termination point | Must be readily observable by occupants, discharge to the floor, to the pan serving the water heater or storage tank, to a waste receptor or to the outdoors |
| Connection to drainage system | Must not be directly connected to the drainage system |
| Air gap | Must discharge through an air gap located in the same room as the water heater |
| Pipe size | Must not be smaller than the diameter of the outlet of the valve served and must discharge full size to the air gap |
| Connection to other devices | Must serve a single relief device and must not connect to piping serving any other relief device or equipment |
| Termination pipe characteristics | Must not be more than 6 inches (152 mm) and not less than two times the discharge pipe diameter above the floor or waste receptor flood level rim; must not have a threaded connection at the end of the piping |
| Pipe material | Constructed of approved material such as CPVC, copper, polyethylene, galvanized steel, polypropylene, or stainless steel |
| Pipe direction | Must not be piped upwards in any of its course |
Explore related products
What You'll Learn
- TPR discharge pipes must drain by gravity to prevent waterborne bacteria from entering the tank
- TPR discharge pipes cannot be directly connected to the home's plumbing drainage system
- TPR discharge pipes must be made from approved materials such as copper or stainless steel
- TPR discharge pipes must terminate in a readily observable location to prevent water damage
- TPR discharge pipes must not be piped upwards in any part of their course
TPR discharge pipes must drain by gravity to prevent waterborne bacteria from entering the tank
Temperature-Pressure Relief (TPR) valves are an essential safety component on boilers and domestic water heaters. TPR valves rarely go off, but if they do, it's a big deal. Super-hot and high-pressure water is released to prevent the tank from exploding. Therefore, it is crucial to ensure that TPR discharge pipes drain by gravity to prevent waterborne bacteria from entering the tank.
TPR discharge pipes must drain by gravity to prevent water from becoming stagnant in the pipe. Stagnant water can introduce bacteria into the tank if it drains backward when the TPR valve is opened manually and there is no water pressure. This can happen if the pipe is not installed correctly and water cannot drain by gravity. A plumbing "trap" is a part of a pipe where water remains after gravity has drained the rest of the water, potentially leading to bacterial growth.
To ensure proper drainage, the TPR discharge pipe should not be directly connected to the home's plumbing drainage system. Instead, an air gap located in the same room as the water heater can be used to connect to the drainage system. This air gap eliminates the possibility of backflow from the drain into the discharge pipe. Additionally, the pipe should not be smaller than the outlet of the valve and must run full-size to the termination.
The TPR discharge pipe must also terminate in a readily observable location to prevent water from continuously draining if the water heater thermostat fails. Furthermore, the termination of the pipe should not be more than 6 inches above the floor or waste receptor flood rim level to ensure the safety of anyone nearby when the TPR valve activates. By following these guidelines, homeowners can help ensure that their TPR discharge pipes drain properly and prevent waterborne bacteria from entering the tank.
Flouring Cake Pans: To Flour or Not to Flour?
You may want to see also
Explore related products
TPR discharge pipes cannot be directly connected to the home's plumbing drainage system
Temperature and pressure relief (TPR) valves are safety devices installed on water heating appliances, such as boilers and domestic water supply heaters. TPRs are designed to automatically release water if the pressure or temperature in the water tank exceeds safe levels. If the temperature sensors and safety devices malfunction, the water in the system may exceed its boiling point. This can cause the tank to rupture and the water to turn into steam, expanding to around 1,600 times its original volume. As a result, the heating tank can be propelled through multiple floors, causing damage and injury.
Due to the safety hazards associated with TPR valves, there are strict guidelines for their discharge pipes. One important rule is that TPR discharge pipes cannot be directly connected to the home's plumbing drainage system. Instead, an air gap located in the same room as the water heater must be used to connect to the drainage system. This air gap is crucial as it eliminates the possibility of backflow from the drain into the discharge piping. Backflow can introduce stagnant water into the system, which can sit for months and potentially drain backwards into the tank if the TPR valve is opened manually, introducing bacteria.
Furthermore, each TPR valve must have its own discharge piping and cannot be shared with any other devices or equipment. The pipe should not be smaller than the outlet of the valve and must run full-size to the termination. The piping must also discharge in a way that does not cause injury or damage. This includes ensuring that the termination of the piping is readily observable by the occupants of the home. If the termination is hidden, such as under the house, a dangerous situation may arise without anyone's knowledge.
In summary, TPR discharge pipes must adhere to specific guidelines to ensure safety and prevent potential hazards. By following these guidelines, homeowners can help mitigate the risks associated with their water heating systems.
Removing Oil Pan from 2002 Chevy Avalanche: Step-by-Step Guide
You may want to see also
Explore related products
TPR discharge pipes must be made from approved materials such as copper or stainless steel
Temperature/Pressure Relief (TPR) valves are safety devices designed to release water automatically in the event that the pressure or temperature in a water tank exceeds safe levels. If temperature sensors and safety devices such as TPRs malfunction, water in the system may become superheated and exceed the boiling point. This can cause the tank to rupture and the water to turn into steam, expanding to around 1,600 times its original volume. As a result, the heating tank can be propelled through multiple floors, leading to personal injury and property damage.
Due to the potential dangers associated with TPR malfunctions, it is crucial that discharge pipes meet specific requirements. One key requirement is that TPR discharge pipes must be made from approved materials. Copper, stainless steel, CPVC, galvanized steel, polyethylene, polypropylene, and PEX or PE-RT tubing are all approved materials for TPR discharge pipes. These materials are listed in the International Plumbing Code and are safe for transporting hot water.
On the other hand, PVC and other non-approved plastics should be avoided as they can easily melt. The use of PVC for TPR discharge pipes is specifically prohibited by the International Plumbing Code. When selecting materials for TPR discharge pipes, it is important to prioritize safety and choose only approved options to ensure the effective and safe operation of these critical safety devices.
In addition to material considerations, TPR discharge pipes must also comply with other important guidelines. For example, the pipe should not be smaller than the outlet of the valve and must run full-size to the termination. Each TPR valve must have its own discharge pipe, independent of any other equipment drains or relief valve discharge piping. The pipe must also terminate in a readily observable location to allow for easy detection of any issues. Furthermore, the piping must drain by gravity and not be trapped to prevent stagnant water, which could introduce bacteria into the tank if it drains backward.
By adhering to these guidelines, including the use of approved materials like copper and stainless steel, homeowners and installers can help ensure the safe and proper functioning of TPR valves and discharge pipes, mitigating the risk of water heater-related accidents and property damage.
The Heat is On: Understanding Your Coffee Pot's Hot Streak
You may want to see also
Explore related products
TPR discharge pipes must terminate in a readily observable location to prevent water damage
Temperature/Pressure Relief (TPR) valves are safety devices installed on water heating appliances, such as boilers and domestic water supply heaters. TPRs are designed to automatically release water if the pressure or temperature in the water tank exceeds safe levels. If the temperature sensors and safety devices such as TPRs malfunction, water in the system may exceed the boiling point. This can cause the tank to rupture, leading to extensive property damage and even personal injury. Therefore, it is crucial to ensure that TPR discharge pipes are installed correctly to prevent such hazards.
One critical requirement for TPR discharge pipes is that they must terminate in a readily observable location. This means that the pipe should be visible to the occupants of the home or building. The purpose of this requirement is to allow for the detection of any leaks or unsafe conditions. If the termination of the piping is not readily visible, such as if it is located under the house, a leak or drip may go unnoticed. This can result in a failure to recognise an unsafe condition, leading to potential water damage and safety risks.
In some jurisdictions, the TPR valve drain line is required to be piped to a visible location to ensure that any leaks or drips can be easily observed. For example, outdoor terminations of a T&P valve drain line may be permitted or even mandated to avoid water damage inside the building. Additionally, some jurisdictions require the installation of a tundish in the drain line at a suitable visible location. A tundish allows occupants to see if the TPR valve is leaking, and it also provides additional plumbing sanitation and blockage protection features.
To facilitate observability, the discharge pipe should not be smaller than the outlet of the valve and must run full-size to the termination. This ensures that in the event of a discharge, a powerful jet of hot water is ejected, making it noticeable to the occupants. Furthermore, the pipe should discharge through an air gap located in the same room as the water heater, preventing the possibility of backflow from the drain into the discharge piping. By adhering to these guidelines, homeowners can help ensure the safe and effective operation of their TPR discharge pipes, mitigating the risk of water damage and maintaining the integrity of their plumbing systems.
Replacing Oil Pan Gasket on 2002 Honda CRV: Step-by-Step Guide
You may want to see also
Explore related products
TPR discharge pipes must not be piped upwards in any part of their course
Temperature/Pressure Relief (TPR) valves are safety devices installed on water heating appliances, such as boilers and domestic water supply heaters. TPRs are designed to automatically release water if the pressure or temperature in the water tank exceeds safe levels. If the temperature sensors and safety devices such as TPRs malfunction, the water in the system may exceed its boiling point. This can cause the tank to rupture and the water to turn into steam, expanding to around 1,600 times its original volume. This process can propel a heating tank through multiple floors, causing damage and injury.
The TPR valve will activate if either the water temperature or pressure exceeds safe levels. The valve should be connected to a discharge pipe (also called a drain line) that runs down the length of the water heater tank. This pipe is responsible for routing hot water released from the TPR to a proper discharge location.
The TPR discharge pipe must not be piped upwards in any part of its course. If the drain line is piped upwards, it may become blocked. A small drip may also accumulate in the bend of the trap or upwards-piped section, hiding an unsafe condition at the T&P valve. A blocked drain line can prevent the adequate relief of water and pressure, risking a BLEVE explosion.
The TPR discharge pipe must be constructed of approved materials, such as copper, galvanized steel, CPVC, and PEX or PE-RT. PVC is not approved as it is not rated for transporting hot water. The pipe should not be smaller than the outlet of the valve and must run full-size to the termination. Each TPR valve must have its own discharge piping, not shared with any other devices or equipment.
Pan-Seared Tilapia Perfection
You may want to see also
Frequently asked questions

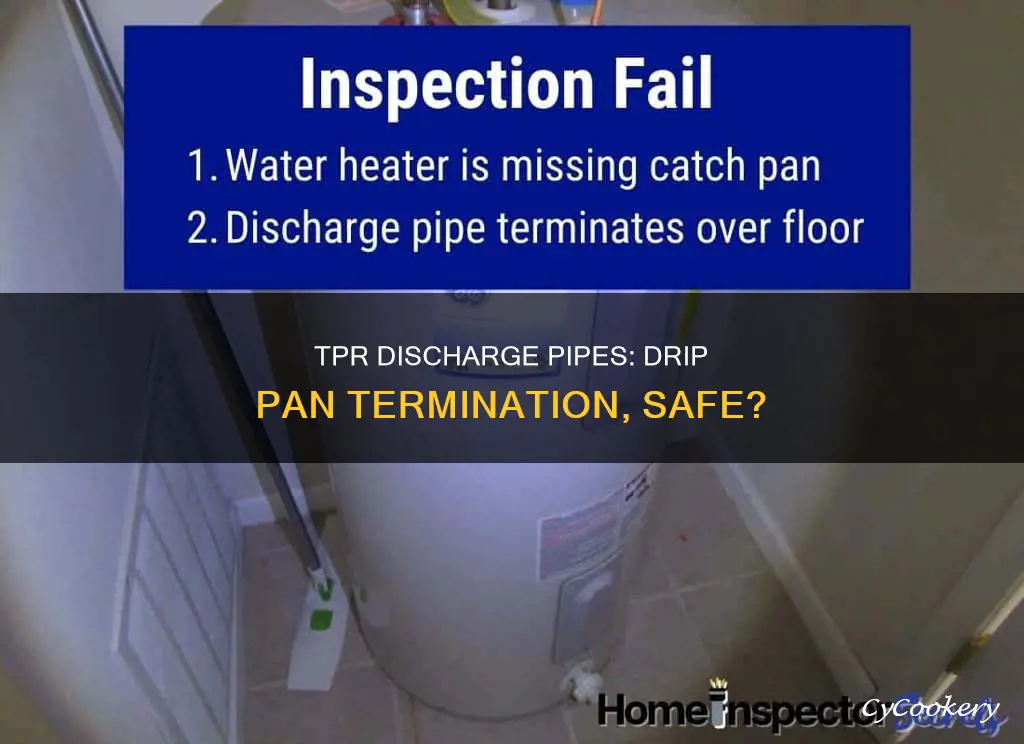

Yes, a TPR discharge pipe can terminate in a drip pan, but it is not recommended. The TPR valve will release water if the temperature or pressure in the water tank exceeds safe levels. If the TPR discharge pipe terminates in a drip pan, it may not be readily observable by the occupants, and they may not realize that something is wrong.
A TPR discharge pipe should meet the following requirements:
- It should not be directly connected to the drainage system.
- It should discharge through an air gap located in the same room as the water heater.
- It should not be smaller than the diameter of the outlet of the valve.
- It should discharge in a manner that does not cause personal injury or structural damage.
- It should terminate in a readily observable location by the occupants.
If the temperature sensors and safety devices such as TPRs malfunction, water in the system may become superheated, exceeding the boiling point. This can lead to a water-heating appliance explosion, causing personal injury and extensive property damage.
