Emilie Meyer

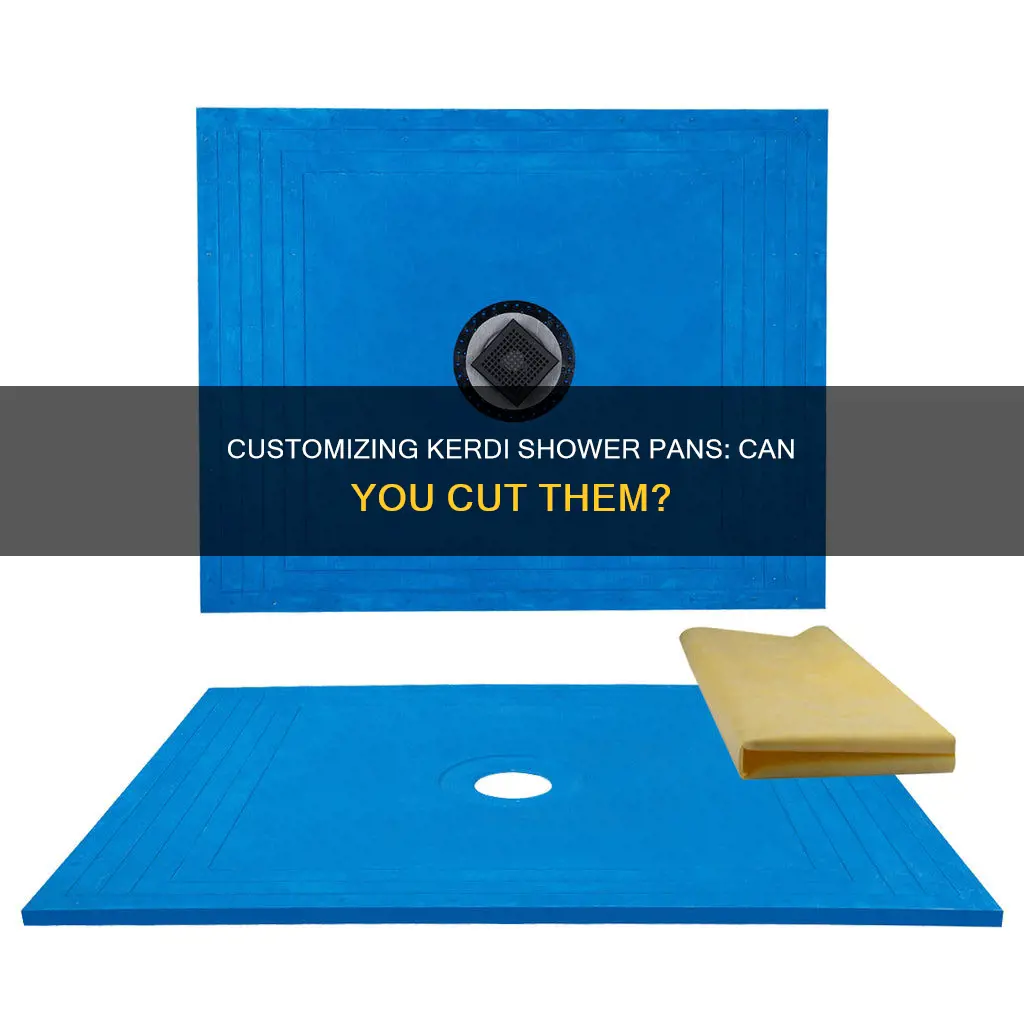

The Schluter Kerdi Shower Pan can be cut to size to fit various applications. The recommended tool for cutting the tray is a utility knife, marking the cut line with a straight edge before scoring along the line. It is important to cut equal amounts from all sides to ensure a consistent height, although differences can be made up with thin-set mortar. The curb and bench can be trimmed with a hand saw, using a sharp blade and drawing a square line to ensure a straight cut. The Kerdi Shower Pan can also be installed with Schluter ALL-SET or unmodified thin-set mortar, although it is important to follow the mixing instructions to ensure the correct consistency.
| Characteristics | Values |
|---|---|
| Cutting process | Mark, score, and snap |
| Cutting tools | Utility knife, razor knife, straight edge, track saw, hand saw |
| Drain positioning | Centered on the Kerdi pan |
| Schluter recommendation | Cut all four sides evenly |
| Alternative | Make up differences in lower height with thin-set mortar |
| Schluter trowel recommendation | 1/4" x 3/8" square or U-notched trowel |
| Waterproofing | Use Schluter ALL-SET or unmodified thin-set mortar |
Explore related products
What You'll Learn
Schluter recommends cutting all four sides evenly
Schluter recommends cutting all four sides of the Kerdi shower pan evenly to ensure a consistent height for the first course of wall tile. This means that if you need to trim 6" off the shower pan, you should cut off 3" from each side. Cutting the pan this way will help you achieve a more uniform slope towards the centre drain.
To cut the Kerdi shower pan, first use a straight edge to mark the cut line. Then, score the shower pan along the cut line using a utility knife. After scoring the entire length of the pan, apply even pressure to snap it along the cut line. This process is similar to cutting drywall, where you mark, score, and snap.
When trimming the Schluter Kerdi Shower Pan, it is important to cut opposite sides as evenly as possible. This will ensure that the height of the pan remains consistent, creating an even elevation for the wall tiles.
In addition to cutting the pan, you may also need to adjust the wall framing around it to ensure a proper fit. It is also recommended to use Schluter Systems thinset for the installation to maintain the Schluter warranty. However, an unmodified thinset mortar can also be used to apply the Kerdi Shower Pan.
Unveiling Text: Premiere Pro's Pan Tool
You may want to see also
Explore related products
Use a utility knife to cut the Kerdi shower pan to size
Kerdi shower pans can be cut to size, and it is recommended that you cut all four sides evenly. Firstly, use a straight edge to mark the cut line on the shower pan. Next, use a utility knife to score the Kerdi shower pan along the cut line. After scoring the entire length of the shower pan, apply even pressure to snap the Kerdi shower pan along the cut line.
It is important to note that when trimming a Kerdi shower pan, you should cut opposite sides as evenly as possible. For example, if you need to trim 6 inches off the pan, cut 3 inches off both sides. This will ensure a more uniform slope towards the centre drain.
Some people prefer to cut the perimeter first. For instance, if you have a 48-inch wide shower pan that needs to be 38 inches, cut 3/4 inch off both sides of the perimeter. Then, cut 5 inches off both sides of the pan itself.
There are other tools you can use to cut the Kerdi shower pan, such as a track saw or a razor knife.
The Perfect Hashbrown Pan: Seasoning Secrets Revealed
You may want to see also
Explore related products
Cut the shower drain penetration using a drill and hole saw bit
Yes, you can cut a Kerdi shower pan. In fact, it is highly recommended that you cut a Kerdi shower pan to ensure that it fits appropriately within the installation area.
Now, here's a detailed guide on how to cut the shower drain penetration using a drill and hole saw bit:
First, you need to perform a dry fit of the shower pan and mark the location of the drain hole. It is important to ensure that your measurements are accurate. You can use a pencil to mark the center of the drain hole. This will be your guide for drilling.
Next, you will need to equip your power drill with the appropriate hole-saw drill bit. Choose a hole-saw bit that matches the size of the circle you marked. If you are drilling through tile, it is recommended to use a carbide-tipped bit. To prevent the hole-saw pilot bit from scratching and damaging the shower unit finish, it is advisable to use a drill bit that is 1/8-inch smaller than the pilot bit on the hole-saw drill bit.
Once you have the right drill and bit in place, it's time to start drilling. Run the drill at a low speed and apply light pressure. Hold the drill plumb and level to prevent the hole-saw drill bit from binding, slipping, or damaging the shower unit or panel surface. Take your time and drill slowly to avoid damage.
After drilling the hole, you can clean up any rough edges and remove any dust or debris from the installation area. It is important to limit the penetration to a 5” diameter maximum to ensure adequate support for the shower pan and future tiling.
By following these steps, you can successfully cut the shower drain penetration using a drill and hole saw bit, ensuring a precise fit for your Kerdi shower pan installation.
Oiling a Broiler Pan: What's the Best Practice?
You may want to see also
Explore related products
Cut the curb to height using a hand saw
Yes, you can cut a Kerdi shower pan. In fact, it is quite simple. The process involves marking, scoring, and snapping.
First, you must ensure that your Kerdi shower pan fits within the installation area. If adjustments are needed, you can trim the shower pan accordingly.
When trimming, it is recommended to cut opposite sides evenly. For instance, if you need to trim 6" off the shower pan, cut 3" off both sides. This ensures a more uniform slope towards the centre drain.
Now, to cut the curb to height using a hand saw:
Start by drawing a square line on the curb to guide your cut. Ensure that your hand saw has a sharp blade. Carefully cut along the line you drew until you have removed the desired amount from the bottom of the curb. Take your time to ensure a straight, clean cut.
If you prefer, you can also use a utility knife or a track saw to cut the curb. Additionally, you can make up for any height differences at the curb by using thin-set mortar or Kerdi-Fix.
By following these steps, you can successfully cut your Kerdi shower pan to the desired size and height.
Steaming Milk: The Pan Method for Beginners
You may want to see also
Explore related products
Mark, score, and snap the Kerdi shower pan along the cut line
To cut or trim a Kerdi shower pan, you will need a straight edge and a utility knife.
First, use the straight edge to mark the cut line on the shower pan. Then, use the utility knife to score the Kerdi shower pan along the cut line. Be sure to score the entire length of the Kerdi shower pan. After scoring, apply even pressure to snap the Kerdi shower pan along the cut line.
When trimming a Kerdi shower pan, it is recommended to cut opposite sides as evenly as possible. For instance, if you need to trim 6” off of the Kerdi Shower Pan, cut 3” off both sides. This ensures a more uniform slope to the centre drain.
It is worth noting that Schluter Systems recommends cutting all four sides evenly, if possible. If you are unable to do so, you can compensate for any height differences at the back wall and front curb with thin-set.
Tefal Pans: Dishwasher-Safe or Not?
You may want to see also
Frequently asked questions
Yes, you can cut a Kerdi shower pan to size.
Mark the cut line with a straight edge, score the shower pan with a utility knife, and then apply even pressure to snap the shower pan along the cut line.
Cut equal amounts from all four sides of the shower pan.
It is recommended to use a drill and hole saw bit, but a jig saw, reciprocating saw, or router can also be used.
Use dry pack mortar to fill in the gaps.
