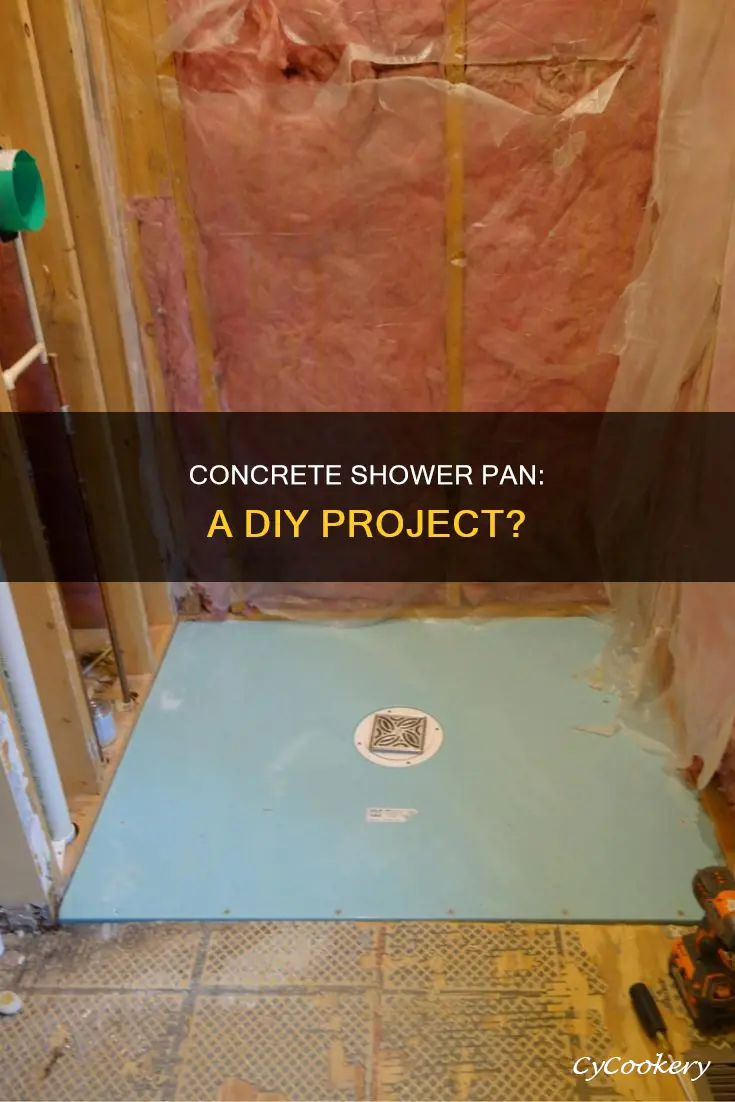

A shower pan, also known as a shower base or tray, is a crucial foundation for a shower enclosure. It collects and directs water flow towards the drain, preventing water damage to the subfloor and walls. While traditional sand and cement mixes have been used for shower pans for decades, regular concrete is not recommended due to its lack of waterproofing characteristics. However, concrete shower pans are possible with proper waterproofing treatments, such as epoxy concrete sealers or products like Kerdi. The choice of concrete mix is essential for a sturdy, leak-free, and durable shower pan. Lightweight and polymer-modified concrete mixes are popular options for their ease of handling, flexibility, and crack resistance. When creating a concrete shower pan, it is important to follow local building codes and guidelines from organizations like the Tile Council of North America (TCNA).
| Characteristics | Values |
|---|---|
| Concrete shower pan | Can be done, but requires regular cleaning to maintain |
| Waterproofing | Requires treatment, but may not be effective in the long term |
| Concrete type | Clear epoxy concrete sealer/finish or pool paint |
| Concrete mix | Traditional sand and cement, or lightweight/polymer-modified mixes for flexibility and crack resistance |
| Installation | Requires a shower pan or tray to contain and direct water flow to the drain, preventing leaks and water damage |
| Durability | Depends on the chosen mix, with some mixes being more resistant to cracking and lasting 80-100 years |
| Safety | Wear proper safety equipment such as safety glasses and gloves |
Explore related products
What You'll Learn
The importance of waterproofing
Waterproofing is an essential aspect of any shower installation or renovation project. While it may be tempting to overlook this step, proper waterproofing is critical to preventing water damage and maintaining the structural integrity of your shower. Here are several reasons why waterproofing is of utmost importance:
Preventing Water Damage
Waterproofing is crucial in preventing water damage to your shower and surrounding structures. Over time, steam and water can penetrate through grout joints and porous tile materials. By installing a waterproofing membrane or using a waterproof membrane together with a cement board backing, you create a protective barrier that prevents water from seeping into the underlying layers and causing damage.
Reducing Mould and Mildew Growth
Waterproofing plays a vital role in inhibiting mould and mildew growth. Bathrooms are particularly susceptible to mould due to the high moisture levels. By waterproofing your shower, you reduce excess moisture, creating an environment less conducive to mould and mildew development. This is especially important as mould can cause various health issues for susceptible individuals.
Maintaining Structural Integrity
Waterproofing helps maintain the structural integrity of your shower and surrounding areas. Without proper waterproofing, water can seep into the walls and floors, causing damage to structural members. This can result in costly repairs to fix rotting and deterioration. A stable and defect-free subfloor is essential for the effective performance of a waterproofing membrane.
Ensuring Proper Drainage
Waterproofing contributes to effective drainage in your shower. By installing a waterproofing membrane, you establish a drainage path for water to escape in case the top layers of the shower pan are compromised. Additionally, proper waterproofing includes protecting weep holes, which are vital for evacuating water through the grout or cracks between horizontal and vertical wall transitions.
Peace of Mind and Longevity
Waterproofing provides peace of mind and ensures the longevity of your shower installation. By taking the time to properly waterproof, you can be confident that your shower will withstand the test of time without experiencing leaks or water damage.
In conclusion, waterproofing is a critical step in any shower installation or renovation project. By preventing water damage, inhibiting mould growth, maintaining structural integrity, and ensuring proper drainage, waterproofing protects your investment and ensures the durability of your shower. Always follow manufacturer instructions and consult local building codes to ensure a successful and compliant waterproofing installation.
How to Prepare Your Pan for Banana Bread
You may want to see also
Explore related products
The right concrete mix
One recommended concrete mix for shower pans is the "dry pack" mixing method using a Sand Mix product, such as Sakrete Sand Mix or Sakrete Canada Sand Mix. This method involves wearing respiratory protection and pouring the Sand Mix into a mortar pan or a 5-gallon bucket. You should then add about 1/4 of the recommended amount of water to the mix and start blending. The correct consistency has been reached when you can form a "snowball" with the mix using your hands without it crumbling. If the "snowball" crumbles, add more water, and if the mix is too wet, add more dry mix.
Another important consideration when choosing a concrete mix for a shower pan is its resistance to cracking. Different mixes have varying resistance to cracking, which can affect the integrity of the shower pan. Therefore, it is essential to examine the cracking resistance of each mix and select one that meets your specific needs and preferences.
Additionally, it is worth noting that reinforcement is typically not necessary for shower pan concrete mixes, as they are generally designed to be sturdy enough on their own. However, if you are using a product like Quikrete, which will eventually crack in thin areas, you may want to consider mixing it with a reinforcement such as wire, flux, or string to extend its longevity.
Overall, choosing the right concrete mix for your shower pan is crucial to ensure a waterproof, durable, and long-lasting installation. Be sure to follow the manufacturer's guidelines and instructions for the mix you choose to achieve the best results.
Hot Pot Cubed: A Tasty Take on a Comfort Classic
You may want to see also
Explore related products
Installation steps
Before starting the installation, it is important to consult local building codes, the Tile Council of North America (TCNA) Handbook, and ANSI108.1 for specific guidelines and requirements. Additionally, ensure that you have the necessary safety equipment, such as safety glasses and gloves.
Step 1: Preparation
- Install the floor drainpipe as per local building codes and your specific drain system.
- Install a sub-floor if required, ensuring access to the drainpipe.
- Frame the walls and curbing for the shower entrance.
- Sweep the floor and remove any sharp objects or debris.
- Ensure that nails in the sub-floor are flush.
Step 2: Drain Installation and Waterproofing
- Install the shower drain into the floor drain.
- Install a PVC pan-liner, creating a slight slope towards the drain (approximately 1/4 inch per foot or 6 mm per 30 cm).
- Install waterproof drywall on the walls and over the curb.
- Secure a locking ring and drain bolts to hold down the pan-liner.
Step 3: Creating the Shower Pan
- Cut a sheet of building paper or roofing felt to fit the bottom of the shower base. This will act as a cleavage membrane.
- Install metal lath or reinforcement over the membrane, securing it to the subfloor with nails or staples.
- Calculate the slope for proper drainage by measuring the distance from the drain to the farthest wall. The target slope is 1/4 inch per foot.
- Mark the high point of your mortar bed by multiplying the distance by 0.25 and adding 1/2 inch. Extend this mark around the perimeter of the shower.
- Dump dry pack Sand Mix into the shower base to form a level perimeter at the high point mark. Use a rubber or wooden float to pack the material down, checking for level with a hand level.
- Fill in the center of the shower pan, creating a rough slope towards the drain. Pack down the material and use a straight edge to smooth the slope.
- Allow the pre-slope bed to cure for 24 hours.
Step 4: Final Layer and Finishing
- Install a waterproofing membrane, following the manufacturer's instructions.
- Put down the final layer of Sand Mix, ensuring a minimum depth of 1/2 inch.
- Calculate the slope of the final mortar bed and set the adjustable drain at the low point. Tape off the drain opening to keep it clean.
- Place a layer of clean gravel or crushed tile around the shower drain to protect the weep holes.
- Repeat the process to place the final mortar bed, raising the adjustable drain slightly to accommodate tile or flooring.
- Finish the surface with a steel trowel to create a smooth finish.
Iron-On Patchwork: Mastering the Art of Iron Pan Application
You may want to see also
Explore related products
Safety precautions
Concrete can be used for a shower pan base, but it is essential to take the necessary safety precautions to ensure a successful installation and avoid future water damage. Here are some detailed safety precautions to follow when using concrete for a shower pan:
Planning and Preparation:
Before beginning the project, it is crucial to consult local building codes, the Tile Council of North America (TCNA) Handbook, and ANSI108.1 to ensure compliance with regulations. Estimate the required materials, assuming a 2" depth for the shower area. Use a Slab Calculator or a specialised app for accurate measurements and material estimates.
Safety Equipment:
Always wear respiratory protection when working with concrete and other materials. Put on safety glasses and gloves to protect your eyes and hands from dust, debris, and chemicals.
Waterproofing:
Install a proper waterproofing membrane to prevent water damage. The waterproofing membrane should be placed underneath the shower pan to establish a drainage path for water in case the top layers are compromised. Cut a sheet of building paper or roofing felt to fit the shower base as a cleavage membrane.
Drainage:
Ensure proper drainage by installing a floor drainpipe and a shower drain. Set the drain flange slightly above the subfloor to create a slope for water to drain effectively. Use a PVC pan-liner and waterproof drywall to direct water towards the drain and prevent water stagnation, which can lead to mould and tile failure.
Surface Preparation:
Sweep the floor and remove any sharp objects or debris. Ensure that nails in the subfloor are driven flush to create a smooth and level surface for the concrete shower pan.
Concrete Mixing and Application:
Follow the manufacturer's instructions for mixing and applying concrete or sand mix. Maintain the recommended temperatures for the mix and substrate before and after application. Check the consistency of the mix by forming a "snowball" with your hands—if it holds together, the consistency is correct.
Curing and Tiling:
Allow the concrete to cure adequately before proceeding to the next steps. Follow the manufacturer's recommendations for curing times. For tiling, ensure that the mortar bed is installed within the specified timeframe to ensure proper adhesion.
Leak Prevention:
Pay close attention to drain and sealants to prevent leaks, cracks, and seepage. Use brass components where possible to curb potential corrosion.
Maintenance:
For wooden duckboards, routine maintenance and periodic sunning are necessary to keep them free of mildew and in good condition.
By following these safety precautions and working carefully, you can successfully install a concrete shower pan while minimising the risks of water damage, leaks, and other issues.
Cat Pan Sifters: How Do They Work?
You may want to see also
Explore related products
Durability and maintenance
The durability of a concrete shower pan depends on several factors, including the choice of concrete mix, proper installation, and maintenance.
Firstly, choosing the right concrete mix is crucial. Traditional sand and cement mixes have been a popular choice for shower pans for many years. However, there are now several other options available, including pre-mixed shower pan mortar, lightweight concrete mixes, and polymer-modified concrete. Polymer-modified concrete, for example, is known for its flexibility and crack resistance, making it an excellent option for a long-lasting shower pan. It is important to follow the manufacturer's guidelines for the chosen mix and to ensure proper installation.
The concrete surface must be clean and free of any debris before installation to prevent any water leaks. Any cracks or uneven surfaces should be patched and levelled to create a flat, smooth surface for the liner to adhere correctly. It is also essential to follow the manufacturer's instructions for mixing ratios and consistency. The correct consistency has been achieved when you can form a "snowball" with the mix using your hands and toss it a few inches without it breaking.
Once the shower pan is installed, regular maintenance and testing are necessary to maintain its waterproofing. Flood testing is a crucial step to identify any leaks before using the shower. This involves filling the shower pan with water up to the threshold level and letting it sit for at least 24 hours. If the water level drops, it indicates a leak that needs to be addressed. Long-term care includes avoiding harsh chemicals and abrasive cleaners, as they can damage the liner and compromise its effectiveness over time.
Overall, with the right choice of concrete mix, proper installation, and regular maintenance, a concrete shower pan can be a durable and long-lasting solution for your bathroom.
Understanding Panoramic X-Rays: A Guide
You may want to see also
Frequently asked questions
Yes, concrete can be used for a shower pan, but it must be mixed with other materials to ensure it is waterproof and durable.
A mixture of concrete, sand, and water is often used, sometimes with the addition of a waterproofing agent or fibre additive to prevent bacterial growth.
The process typically involves creating a slope to direct water towards the drain, installing a liner, and then pouring the concrete mix. It is important to follow manufacturer instructions and allow adequate curing time.
Concrete shower pans can be long-lasting and durable if the correct mix is used and properly installed. They provide a sturdy foundation for the shower and help prevent leaks.
Yes, there are alternative materials such as polymer-modified concrete, lightweight concrete mixes, and traditional sand and cement mixes that can be used depending on the specific requirements and preferences of the project.
