Installing an oil pan is not a simple task and requires proper planning and attention to detail. The choice between bolts or a stud kit depends on convenience, budget, and performance considerations. While bolts are generally easier to work with, studs provide a more accurate torque reading when tightening the oil pan to the block. Some oil pans, such as aluminum pans, are better suited for studs and nuts, while others work better with bolts. It's important to ensure that all the supporting parts, such as gaskets, windage trays, and mounting hardware, are compatible and in good condition to prevent oil leaks.
| Characteristics | Values |
|---|---|
| Installation | Studs can be used to install an oil pan, but bolts are generally preferred as they are easier to work with and less likely to bend. |
| Removal | Removing an oil pan with studs can be more challenging and may require specialized tools like vice grips. |
| Performance | Studs can provide a more accurate torque reading when tightening the oil pan to the block compared to bolts. |
| Compatibility | Some oil pans, especially those made of aluminum, may not be compatible with studs and require bolts instead. |
| Convenience | Bolts are generally more convenient and cost-effective, while studs may be preferred for certain applications like race cars. |
| Gaskets | Studs can hold gaskets in place better than bolts, reducing the chances of oil leaks. |
| Engine Block Position | When installing an oil pan with internal trap doors, the engine block should be in the upright position to ensure the doors are not stuck. |
| Fasteners | It is important to count and inspect all fasteners before starting the installation or removal process. |
| Surface Preparation | The oil pan should be placed on a flat, solid surface to check for straightness, and the rails and bolt holes should be cleaned. |
| Chrome-Plated Pans | If the oil pan is chrome-plated, it is crucial to clean the drain hole threads to prevent leaks. |
Explore related products
What You'll Learn
Bolts vs studs
When it comes to installing an oil pan, there are two schools of thought: using bolts or studs. While both methods serve the essential purpose of creating a secure and reliable connection, they differ in design, application, functionality, and convenience.
Bolts are threaded fasteners with a head on one end and a shaft with external threads on the other. They are typically used with nuts to hold materials together. The head of a bolt allows for tightening with a wrench or a similar tool. Bolts come in various sizes, shapes, and materials, making them versatile for a wide range of applications. They are easy to replace as they are standalone components. However, they may not be suitable for high-stress applications as they typically provide lower load distribution due to their single-headed design.
Studs, on the other hand, are threaded rods without a head, featuring threads on both ends or along the entire length. They are used in applications where a permanent or semi-permanent connection is required, typically in conjunction with nuts and washers. Studs allow for more accurate torque application and are stronger than the same-size bolts. They are ideal for high-pressure, high-temperature, and heavy-duty environments. However, replacement can be more challenging, especially if one end is embedded or hard to access.
The choice between bolts and studs for oil pans depends on various factors, including convenience, budget, and performance considerations. Some oil pans work better with bolts, while others are better suited for studs, particularly aluminum oil pans. Studs can access areas that bolts cannot, and they provide a more accurate torque reading when tightening the oil pan to the block.
Additionally, when using bolts, it is essential to ensure proper alignment and torque specifications. The conventional tightening procedure involves tightening the four corners to about 50% of torque before moving on to the center bolts and then outward in an "X" pattern.
In summary, both bolts and studs have their advantages and disadvantages, and the best choice depends on the specific requirements of the application, including load, stress, and environmental conditions.
Simple Solutions for Sparkling Aluminum: Removing Discoloration
You may want to see also
Explore related products
Oil pan gasket alignment
Installing an oil pan is not a simple task and requires proper planning and attention to detail. Oil leaks are often caused by poor gasket quality, so it is important to ensure that the oil pan gasket is aligned correctly.
Firstly, it is important to obtain the appropriate oil pan gasket replacement. Gasket materials vary depending on the type of metal they are intended to seal. It is also important to check the literature from the fastener company. For example, name-brand gaskets come with any necessary sealants, whereas other gaskets may require thread sealer.
Next, you will need to remove the oil pan. This may require removing other parts and brackets to access the pan and its bolts. The service manual will be a valuable resource for this step, as it will illustrate the locations of the bolts and specify any vehicle-specific procedures, such as whether the crankshaft needs to be rotated before the pan will come out. Once all bolts are removed, the pan can be dropped. If necessary, tap it lightly with a mallet to break the seal.
Now, you can install the new gasket. Clean the inside of the oil pan and inspect it for cracks. Then, follow the instructions provided with the gasket. Some gaskets use regular grease to hold them in position.
Finally, torque the oil pan bolts to spec in a spiral pattern, beginning in the center. Conventional tightening procedure calls for tightening down the four corners to about 50% of torque, then starting on the center bolts and moving outward in an "X" pattern towards the ends.
Quiche Pan or Flan Pan: Can You Substitute?
You may want to see also
Explore related products
Engine block position
Installing an oil pan can be a tricky process, and it is important to consider the engine block position. The engine block should be placed in an upright position to ensure that internal trap doors are not stuck. This is a crucial step to avoid potential leaks. Before positioning the gasket, both the block and pan surfaces must be clean and straight. It is recommended to use a flat, solid surface to check for straightness and then clean the rails and bolt holes.
When installing the oil pan, there are two common methods: using bolts or a stud kit. The choice between the two depends on convenience, budget, and performance considerations. Bolts make it easier to drop the pan with the engine in the car, while studs make it easier to keep the gasket in place. Studs also protect the mounting holes in the block and speed up installation and removal, which is advantageous for racers who frequently service their engines.
It is important to note that the oil pan should be positioned over the studs or alignment tools if using bolts. Finger-tightening all the nuts or bolts is the next step before confirming the manufacturer's torque specifications.
Additionally, the clearance between the oil pump pickup and the oil pan should be considered. The pickup should be positioned 3/16" to 1/2" away from the pan floor to ensure optimal flow and prevent the pickup from sucking air during hard acceleration, cornering, or braking.
Overall, by following these steps and considering the engine block position, you can successfully install an oil pan and avoid potential issues.
Calphalon Pans: Are They PTFE-Free?
You may want to see also
Explore related products

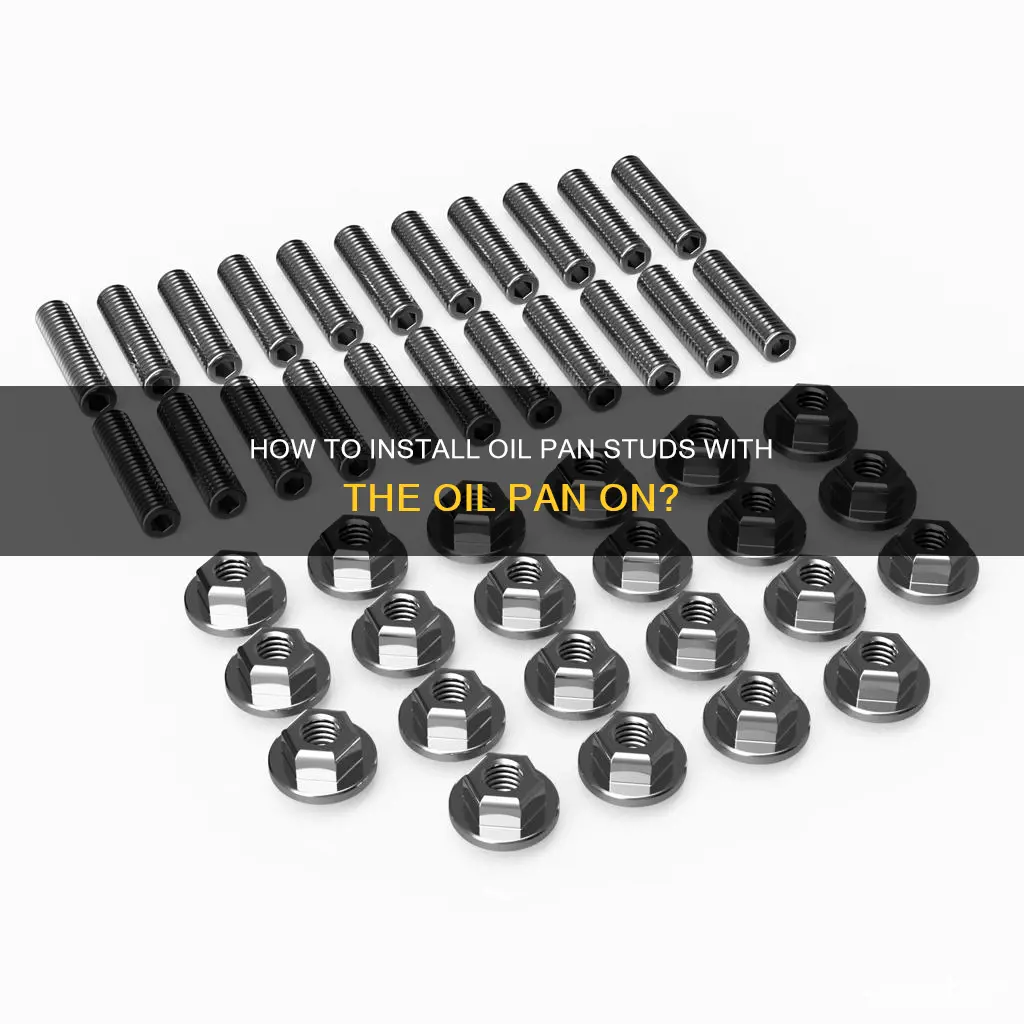

Oil pan stud kits
Installing an oil pan is not a simple task and requires proper attention and planning. The choice between bolts or a stud kit is generally a matter of convenience and budget. Studs and nuts can fit in areas that bolts can't, and they allow for a more accurate torque reading when tightening the oil pan to the block. Oil pan stud kits are designed to eliminate oil seepage and prolong the life of gaskets. Each stud has a unique nut-starter radius to prevent cross-threading and is available in various materials and designs to fit specific engines.
The installation process for oil pans using a stud kit involves positioning the pan over the studs and alignment tools. The nuts or bolts are then started and finger-tightened. The gasket is held in place by the studs, aiding in pan alignment. It is important to confirm the torque specifications from the manufacturer and follow the conventional tightening procedure, starting with the four corners and moving outward in an "X" pattern.
Some considerations when choosing between bolts and studs include the frequency of disassembling the engine and the type of oil pan. Bolts may be preferred for their ease of use, especially with thick aluminum pans, while studs can be advantageous for their ability to access tight spaces and provide accurate torque readings.
Additionally, it is crucial to ensure that all supporting parts, such as gaskets, windage trays, mounting hardware, dipsticks, and tubes, are compatible and properly matched to the oil pan and engine. Proper attention to these details can help prevent oil leaks and ensure the optimal performance of the oil pan.
The Best Way to Hold All-Clad Cookware
You may want to see also
Explore related products
Oil pan installation challenges
Installing an oil pan is not a simple task and requires proper attention to detail. There are several challenges to be aware of when installing an oil pan. Firstly, planning and attention to detail are crucial. It is important to ensure that you have the correct part for your specific application. Any modifications to the chassis or engine block may impact the fit of the oil pan, so these must be considered.
The oil pump pickup must also be correctly matched to the pan. Oil-pan manufacturers often have dedicated pickups for specific pans, especially those with deep sumps or unique designs. It is important to double-check the clearance between the pickup and the pan to avoid restricting oil flow.
Another challenge is ensuring the oil pan is installed correctly to prevent leaks. Oil leaks can be hazardous and cause damage. The quality of the gasket is critical to preventing leaks, and advancements in gasket materials and design have improved sealing performance. RTV sealant is a popular method for sealing, but it is important to follow the manufacturer's instructions for the specific oil pan. Gaskets should be installed dry, but a small amount of RTV can be added to the corners.
The installation process itself can be challenging, especially when using studs. Some users have reported difficulties getting the pan onto the block, requiring additional persuasion or even modifications to the bolt holes. The use of a rubber mallet is often necessary, but care must be taken to avoid damaging the pan or engine block.
Finally, when installing an oil pan, it is important to consider the surrounding components and their compatibility with the new pan. Other parts and brackets may need to be removed to access the oil pan, and the crankshaft may need to be rotated. The oil pan's design and clearance must also accommodate the oil pickup tube and any other components in the engine bay.
T-fal Pots: Are They Oven-Safe?
You may want to see also
Frequently asked questions
Yes, you can install an oil pan stud with the oil pan on, but it will be harder to pull the pan in the car. It is recommended to use set screws and nylon lock nuts for the installation.
Studs and nuts can fit in areas that bolts can't. They also provide a more accurate torque reading when tightening the oil pan to the block.
Before starting the installation, count all your fasteners and check the oil pan on a flat, solid surface for straightness. Clean the rails and bolt holes, and if the pan is chrome-plated, brush out the drain hole threads to prevent leaks.
