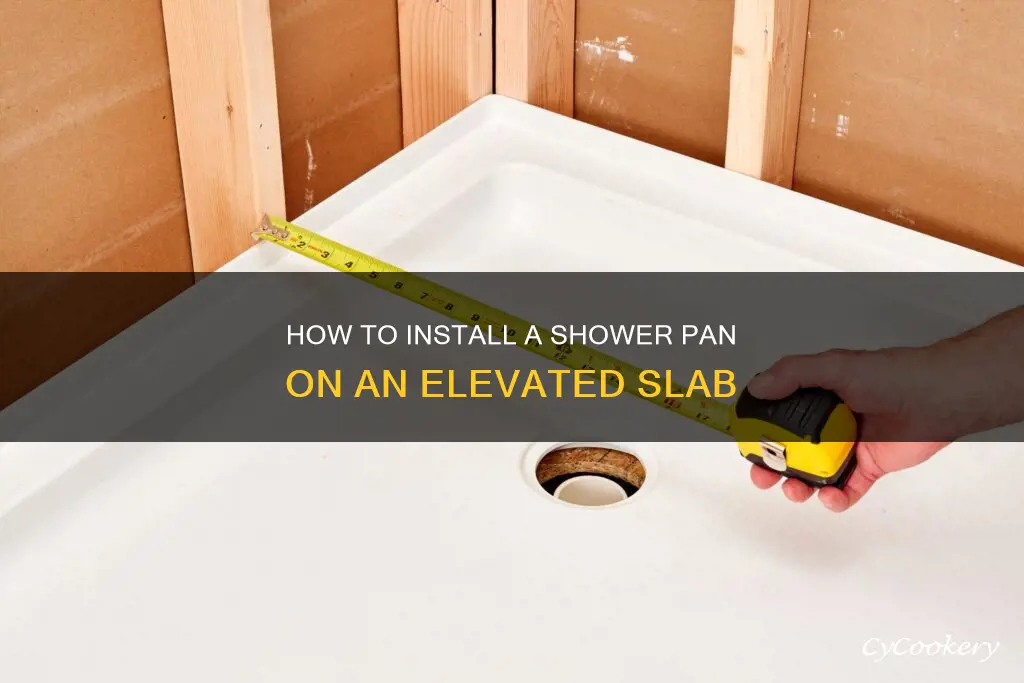

Installing a shower pan on an elevated slab is a complex process that requires careful planning and execution. While it is possible to create a shower floor using a pan liner and tile, a ready-made shower pan, typically made of acrylic, fiberglass, or composites, can make the installation process easier. This process involves preparing the floor, installing a shower base, and assembling a compression shower drain. Before beginning any work, it is essential to consult local building codes, relevant handbooks, and guidelines to ensure compliance and safety. The slab must be inspected for cracks, and if present, products like Ditra can be used as a de-coupler. The waterproofing membrane, an often-overlooked step, should be installed to establish a drainage path and prevent water damage. The shower pan is then installed, with careful measurements and markings to ensure a proper fit. Finally, the shower pan and drain connection should be tested for leaks, and an inspection may be required to ensure the installation meets local standards.
Explore related products
What You'll Learn
Preparing the subfloor
Clear the Area
Start by clearing the installation area. Remove any debris, old tiles, or flooring materials from the subfloor surface. This step ensures that you have a clean and unobstructed work area.
Inspect the Subfloor
Once the area is cleared, carefully inspect the condition of the subfloor. Ensure that it is stable, intact, and free of any rot or damage. If there are any compromised sections, replace them to guarantee a solid foundation for the shower pan.
Create a Drain Slope (Pre-Slope)
Before installing the waterproofing membrane, create a gentle slope towards the drain using a pre-slope mortar mix. This step is crucial for proper water drainage and to prevent water pooling. Use a level to mark the high point of your mortar bed, which should be 1/4" of slope per foot from the wall to the drain. This pre-slope ensures that water has a path to the drain, preventing mold and tile failure.
Install a Waterproofing Membrane
Apply a waterproofing membrane over the subfloor to ensure a completely watertight shower pan. Measure and cut the membrane to size, leaving extra material to cover the walls. Spread a layer of thin-set mortar onto the subfloor within the membrane's boundaries, then lay the membrane, smoothing out any wrinkles or air bubbles. Seal the seams and corners with mesh tape and additional thin-set mortar to create a secure and leakproof barrier.
Install Metal Lath or Reinforcement
Over the waterproofing membrane, install metal lath or reinforcement, securing it to the subfloor with nails or staples. This step adds strength and stability to the shower pan installation.
Cut Hole for Drain Pipe
Using a jigsaw or circular saw, cut a hole in the subfloor for the shower drain pipe. The size of the hole typically shouldn't exceed 5 inches, but always refer to the shower pan manufacturer's specifications. Relocate the P-trap for the shower drain and pipe as necessary, ensuring the waste pipe extends approximately 1 3/4 inches above the subfloor, as specified in the manufacturer's instructions.
Test-Fit the Shower Drain Flange
Test-fit the shower drain flange, also known as the "drain basket" or "drain body," to ensure it fits flush with the shower base. Line the underside of the flange's rim with latex/acrylic or silicone caulk, following the manufacturer's instructions. Avoid using plumber's putty, as it may degrade the shower pan material.
By following these steps, you will have effectively prepared the subfloor for your shower pan installation, ensuring a solid and watertight foundation.
