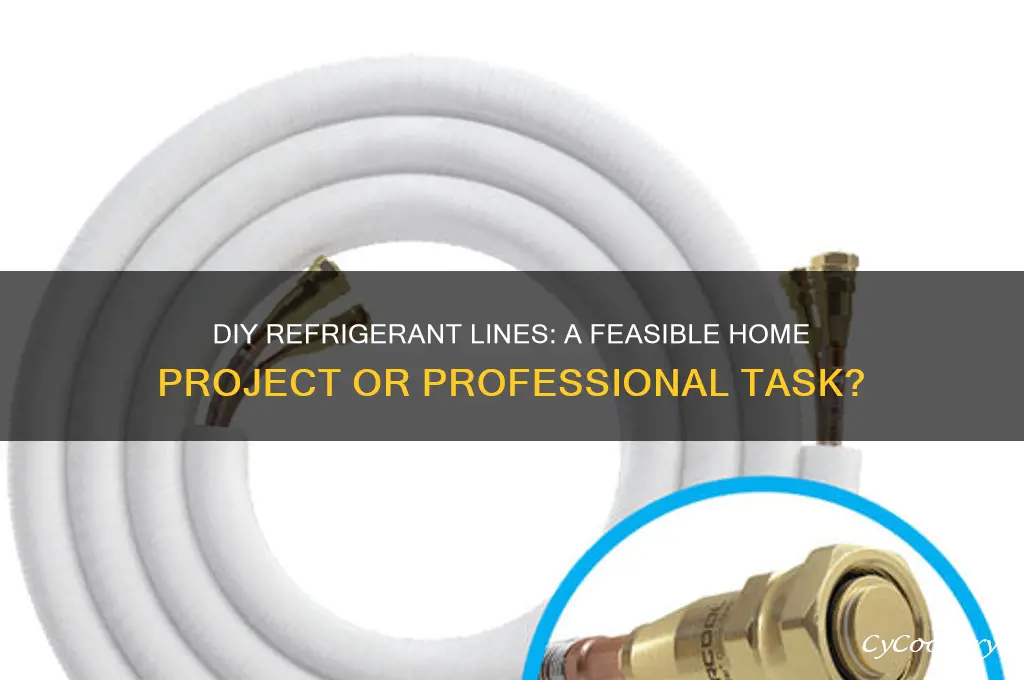

Making your own refrigerant lines is a complex task that requires a deep understanding of HVAC systems, safety protocols, and local regulations. While it may seem like a cost-effective DIY project, refrigerant lines involve handling hazardous materials, precise measurements, and adherence to industry standards to ensure efficiency and safety. Improper installation can lead to leaks, system failures, or even health risks, making professional expertise highly recommended. However, for those with advanced technical skills and knowledge, it is possible to fabricate and install refrigerant lines, provided all legal and safety requirements are met.
| Characteristics | Values |
|---|---|
| Feasibility | Possible with advanced DIY skills and proper tools |
| Required Skills | Welding, brazing, soldering, HVAC knowledge |
| Materials Needed | Copper tubing, refrigerant-grade fittings, flux, nitrogen for purging |
| Tools Required | Torch, tubing bender, flaring tool, vacuum pump, manifold gauge set |
| Safety Concerns | Risk of fire, explosion, refrigerant leaks, exposure to hazardous materials |
| Legal Considerations | Must comply with local HVAC codes and regulations; refrigerant handling may require certification (e.g., EPA 608) |
| Cost | Varies; materials and tools can range from $200 to $1,000+ |
| Time Investment | High; requires careful planning, fabrication, and testing |
| Durability | Depends on craftsmanship; professional installations typically last longer |
| Efficiency | May not match professional standards due to potential imperfections |
| Warranty | DIY lines void manufacturer warranties on connected HVAC systems |
| Environmental Impact | Risk of improper refrigerant handling, leading to environmental harm |
| Recommended Alternative | Hiring a certified HVAC technician for safety, efficiency, and compliance |
Explore related products
What You'll Learn
Tools and Materials Needed
When considering making your own refrigerant lines, it's essential to gather the right tools and materials to ensure a safe and efficient installation. The process involves working with copper tubing, which is the most common material for refrigerant lines due to its durability, corrosion resistance, and excellent heat transfer properties. You’ll need copper tubing of the appropriate size, typically 1/4-inch, 3/8-inch, or 1/2-inch, depending on your system's requirements. Ensure the tubing is clean, straight, and free of any defects. Additionally, copper coils or straight lengths of tubing can be purchased based on the layout of your system. Always measure the distance between your indoor and outdoor units accurately to avoid wastage or shortages.
To manipulate the copper tubing, you’ll require a tubing cutter specifically designed for copper. This tool ensures clean, precise cuts without burrs that could restrict refrigerant flow. For bending the tubing to fit around obstacles or corners, a tubing bender is indispensable. Choose a bender with rollers or a manual bender, depending on the complexity of your bends. A flare tool kit is also necessary for creating secure connections between the tubing and fittings. This kit typically includes a flaring tool, a reamer to remove burrs, and a cutter for preparing the tube ends. Proper flaring ensures leak-free joints, which are critical for refrigerant containment.
Soldering is a common method for joining copper tubing, so a propane torch or MAPP gas torch is needed to heat the joints. Pair this with lead-free solder and flux to create strong, reliable connections. Ensure you have a soldering stand or clamps to hold the tubing in place while soldering. For added safety, safety goggles and heat-resistant gloves are essential to protect against burns and debris. If you prefer not to solder, push-to-connect fittings or braze-free connectors can be used as alternatives, though they may be less common in traditional HVAC installations.
Insulation is crucial to prevent condensation and energy loss in refrigerant lines. You’ll need foam insulation tubing or rubber insulation with the appropriate inner diameter to fit your copper lines. Secure the insulation with foil tape or insulation adhesive to ensure it stays in place. Additionally, strapping or conduit clamps are required to secure the lines to walls or structures, maintaining a neat and safe installation. A tape measure, marker, and pliers are basic tools you’ll use throughout the process for measuring, marking, and tightening fittings.
Finally, testing your refrigerant lines for leaks is a critical step. A vacuum pump and manifold gauge set are necessary to evacuate air and moisture from the lines before charging the system with refrigerant. A refrigerant leak detector, either electronic or soap-based, will help identify any leaks in the joints or connections. Having a nitrogen tank and regulator on hand is also useful for pressure testing the lines before introducing refrigerant. These tools and materials, when used correctly, will enable you to fabricate and install your own refrigerant lines safely and effectively.
