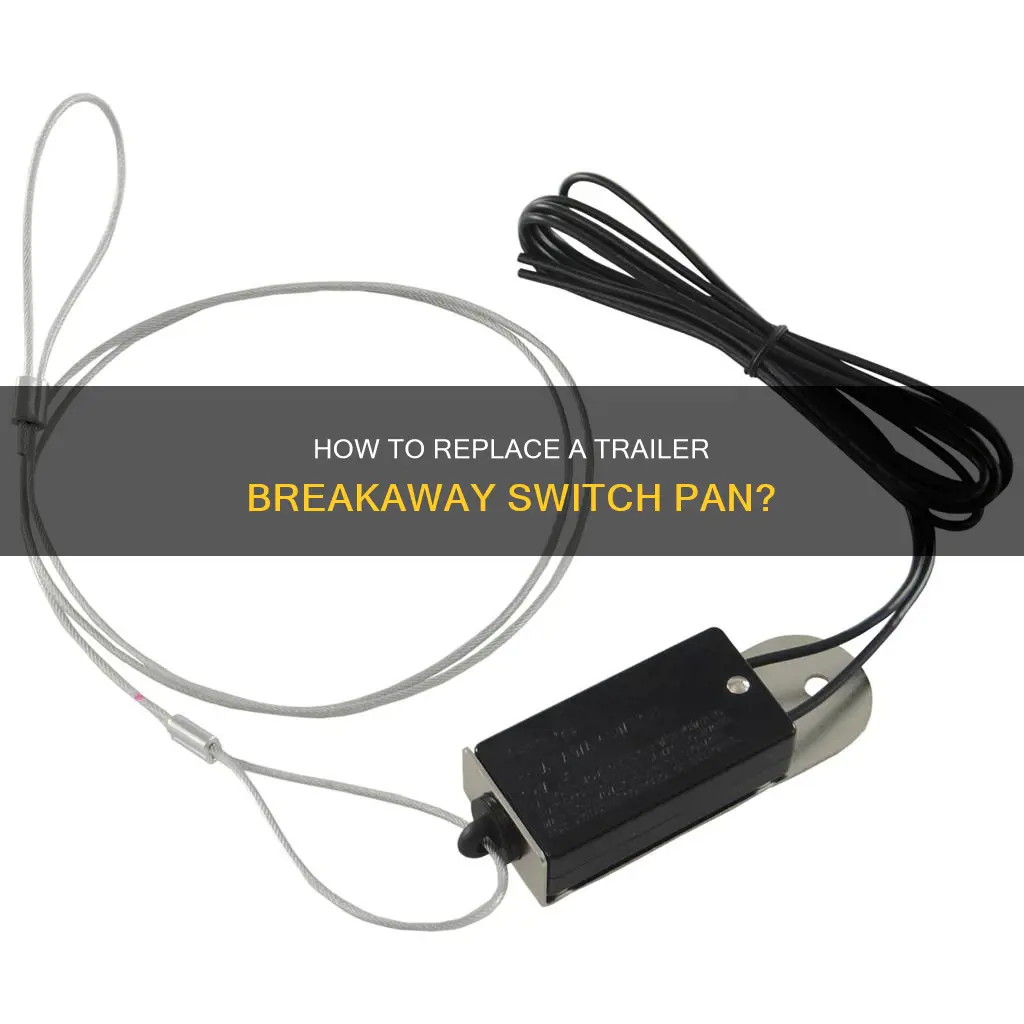

The trailer breakaway switch is a critical safety component that automatically slows and stops a trailer if it becomes detached from the tow vehicle. The breakaway switch is connected to the tow vehicle, and in the event of a separation, the pin in the switch is pulled out, triggering the activation of the trailer's brakes. It is important to regularly inspect and maintain the breakaway switch to ensure optimal trailer safety. If the breakaway switch is not working properly, it should be replaced as soon as possible to prevent potential accidents. Replacing the switch is generally a simple task, but it is important to follow the correct wiring configuration and safety procedures.
| Characteristics | Values |
|---|---|
| Ease of replacement | Fairly simple job |
| Safety | Direct connection to the battery with no fuse for emergency use |
| Battery | Powered by a 12-volt RV battery |
| Wiring | Black wire from the battery connects to 12V power on the trailer, blue wire connects to the breakaway switch |
| Maintenance | Regularly inspect and maintain for optimal working condition |
Explore related products
What You'll Learn
The breakaway switch is a critical safety component
The breakaway switch is designed to be a direct connection to the battery for safety reasons. If there was a fuse inline with the switch and it blew, the trailer would have no emergency braking if it became loose from the truck. The switch is held in place with only one screw and is wired to a 12-volt breakaway battery. The cable from the breakaway switch should be shorter than the tow safety chains to ensure that the breakaway system is activated in the event of the trailer being disconnected from the tow bar but still connected to the chains.
It is important to regularly check and maintain the breakaway switch to keep the trailer in optimal working condition. A defective switch could prevent the brakes from engaging in the event of a separation, which could lead to serious accidents. If the breakaway switch is not working properly, it should be replaced as soon as possible. Replacement switches can be purchased at most automotive stores, online retailers, or from trailer companies.

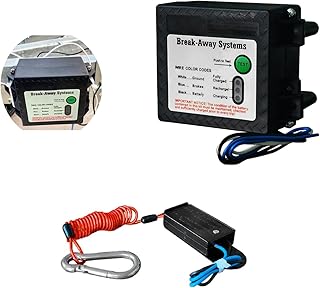

In addition to the breakaway switch, a breakaway battery monitor is an optional component that can be installed inside the cabin of the tow vehicle. This device provides a visual and audio warning if the breakaway battery charge falls below a specified level. While not mandatory in every state, it is required for trailers registered in NSW, Australia, and recommended for those who want extra protection and real-time battery information.
The Sizzle Secret: Vinegar in Hot Oil
You may want to see also
Explore related products
How to replace the switch
Replacing the switch in a trailer breakaway kit is a fairly simple job. The switch is held in place with only one screw, which needs to be tight enough to keep the switch in place, but not so tight that it cannot rotate to allow the pin to be pulled out.
To replace the switch, first disconnect the battery. Then, remove the screw holding the switch in place and take out the old switch. Next, connect one of the two wires coming out of the new breakaway switch into the trailer brake wire running from the trailer connector to the brakes. Connect the second wire coming out of the switch to the blue brake wire coming out of the battery box. This connection will send power to the breakaway switch. Both wires on the breakaway switch are interchangeable. Finally, splice the white wire coming out of the battery box into the existing ground wire (usually white) running from the trailer connector to the trailer, or screw the white wire directly into the trailer frame.
It is important to note that the breakaway switch is a safety device that provides a means of automatically slowing and stopping your trailer should it become detached from the tow vehicle during transit. The cable from the breakaway switch should be attached to the tow vehicle, and if a separation occurs, the pin is pulled out of the switch, activating the trailer brakes.
When replacing the switch, it is important to consult the breakaway kit directions to verify the wiring configuration, as not all wire colours are the same. Additionally, it is recommended to periodically remove the battery from the box to charge it or replace it accordingly.
Kirkland Non-Stick Cookware: Is It Teflon-Coated?
You may want to see also
Explore related products
The switch is hooked to the battery with no fuse
The trailer breakaway switch is a safety device that automatically slows and stops a trailer if it becomes detached from the tow vehicle during transit. The cable from the breakaway switch should be attached to the tow vehicle, and if a separation occurs, the pin is pulled out of the switch, which activates the trailer's brakes. The breakaway switch is powered by a 12-volt RV battery on the trailer.
The switch is typically hooked directly to the battery with no fuse for safety reasons. If there was a fuse inline with the switch and it blew, it could go unnoticed. If the trailer then became loose from the truck, the fuse would prevent emergency braking, and there would be no way to stop the runaway trailer. Therefore, the switch is designed for emergency use only and does not include a fuse.
When replacing the switch, it is important to ensure that it is mounted securely on the trailer. It should be tight enough to not fall off or vibrate loose, but there should be some room for it to move. The switch is usually held in place with only one screw, which should be tight enough to secure the switch but still allow it to rotate so that the pin can be pulled out.
To replace the switch, you will need a small socket set, wire cutters, an insulated butt connector for #12/14 ga wire, and something to strip the insulation after cutting off the wires. One of the wires will always be hot (12VDC), so caution must be exercised when working with it. The wires can be connected to either wire on the switch, as there are no polarity issues.
Metal Pan Disposal: Recycling Bin or Not?
You may want to see also
Explore related products
The switch activates the trailer's brakes
The breakaway switch is an essential safety feature for trailers. It is designed to activate the trailer's brakes in the event that the trailer detaches from the tow vehicle. This is achieved through a cable that connects the switch to the tow vehicle. When the trailer detaches, the cable pulls out the pin attached to the trailer brake, causing the brakes to engage and the trailer to stop. This safety mechanism is especially important for heavier trailers, where safety chains may not be sufficient to control the trailer.
The breakaway switch is powered by the onboard trailer battery, typically a 12-volt RV battery. It is crucial to ensure that this battery is properly charged for the breakaway switch to function effectively. If the breakaway switch is activated, it can be easily reset by reinserting the plunger back into the switch, cutting off the power to the trailer's brakes.
In addition to the breakaway switch, a brake controller can be used to regulate the trailer's brakes. This electronic device allows the driver to activate and monitor the trailer brake activity from the cab of the vehicle. It offers various settings, such as adjusting trailer brake gain, braking sensitivity, and manual activation. Trailer brake controllers come in different styles and capacities, including time-delay and proportional or inertia-based controllers.
It is important to regularly inspect and maintain the breakaway switch to ensure optimal performance and safety. If the breakaway switch is not working properly, it should be replaced as soon as possible. A defective switch can lead to serious accidents by preventing the trailer's brakes from engaging in an emergency. Replacement switches are readily available at automotive stores, online retailers, or from specialised trailer companies.
The process of replacing a breakaway switch involves disconnecting the wires and properly securing them to prevent arcing. The switch itself is usually held in place with a single screw, which needs to be tight enough to secure the switch but still allow rotation for the pin to be pulled out. When installing a new switch, it is crucial to follow the manufacturer's instructions for wiring and connections to ensure a proper setup.
How to Waterproof Your Shower Pan with Flex Seal
You may want to see also
Explore related products
$10.99
The switch is held in place with one screw
The trailer breakaway switch is an important safety feature that automatically slows and stops a trailer if it becomes detached from the tow vehicle. The switch is held in place with a single screw, which should be tight enough to hold the switch in place but not so tight that it cannot rotate to allow the pin to be pulled out.
Replacing the switch is a fairly simple job and can be done in about 20 minutes. The first step is to disconnect the battery negative cable. The switch is then removed by cutting the wires and unscrewing it from the frame of the hitch. The new switch can be installed by connecting the wires and screwing it into place. It is important to note that the switch should be mounted close to the trailer coupler so that the cable can be attached to the vehicle, and close enough to the battery box so that their wires can connect.
The breakaway switch is hooked directly to the battery without a fuse for safety reasons. If there were a fuse inline to the switch and it blew, there would be no emergency braking if the trailer came loose from the truck. The switch is designed for emergency use only.
It is important to periodically remove the battery from the box to charge it or replace it. The breakaway kit requires three connections. The first step is to splice one of the two wires coming out of the breakaway switch into the trailer brake wire running from the trailer connector to the brakes. The second wire coming out of the switch is then connected to the brake wire (usually blue) coming out of the battery box. This connection sends power to the breakaway switch.
It is also important to note that both wires on the breakaway switch are interchangeable. The white wire coming out of the battery box can be spliced into the existing ground wire (usually white) running from the trailer connector to the trailer, or it can be screwed directly to the trailer frame.
Adjusting Bake Time: Smaller Loaf Pans, Same Great Taste
You may want to see also
Frequently asked questions
You should regularly inspect and maintain your trailer breakaway switch to ensure it is in optimal working condition. If your breakaway switch isn’t working properly, replace it as soon as possible. A defective switch could prevent your brakes from engaging in the event of a separation, which could lead to serious accidents.
The breakaway switch is a critical safety device that activates the trailer's brakes in the event of a separation from the tow vehicle, bringing the trailer to a stop. It is connected to the tow vehicle, and when a separation occurs, the pin in the switch is pulled out, triggering the activation of the trailer's brakes.
Replacing the breakaway switch is a fairly simple job. You can purchase replacement breakaway switches at most automotive stores, online retailers, or from trailer dealers. When replacing the switch, ensure that it is hooked directly to the battery with no fuse for safety reasons. If there was a fuse in line with the switch and it blew, you might not know it, and if the trailer came loose, there would be no emergency braking.
