Emilie Meyer

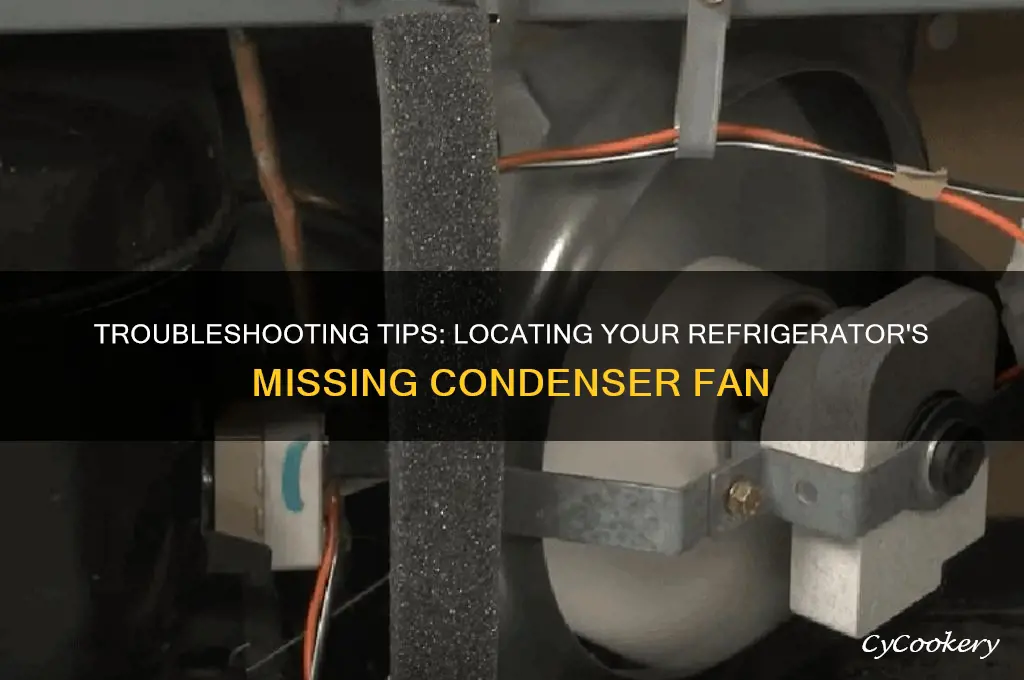

If you're struggling to locate the condenser fan in your refrigerator, you're not alone—this component is often tucked away in hard-to-reach areas, typically at the back or bottom of the appliance. The condenser fan plays a crucial role in cooling the refrigerant, ensuring your fridge maintains the right temperature, so identifying its location is essential for troubleshooting issues like overheating or insufficient cooling. Common hiding spots include behind the rear panel, beneath the unit, or near the compressor, though designs vary by brand and model. If you’re having trouble finding it, consult your refrigerator’s manual or look for access panels or vents that might conceal the fan. Once located, inspect it for obstructions, dust, or damage, as these can hinder its performance and lead to cooling problems.
| Characteristics | Values |
|---|---|
| Problem Description | Refrigerator condenser fan not visible or accessible for inspection/repair |
| Possible Causes | Fan hidden behind panels, located in hard-to-reach areas, or integrated into the condenser unit |
| Common Refrigerator Types Affected | Bottom-freezer, side-by-side, and French door models |
| Brands with Hidden Condenser Fans | Whirlpool, GE, Samsung, LG, Frigidaire, Kenmore |
| Symptoms of a Faulty Condenser Fan | Warm refrigerator, excessive compressor noise, or frost buildup in the freezer |
| Diagnostic Tools | Multimeter, voltage tester, or ammeter to check fan motor continuity and power supply |
| Accessing the Condenser Fan | Remove lower grille, back panel, or rear access cover, depending on refrigerator model |
| Replacement Parts | Condenser fan motor, fan blade, or mounting hardware (model-specific) |
| Cost of Replacement | $50-$200 (parts and labor, if professionally installed) |
| DIY Difficulty Level | Moderate to difficult, depending on refrigerator design and accessibility |
| Professional Repair Recommended | Yes, for complex or hard-to-reach condenser fan assemblies |
| Preventive Maintenance | Regularly clean condenser coils and ensure proper airflow around the refrigerator |
| Warranty Coverage | Typically 1-5 years for parts and labor, depending on manufacturer and model |
| Online Resources | Manufacturer websites, repair forums, and video tutorials for model-specific guidance |
| Safety Precautions | Unplug refrigerator, wear protective gear, and follow proper handling procedures when working on electrical components |
Explore related products
What You'll Learn
- Faulty Motor: Check for seized bearings, burnt windings, or failed capacitors causing fan motor failure
- Blocked Airflow: Inspect for debris, dust, or ice obstructing the fan blades or vents
- Wiring Issues: Test for loose connections, damaged wires, or faulty relays disrupting power supply
- Defective Start Relay: Verify if the relay fails to engage the fan motor during startup
- Control Board Malfunction: Diagnose if the main board isn’t sending signals to activate the fan
Faulty Motor: Check for seized bearings, burnt windings, or failed capacitors causing fan motor failure
A humming noise from your refrigerator without the corresponding airflow could signal a seized bearing in the condenser fan motor. This occurs when the bearing, responsible for smooth rotation, becomes immobilized due to lack of lubrication, debris buildup, or corrosion. To diagnose, unplug the refrigerator, locate the fan motor, and attempt to manually rotate the fan blade. If it resists movement or feels gritty, the bearing is likely seized. Replacement is the only remedy, as lubricants cannot restore functionality in this scenario.
Burnt windings, another common culprit in fan motor failure, manifest as a distinct acrid odor or visible charring on the motor housing. This issue arises from electrical overloading, often due to voltage fluctuations or prolonged operation under high resistance. Testing for continuity using a multimeter can confirm the diagnosis: a reading of zero or infinity indicates an open circuit, confirming burnt windings. Replacement motors should match the original specifications, including voltage, amperage, and mounting configuration, to ensure compatibility and prevent recurrence.
Failed capacitors, though small, play a critical role in starting and running the condenser fan motor. A faulty capacitor may cause the motor to hum without starting or operate intermittently. Testing requires a multimeter capable of measuring microfarads; a reading significantly deviating from the rated capacitance (typically 2-5 µF for refrigerator motors) indicates failure. Replacement capacitors must match the original voltage and capacitance ratings. For safety, discharge the capacitor before handling by shorting its terminals with a screwdriver.
When addressing these issues, always prioritize safety by unplugging the refrigerator and discharging any stored electrical energy. Keep a log of symptoms and test results to streamline troubleshooting and ensure accurate part replacement. While DIY repairs can save costs, consult a professional if uncertainty arises, particularly when dealing with electrical components. Regular maintenance, such as cleaning the condenser coils and ensuring proper ventilation, can prevent premature motor failure and extend the appliance’s lifespan.
Refrigerating Homemade Marinara: Optimal Storage Time and Freshness Tips
You may want to see also
Explore related products
Blocked Airflow: Inspect for debris, dust, or ice obstructing the fan blades or vents
A refrigerator's condenser fan is crucial for heat dissipation, but its efficiency can be severely compromised by blocked airflow. Dust, debris, and even ice can accumulate around the fan blades and vents, restricting air movement and causing the refrigerator to work harder, potentially leading to overheating or reduced cooling performance. This issue is particularly common in households with pets, high foot traffic, or humid environments. Regular inspection and cleaning can prevent these problems, ensuring your appliance runs smoothly and extends its lifespan.
Analytical Perspective:
Blocked airflow isn’t just an inconvenience—it’s a symptom of neglect. Dust and debris act as insulators, trapping heat around the condenser coils and fan. Over time, this buildup forces the compressor to run longer cycles, increasing energy consumption by up to 25%. Ice formation, often caused by high humidity or a malfunctioning defrost system, can completely halt fan movement. Both scenarios strain the refrigerator’s components, potentially leading to costly repairs or premature failure. Addressing airflow obstructions is not just maintenance; it’s a proactive measure to safeguard your appliance’s efficiency.
Instructive Steps:
To inspect and clear blocked airflow, start by unplugging the refrigerator for safety. Locate the condenser fan, typically at the bottom rear of the unit, behind a removable panel. Use a flashlight to examine the fan blades, vents, and surrounding area for dust, pet hair, or ice. For dust and debris, gently vacuum or use a soft brush to clean the blades and vents. If ice is present, allow the refrigerator to defrost naturally or use a hairdryer on low heat, avoiding direct contact with plastic components. Reattach the panel and plug the unit back in, ensuring proper airflow is restored.
Comparative Insight:
Unlike air conditioner filters, which are often front-and-center, refrigerator condenser fans are hidden, making them easy to overlook. While changing an AC filter is a monthly chore for many, cleaning a refrigerator’s condenser fan is rarely on the radar. However, the consequences of neglecting either are strikingly similar: reduced efficiency, higher energy bills, and potential system failure. The key difference? A blocked condenser fan can directly impact food safety by causing inconsistent cooling. Treat this maintenance task with the same urgency as you would an air filter replacement.
Practical Tips:
Prevent future blockages by vacuuming the area around your refrigerator monthly, especially if you have pets or live in a dusty environment. Consider placing a pet gate to reduce hair accumulation near the vents. In humid climates, monitor for ice buildup and ensure the refrigerator’s defrost cycle is functioning properly. For hard-to-reach areas, use a long, thin brush or compressed air canister. Lastly, keep the space behind and beneath the refrigerator clear to promote adequate airflow, reducing the risk of debris accumulation.
By addressing blocked airflow promptly and adopting preventive measures, you can maintain optimal refrigerator performance and avoid unnecessary repairs.
Can You Safely Plug Your Refrigerator into a Surge Protector?
You may want to see also
Explore related products
Wiring Issues: Test for loose connections, damaged wires, or faulty relays disrupting power supply
A refrigerator’s condenser fan relies on a precise electrical circuit to function, and even minor wiring disruptions can halt its operation. Loose connections, frayed wires, or faulty relays are common culprits that interrupt power flow, leaving the fan silent and the appliance inefficient. To diagnose these issues, start by unplugging the refrigerator and locating the wiring harness connected to the condenser fan motor. Inspect each wire for visible damage, such as cracks, burns, or exposed copper. Gently tug on connectors to check for looseness, ensuring they snap securely into place. If wires appear intact, use a multimeter to test continuity, verifying that electricity flows uninterrupted from the control board to the fan motor.
Analyzing the relay system is equally critical, as relays act as switches that control power to the fan. A faulty relay may fail to engage, preventing the fan from receiving power even when the appliance is on. To test a relay, listen for a clicking sound when the refrigerator cycles on—a missing click suggests a malfunctioning relay. Multimeter testing can confirm this by checking for voltage at the relay’s output terminals. If voltage is present but the fan doesn’t run, the relay is likely defective and requires replacement. Always compare the relay’s behavior to the manufacturer’s specifications to ensure accuracy.
When addressing wiring issues, safety and precision are paramount. Avoid forcing connectors or bending wires excessively, as this can exacerbate damage. Label wires before disconnecting them to simplify reassembly, and use electrical tape or heat shrink tubing to insulate any exposed areas. If replacing a relay, ensure the new component matches the original’s voltage and pin configuration. For those uncomfortable with electrical work, consulting a professional is advisable, as improper handling can lead to short circuits or permanent damage to the appliance.
Comparing wiring issues to other condenser fan problems highlights their unique diagnostic approach. Unlike a failed motor or obstructed blades, wiring faults often require no disassembly of the fan itself. Instead, the focus is on the electrical pathway, making tools like multimeters indispensable. This methodical approach not only identifies the root cause but also minimizes the risk of misdiagnosis, saving time and resources. By systematically testing connections, wires, and relays, even novice users can resolve power supply disruptions effectively.
In conclusion, wiring issues are a common yet often overlooked cause of condenser fan failure. Through careful inspection, continuity testing, and relay analysis, these problems can be diagnosed and resolved efficiently. Armed with the right tools and knowledge, homeowners can restore their refrigerator’s functionality, ensuring optimal performance and prolonging the appliance’s lifespan. Always prioritize safety and accuracy, turning to professional help when needed, to avoid complications and achieve lasting results.
Refrigerating Crab Dip: Safe Storage Tips and Shelf Life Guide
You may want to see also
Explore related products
Defective Start Relay: Verify if the relay fails to engage the fan motor during startup
A refrigerator’s condenser fan plays a critical role in dissipating heat, ensuring the appliance runs efficiently. When the fan fails to engage, one often-overlooked culprit is a defective start relay. This small component acts as the intermediary between the fan motor and the power supply, initiating the motor’s operation during startup. If the relay malfunctions, the fan remains dormant, leading to overheating and potential compressor damage. Identifying a faulty start relay requires a systematic approach, combining visual inspection, continuity testing, and operational verification.
To diagnose a defective start relay, begin by unplugging the refrigerator and locating the relay, typically mounted near the condenser fan motor. Visually inspect the relay for signs of burning, melting, or discoloration, which indicate overheating or electrical arcing. Next, use a multimeter to test the relay’s continuity. Set the multimeter to the resistance (ohms) setting and place the probes on the relay’s terminals. A functional relay should show a reading within the manufacturer’s specified range, usually between 0 and 10 ohms. If the reading is infinite or significantly deviates, the relay is likely defective and requires replacement.
Replacing a start relay is a straightforward task, but caution is essential. Ensure the refrigerator is unplugged to avoid electrical shock. After removing the old relay, install the new one, ensuring the terminals align correctly. Reattach any wiring harnesses and secure the relay in place. Once installed, plug the refrigerator back in and observe the condenser fan during startup. A functioning relay should engage the fan immediately, producing a steady hum as it spins. If the fan still fails to operate, further investigation into the motor or wiring may be necessary.
While replacing a start relay is cost-effective, prevention is equally important. Regularly clean the condenser coils to reduce strain on the fan motor and relay. Avoid overloading the refrigerator, as excessive heat generation can accelerate relay wear. For older units, consider proactive replacement of the relay during routine maintenance, especially if the appliance is over five years old. By addressing relay issues promptly, you can extend the lifespan of your refrigerator and avoid costly repairs down the line.
Can Sweet Potato Pie Sit Out Overnight? Storage Tips Revealed
You may want to see also
Explore related products
Control Board Malfunction: Diagnose if the main board isn’t sending signals to activate the fan
A malfunctioning control board can be the silent culprit behind a non-responsive refrigerator condenser fan, leading to inadequate cooling and potential food spoilage. This issue often goes unnoticed until symptoms like warm temperatures or unusual noises become apparent. Diagnosing whether the main board is failing to send activation signals to the fan requires a systematic approach, combining visual inspection, electrical testing, and logical troubleshooting.
Begin by unplugging the refrigerator to ensure safety. Locate the control board, typically found behind the rear panel or inside the control panel housing. Inspect the board for visible signs of damage, such as burnt components, melted solder, or corrosion. These physical indicators can suggest a clear malfunction. However, absence of visible damage doesn’t rule out a faulty board, as internal circuitry issues may be at play. Next, check the wiring connections to the board and the fan. Loose or disconnected wires can mimic a board failure, so ensure all connections are secure and undamaged.
To test the control board’s functionality, use a multimeter to verify if it’s sending the correct voltage signal to the fan. With the refrigerator plugged in, measure the voltage at the fan’s input terminals while the unit is in cooling mode. If the voltage is absent or significantly lower than the specified range (typically 12V or 120V, depending on the model), the board may be at fault. Compare these readings to the technical specifications in the refrigerator’s manual or online resources for accuracy. Additionally, test the fan itself by connecting it directly to a power source to confirm it operates independently, ruling out the fan as the issue.
If the control board appears to be the problem, consider replacing it. However, before purchasing a new board, consult the manufacturer’s diagnostic codes or error messages, if available, to confirm the issue. Some models have LED indicators or error codes that point directly to control board failure. Replacing the board requires careful handling to avoid electrostatic discharge, which can damage sensitive components. Follow manufacturer guidelines for installation, ensuring all connections are properly seated.
In conclusion, diagnosing a control board malfunction involves a blend of visual inspection, electrical testing, and logical elimination. While replacing the board can resolve the issue, it’s crucial to verify the diagnosis through systematic checks to avoid unnecessary expenses. By understanding the interplay between the control board and condenser fan, you can restore your refrigerator’s functionality efficiently and confidently.
Uninsured Refrigerated Truck on Property: Legal Risks and Coverage Gaps
You may want to see also
Frequently asked questions
The condenser fan is typically located near the compressor, either at the bottom rear or top of the refrigerator. If you can't find it, check your refrigerator's manual or model-specific diagrams online for its exact location.
If the condenser fan is missing, it may have been removed during maintenance or could be hidden behind a panel. Inspect the area thoroughly and consult a technician if you suspect it’s missing or damaged.
A refrigerator can temporarily function without a condenser fan, but it will overheat and reduce efficiency, potentially damaging the compressor. It’s essential to replace or repair the fan promptly.
Unplug the refrigerator, locate the fan, and manually spin it to check for obstructions. Plug it back in and listen for the fan running. If it doesn’t start, test the motor with a multimeter or consult a professional.
Common causes include a faulty motor, worn-out bearings, dirt or debris blocking the fan, or a malfunctioning control board. Regular cleaning and maintenance can prevent these issues.
