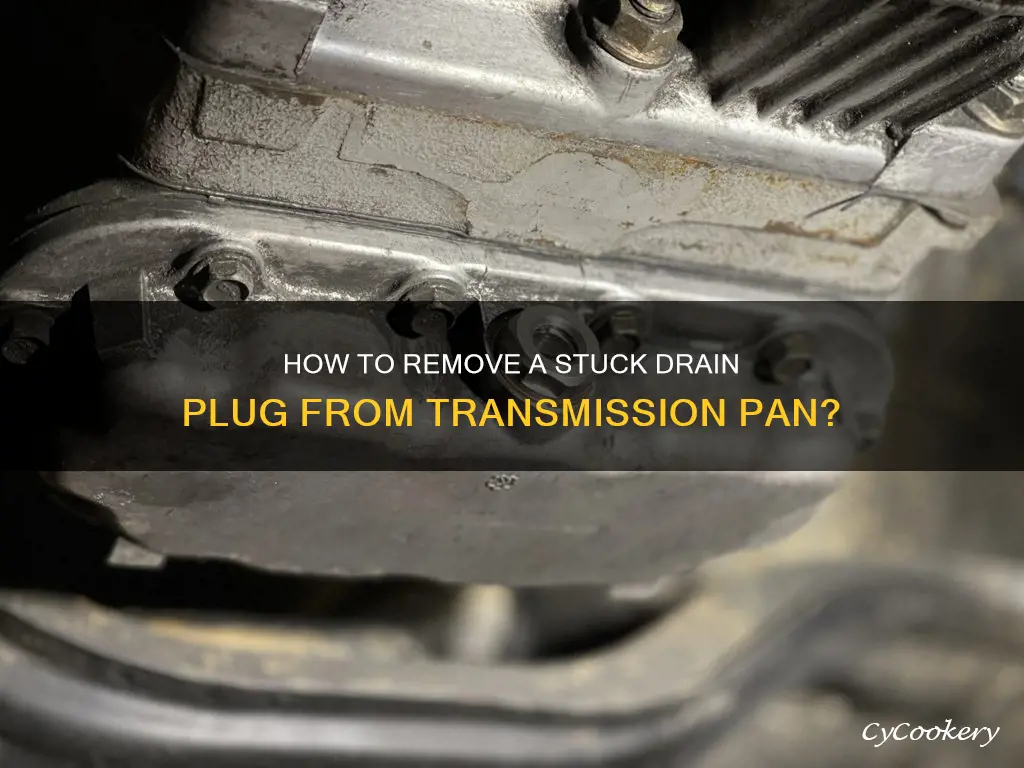

If your transmission drain plug won't budge, there are several methods you can try. One method is to use a breaker bar, keeping the handle perpendicular to the drain bolt to avoid damaging its head. You can also try using a ratchet with a short pipe extension to avoid damaging the ratchet teeth. Another method is to jack up the front end of the car, place jack stands, loosen the plug with a breaker bar, and then set the car back down. If the hole is filled with rust, you can tap it in with a hammer or use a flat-head screwdriver to clear the rust and dirt.
Characteristics and their values regarding 'can't remove drain plug from my transmission pan'
| Characteristics | Values |
|---|---|
| Problem | Drain plug wouldn't budge |
| Solution 1 | Use a 3/8-inch drive ratchet with good length on the handle |
| Solution 2 | Jack up the vehicle a bit for more leverage |
| Solution 3 | Tap the drain plug in with a hammer |
| Solution 4 | Use a fine flat-head screwdriver to clear out rust and dirt |
| Solution 5 | Get a breaker bar |
| Solution 6 | Use a pipe extension with the breaker bar |
| Solution 7 | Spray penetrant on the fill plug a few times before attempting to remove it |
Explore related products
What You'll Learn
Using a breaker bar to loosen the plug
If you're struggling to remove the drain plug from your transmission pan, a breaker bar can be a useful tool. Breaker bars are designed to break nuts and bolts loose by adding more torque than a conventional wrench. This extra torque can be very helpful when dealing with a stubborn drain plug.
When using a breaker bar, it's important to keep the handle perpendicular to the drain bolt. This will prevent the tool from twisting in the drain bolt and potentially damaging its head. You can also use a ratchet with a short pipe extension to gain more torque and maintain better control.
To make the process smoother, you can spray penetrating lubricant on the bolt and let it seep into the threads. This is especially helpful if the bolt is rusty or stuck. Smooth, slow motions when turning the breaker bar will also help ensure a smooth torque transfer and reduce the risk of breaking anything.
If you need even more leverage, you can attach a pipe extension to the breaker bar. This will give you more torque and help loosen the drain plug. Just be cautious when using a breaker bar with a pipe extension, as too much force can break the bolt or damage the surrounding components.
Using a breaker bar is generally a straightforward process. Simply attach a socket to the bar, place it on the drain bolt, and start loosening. However, it's important not to use a breaker bar to tighten bolts, as the added torque can be too much. Instead, use a conventional wrench or a torque wrench to snugly tighten the bolt after loosening it with the breaker bar.
Steel Pan Stains: Why White Marks?
You may want to see also
Explore related products
Drilling and tapping the transmission pan
First, it is important to note that removing the transmission pan before drilling and tapping is recommended. This is to ensure that you don't accidentally drill into any internal components or shift solenoids. Check your clearances to the ground and to accessories/suspension that may need to be removed.
Next, you will need to decide on the location of the hole. Use a center punch (or a nail) to mark the spot, which will help keep the drill bit from "walking" when you start. It is crucial to choose a location that will not interfere with any internal components. Many pans already have a dimple where a plug would be, which can be a good starting point.
When you are ready to drill, place a large plastic bag (such as a 1-gallon freezer bag) over the drill, with your hand inside the bag and the drill bit poking through. This will protect your hand and the drill from any oil that may spill out. Drill a hole using a size "Q" drill bit, which can be found in machine shop equipment stores, or a 21/64" bit, which is more commonly available in hardware stores.
After drilling the hole, tap for a 1/8-27 NPT fitting. You can install an NPT-to-Flare fitting adapter and a cap, tightened by hand. For added security, use adhesive heat shrink to keep the cap from spinning off.
Finally, clean up any metal shavings that may have accumulated during the process. You can use a magnet to collect them, and then spray brake cleaner through the fill plug hole to remove any remaining debris.
It is important to note that drilling and tapping the transmission pan may void your vehicle's warranty, so proceed with caution and consult a professional if you are unsure about any steps.
Pizza Hut Pans: What's the Difference?
You may want to see also
Explore related products
Using a ratchet to remove the plug
If you're struggling to remove the drain plug from your transmission pan, one method you can try involves using a ratchet. Here's a step-by-step guide on how to do it:
First, lift the front end of your vehicle and place jack stands in position to ensure stability and safety. This will give you better access to the transmission pan and drain plug. Next, try loosening the plug using a breaker bar. A breaker bar is a useful tool for generating a lot of torque, which can be helpful for breaking free a stubborn drain plug. When using the breaker bar, keep the handle perpendicular to the drain bolt to prevent twisting and potential damage to the bolt head.
If the drain plug still won't come loose, you can switch to using a ratchet. A ratchet provides more control and can help you avoid damaging the teeth of the drain plug. You can use a 3/8" ratchet or a regular ratchet with a pipe extension for more leverage. Ensure that the ratchet head is firmly seated on the drain plug, and then apply force to loosen it. If needed, you can tap the ratchet with a hammer to help break the plug free.
For extremely stubborn drain plugs, you may need to apply additional techniques. One method is to use penetrating oil, which can help to loosen the plug by dissolving rust and reducing friction. Spray the penetrating oil onto the drain plug and let it sit for a while before attempting to remove the plug with the ratchet again. Another technique involves using heat. Carefully apply heat to the drain plug, but be cautious as too much heat can damage the surrounding components.
By following these steps and using a combination of tools and techniques, you should be able to successfully remove the drain plug from your transmission pan using a ratchet. Remember to work safely and always be cautious when working underneath a vehicle.
Pizza Crisper Pan: Ultimate Crust Solution
You may want to see also
Explore related products
Cleaning gunk out of the plug
If you're having trouble removing the drain plug from your transmission pan, it may be due to gunk buildup. Here are some tips to help clean out the gunk and remove the drain plug successfully:
First, warm up your vehicle by driving it around for a few minutes. The fluid will drain faster when it's warm. Make sure to work on a flat, level surface and set the parking brake before beginning any work.
To clean out the gunk, start by locating the drain plug. It's usually a standard threaded plug in one corner of the transmission oil pan. Try using a 3/8" ratchet or a 3/8" breaker bar to loosen the plug. If it's still tight, you can use a longer breaker bar with a pipe extension to get more leverage. You can also try jacking up the vehicle slightly to gain more leverage.
If the drain plug is filled with rust and gunk, you may need to tap it with a hammer or use a flat-head screwdriver to clear out the debris. Be careful not to damage the head of the drain bolt. Once the gunk is cleared, try loosening the plug again with the breaker bar. Keep the handle of the breaker bar perpendicular to the drain bolt to avoid damaging the bolt head.
After removing the drain plug, proceed to drain the fluid. Position a large drain pan under the transmission oil pan to catch the fluid. Loosen all the bolts on the transmission oil pan and remove the bolts from one side to allow the fluid to drain completely. Once the fluid has drained, remove all the bolts and the transmission oil pan. Clean the pan inside and out using a degreaser and brake cleaner. Don't forget to clean the gasket mating surfaces and the magnet inside the pan.
Finally, reinstall the drain plug and the transmission oil pan. Apply a light coat of gasket sealant to the pan and place the gasket, lining up the holes. Allow the sealant to set for a few minutes before carefully lowering the vehicle and tightening the bolts according to the manufacturer's specifications.
Vintage Metal Bundt Pans: Do They Work?
You may want to see also
Explore related products
Using a drain plug kit
If you're struggling to remove the drain plug from your transmission pan, one solution is to use a drain plug kit. These kits are designed to make it easier to change your transmission fluid without the mess. Here's a step-by-step guide on how to use a drain plug kit:
First, make sure you have the right kit for your vehicle. There are different types of drain plug kits available, such as the Derale Kit 13010 and B&M Kit 80250, which are suitable for Ford Ranger and Raptor models. These kits typically cost less than $15 and are simple to install.
Before you begin, it's important to take the pan off to drill and tap, as you don't want to accidentally drill into any shift solenoids. Double-check your clearances to the ground and to any accessories or suspension that may need to be removed.
Once you're ready, simply remove the pan, drill a hole, and bolt on the drain plug kit. This will allow you to drain your transmission fluid without the mess of spilling it everywhere. Make sure the kit is snugly fitted to ensure a correct seal.
If you're unsure about using a kit, you could consider welding a drain plug instead. This method may be more secure, but it requires access to a welder or torch.
Additionally, when using a drain plug kit, keep in mind that the bolt protrudes into the bottom of the pan, so not all the fluid will be able to drain. However, the majority of it will, and it's still a more convenient option than dropping the pan each time.
By following these steps and using a drain plug kit, you can make the process of removing the drain plug from your transmission pan more manageable and less messy.
Pots and Pans: Declutter and Streamline
You may want to see also
Frequently asked questions
Try using a breaker bar to loosen the plug. Remember to keep the handle perpendicular to the drain bolt to prevent damaging its head.
Try to clean out any gunk or rust from the hole. You can use a hammer or a flat-head screwdriver to clear out the dirt.
Ensure you can open the fill plug before draining the fluid. Spray with a penetrant a few days before attempting to remove the plug.
Remove the bolts for the pan and use a plastic pry tool to break the seal on the gasket. Leave one screw in place in a far corner so the pan tilts in a particular direction. Use a drain pan to catch the fluid.
