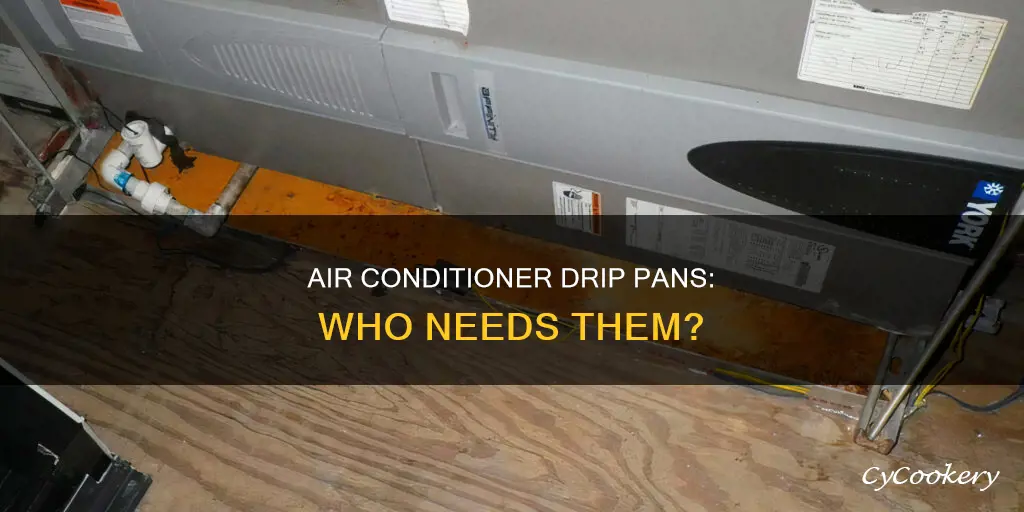

Air conditioners use a drip pan to collect the condensation that is naturally produced by the system. The drip pan is connected to a water drain that safely forces the water out of the house. Without a drip pan, water would drip directly onto the system and cause damage. Drip pans are not unique to air conditioners, as they are also used in other appliances such as washers.
Air Conditioner Drip Pan Characteristics
| Characteristics | Values |
|---|---|
| Purpose | Collect water droplets/condensation produced by the air conditioner |
| Location | Underneath the evaporator coils |
| Composition | Metal |
| Maintenance | Requires regular inspection and cleaning to prevent clogs and leaks |
| Cost of Replacement | $200 to $600 |
| Size | Dependent on the size of the air conditioner unit |
| Installation Factors | Location of the HVAC system, design, size of the unit, material |
| Common Issues | Cracks, overflowing due to clogged drain lines, frozen evaporator coils |
| Prevention | Annual tune-ups, monthly air filter changes, use of solvents or vinegar/water solutions |
| Safety Features | Float valve to monitor water levels and shut down the system if levels are too high |
| Accessories | Drip pans with float valves are available for purchase |
Explore related products
What You'll Learn
The drip pan collects moisture from the evaporator coils
The drip pan, also known as the drain pan or condensate pan, is an essential component of an air conditioning system. Its primary function is to collect the moisture that forms on the evaporator coils, preventing water damage to the system and the surrounding area. Without the drip pan, water would accumulate and drip directly onto the system, leading to serious issues.
The evaporator coils play a crucial role in the cooling process of an air conditioner. As warm, humid air circulates over the cold evaporator coils, it cools down and loses moisture in the form of condensation. This condensation builds up on the coils and eventually drips off, similar to how water condenses and drips from a cold glass or can. The drip pan, strategically placed beneath the evaporator coils, catches this moisture, preventing it from pooling inside the system or on the surrounding surfaces.
The drip pan is connected to the system's condensate drain line, which safely directs the collected water out of the house or into a nearby drain. This drain line is crucial in maintaining the proper functioning of the air conditioning system. When the drain line becomes clogged, water can back up and overflow the drip pan, leading to potential water damage. Therefore, regular maintenance, including clearing clogs and checking for cracks in the drip pan, is essential to prevent issues and ensure the smooth operation of the air conditioning system.
The size, material, and design of the drip pan can vary depending on the air conditioning unit. Larger units typically require larger drip pans, and the cost of replacement pans depends on these factors. Additionally, the environment in which the air conditioner is used can impact the choice of pan material, with stainless steel being more suitable for corrosive environments.
In summary, the drip pan plays a critical role in collecting moisture from the evaporator coils, protecting the air conditioning system and surrounding areas from water damage. Regular maintenance and prompt addressing of any issues are crucial to ensure the proper functioning of the drip pan and the overall air conditioning system.
Non-Stick Roasting Pans: Safe or Not?
You may want to see also
Explore related products
Maintenance and troubleshooting
Air conditioner drip pans, also known as condensate pans or drain pans, are a crucial component of air conditioning systems. They collect and manage the condensation produced during the cooling process, preventing water from dripping directly onto the system and causing damage. To ensure the proper functioning and longevity of your air conditioner, regular maintenance and troubleshooting of the drip pan are essential.
Maintenance Tips:
- Regular Inspections and Tune-Ups: Schedule annual tune-ups and inspections for your air conditioning system, including the drip pan and condensate drain line. This proactive approach allows for the identification and resolution of any issues before they escalate.
- Change Air Filters Regularly: Replace or clean your air filters monthly to prevent dirt and particle buildup, which can contribute to condensate drain line clogs.
- Consider a Drip Pan with a Float Valve: Installing a drip pan with a float valve adds a layer of protection. The float valve monitors water levels in the pan and automatically shuts down the system if levels become too high.
- Clean the Drip Pan: Keep the drip pan clean and free of debris to prevent clogs and overflow.
- Size and Placement: Ensure that the drip pan is appropriately sized and positioned correctly under the evaporator coils to catch all condensation.
- Corrosion Prevention: If your HVAC system is in a corrosive environment, consider using corrosion-resistant materials for the drip pan, such as stainless steel.
Troubleshooting Common Issues:
- Overflowing Drip Pan: An overflowing drip pan is often caused by a clogged condensate drain line. Disconnect the drain line from the pan and check for clogs by running water through it. If the line is clogged, clear it using a thin snake or a shop vac.
- Cracks in the Drip Pan: Cracks can develop over time or due to physical impact. A cracked drip pan will leak water onto the system, potentially causing damage. If cracks are present, replace the drip pan.
- Frozen Evaporator Coils: If the drip pan fills up with water, check the evaporator coils for ice buildup. If frozen, thaw them by turning off the air conditioner and using a hair dryer to warm the coils.
- Leaky Drain Line: Inspect the condensate drain line for leaks. If leaks are detected, repair or replace the line to prevent water damage and promote efficient drainage.
- Algae and Mold Growth: A clogged or leaky AC drain pan can lead to algae and mold growth. Contact a technician to drain and disinfect the line, and use time-release biocide tablets to inhibit further growth until the next service.
Washing Non-Stick Pans: Do's and Don'ts
You may want to see also
Explore related products
The importance of the drip pan
The drip pan, also known as the condensate pan or drain pan, is an essential component of an air conditioning system. Its primary function is to collect and manage the condensation produced during the cooling process, preventing water damage to the system and the surrounding areas. Without a drip pan, water would accumulate and drip directly onto the system, causing serious issues.
Secondly, the drip pan plays a crucial role in preventing water damage to the area surrounding the air conditioning unit. Without a drip pan, water would accumulate and eventually overflow, leading to leaks that could cause structural damage to the building and create an ideal environment for mould and other fungi to thrive. This could result in extensive and costly repairs, as well as potential health risks associated with mould exposure.
Additionally, the drip pan helps to maintain the efficiency of the air conditioning system. By collecting and draining condensation, the drip pan ensures that the system can operate optimally without the hindrance of water build-up. A properly functioning drip pan also contributes to the overall energy efficiency of the system, as it allows the unit to focus solely on cooling the air without having to contend with moisture management.
Furthermore, the drip pan helps to maintain indoor air quality. By collecting and draining condensation, the drip pan reduces the potential for standing water, which can lead to the growth of mould, bacteria, and other microorganisms. This not only helps to prevent the spread of allergens but also ensures that the air circulated by the system is clean and safe for occupants.
Lastly, the drip pan contributes to the overall reliability of the air conditioning system. By managing condensation effectively, the drip pan helps to reduce the frequency of maintenance and repairs. This results in decreased downtime for the system and increased dependability, ensuring consistent comfort for occupants during hot weather conditions.
How Many Quarts Fit in a 9x13 Pan?
You may want to see also
Explore related products
How to prevent issues with the drip pan
An air conditioner's drip pan collects the moisture that drips off the evaporator coils, preventing water damage to the system. While it has a simple function, several issues can arise with the drip pan that can lead to serious problems. Here are some ways to prevent these issues:
Regular Maintenance
Schedule a tune-up for your air conditioning system at least once a year. During the tune-up, a technician will inspect the drip pan and the condensate drain line for any signs of leaks or clogs and address them before they cause damage. Regular maintenance can help prevent unexpected breakdowns and extend the life of your AC system.
Change Air Filters Frequently
Dirty air filters can cause particles to build up and clog the condensate drain line. To prevent this, change your air filters regularly, ideally once a month. This simple task can help prevent clogs and ensure your AC system runs efficiently.
Preventative Coatings
Apply a preventative coating, such as PAN SEAL, to the drip pan to seal and repair any holes or leaks. This can help reduce the chances of water leakage and the development of mould, fungus, or mildew, which can affect indoor air quality and lead to respiratory issues.
Stable Supports
Ensure that the drip pan has stable supports underneath to keep it in place and prevent sagging. A sagging drip pan can allow water to pool, increasing the risk of overflow and water damage.
Check Refrigerant Levels
Low refrigerant levels can cause the evaporator coil to freeze, leading to dripping water and moisture in the drip pan. Regularly check the refrigerant levels and recharge the air conditioner if levels are low.
Clear Clogs Promptly
If you notice water pooling in the drip pan, it could be a sign of a clogged condensate drain line. Clear the clog promptly to prevent water overflow and potential damage to your AC system. You can do this by disconnecting the drain line and running water through it or using a thin wire brush or a "snake" to clear the blockage.
Hot Pot, Cold Fridge: Navigating the Storage Confusion
You may want to see also
Explore related products
What to do if the drip pan is cracked
All air conditioners have a drip pan, also known as a drain pan or condensate pan, which is a crucial component of the system. It collects the condensation that is naturally produced by the air conditioner, preventing water damage to the unit and the surrounding area.
If your drip pan is cracked, the first step is to not panic but act promptly. A cracked drip pan can cause water to leak directly onto the air conditioning unit and lead to serious damage. Here are the steps you should take:
- Turn off the air conditioner: It is important to turn off the unit to prevent further complications and give yourself a safe environment to work in.
- Drain the drip pan: Use a wet/dry vacuum to empty the drip pan of any water or condensation.
- Inspect the damage: Take a close look at the drip pan to assess the extent of the crack(s). Minor cracks may be repairable, while larger cracks will likely require a replacement.
- Consult a professional: Contact a licensed HVAC technician to get their expert opinion and advice. They will be able to guide you on whether the pan can be repaired or needs to be replaced.
- Repair or replace the drip pan: If the crack is minor, you may be able to repair it with a sealant or coating designed for drip pans. This will help seal the crack and prevent further leakage. If the crack is more severe, you will likely need to replace the entire drip pan. In some cases, you may also need to replace the evaporator coils, as the drip pan is often part of this component.
- Prevent future issues: To avoid cracked drip pans in the future, consider an annual tune-up and inspection of your air conditioning system. This will allow professionals to identify any potential issues and make the necessary adjustments or repairs.
- Maintain your drip pan: Proper maintenance of your drip pan can help prevent cracks and other issues. Ensure that the drainpipe is clear of any blockages and, if necessary, treat the drip pan with a solution of bleach and water to prevent algae growth.
Remember, a cracked drip pan should not be ignored, as it can lead to water damage to your air conditioning unit and potentially your home. Taking prompt action and consulting with professionals will help ensure that the issue is properly addressed and future problems are prevented.
The Source of Pan American Screw's Success
You may want to see also
Frequently asked questions
An air conditioner drip pan, also known as a condensate or drain pan, is a metal pan that sits right under the evaporator coils of an air conditioner unit. It collects the moisture that drips off the coils to prevent water from seeping into the system and causing damage.
Yes, all air conditioners have a drip pan as it is an essential component to deal with the moisture produced during the cooling process.
It is normal to find water in the drip pan as long as the water can smoothly flow out through the drain line. If the drain pipe is clogged, water will start to accumulate in the drip pan and eventually overflow. Therefore, it is important to regularly check and clear the drain line to prevent clogs and ensure proper drainage.
A cracked drip pan will cause water to leak directly onto the system and your house. In this case, you will need to replace the drip pan as soon as possible to avoid further damage. The cost of replacing a drip pan typically ranges from $200 to $600.
To maintain your air conditioner's drip pan, it is recommended to schedule an annual tune-up for your system. During the tune-up, a professional will inspect the drip pan and condensate drain line for any signs of leaks or clogs and address them accordingly. You can also help prevent clogs by changing your air filter monthly and installing a drip pan with a float valve to monitor water levels.
