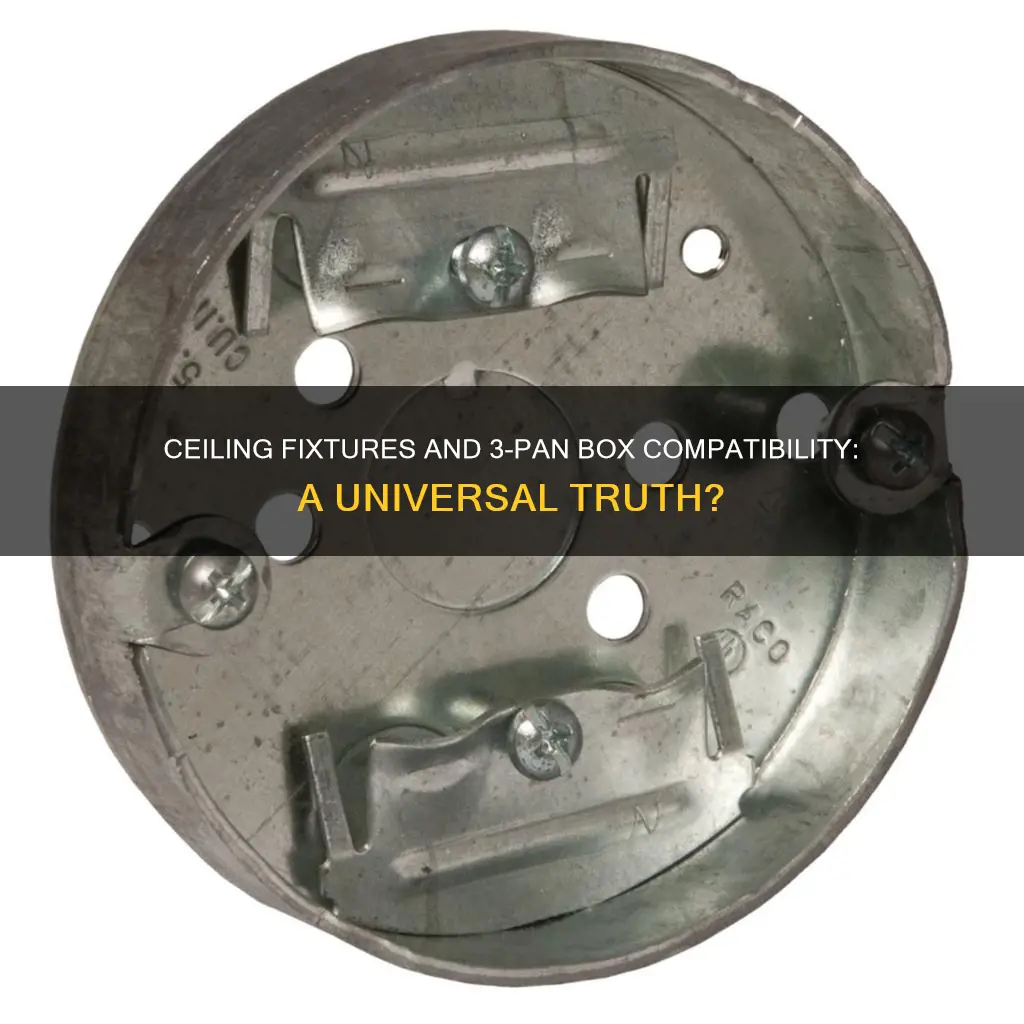

Round pan or pancake boxes are shallow circular boxes used for ceiling- or wall-mounted light fixtures. They are also used for ceiling fans. However, not all pan boxes can be used for this purpose. The suitability of a pan box depends on the weight of the fixture, the number of wires, and the installation method. For example, a 3 1/2-inch pan box may not have sufficient fill capacity to make the electrical connection. Thus, it is important to consider the specific requirements of the fixture when determining the appropriate pan box.
| Characteristics | Values |
|---|---|
| Standard rectangular boxes | Used for single light fixture switches and outlet receptacles |
| Round pan or pancake boxes | Used for ceiling- or wall-mounted light fixtures that weigh no more than 50 pounds |
| Octagon and standard-size round boxes | Used for ceiling- or wall-mounted light fixtures weighing up to 50 pounds |
| Ceiling fan electrical boxes | Used for fans weighing up to 70 pounds or light fixtures weighing up to 90 pounds |
| Box extenders | Installed onto the front of electrical boxes to increase the box capacity or flush the box with the drywall or other surface material |
| Weatherproof outdoor boxes | Sealed enclosures designed for mounting to the exterior walls, roof overhangs, decks, etc. |
| Energy code boxes | For insulated walls and ceilings |
| Exterior surface-mount boxes | Used with PVC electrical conduit |
| Adjustable boxes | Mounted to the framing members; used when installing ceramic tile, wood paneling, or wainscoting |
Explore related products
What You'll Learn
- Pancake boxes are shallow circular boxes used for ceiling-mounted light fixtures
- Electrical boxes encase wire connections to protect them from short circuits
- Metal pan boxes are used for mounting ceiling fans
- Octagon and standard-size round boxes are deeper than round pan boxes
- Box extenders are installed onto the front of electrical boxes to increase capacity
Pancake boxes are shallow circular boxes used for ceiling-mounted light fixtures
Pancake boxes, also known as round pan boxes, are shallow circular boxes used for ceiling-mounted light fixtures. They are commonly used for light fixtures that weigh no more than 50 pounds. Pancake boxes typically have a depth of 1/2 inch or 3/4 inch and can be made of plastic or durable metal.
While pancake boxes are convenient for ceiling-mounted light fixtures, they have limitations due to their shallow depth. For example, a 1/2-inch-deep pancake box may not have sufficient fill capacity to make the electrical connection. In such cases, deeper ceiling boxes are recommended by electricians to provide more space for wiring.
It is important to note that the National Electrical Code (NEC) has specific requirements for electrical boxes. According to the 2008 NEC, ceiling boxes must be rated to carry a minimum weight of 50 pounds. Additionally, each electrical connection requires a minimum of 2 cubic inches of volume, with 1 cubic inch per wire. This means that a 4-inch diameter by 1/2-inch pancake box, which has a volume of 6 cubic inches, is the minimum size allowed by the NEC for a single 14/2 wire connection.
When choosing an electrical box, it is crucial to consider the weight and electrical requirements of the light fixture. While pancake boxes are suitable for many ceiling-mounted light fixtures, deeper boxes may be necessary for more complex wiring configurations or heavier fixtures. Consulting with a professional electrician can help ensure that the appropriate box is selected and installed correctly.
