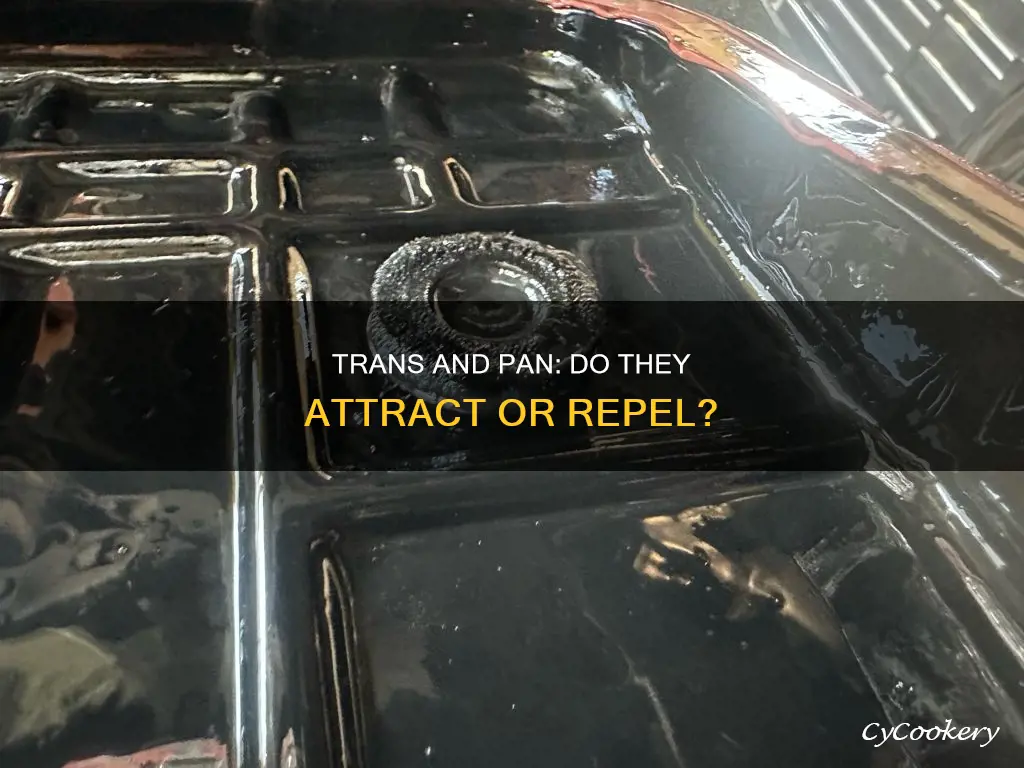

Trans pan magnets are used to collect ferrous metal particles in the transmission pan, preventing them from circulating in the fluid and causing damage. They are standard in some cars, such as the 2014 Mazda 6, while others like the 2019 Ford Ranger have a magnetic drain plug instead. Some car owners choose to add extra magnets to their transmission pans, either on the inside or outside, to improve their effectiveness. While some people question the necessity of trans pan magnets, others swear by them, believing they help extend the life of their transmission by keeping the fluid clean.
| Characteristics | Values |
|---|---|
| Purpose | To capture ferrous metal particles and prevent them from getting recycled into the system |
| Location | At the bottom of the transmission pan |
| Installation | Gluing or epoxying to the outside of the pan is recommended; installing on the inside can cause nickel flakes to float inside the transmission |
| Maintenance | Clean the magnets when replacing the in-pan transmission filter |
| Effectiveness | May lose effectiveness over time as they get covered in metal fuzz |
Explore related products
![Replace for Allison 29535617 Automatic Transmission Fluid Pan Magnet - [4 Pack] for Use on 29539579, 29542824 Transmission External/Internal Filter, Such as Allison Transmission 1000 Pan](https://m.media-amazon.com/images/I/71UyiG81dKL._AC_UY218_.jpg)
What You'll Learn
- Transmission pan magnets help collect ferrous metal particles to prevent them from entering the system
- Some manufacturers include magnets inside transmission pans
- The number of magnets in a transmission pan can vary
- It is possible to add extra magnets to a transmission pan
- The placement of magnets on the inside or outside of the pan can affect their effectiveness
Transmission pan magnets help collect ferrous metal particles to prevent them from entering the system
Transmission pan magnets are essential in capturing ferrous metal particles to prevent them from entering and causing damage to the system. These magnets attract and hold metal shavings, dust, and tiny scraps of metal, ensuring they do not circulate with the fluid. This is particularly important in maintaining the longevity of the transmission system, as clean fluid circulation is crucial for its optimal performance.
Many vehicles, such as the 2014 Mazda 6, come equipped with magnets inside the transmission pan straight from the manufacturer. However, some car owners choose to add additional magnets to enhance the metal-collecting capability. This is especially relevant when there is a significant amount of metal dust or when the magnet in the plug is no longer effective.
The effectiveness of transmission pan magnets can be influenced by their placement and the presence of other magnets or metal structures. Some car enthusiasts recommend placing magnets on the outside of the pan, using epoxy to secure them firmly. Others suggest using powerful magnets, such as rare earth magnets, to maximize their metal-collecting capacity.
It is worth noting that not all vehicles require additional magnets, and some transmission pans may already have sufficient magnetic components. For example, certain vehicles feature magnetic drain plugs, which facilitate easy draining and help capture metal particles. It is always advisable to consult vehicle-specific information and seek professional advice before making modifications to the transmission pan or its magnetic components.
In summary, transmission pan magnets play a crucial role in prolonging the life of the transmission system by trapping ferrous metal particles. While some vehicles come with factory-installed magnets, others may benefit from the addition of extra magnets to ensure optimal protection against metal debris. Proper placement and maintenance of these magnets are essential to maintain the health of the transmission system.
Sill Pan Sizing: Get it Right
You may want to see also
Explore related products
Some manufacturers include magnets inside transmission pans
There are different types of magnets that can be used, such as neodymium magnets, ceramic magnets, and magnets from Home Depot. Neodymium magnets are strong and unlikely to fall off, but their nickel coating can degrade over time and flake off, which is not desirable. Ceramic magnets can withstand temperatures up to 250°C, which is much higher than the typical transmission fluid temperature. Home Depot magnets also have the advantage of not melting, although they may lose some magnetism at high temperatures.
Some manufacturers, such as Mazda and Lexus, include magnets inside the transmission pan straight from the factory. However, there are also cases where magnets are placed on the outside of the pan, either by the manufacturer or as an aftermarket modification. In some cases, people have added additional magnets to their transmission pans, either on the inside or outside, to improve the metal-collecting capability.
It is important to note that the placement of the magnet is crucial. While some people suggest placing magnets on the outside of the pan, near the drain plug, others argue that this is not as effective as placing them inside the pan. It is also important to consider the type of transmission pan and the materials used, as magnets may not be suitable for certain types of pans. Overall, the use of magnets in transmission pans is a common practice to help maintain the health of the transmission system.
Unearthing Vintage Cast Iron: Secrets to Spotting Quality
You may want to see also
Explore related products
The number of magnets in a transmission pan can vary
Some people choose to add extra magnets to their transmission pans. This can be done by epoxying a magnet to the inside or outside of the pan. It is also possible to use a magnet from an old microwave oven, as these magnets are strong and can be difficult to remove once attached. However, it is important to consider that the magnetic field will be distorted by the metal structure of the pan, and the effectiveness of the magnet will be reduced.
In some cases, people may choose to remove magnets from their transmission pans. For example, if the magnet is coated in nickel, it may be better to remove it to prevent nickel flakes from floating in the transmission fluid.
All-Clad Buying Guide: Choose the Best for Your Kitchen
You may want to see also
Explore related products
It is possible to add extra magnets to a transmission pan
Some people have reported finding large amounts of metal dust and debris in their transmission fluid, which can cause significant issues. In these cases, additional magnets can be added to the transmission pan to help capture this metal debris. It is recommended to use epoxy to hold the magnets in place, and to clean the surface of the pan with brake cleaner before applying the epoxy.
However, there are also concerns about adding magnets to the inside of the pan. Some types of magnets, such as neodymium magnets, have a nickel coating that can degrade and flake off over time, especially when exposed to transmission fluid. This can result in nickel flakes circulating in the transmission fluid, which is undesirable. Therefore, it is generally recommended to place additional magnets on the outside of the pan, near the drain plug, rather than the inside.
Additionally, it is important to note that gluing magnets to the outside of the pan may not be as effective at capturing metal shavings as placing them inside. Nevertheless, some people still choose to do so as it is better than having no magnets at all. Overall, while adding extra magnets to a transmission pan can be beneficial in certain situations, it is important to carefully consider the potential risks and take the necessary precautions to avoid further complications.
Why Oil Smokes on Low Heat and How to Prevent It
You may want to see also
Explore related products
The placement of magnets on the inside or outside of the pan can affect their effectiveness
The placement of magnets inside or outside a transmission pan can affect their effectiveness in collecting metal particles. While some transmission pans come with magnets installed inside the pan by the manufacturer, there is a risk of the magnets' nickel coating flaking off over time, especially if placed inside the pan where they are exposed to transmission fluid. This can lead to nickel flakes circulating within the transmission, which is undesirable.
To avoid this issue, some people recommend placing magnets on the outside of the pan, either held in place with epoxy or glued on. While this prevents the potential issue of nickel flakes, it may not be as effective at capturing metal particles within the fluid. Magnetic fields are distorted by the metal structure of the pan, and placing magnets on the outside may reduce their ability to attract and hold metal particles.
One solution to this dilemma is to use a combination of internal and external magnets. By placing a magnet on the outside of the pan to hold and enhance the magnetic field of a magnet on the inside, you can maximize the effectiveness of the internal magnet while minimizing the risk of nickel flaking. This approach ensures that the majority of the magnetic field remains within the pan, attracting and holding metal particles, while also reducing the potential for nickel contamination.
Additionally, it is worth noting that some transmission pans come equipped with magnetic drain plugs, which can aid in the easy draining of fluids and the collection of metal particles during the process. The use of magnetic drain plugs can be combined with strategically placed internal and external magnets to further enhance the effectiveness of the system in capturing metal debris and maintaining clean fluid circulation.
Simmering Satisfaction: Crafting a Hearty Chinese Choy Hot Pot
You may want to see also
Frequently asked questions
Trans pan magnets are magnets placed inside or outside the transmission pan to capture ferrous metal particles, ensuring clean fluid circulation and extending the life of the transmission.
Without a trans pan magnet, metal particles can circulate in the transmission fluid, leading to potential damage and reduced transmission life.
Yes, some people use inline filters with built-in magnets, such as the Magnafine filter, to capture metal particles and filter the transmission fluid.
Neodymium magnets are commonly used, but they have a maximum operating temperature of around 100°C, which may be too low for some transmissions. Ceramic magnets can withstand temperatures up to 250°C but may not be as strong.
You can purchase magnets for your trans pan at hardware stores like Home Depot or online retailers like Apex Magnets, considering the appropriate temperature ratings for your application.
