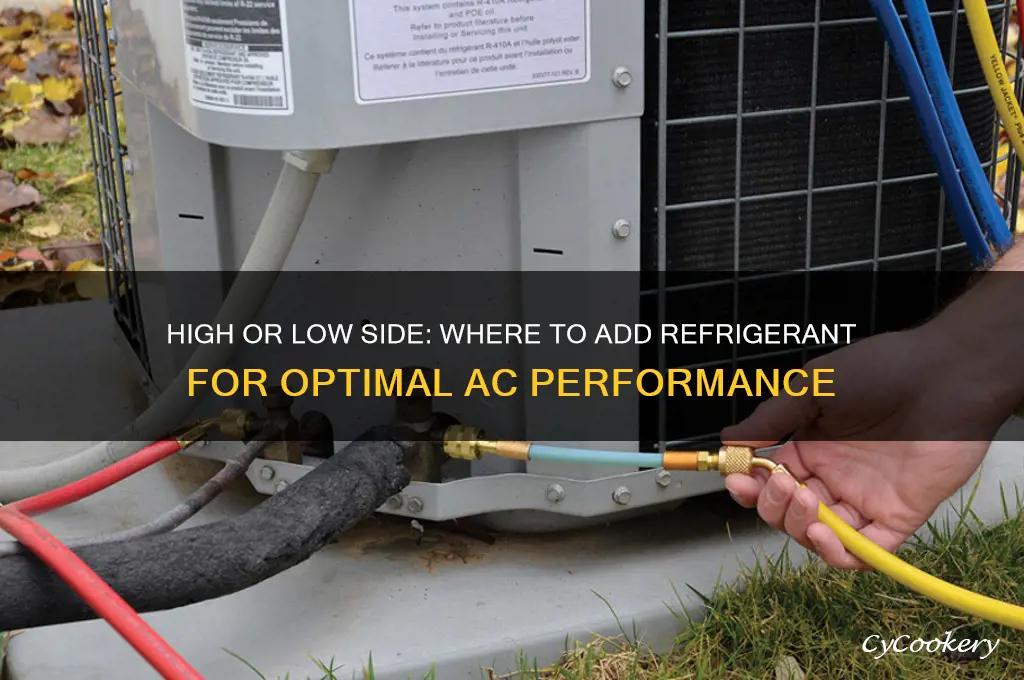

When it comes to adding refrigerant to an air conditioning or refrigeration system, understanding whether to add it to the high or low side is crucial for proper functioning and safety. The high side refers to the part of the system where the refrigerant is under high pressure, typically after the compressor, while the low side operates at lower pressure, usually before the compressor. Adding refrigerant to the incorrect side can lead to inefficiencies, damage to the system, or even safety hazards. Generally, refrigerant is added to the low side, as this allows the system to pull the refrigerant in under the correct pressure conditions, ensuring optimal performance and preventing overcharging. However, it’s essential to follow manufacturer guidelines and use proper tools, such as gauges and recovery equipment, to diagnose and address any issues accurately.
Explore related products
What You'll Learn
Understanding High and Low Side Pressures
Refrigerant is added to the low side of an air conditioning or refrigeration system, not the high side. This fundamental principle hinges on the system’s pressure dynamics and the role of the low side in the refrigeration cycle. The low side, operating at lower pressures, is where refrigerant enters in a gaseous state, ready to be compressed. Adding refrigerant here ensures it integrates smoothly into the cycle, avoiding the extreme pressures and potential hazards of the high side.
Consider the refrigeration cycle: refrigerant flows from the low-pressure evaporator to the high-pressure condenser. The low side, typically between 0 and 100 psi, is where the refrigerant absorbs heat from the environment. The high side, ranging from 200 to 400 psi, is where the refrigerant releases heat. Attempting to add refrigerant to the high side risks overpressurizing the system, leading to component failure or even rupture. For instance, a technician adding refrigerant to the high side of a residential AC system could cause the compressor to overheat, reducing its lifespan or causing immediate damage.
To add refrigerant correctly, follow these steps: locate the low-pressure service port, typically marked with an "L" or blue color coding. Connect the refrigerant gauge and hose to this port, ensuring the system is running. Gradually add refrigerant in small increments, monitoring the pressure gauge to avoid overcharging. For example, a typical home AC system may require 2–4 pounds of R-410A refrigerant, depending on its size and efficiency. Overcharging by as little as 10% can reduce efficiency by 5–10%, so precision is critical.
Contrast this with the high side, where refrigerant is in a high-pressure liquid state. Adding refrigerant here bypasses the metering device, flooding the evaporator and causing liquid slugging in the compressor. This not only damages the compressor but also reduces cooling efficiency. For instance, a flooded evaporator in a commercial refrigeration unit could lead to ice buildup, blocking airflow and increasing energy consumption by up to 20%. Always verify the system’s charge by measuring superheat or subcooling, ensuring it aligns with manufacturer specifications.
In summary, understanding high and low side pressures is essential for safe and effective refrigerant management. The low side’s lower pressure and gaseous state make it the correct point for adding refrigerant, while the high side’s extreme pressures and liquid state pose significant risks. By adhering to proper procedures and monitoring system pressures, technicians can maintain optimal performance and extend equipment life. Always consult the system’s manual and local regulations, as improper handling of refrigerants can result in environmental harm or legal penalties.
