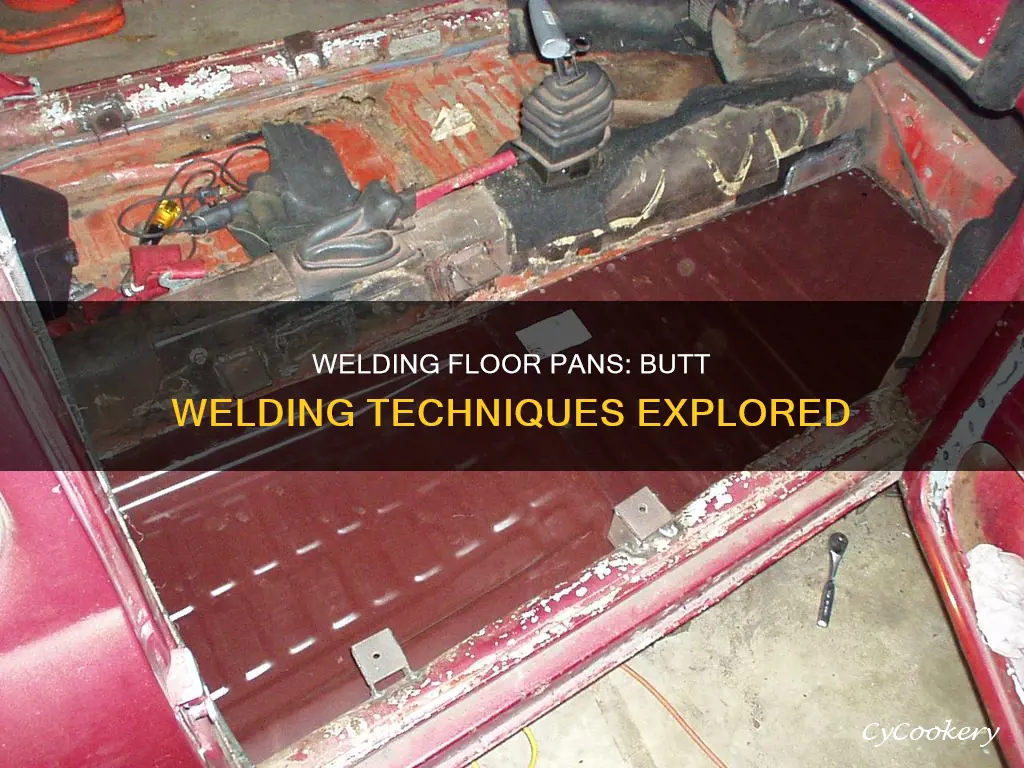

When it comes to repairing or replacing floor pans, one of the most common questions is whether to use butt welding or lap welding. Butt welding is a method that creates a clean and seamless joint, but it can be more challenging to execute and may require additional trimming and fitting. Lap welding, on the other hand, involves overlapping the metal pieces and is generally considered a simpler technique. The choice between the two methods depends on factors such as the desired appearance, the complexity of the repair, and the welder's skill level. While some prefer butt welding for its aesthetic appeal and to prevent moisture buildup, others opt for lap welding as it can be more accessible for inexperienced welders and still provide durable results.
Characteristics and values of butt welding floor pans
| Characteristics | Values |
|---|---|
| Cleanliness | Butt welding results in a cleaner look than lap welding. |
| Strength | Lap welding with an overlap can make the metal stronger. |
| Moisture | Butt welding prevents moisture from being trapped in the overlap lip. |
| Difficulty | Butt welding is more difficult and requires a perfect fit to avoid burning through. |
| Visibility | Butt welding is preferred for "show cars" where the repair needs to disappear. |
| Grinding | Butt welds can be ground down to achieve a smooth finish. |
| Clamping | Butt weld clamps are used to hold panels in place during welding. |
| Gaps | Butt welding can result in gaps that need to be filled, especially if rushed. |
| Contoured surfaces | Butt welding a contoured floor pan is challenging and may require practising to achieve satisfactory results. |
| Overheating | Butt welds can overheat and pop through if the bead is continued for too long. |
Explore related products
What You'll Learn
The rosette/plug welding method is easier than butt welding
Welding floor pans can be a challenging task, especially for inexperienced welders. Butt welding, in particular, can be difficult and may require a high level of precision and technique. This is because floor pans are typically contoured and not flat pieces of metal, making it harder to achieve a seamless butt weld.
The rosette/plug welding method, on the other hand, is often considered an easier alternative to butt welding for floor pans. This method involves drilling holes in the tubes being joined and inserting a smaller tube or slug into the holes to create a strong joint. Rosette welds are a type of plug weld, and they are commonly used in tubular structures to increase strength and rigidity.
One of the advantages of the rosette/plug welding method is that it allows for more flexibility in the positioning and alignment of the tubes. By creating a gap between the tubes and using a slug or smaller tube to fill the space, welders can achieve a strong joint without the need for a perfect fit-up, which is typically required in butt welding. This makes the rosette/plug welding method more forgiving and accessible to beginners.
Additionally, rosette/plug welding can help reduce the risk of warping or blowing holes, which are common issues with butt welding floor pans. By spacing out the welds and using shorter beads, as is often done in rosette/plug welding, the heat buildup can be better controlled, reducing the chances of overheating and warpage. This technique also helps to create a more uniform and aesthetically pleasing finish, which may be important for visible areas of the floor pan.
Furthermore, the rosette/plug welding method can be combined with butt welding to enhance the strength of the joint. By incorporating both techniques, welders can take advantage of the benefits of each welding method and create a more robust and reliable joint. However, it is important to consider the specific application and requirements before deciding on the most suitable welding method.
Rachael Ray Non-Stick Pans: Safe for the Oven?
You may want to see also
Explore related products
Butt welding is harder to do without burning through
Butt welding is a fundamental technique in which two pieces of metal are placed end-to-end with no overlap and welded along the joint. It is a commonly used technique in welding that can be applied to various materials, including carbon steel, stainless steel, and aluminium. While butt welding is a simple and versatile process, it can be challenging to execute without burning through the metal.
One of the main challenges of butt welding is the risk of burn-through. This occurs when the metal is exposed to excessive heat, causing it to melt and create holes along the seam. To prevent burn-through, it is crucial to control the heat input and maintain the correct amperage and voltage settings. Too much power will result in immediate burn-through, while too little will lead to inadequate penetration.
The type of welding process and electrode used also play a significant role in preventing burn-through. For thin metals, MIG and TIG welding are recommended as they produce less heat and offer better control. Stick welding, on the other hand, is more challenging to control and is not ideal for thin materials. When selecting an electrode, a heavily coated electrode is preferred for structural welding due to its superior strength and corrosion resistance.
Proper preparation is essential to successful butt welding. The joint surfaces must be thoroughly cleaned and prepared to remove contaminants, and beveling and edge preparation create a groove for better penetration. Additionally, clamping the pieces tightly together and ensuring a tight fit-up help prevent gaps that can lead to burn-through.
Butt welding requires precision and skill, especially when working with complex joints such as the double U or double V butt joint. It is important to remain vigilant during the welding process, monitoring for any signs of defects and adjusting the welding variables as needed. While butt welding can be challenging, with the right techniques, settings, and preparation, it is possible to successfully weld without burning through.
Waffle-Making Woes: Preventing Sticking for Perfect Results
You may want to see also
Explore related products
Butt welding is cleaner but requires more work
When it comes to floor pans, butt welding is often seen as a more challenging and time-consuming approach compared to other welding methods like overlap or lap welding. While it requires more effort and precision, butt welding offers a cleaner and more seamless finish without any overlap lips. This makes it ideal for achieving a smooth and aesthetically pleasing result, especially in automotive applications where a flawless appearance is desired.
Butt welding involves joining two pieces of metal without any overlap, resulting in a strong and durable joint. However, this process demands precise fitment and meticulous technique to avoid issues like burning through or creating large gaps that require additional filling. The challenge lies in ensuring a perfect fit-up between the metal pieces, which can be demanding and leave little room for error.
To execute a successful butt weld, it is crucial to pay close attention to the welding process. This includes tack welding at regular intervals to maintain evenness and monitoring the heat buildup to prevent overheating and penetration issues. The welder must also consider the use of a backing plate for added support, which may require an extra set of hands during the welding process.
While butt welding can provide a superior finish, it is important to acknowledge the increased level of skill and labour required. For those seeking a quicker and more straightforward approach, overlap or lap welding can be a more practical choice, especially for hidden or less visible areas. Overlap welding can strengthen the metal and reduce the risk of rusting, making it a viable option for floor pans that will be covered or unseen.
Ultimately, the decision between butt welding and other welding techniques depends on the specific requirements of the project. Butt welding is ideal for achieving a clean and seamless finish, but it demands more time, precision, and technical proficiency. For those seeking a more efficient and less demanding approach, overlap or lap welding can be a suitable alternative, especially when aesthetics are not a primary concern.
Stripped Oil Pan: What's Next?
You may want to see also
Explore related products
Butt welds are more time-consuming and prone to large gaps
Butt welding is a versatile welding technique that can be applied to various materials, including carbon steel, stainless steel, and aluminium. It involves placing two materials in close proximity, leaving a gap of approximately 3mm (1/8") between them. This gap allows for proper penetration through the entire joint. However, creating a butt weld can be time-consuming and challenging.
One of the challenges of butt welding is achieving the required precision and skill. It can be tricky to master, even for experienced welders, and it demands a steady hand to navigate complex joints such as the double U or double V butt joints. The process is also time-consuming, especially when compared to other welding methods like lap welding. Butt welding requires careful preparation and a good understanding of the technique, as well as the right equipment, including PPE (personal protective equipment).
The butt welding process is prone to issues such as burn-through, porosity, cracking, and incomplete penetration or fusion. These problems can be mitigated by vigilant monitoring during the welding process and adjusting the welding variables as necessary. It is crucial to thoroughly clean the joint surfaces to prevent contaminants from affecting the weld quality. Additionally, when working with thin metal, it can be challenging to keep the panels lined up without clamps, and gaps between the panels can further complicate the process.
The success of butt welding also depends on the precise measurements and alignments of the materials being joined. This precision is essential to creating a well-fitted joint. The shape of the groove, layering, and width of the gap are all factors that influence the outcome. Butt welding is generally more challenging when one of the pieces is thicker than the other, requiring extra steps such as beveling the edges of the joint. The technique is also more resource-intensive, demanding more time and materials, especially when compared to other welding methods like lap welding.
Parrot-Proofing Your Kitchen: Are Ceramic Coated Cast Iron Pans Safe?
You may want to see also
Explore related products
Butt welding is preferred to avoid overlap lips that trap moisture
When it comes to welding floor pans, there are two common methods: butt welding and lap welding. While lap welding involves overlapping two metal pieces and welding them together, butt welding does not leave an overlap lip, resulting in a seamless and flush connection.
One of the primary advantages of butt welding floor pans is that it avoids the creation of overlap lips that can trap moisture and lead to corrosion. Overlapping metal in lap welding can provide spaces for moisture to accumulate, resulting in rusting and potential structural issues. By eliminating this overlap, butt welding reduces the risk of moisture-related problems, ensuring a more durable and long-lasting weld.
However, it is important to note that butt welding requires proper edge preparation and welding techniques to achieve maximum strength. In addition, butt welding can be more challenging to execute, especially for inexperienced welders, as it demands a precise fit-up and careful welding to avoid burning through the metal.
On the other hand, lap welding is often favoured for its ease of use, particularly with thin sheets of metal and spot welding techniques. It provides a larger surface area for welding, making it strong and durable. Nevertheless, lap welding can also present challenges, such as the risk of moisture traps if the joints are not properly sealed.
Ultimately, the decision between butt welding and lap welding depends on various factors, including the welder's skill level, the desired aesthetic, and the specific requirements of the project. While butt welding is preferred to avoid overlap lips that trap moisture, lap welding can be a more accessible option for some applications, especially when working with thin metals.
Best Oil Pan Gaskets: Material Matters
You may want to see also
Frequently asked questions
Butt welding is a cleaner method of welding and leaves no overlap lip for moisture to gather.
Butt welding is harder to do and requires more time to trim the panels. It is also easier to mess up and leave a large gap.
One alternative is to use panel adhesive to put the floors in, along with some plug welds. Another option is to use lap joints, which can make the metal stronger.
Use very short welds and a copper backup bar. Tack at regular intervals and use welds that stop as soon as heat has built up to the level that penetration is complete.
