Deep transmission pans are designed to help cool down the transmission case in trucks and cars. They are also said to make the transmission case more resistant to torsional loads. However, some people argue that they are unnecessary and may even impede proper transmission cooling. They are also more expensive and heavier than regular pans. Nevertheless, some users have reported drops in temperature of around 20 degrees when using deep transmission pans.
| Characteristics | Values |
|---|---|
| Temperature | A deep transmission pan can help lower the temperature of the transmission fluid, especially when climbing grades. |
| Fluid Capacity | Deep pans can add approximately 4 to 7+ quarts of additional fluid capacity, depending on the pan. |

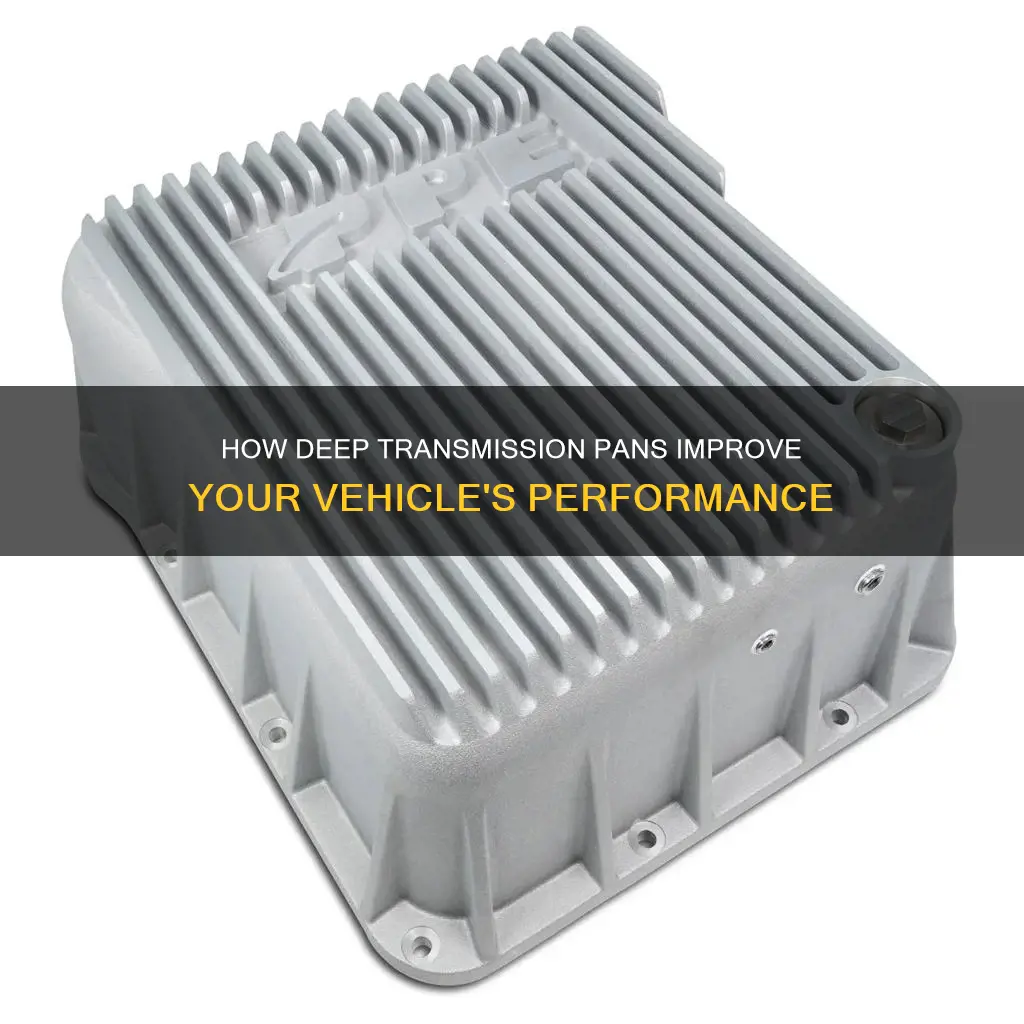

| Heat Dissipation | The cast aluminium deep pans work like a heatsink, assisting in dissipating heat. |
| Structural Rigidity | Deep pans are more rigid and solid than stock pans, making the transmission case more resistant to torsional loads. |
| Magnetic Drain Plug | Some deep pans include a magnetic drain plug that traps metal particles, preventing potential future issues. |
| Weight | Deep pans weigh more, which can be a disadvantage for some users. |
| Cost | Deep pans can be more expensive, and the cost of replacing transmission fluid is also higher. |
Explore related products
What You'll Learn
Deep transmission pans can reduce the temperature of the transmission fluid
Deep transmission pans can reduce the temperature of transmission fluid, but opinions vary on the extent of this benefit. Some users have reported that their deep transmission pans have led to a significant drop in temperature, especially when climbing grades. However, others argue that the temperature reduction is minimal or temporary, and that the pans simply make it take longer to heat up.
Deep transmission pans increase the capacity of transmission fluid in the system. This means that there is more fluid to heat, resulting in a lower overall temperature over more fluid. The additional fluid also extends the life of the additive package and increases the ability to absorb contaminants.
The design of the pan also plays a role in temperature reduction. Aluminum pans with cooling fins can help to dissipate heat more effectively. Cast aluminum pans, in particular, can act as a heat sink, assisting in heat dissipation.
It is important to note that some users have expressed concerns that deep transmission pans may impede proper transmission cooling. They argue that there is very little heat loss through the pan itself, and that the fluid needs to move around the pan surface to transfer heat effectively. Additionally, in some cases, the airflow around the pan may be insufficient to provide significant cooling.
While deep transmission pans may offer some temperature reduction benefits, it is important to consider the specific design and location of the pan, as well as the overall transmission system, to determine the effectiveness of heat dissipation.
Pan-Sized Trout: Weighing the Catch
You may want to see also
Explore related products
$104.99 $112.49
They can also increase the time it takes for the fluid to heat up
Deep transmission pans are designed to hold more transmission fluid than the standard pans that come with vehicles. This additional fluid takes longer to heat up, which can help to reduce overheating under heavy loads. However, some people argue that the lower temperature claims are overstated by manufacturers. While a deep pan may take longer to reach full operating temperature, it will eventually get there, especially when towing.
The benefit of a deep pan is that it provides a larger capacity for fluid, which means that there is more fluid to absorb heat. This is particularly useful when climbing grades or hills, as it takes longer for the fluid to reach high temperatures. In these situations, a deep pan can help to keep the transmission cooler for longer.
However, it's important to note that the additional fluid in a deep pan will also take longer to cool down once it has heated up. This is because there is more fluid to dissipate the heat. Additionally, there is limited airflow around the transmission pan, and the air that is present is often hotter than the fluid, which means it cannot effectively cool the fluid.
While a deep pan may not significantly impact the overall temperature of the transmission fluid, it can provide some benefits in certain situations, such as when climbing hills or grades. In these cases, the increased capacity of a deep pan can help to prolong the time it takes for the fluid to reach high temperatures, which can help to reduce overheating.
The Smoky Mystery of Cast Iron: Uncovering the Secrets Behind the Haze
You may want to see also
Explore related products
They may also help to dissipate heat
Deep transmission pans can help dissipate heat. They add approximately 7+ quarts of additional ATF capacity, which means more fluid is available to absorb and disperse heat. This can help to reduce overheating under heavy loads. The larger volume of fluid takes longer to heat up, and once it does, the additional fluid volume can help to draw heat away from the transmission.
Some users have reported that their deep transmission pans do not seem to make a significant difference in terms of heat reduction. One user even suggested that the larger volume of fluid might impede proper heat transfer and cooling. However, other users have reported drops in temperature of around 20 degrees.
The effectiveness of deep transmission pans in dissipating heat may depend on various factors, such as the specific design of the pan, the location of the pan, and the overall engine setup. For example, some users have noted that the airflow around the pan may be blocked by other components, limiting its ability to dissipate heat.
It is also worth noting that deep transmission pans can provide other benefits, such as increased rigidity and structural support, which can make the transmission case more resistant to torsional loads. Additionally, the extra fluid capacity can help to extend the life of the additive package and improve the ability to absorb contaminants.
Hot Towels, Slow-Cooked: The Crock-Pot Method
You may want to see also
Explore related products
They can add structural rigidity to the transmission case
Deep transmission pans are more solid than the stock pan, so they help make the transmission case more resistant to torsional loads. They add structural rigidity to the transmission case, which can be beneficial in off-road settings. For example, a steel pan is more durable than an aluminium pan and is less likely to be crushed, preventing the vehicle from becoming stranded.
Deep transmission pans also have a greater fluid capacity, which can help to reduce overheating under heavy loads. This is because there is more fluid available on the pan and cooling side of the fluid flow cycle. However, some sources argue that the lower temperature claims made by manufacturers are overstated, as the amount of fluid going through the transmission cooler over a period of time remains the same. Therefore, while a deep transmission pan may not provide significant cooling benefits, it can help to extend the time it takes for the fluid to heat up, but once it reaches operating temperature, it may take longer to cool down.
Additionally, deep transmission pans can have features such as magnetic drain plugs that trap metal particles, helping to protect the transmission from potential damage. They may also have platforms to hold the filter in place, which can be beneficial for hard-accelerating cars.
Overall, while deep transmission pans do add structural rigidity to the transmission case, their effectiveness in reducing temperatures is debated. They may help to extend the time it takes for the fluid to heat up, but once it reaches operating temperature, it may take longer to cool down.
Pots and Pans: Transporting Safely
You may want to see also
Explore related products
They can also increase the capacity of the transmission fluid
Deep transmission pans can increase the capacity of transmission fluid by approximately 7+ quarts. This means that the fluid will take longer to heat up, and when it does, the heavy-duty cooling fins can help dissipate the heat. This is especially useful when climbing grades, where a drop in temperature can be observed.
The extra capacity of transmission fluid in a deep pan can also increase the life of the additive package and improve the ability to absorb contaminants. This is because there is more fluid available on the pan and cooling side of the fluid flow cycle, which may help reduce overheating under heavy loads.
However, it is important to note that some people argue that deep transmission pans do not make the transmission cooler. While the fluid takes longer to heat up due to the increased capacity, it will also take longer to cool down once it does reach full operating temperature. Additionally, there is limited airflow around the transmission pan, which can affect heat transfer.
Ultimately, the decision to use a deep transmission pan depends on various factors, including the specific vehicle, driving conditions, and personal preferences. While some people find that deep pans help reduce temperatures and improve performance, others may not see a significant difference or may even experience longer warm-up times.
Constructing the Ultimate Hot Pot Cooker: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A deep transmission pan can help with towing by reducing the risk of overheating under heavy loads. This is because the deeper pan adds more fluid to the transmission, which takes longer to heat up.
A deep transmission pan can help with temperature control by providing a larger surface area for heat dissipation. However, some users have reported that the deeper pan does not significantly affect the temperature, as the airflow around the pan is blocked by other components.
Yes, a deep transmission pan can also make the transmission case more resistant to torsional loads. It can also act as a structural component and provide a more rigid surface. Additionally, some deep transmission pans have magnetic properties that can trap metal particles.
Some drawbacks of using a deep transmission pan include increased weight, higher fluid costs, and longer warm-up times. The increased fluid capacity may also impede proper heat dissipation in some cases.
