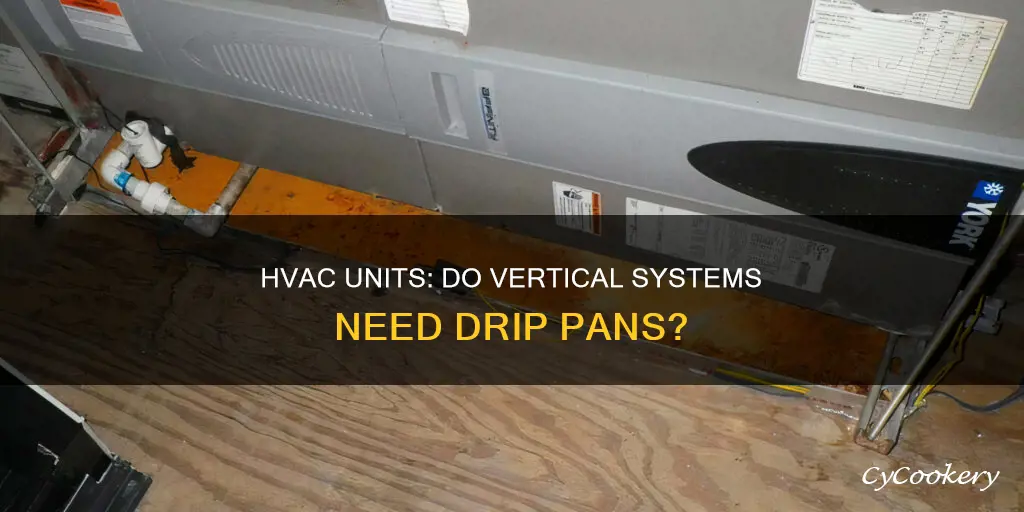

A drip pan, also known as a condensate pan or drain pan, is a crucial component of an HVAC unit. It collects and manages the condensation produced during the cooling process, preventing water damage to the system and the surrounding area. While drip pans are essential for most HVAC units, the requirement for a vertical HVAC unit is less clear. Some sources suggest that in a basement or garage, especially with a vertical air path, a drip pan is unnecessary. However, other factors, such as the presence of air returns or the potential for leaking condensate, may influence the need for a drip pan in a vertical HVAC unit. Proper installation and maintenance of the drip pan are also critical to ensure its effectiveness and prevent issues like clogs or overflows, which can lead to water damage and microbiological growth.
| Characteristics | Values |
|---|---|
| Purpose | Collects water droplets and condensation produced during the cooling process |
| Location | Underneath the evaporator coils |
| Installation | Not always installed, especially with vertical air paths in basements or garages |
| Maintenance | Requires regular cleaning and inspection to prevent clogs and water damage |
| Cost | Replacement costs range from $200 to $600, depending on the type, material, and size of the unit |
Explore related products
What You'll Learn
The drip pan's role in preventing water damage
The drip pan, also known as the condensate pan or drain pan, is an essential component of an HVAC unit. Its primary function is to collect and manage condensation produced during the cooling process, preventing water damage to the unit and the indoor environment.
When warm air comes into contact with the cold evaporator coils inside the HVAC unit, water condenses and drips off the coils, similar to how water droplets form on a cold glass of water. The drip pan, positioned directly under the evaporator coils, collects this moisture, preventing it from dripping directly onto the system and causing damage.
A properly functioning drip pan channels the collected condensation away from the unit through the condensate drain line, safely draining the water out of the house or into a nearby drain. However, if the drain line becomes clogged or blocked, usually due to dirt, dust, algae, or debris, the water can back up and cause the drip pan to overflow. This overflow can result in water damage to the system and the surrounding areas, emphasising the critical role of the drip pan in preventing such issues.
To maintain the proper functioning of the drip pan and avoid water damage, regular maintenance is crucial. This includes cleaning the evaporator coil, checking and clearing the drain line of any blockages, and ensuring the drip pan is correctly aligned and free from cracks or damage. Additionally, in regions with high humidity, more frequent maintenance may be necessary due to the increased workload on the air conditioning system, which can lead to higher condensate production and a greater risk of the drip pan overflowing.
Overall, the drip pan plays a vital role in preventing water damage by collecting condensation, directing it away from the unit, and safeguarding the HVAC system and indoor spaces from potential water-related issues. Regular maintenance and prompt attention to any signs of overflow are key to ensuring the effectiveness of the drip pan and the overall performance of the HVAC unit.
The French Way: Clean Pans, Clean Conscience
You may want to see also
Explore related products
When a drip pan is unnecessary
A drip pan, also known as a condensate pan or drain pan, is a component of an air conditioning system that collects and manages the condensation produced during the cooling process. Its primary function is to catch the water that drips or condenses from the evaporator coil.
In some cases, a drip pan may not be necessary. For instance, in a basement or garage, particularly with a vertical air path, a drip pan is typically not required. This is because, in these spaces, leaking condensate is less likely to cause issues to the structure.
Additionally, if the return air comes in through the bottom of the AC unit, a drip pan may not be possible to install. In such cases, an overflow sensor on the drain line can be used as an alternative.
It is important to note that the presence or absence of a drip pan can depend on the specific HVAC unit and the installation space. While in some cases a drip pan may not be necessary, it is crucial to ensure that proper measures are in place to prevent water damage and maintain optimal system performance.
Furthermore, while a drip pan is designed to collect water, it should not be left with standing water for extended periods. Standing water in the drip pan can indicate a clogged drain pipe or an issue with the installation angle of the pan, which can lead to water accumulation and potential overflow. Regular maintenance and inspections are necessary to address any issues and ensure the proper functioning of the HVAC system.
Preventing Pan Sticking: Tips for Perfect Cooking
You may want to see also
Explore related products
Maintenance and troubleshooting
Maintenance:
- Regular AC maintenance by a qualified technician is crucial. Schedule annual tune-ups to have a professional inspect the drip pan, condensate drain line, and overall system for any issues. Spring is an ideal time for maintenance checks.
- Prevent clogs in the condensate drain line by regularly changing the air filter, as dirty air particles can clog the line.
- Ensure stable supports below the drip pan to keep it in place and prevent sagging, which can create space for water pooling.
- If your AC unit is newly installed, a simple maintenance tip is to pour a mixture of vinegar and water down the drain line once a month to prevent clogs.
- For older AC units, a solvent cleaner may be necessary to eliminate any buildup inside the drain line.
- Consider installing a drip pan with a float valve, which monitors water levels and shuts down the system if levels get too high.
Troubleshooting:
- If your drip pan is full of water, the first step is to turn off the HVAC system to avoid electrical hazards.
- Check the drain line for clogs by disconnecting it from the pan and running water through it. Clear any clogs if water does not flow freely.
- Inspect the evaporator coil for ice. If frozen, thaw it out by turning off the AC and using a hair dryer to warm the coil.
- Examine the drip pan for damage such as cracks, rust, or corrosion, especially along the edges and corners. If damaged, the pan will need to be replaced.
- Check refrigerant levels. If they are low, have the air conditioner recharged.
- Incorrect installation of the AC unit can lead to drainage issues. Ensure the outlet for the drain is on the lower side of the pan, allowing water to flow toward it.
- If your furnace is not level, it may slope backwards, causing the inlet to clog with debris and preventing proper drainage.
By following these maintenance and troubleshooting guidelines, you can help ensure the proper functioning of your HVAC drip pan and prevent potential water damage to your system and home.
Bacon Grease: To Wash or Not?
You may want to see also
Explore related products
Cost of replacing a drip pan
The cost of replacing a drip pan for an HVAC unit varies depending on several factors. The price can range from $200 to $600 for parts and labour, or around $100 to $250 per hour. If the drip pan is in an air handler or package unit, the replacement cost can be approximately $500. The type of AC unit also affects the cost, with window units typically having simpler drip pans that are less expensive to replace than central AC units. The material of the pan is another factor, with metal drip pans being more costly to replace than plastic ones.
It's important to note that the drip pan is often part of the evaporator coil, so it may be necessary to replace the coil as well, which can cost over $2000. The size of the unit also matters, as larger units have larger drip pans that are more expensive to replace. The complexity of accessing the drip pan can impact the cost, with pros needing extra time to inspect and move larger AC units. The initial inspection can cost $100 to $250, and some professionals include this in the price of the replacement project.
In some cases, a temporary fix can be applied to a damaged drip pan until a replacement is needed. For example, if there is a small crack in the pan, caulking or waterproof tape can be used to seal it temporarily. This allows homeowners time to save up for the replacement part. Additionally, scheduling repairs during the off-season can result in lower costs, as AC repair companies may offer deals during colder months.
It is recommended to hire a certified HVAC specialist to replace the drip pan, as HVAC systems are complex and require expertise to repair or replace broken parts safely. Homeowners may also consider getting multiple quotes from different companies to ensure they are getting a reasonable price for the replacement.
Removing Stuck Transmission Oil Pan: DIY Guide
You may want to see also
Explore related products
The impact of a missing drip pan
The drip pan, also known as the condensate pan or drain pan, is an essential component of an HVAC system. It collects water droplets formed during the cooling process, preventing water from seeping into the system and causing damage. Therefore, the absence of a drip pan or a faulty drip pan can have significant implications:
Water Damage
Without a drip pan, water would accumulate within the HVAC system and the surrounding areas. This can lead to water damage, including leaks into your house and the system itself. Water leakage inside the system can result in major maintenance issues and costly repairs.
Microbiological Growth
Standing water in the system due to a missing or ineffective drip pan can promote the growth of microorganisms. This can have implications for indoor air quality and potentially impact the health of occupants.
System Malfunction
A malfunctioning or missing drip pan can cause the HVAC unit to trip, as seen in some user experiences. In such cases, the safety mechanism may shut off the unit, requiring professional intervention to reset it.
Maintenance Issues
A missing drip pan can result in increased maintenance requirements. Regular issues such as clogged drain pipes, frozen evaporator coils, and low refrigerant levels may arise, necessitating frequent attention and potential repairs.
Non-Compliance with Codes
In certain regions, the absence of a drip pan may be considered non-compliant with local codes and regulations. This can lead to legal issues and potential fines if the issue is not rectified.
Exploring Salt Pan Mar Cras: A Travel Guide
You may want to see also
Frequently asked questions
A drip pan is not required for a vertical HVAC unit, especially if it is in a basement or a garage. However, if leaking condensate would cause an issue to the structure, an external drip pan may be used.
A drip pan, also known as a condensate pan or drain pan, collects and manages the condensation produced during the cooling process. It prevents water from seeping inside the AC system, which could cause major damage.
If you notice water pooling in your air conditioner and specifically in your drip pan, this could indicate an issue. A clogged drain pipe is the most common cause of standing water in the drip pan.
Check the drain line for clogs by disconnecting it from the pan and running water through it. If the water does not flow freely, the clog will need to be cleared.
The cost to replace a drip pan on an AC unit ranges from $200 to $600, depending on the type, material, and size of the unit. If the pan is part of the evaporator coil, replacing it will cost over $2000.
