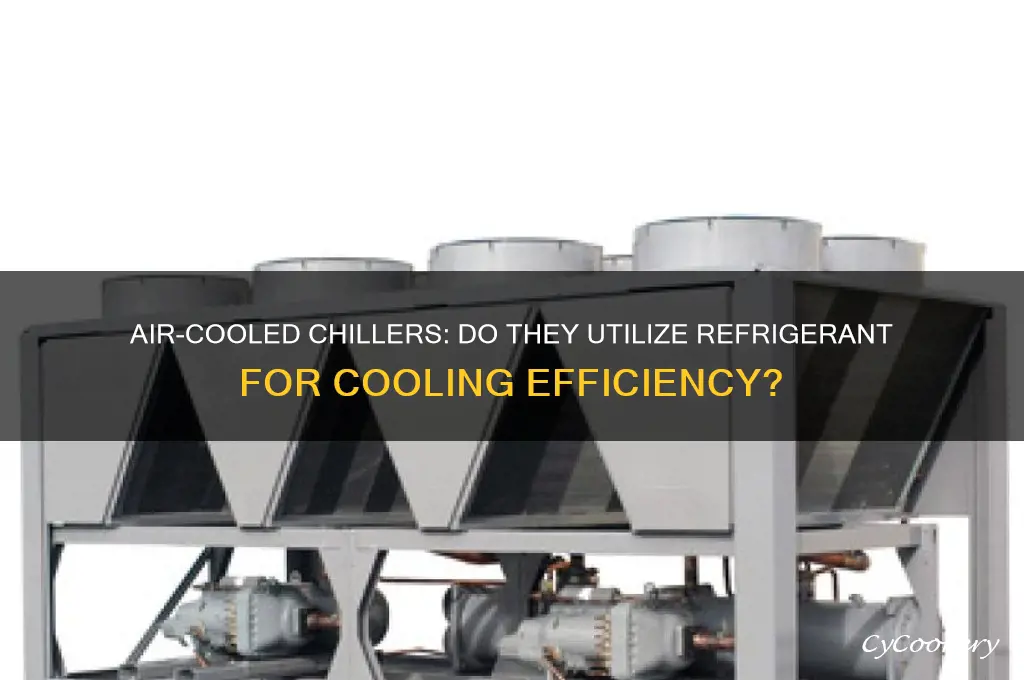

An air-cooled chiller is a type of refrigeration system commonly used in industrial and commercial applications to remove heat from a process or environment. One of the key questions often asked about these systems is whether they use refrigerant. The answer is yes—air-cooled chillers rely on refrigerants to facilitate the heat exchange process. These refrigerants absorb heat from the process fluid or air and then release it into the surrounding atmosphere through the chiller's condenser coils. Unlike water-cooled chillers, which use a water-based cooling system, air-cooled chillers dissipate heat directly into the air, making them suitable for locations where water availability is limited. The choice of refrigerant can vary depending on efficiency, environmental impact, and regulatory requirements, but it remains a critical component in the operation of air-cooled chillers.
| Characteristics | Values |
|---|---|
| Refrigerant Usage | Yes, air-cooled chillers use refrigerant as the primary heat transfer medium. |
| Refrigerant Types | Commonly use HFCs (e.g., R-410A, R-134a), HFOs (e.g., R-1234ze), or natural refrigerants (e.g., ammonia, CO2) depending on application and regulations. |
| Cooling Mechanism | Absorbs heat from process water or indoor air via an evaporator, then releases it to the outdoor air through condenser coils. |
| Efficiency | Typically less efficient than water-cooled chillers due to higher condenser temperatures, but efficiency varies with ambient conditions. |
| Maintenance | Requires regular refrigerant leak checks, condenser coil cleaning, and compressor maintenance. |
| Environmental Impact | Depends on refrigerant type; HFCs have high GWP, while natural refrigerants are more environmentally friendly. |
| Application | Widely used in HVAC systems, industrial processes, and data centers where water cooling is impractical. |
| Noise Level | Generally louder than water-cooled chillers due to fans used for air cooling. |
| Footprint | Compact and easier to install, requiring no cooling towers or condenser water systems. |
| Cost | Lower initial cost compared to water-cooled chillers but may have higher operational costs due to reduced efficiency. |
Explore related products
What You'll Learn
- Refrigerant Role in Chillers: Explains how refrigerants facilitate heat transfer in air-cooled chillers
- Types of Refrigerants Used: Lists common refrigerants like R-410A or R-134a in air-cooled systems
- Refrigerant Cycle Process: Describes the evaporation, compression, condensation, and expansion stages in chillers
- Environmental Impact: Discusses refrigerant greenhouse effects and eco-friendly alternatives for air-cooled chillers
- Refrigerant Efficiency: Analyzes how refrigerant choice impacts chiller performance and energy consumption
Refrigerant Role in Chillers: Explains how refrigerants facilitate heat transfer in air-cooled chillers
Air-cooled chillers rely on refrigerants as the lifeblood of their heat transfer process. These substances, often hydrofluorocarbons (HFCs) like R-410A or R-32, undergo a continuous cycle of phase changes to absorb and reject heat. The refrigerant enters the evaporator as a low-pressure liquid, where it absorbs heat from the chilled water, vaporizing into a low-pressure gas. This gas is then compressed into a high-pressure, high-temperature state, ready to release heat to the ambient air in the condenser. Without refrigerants, this efficient heat exchange would be impossible, rendering the chiller ineffective.
Consider the refrigerant’s role as a thermal shuttle. In the evaporator, it acts as a heat sponge, drawing thermal energy from the water to cool it. This process is governed by the refrigerant’s thermodynamic properties, such as its boiling point and latent heat of vaporization. For instance, R-410A has a boiling point of -51.7°C (-61°F), making it ideal for absorbing heat at low temperatures. Once vaporized, the refrigerant moves to the compressor, where its pressure and temperature are increased dramatically—often to 150–200 psi and 100–120°C (212–248°F)—preparing it to release heat in the condenser.
The condenser is where the refrigerant’s heat rejection occurs. Here, the high-pressure gas condenses back into a liquid as it transfers heat to the ambient air via the chiller’s fins and fans. This phase change is critical, as it allows the refrigerant to shed the heat it absorbed earlier. The condensed liquid then passes through an expansion valve, where its pressure drops significantly, cooling it further and preparing it to repeat the cycle. This closed-loop system ensures minimal refrigerant loss and maximizes efficiency, though regular checks for leaks are essential to maintain performance.
Choosing the right refrigerant is crucial for both efficiency and environmental compliance. Older refrigerants like R-22 have been phased out due to their high ozone depletion potential (ODP) and global warming potential (GWP). Modern alternatives like R-410A and R-32 offer lower GWP values—1,975 and 675, respectively, compared to R-22’s 1,810—but still require careful handling. For example, R-32 is flammable, necessitating enhanced safety measures during installation and maintenance. Operators should consult manufacturer guidelines and local regulations to ensure proper refrigerant selection and management.
In practice, optimizing refrigerant performance involves regular maintenance and monitoring. Keep condenser coils clean to ensure efficient heat rejection, as dirt buildup can reduce airflow and increase energy consumption by up to 30%. Monitor refrigerant pressure and temperature using digital gauges to detect issues like undercharging or overcharging, which can impair efficiency. For instance, a 10% undercharge in R-410A can reduce cooling capacity by 15–20%. Additionally, consider retrofitting older systems with low-GWP refrigerants to improve sustainability without compromising performance. By understanding and managing the refrigerant’s role, operators can ensure their air-cooled chillers operate at peak efficiency.
Shaping Sourdough Post-Refrigeration: Tips for Perfect Loaves Every Time
You may want to see also
Explore related products
Types of Refrigerants Used: Lists common refrigerants like R-410A or R-134a in air-cooled systems
Air-cooled chillers rely on refrigerants to facilitate the heat exchange process, and the choice of refrigerant significantly impacts efficiency, environmental impact, and system performance. Among the most common refrigerants used in these systems are R-410A and R-134a, each with distinct properties and applications. R-410A, a hydrofluorocarbon (HFC) blend, is widely adopted due to its zero ozone depletion potential (ODP) and higher energy efficiency compared to older refrigerants like R-22. It operates at higher pressures, requiring robust system design but delivering superior cooling capacity, making it ideal for modern air-cooled chillers in residential and commercial HVAC systems.
In contrast, R-134a, another HFC, is favored for its low toxicity and non-flammability, though it has a higher global warming potential (GWP) than R-410A. Its moderate operating pressures and compatibility with standard materials make it a practical choice for smaller air-cooled chillers, such as those used in automotive air conditioning and compact cooling units. However, due to increasing environmental regulations, its use is gradually being phased down in favor of more sustainable alternatives like R-32 or natural refrigerants.
For systems requiring precise temperature control, such as in data centers or industrial processes, R-513A is emerging as a viable option. This refrigerant is a blend designed to replace R-134a, offering similar performance with a significantly lower GWP. Its adoption aligns with global efforts to reduce greenhouse gas emissions while maintaining operational reliability. When selecting a refrigerant, consider factors like system size, application requirements, and compliance with regional regulations, such as the Kigali Amendment to the Montreal Protocol.
Practical tips for refrigerant management include regular leak detection to minimize environmental impact and ensure system efficiency. For R-410A systems, use gauges and tools rated for high-pressure applications to avoid equipment damage. When retrofitting older systems, consult manufacturer guidelines to ensure compatibility with new refrigerants. Additionally, proper disposal of refrigerants is critical; follow local regulations to prevent environmental harm. By understanding the characteristics and applications of these refrigerants, operators can optimize air-cooled chiller performance while contributing to sustainability goals.
Understanding Refrigerant Recovery Tanks: Functionality and Operation Explained
You may want to see also
Explore related products
Refrigerant Cycle Process: Describes the evaporation, compression, condensation, and expansion stages in chillers
The refrigerant cycle is the lifeblood of any chiller system, including air-cooled chillers. This thermodynamic process harnesses the unique properties of refrigerants to transfer heat, enabling chillers to cool spaces efficiently. Understanding the four distinct stages—evaporation, compression, condensation, and expansion—is crucial for optimizing performance and troubleshooting issues.
Let’s break down each stage with precision.
Stage 1: Evaporation – The Cooling Begins
In the evaporator, low-pressure liquid refrigerant absorbs heat from the chilled water or air, causing it to evaporate into a low-pressure vapor. This phase change is the core of the cooling process. For instance, R-410A, a common refrigerant, evaporates at approximately -15°C to -20°C under typical chiller conditions. The efficiency of this stage depends on maintaining clean evaporator coils and ensuring proper airflow. Clogged filters or dirty coils can reduce heat absorption, diminishing cooling capacity by up to 30%.
Stage 2: Compression – Energy Intensification
The compressor takes center stage here, raising the temperature and pressure of the refrigerant vapor. A typical air-cooled chiller compressor operates at a discharge pressure of 200–300 psi, transforming the vapor into a high-pressure, high-temperature state. This stage is energy-intensive, accounting for 70–80% of the chiller’s total power consumption. Variable-speed drives (VSDs) can modulate compressor speed, reducing energy use by 20–40% during partial-load conditions. Regular maintenance, such as checking for oil levels and ensuring proper lubrication, is critical to prevent compressor failure.
Stage 3: Condensation – Heat Rejection
The hot, high-pressure vapor moves to the condenser, where it releases heat to the ambient air. In air-cooled chillers, fans blow outside air over the condenser coils, facilitating heat exchange. The refrigerant condenses back into a high-pressure liquid at this stage. Optimal condenser performance requires adequate airflow and clean coils. For example, a 10°C rise in condenser coil temperature can reduce chiller efficiency by 4–6%. Seasonal cleaning and ensuring fans operate at peak efficiency are practical steps to maintain performance.
Stage 4: Expansion – Pressure Drop and Preparation
The high-pressure liquid refrigerant passes through an expansion valve, experiencing a sudden drop in pressure and temperature. This prepares it for the evaporation stage by converting it into a low-pressure, low-temperature mixture of liquid and vapor. The expansion valve must be precisely calibrated; an oversized valve can lead to flash gas, reducing evaporator efficiency, while an undersized one can cause liquid slugging, damaging the compressor. Regular calibration and monitoring of superheat levels (ideally 5–10°C) ensure optimal performance.
Practical Takeaways
Each stage of the refrigerant cycle is interdependent, and disruptions in one can cascade into inefficiencies or failures across the system. For air-cooled chillers, prioritizing condenser cleanliness, compressor health, and proper refrigerant charge are paramount. Annual inspections, coupled with real-time monitoring of pressure and temperature differentials, can preempt issues and extend the chiller’s lifespan. By mastering these stages, operators can ensure their chillers deliver reliable, energy-efficient cooling year-round.
Refrigerating Fresh Turkey Breast: Optimal Storage Time and Tips
You may want to see also
Explore related products
Environmental Impact: Discusses refrigerant greenhouse effects and eco-friendly alternatives for air-cooled chillers
Air-cooled chillers, while essential for cooling systems in various industries, often rely on refrigerants that contribute significantly to greenhouse gas emissions. Commonly used refrigerants like R-22 and R-410A have high Global Warming Potential (GWP) values, with R-410A, for instance, having a GWP of 2,088—over 2,000 times more potent than carbon dioxide in trapping heat over a 100-year period. This makes their environmental impact a pressing concern, especially as global cooling demands rise.
To mitigate this, eco-friendly alternatives are gaining traction. Low-GWP refrigerants such as R-32 (GWP of 675) and natural refrigerants like ammonia (GWP of 0) and carbon dioxide (GWP of 1) offer viable solutions. For example, R-32 is increasingly used in air-cooled chillers due to its energy efficiency and reduced environmental footprint. However, transitioning to these alternatives requires careful consideration of system compatibility and safety, as some natural refrigerants are flammable or toxic at certain concentrations.
Incorporating eco-friendly refrigerants is not just a technical upgrade but a strategic move toward sustainability. For instance, CO₂-based chillers are highly efficient in moderate climates, while ammonia remains a top choice for large-scale industrial applications. Retrofitting existing systems can be costly, but incentives like tax credits and rebates are available in many regions to offset expenses. Additionally, regular maintenance and leak detection are critical, as even small refrigerant leaks can negate the environmental benefits of low-GWP alternatives.
The shift toward greener refrigerants also aligns with global regulations, such as the Kigali Amendment to the Montreal Protocol, which aims to phase down high-GWP refrigerants by 80% by 2047. Businesses adopting these alternatives not only reduce their carbon footprint but also future-proof their operations against tightening environmental standards. Practical steps include conducting a system audit, consulting with HVAC experts, and prioritizing refrigerants with GWP values below 150 for new installations. By embracing these changes, industries can balance operational needs with environmental responsibility.
Refrigerating Tamales Before Cooking: A Time-Saving Prep Tip
You may want to see also
Explore related products
Refrigerant Efficiency: Analyzes how refrigerant choice impacts chiller performance and energy consumption
The choice of refrigerant in a chiller system is a critical factor that directly influences both performance and energy efficiency. Refrigerants are the lifeblood of these systems, absorbing and releasing heat to facilitate cooling. However, not all refrigerants are created equal. For instance, hydrofluorocarbons (HFCs) like R-410A have been widely used due to their high efficiency and reliability, but they come with a significant environmental drawback: a high global warming potential (GWP). In contrast, newer alternatives such as hydrofluoroolefins (HFOs) like R-32 offer comparable performance with a GWP that is up to 75% lower, making them a more sustainable choice. This shift in refrigerant selection underscores the delicate balance between operational efficiency and environmental responsibility.
When analyzing refrigerant efficiency, it’s essential to consider the thermodynamic properties of the refrigerant, such as its heat capacity and pressure-temperature relationship. These properties dictate how effectively the refrigerant can absorb and release heat, which in turn affects the chiller’s coefficient of performance (COP). For example, refrigerants with higher heat capacities can transfer more heat per unit mass, leading to improved efficiency. However, this must be balanced against other factors like operating pressures and system compatibility. A refrigerant that operates at lower pressures may reduce the strain on system components, extending their lifespan, but it might also require larger heat exchangers to achieve the same cooling effect.
Another critical aspect of refrigerant efficiency is its impact on energy consumption. Chillers account for a significant portion of energy use in commercial and industrial buildings, so even small improvements in efficiency can translate to substantial cost savings. For instance, switching from an older refrigerant like R-22 (with a COP of around 2.5) to a modern alternative like R-513A (with a COP of up to 3.2) can reduce energy consumption by as much as 20%. Additionally, refrigerants with lower discharge temperatures can reduce the load on condenser fans and pumps, further enhancing overall system efficiency. Building operators should conduct a lifecycle cost analysis to determine the most cost-effective refrigerant for their specific application, factoring in initial investment, maintenance costs, and energy savings.
Practical considerations also play a role in refrigerant selection. For example, flammability and toxicity are critical safety concerns, particularly in densely populated or enclosed spaces. Refrigerants like R-290 (propane) offer excellent efficiency and low environmental impact but are highly flammable, limiting their use to specific applications. Similarly, refrigerants with low toxicity and non-flammable properties, such as R-717 (ammonia), are ideal for industrial applications but require specialized handling due to their corrosive nature. Engineers and facility managers must weigh these trade-offs carefully, ensuring compliance with local regulations and safety standards while optimizing performance.
In conclusion, refrigerant efficiency is a multifaceted issue that requires a holistic approach. By carefully evaluating thermodynamic properties, energy consumption, and practical considerations, stakeholders can make informed decisions that maximize chiller performance while minimizing environmental and operational costs. As the industry continues to evolve, staying abreast of advancements in refrigerant technology and regulatory changes will be key to achieving sustainable and efficient cooling solutions.
Refrigerating Red Cabbage: Optimal Storage Time and Freshness Tips
You may want to see also
Frequently asked questions
Yes, an air-cooled chiller uses refrigerant as the primary medium to absorb and transfer heat from the process fluid to the ambient air.
Refrigerant circulates through the chiller’s system, absorbing heat from the process fluid in the evaporator, then releasing it to the ambient air through the condenser via a fan-cooled coil.
No, all air-cooled chillers rely on refrigerant to facilitate the heat exchange process, though the type of refrigerant used may vary.
Common refrigerants include R-410A, R-134a, and newer, environmentally friendly options like R-32 or low-GWP (Global Warming Potential) refrigerants.
