Marianne Martinez

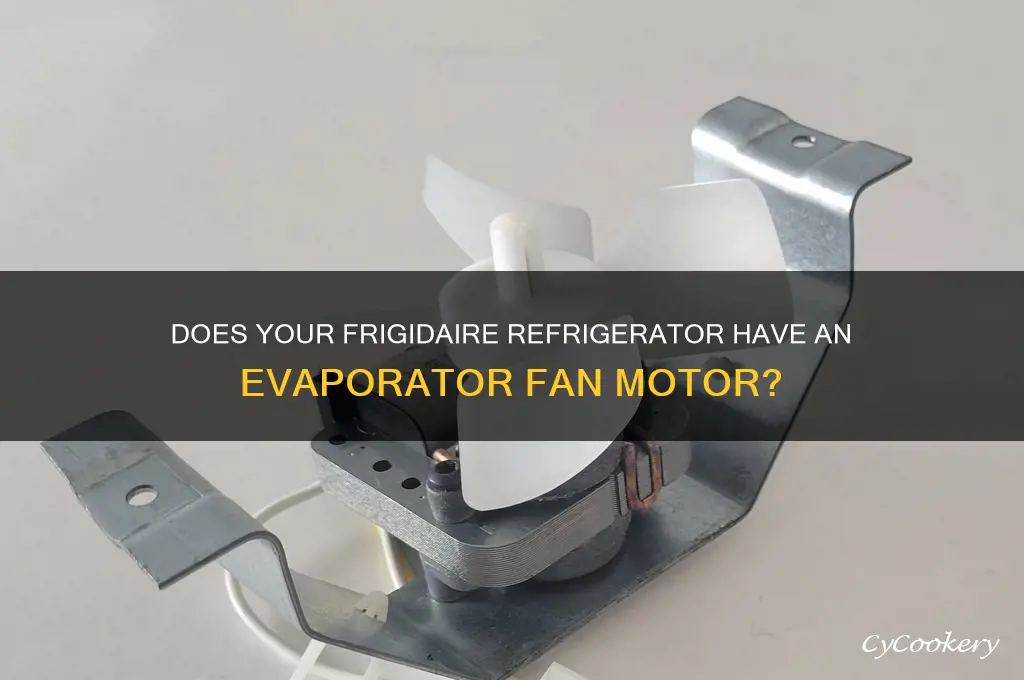

The Frigidaire refrigerator, a popular appliance in many households, often raises questions about its internal components, particularly the evaporator fan motor. This crucial part plays a significant role in maintaining optimal cooling performance by circulating cold air throughout the refrigerator compartment. Understanding whether a Frigidaire model includes an evaporator fan motor is essential for troubleshooting issues like inadequate cooling or unusual noises. Most modern Frigidaire refrigerators are equipped with this motor, but its location and accessibility can vary depending on the specific model. Knowing its presence and function can help owners diagnose problems and determine whether professional repair or maintenance is necessary.
| Characteristics | Values |
|---|---|
| Does Frigidaire Refrigerator Have an Evaporator Fan Motor? | Yes, most Frigidaire refrigerators are equipped with an evaporator fan motor. |
| Location of Evaporator Fan Motor | Typically located behind the freezer compartment or inside the evaporator coil housing. |
| Function | Circulates cold air throughout the refrigerator and freezer compartments to maintain consistent temperatures. |
| Common Models with Evaporator Fan Motor | Frigidaire Gallery, Professional, and standard top-freezer/bottom-freezer models. |
| Part Number (Example) | Varies by model; e.g., 5304477598, 242045203 (check specific model for accuracy). |
| Symptoms of a Faulty Evaporator Fan Motor | Warm refrigerator/freezer, excessive frost buildup, or unusual noises. |
| Replacement Cost | Typically $50–$150 for the part, plus labor if professionally installed. |
| DIY Repair Feasibility | Moderate; requires basic tools and access to the evaporator coil area. |
| Warranty Coverage | Usually covered under Frigidaire's limited warranty for 1 year (check specific model). |
| Energy Efficiency Impact | A faulty motor can reduce energy efficiency and increase electricity consumption. |
Explore related products
What You'll Learn
Location of the Evaporator Fan Motor in Frigidaire Refrigerators
Frigidaire refrigerators are equipped with an evaporator fan motor, a critical component for maintaining optimal cooling performance. This motor is responsible for circulating cold air throughout the refrigerator and freezer compartments, ensuring even temperature distribution. Understanding its location is essential for troubleshooting, maintenance, or replacement, as it directly impacts the appliance’s efficiency and longevity.
The evaporator fan motor in Frigidaire refrigerators is typically located in the freezer compartment, near the evaporator coils. To access it, start by removing the freezer’s rear panel or cover. This panel is usually secured with screws or clips, so a screwdriver or pry tool may be necessary. Once removed, the fan motor will be visible, often mounted directly on or near the evaporator assembly. It’s important to unplug the refrigerator before attempting any inspection or repair to avoid electrical hazards.
A key distinction in Frigidaire models is whether the refrigerator has a single evaporator system (common in older or budget models) or a dual evaporator system (found in higher-end units). In single evaporator systems, the fan motor is exclusively in the freezer, as this is where the evaporator coils are located. In dual evaporator systems, there may be a separate fan motor for the refrigerator compartment, though the primary evaporator fan remains in the freezer. Identifying your model type is crucial for accurate troubleshooting.
For practical maintenance, listen for unusual noises, such as grinding or squealing, which may indicate a failing fan motor. If the refrigerator isn’t cooling properly, check if the fan is running. A non-operational fan could be due to a faulty motor, obstructed blades, or a malfunctioning control board. Regularly cleaning the area around the fan motor, including the coils and vents, can prevent dust buildup and improve airflow, enhancing overall performance.
In summary, the evaporator fan motor in Frigidaire refrigerators is a vital yet accessible component, primarily located in the freezer compartment near the evaporator coils. Knowing its location and function empowers homeowners to address cooling issues effectively, ensuring their appliance operates at peak efficiency. Always prioritize safety by unplugging the unit before inspection and consult a professional for complex repairs.
Connecting Reverse Osmosis to Your Refrigerator: Benefits and Installation Tips
You may want to see also
Explore related products
Common Issues with Frigidaire Evaporator Fan Motors
Frigidaire refrigerators, like many modern units, rely on evaporator fan motors to circulate cold air throughout the freezer and refrigerator compartments. When this component malfunctions, it can lead to uneven cooling, frost buildup, or complete cooling failure. Understanding common issues with these motors can help homeowners diagnose problems early and avoid costly repairs.
Overheating and Burnout
One of the most frequent issues with Frigidaire evaporator fan motors is overheating, often caused by dust, lint, or debris clogging the motor or its vents. Over time, this restricts airflow, causing the motor to work harder and eventually burn out. To prevent this, clean the motor and surrounding area every 6–12 months using a soft brush or vacuum. If the motor has already failed, replacement is necessary, and opting for a higher-quality aftermarket motor with better heat dissipation can extend its lifespan.
Worn Bearings and Noise
Another common problem is worn bearings, which manifest as loud humming, squealing, or grinding noises from the freezer compartment. This issue often arises from prolonged use or poor lubrication. While some motors have sealed bearings that cannot be serviced, others may benefit from a small application of electric motor oil. However, in most cases, the noise indicates the motor is nearing the end of its life, and replacement is the most practical solution.
Electrical Failures and Wiring Issues
Electrical problems, such as a faulty capacitor or damaged wiring, can also cause the evaporator fan motor to stop functioning. A capacitor failure is particularly common and can be diagnosed using a multimeter to check for continuity. If the capacitor is bad, it’s a relatively inexpensive fix. However, frayed or disconnected wiring requires careful inspection and repair, often best handled by a professional to avoid further damage.
Frost Accumulation and Blockage
Frost buildup on the evaporator coils can obstruct the fan blades, preventing proper airflow and causing the motor to strain or stop. This issue is often linked to a malfunctioning defrost system, such as a failed defrost heater or timer. Regularly defrosting the freezer and ensuring the defrost system is operational can mitigate this problem. If frost persists, inspect the defrost components and replace any faulty parts to restore proper function.
By addressing these common issues promptly, homeowners can extend the life of their Frigidaire refrigerator’s evaporator fan motor and maintain efficient cooling performance. Regular maintenance and early intervention are key to avoiding more significant repairs down the line.
Easy Steps to Restore Your Refrigerator's Condenser Fan
You may want to see also
Explore related products
How to Test a Frigidaire Evaporator Fan Motor
Frigidaire refrigerators, like many modern models, are equipped with an evaporator fan motor, a critical component for maintaining consistent cooling. This motor circulates cold air from the freezer to the refrigerator compartment, ensuring even temperatures. If your Frigidaire refrigerator isn’t cooling properly, a malfunctioning evaporator fan motor could be the culprit. Testing it yourself can save time and money before calling a technician.
Step 1: Locate the Evaporator Fan Motor
Begin by unplugging the refrigerator to ensure safety. Remove the back panel inside the freezer compartment to access the evaporator fan motor. It’s typically located near the evaporator coils, identifiable by its small size and attached fan blades. Take note of its position and wiring for reassembly.
Step 2: Inspect for Obvious Issues
Before testing, visually inspect the motor and fan blades. Look for ice buildup, debris, or physical damage. Ice can prevent the fan from spinning, while debris may obstruct airflow. If ice is present, defrost the freezer completely before proceeding. Clear any obstructions gently to avoid damaging the fan blades.
Step 3: Perform a Manual Rotation Test
With the power still disconnected, manually spin the fan blades by hand. They should rotate freely and smoothly. If the blades are stiff, bind, or make grinding noises, the motor bearings may be worn out, indicating a need for replacement.
Step 4: Test for Continuity
Using a multimeter set to the ohms (Ω) setting, test the motor’s continuity. Disconnect the motor’s wiring harness and place the multimeter probes on the motor’s terminals. A reading of 0–5 ohms indicates a functioning motor, while no reading or infinite resistance suggests an open circuit, meaning the motor is faulty.
Step 5: Check for Power Supply
If the motor has continuity, verify it’s receiving power. Reconnect the wiring harness and plug the refrigerator back in. Open the freezer door and activate the door switch (if applicable) to turn on the fan. Use a multimeter to test voltage at the motor terminals. If voltage is present but the fan doesn’t spin, the motor is likely defective.
If the motor fails any of these tests, it’s time for a replacement. Frigidaire evaporator fan motors are model-specific, so ensure you purchase the correct part. Installation involves reversing the disassembly steps, reconnecting the wiring harness, and securing the motor in place. Regular maintenance, such as keeping the freezer free of ice and debris, can extend the motor’s lifespan and prevent future issues.
Effective Crop Storage Solutions: Preserving Harvests Without Refrigeration
You may want to see also
Explore related products
Replacing the Evaporator Fan Motor in Frigidaire Models
Frigidaire refrigerators, like many modern units, are equipped with an evaporator fan motor, a critical component for maintaining consistent cooling. Located near the evaporator coils, this motor circulates cold air throughout the freezer and refrigerator compartments. Over time, wear and tear, dust accumulation, or electrical issues can cause the motor to fail, leading to inadequate cooling or unusual noises. Recognizing the symptoms early—such as warm refrigerator sections or a non-functioning freezer—can prevent food spoilage and more extensive repairs.
While the process is straightforward, certain precautions can streamline the task. Use a vacuum or soft brush to clear dust and debris from the evaporator coils and fan blades, improving efficiency and reducing future strain on the new motor. Verify compatibility by cross-referencing the part number with your Frigidaire model, as variations exist across different series. If the motor includes a thermal fuse, inspect it for damage and replace it if necessary, as a faulty fuse can cause the new motor to fail prematurely.
Comparing the replacement process across Frigidaire models reveals consistent design principles but slight variations in access points. For example, top-freezer models often require removing freezer contents and shelves, while side-by-side units may involve more intricate panel removal. Regardless of the model, patience and attention to detail are key. DIY enthusiasts can save on labor costs, but those uncomfortable with electrical components or disassembly should consult a professional to avoid errors that could void warranties or cause further damage.
In conclusion, replacing the evaporator fan motor in Frigidaire refrigerators is a manageable task with the right tools and knowledge. By understanding the motor’s role, following a structured replacement process, and taking preventive measures, homeowners can restore their refrigerator’s functionality efficiently. Regular maintenance, such as cleaning coils and monitoring performance, can extend the lifespan of both the motor and the appliance, ensuring reliable cooling for years to come.
Refrigerate Fresh Corn on the Cob: Yes or No?
You may want to see also
Explore related products
Signs of a Failing Frigidaire Evaporator Fan Motor
Frigidaire refrigerators, like many modern units, rely on an evaporator fan motor to circulate cold air throughout the freezer and refrigerator compartments. When this component begins to fail, it can disrupt the appliance’s efficiency and lead to noticeable issues. Recognizing the signs early can save you from costly repairs or food spoilage. Here’s what to look for if you suspect your Frigidaire’s evaporator fan motor is on the brink.
One of the most obvious indicators of a failing evaporator fan motor is unusual noises coming from the freezer section. A healthy motor operates quietly, but as it wears out, you may hear grinding, whirring, or squealing sounds. These noises often occur when the motor’s bearings are worn or debris has accumulated, causing friction. If you notice such sounds, especially when the door is closed, it’s a strong signal to inspect the motor.
Another telltale sign is inconsistent cooling in the refrigerator or freezer. The evaporator fan motor is responsible for distributing cold air evenly. If it’s failing, you might find warm spots in the fridge or ice buildup in the freezer. For example, if your freezer is frosting excessively but the refrigerator section feels warmer than usual, the motor may not be circulating air properly. Use a thermometer to check temperatures in both compartments; if they deviate significantly from the recommended range (0°F for the freezer, 37°F for the fridge), the motor could be at fault.
A less obvious but equally important sign is increased energy consumption. A struggling evaporator fan motor works harder to maintain cooling, which can cause your refrigerator to run longer cycles. If you notice a sudden spike in your electricity bill without a change in usage patterns, it’s worth investigating. Frigidaire models typically consume around 500-700 kWh annually, so a significant increase could point to motor inefficiency.
Finally, physical inspection can reveal visible issues. Turn off the refrigerator and locate the evaporator fan motor, usually behind the freezer’s rear panel. Look for signs of damage, such as melted wiring, burnt marks, or loose connections. If the fan blades are visibly warped or obstructed by ice or debris, this can also impair performance. Always unplug the unit before attempting any inspection to avoid electrical hazards.
In summary, a failing Frigidaire evaporator fan motor manifests through unusual noises, inconsistent cooling, higher energy usage, and visible damage. Addressing these signs promptly can prevent further complications and extend the life of your refrigerator. If you’re unsure, consult a professional technician to diagnose and replace the motor if necessary.
Efficiently Clean Your Jenn-Air Refrigerator: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Yes, most Frigidaire refrigerators are equipped with an evaporator fan motor, which is essential for circulating cold air inside the freezer and refrigerator compartments.
The evaporator fan motor in a Frigidaire refrigerator circulates cold air from the evaporator coils to the freezer and refrigerator sections, ensuring even cooling and preventing frost buildup.
Signs of a malfunctioning evaporator fan motor include warm temperatures in the freezer or refrigerator, unusual noises, or frost accumulation on the evaporator coils.
Yes, you can replace the evaporator fan motor yourself if you have basic DIY skills. However, it’s important to follow the manufacturer’s instructions or consult a professional if you’re unsure.
