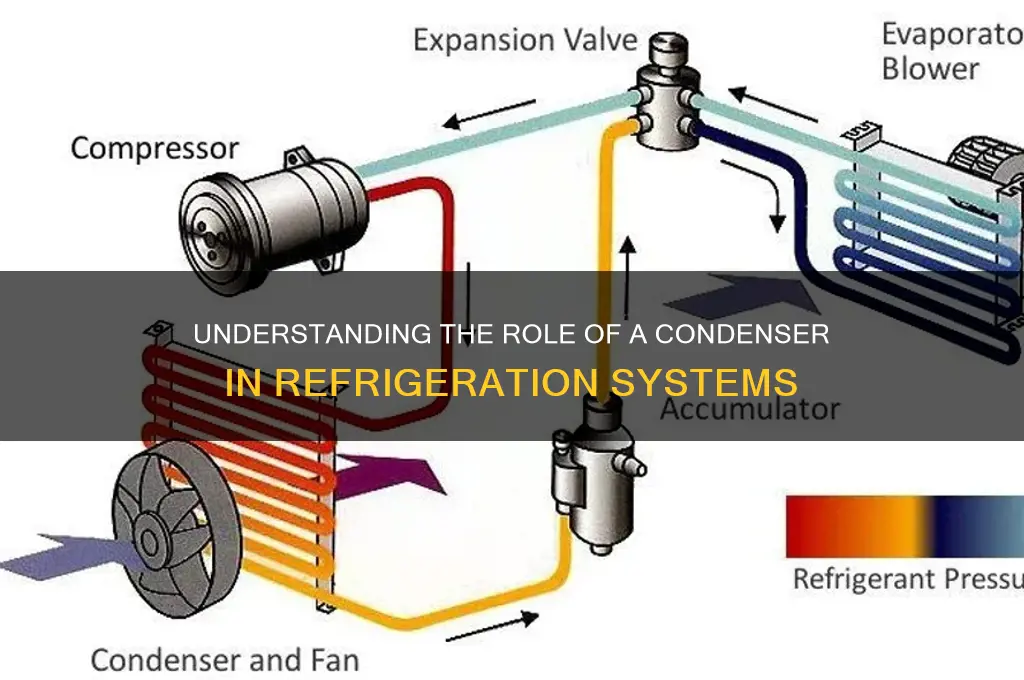

A condenser is a critical component in a refrigerator's cooling system, responsible for dissipating heat and facilitating the refrigeration cycle. It works by receiving high-pressure, high-temperature refrigerant vapor from the compressor and converting it into a liquid state through a heat exchange process. As the hot refrigerant flows through the condenser coils, it comes into contact with cooler air or water, which absorbs the heat, causing the refrigerant to condense. This condensed liquid refrigerant then moves on to the expansion valve, where it undergoes a pressure drop, preparing it for the next stage of the cycle in the evaporator. Without the condenser, the refrigerator would be unable to efficiently remove heat from the interior, rendering the cooling process ineffective.
| Characteristics | Values |
|---|---|
| Function | Dissipates heat from the refrigerant, converting it from high-pressure vapor to high-pressure liquid |
| Location | Typically located at the back or bottom of the refrigerator |
| Type | Most common types are air-cooled (coils exposed to ambient air) and fan-assisted (fan blows air over coils) |
| Refrigerant Flow | High-pressure, high-temperature vapor enters the condenser from the compressor |
| Heat Transfer | Heat is transferred from the refrigerant to the surrounding air via convection and radiation |
| Condensation Process | As heat is removed, the refrigerant vapor condenses into a high-pressure liquid |
| Outlet Temperature | The condensed liquid refrigerant exits the condenser at a temperature slightly above the ambient air temperature |
| Pressure | Maintains high pressure (typically 100-300 psi) to facilitate condensation |
| Material | Typically made of copper or aluminum tubing with aluminum fins for efficient heat transfer |
| Efficiency | Efficiency depends on factors like coil cleanliness, airflow, and ambient temperature |
| Maintenance | Regular cleaning of coils and ensuring proper airflow are crucial for optimal performance |
| Energy Consumption | Accounts for a significant portion of the refrigerator's energy consumption, especially in hot environments |
| Environmental Impact | Proper condenser function is essential for minimizing energy waste and reducing greenhouse gas emissions |
| Common Issues | Dirt buildup, restricted airflow, and refrigerant leaks can impair condenser performance |
| Latest Innovations | Microchannel condensers and advanced coatings for improved heat transfer and corrosion resistance |
Explore related products
What You'll Learn
Heat absorption process
The heat absorption process is the cornerstone of a refrigerator's ability to cool. It begins with the refrigerant, a chemical compound with a low boiling point, entering the evaporator coils as a low-pressure liquid. As warm air from the refrigerator's interior circulates over these coils, the refrigerant absorbs heat, undergoing a phase change from liquid to gas. This transformation is crucial: it leverages the principle that a substance absorbs heat when it changes from a liquid to a vapor state, effectively drawing thermal energy out of the surrounding environment.
Consider the analogy of sweat evaporating from your skin. As sweat transitions from liquid to gas, it absorbs heat, providing a cooling effect. Similarly, the refrigerant’s evaporation in the evaporator coils extracts heat from the refrigerator’s interior, lowering the temperature. This process is not merely passive; it is driven by the pressure differential created by the refrigeration cycle. The low-pressure environment in the evaporator ensures the refrigerant remains in a state where it can efficiently absorb heat, even at relatively low temperatures.
To optimize this process, ensure proper airflow around the evaporator coils. Blocked vents or frost buildup can impede heat transfer, reducing efficiency. Regularly defrost manual-defrost refrigerators and maintain a consistent temperature setting to avoid overworking the system. For frost-free models, ensure the door seals are intact to prevent warm, moist air from entering, which can accelerate frost formation and hinder heat absorption.
A key takeaway is the refrigerant’s role as a heat carrier. Its ability to change phases at low temperatures makes it ideal for this task. Modern refrigerants, such as R-134a or R-600a, are chosen for their thermodynamic properties and environmental impact. However, older refrigerants like R-22 are being phased out due to their ozone-depleting potential. When servicing a refrigerator, always consult the manufacturer’s specifications to use the correct refrigerant type and avoid damaging the system.
Finally, the heat absorption process is a delicate balance of physics and engineering. It relies on precise control of pressure, temperature, and airflow to function effectively. By understanding this process, you can better maintain your refrigerator, ensuring it operates efficiently and prolonging its lifespan. Regular maintenance, such as cleaning coils and checking door seals, can significantly enhance performance and energy savings.
Powering Your Fridge: Can a 1000 Watt Generator Handle It?
You may want to see also
Explore related products
Condensation of refrigerant gas
The condensation of refrigerant gas is a pivotal phase in the refrigeration cycle, where the hot, high-pressure gas released from the compressor transforms into a liquid. This process occurs within the condenser, a heat exchanger typically located at the back or bottom of the refrigerator. As the refrigerant gas flows through the condenser coils, it comes into contact with cooler air or water, dissipating heat to the surroundings. This heat transfer is essential, as it reduces the refrigerant’s temperature and energy, allowing it to change state from gas to liquid. Without this condensation, the refrigerant couldn’t effectively absorb heat from the refrigerator’s interior in the next cycle phase.
Analyzing the mechanics, the condenser’s efficiency hinges on its ability to maximize surface area for heat exchange while minimizing energy loss. Modern condensers often feature finned tubes or microchannel designs to enhance this process. For instance, a typical household refrigerator condenser operates at a temperature range of 50–100°F (10–38°C), depending on ambient conditions. The refrigerant, such as R-134a or R-600a, condenses at pressures around 100–200 psi, though exact values vary by system design. Ensuring proper airflow around the condenser—by keeping vents clear and coils clean—is critical to maintaining optimal performance. Neglecting this can lead to reduced cooling efficiency and higher energy consumption.
From a practical standpoint, understanding condensation helps troubleshoot common refrigerator issues. If the condenser fails to condense the refrigerant effectively, symptoms like inadequate cooling or excessive cycling may arise. For example, a blocked condenser coil can cause the compressor to overwork, shortening its lifespan. To prevent this, homeowners should vacuum condenser coils every 3–6 months and ensure the refrigerator has at least 2 inches of clearance on all sides for proper ventilation. In commercial settings, water-cooled condensers require regular checks for leaks and scale buildup, as these can impede heat transfer and reduce system efficiency.
Comparatively, the condensation process in refrigerators mirrors that in air conditioning systems, though the scale and application differ. While both rely on condensers to release heat, refrigerators prioritize maintaining low temperatures in a confined space, whereas AC systems focus on cooling larger areas. This distinction influences condenser design: refrigerators often use compact, air-cooled condensers, while AC units may employ larger, water-cooled or evaporative condensers. Despite these differences, the principle remains the same—efficient condensation is key to system performance. By optimizing this process, both appliances achieve their cooling goals with minimal energy waste.
In conclusion, the condensation of refrigerant gas is a critical yet often overlooked aspect of refrigerator functionality. It bridges the gap between the compressor’s output and the evaporator’s cooling action, ensuring the cycle’s continuity. Whether through routine maintenance, design innovations, or comparative insights, understanding this process empowers users to maximize their refrigerator’s efficiency and lifespan. By treating the condenser as the heart of heat dissipation, one can appreciate its role in keeping food fresh and energy bills low.
Using Refrigerant 134a in a 2010 Subaru: Compatibility Guide
You may want to see also
Explore related products
Role of condenser coils
Condenser coils are the unsung heroes of your refrigerator’s cooling cycle, responsible for dissipating heat extracted from the interior. Located at the back or bottom of the appliance, these coils work by converting high-pressure, high-temperature refrigerant vapor into a liquid. This phase change is critical because it releases heat to the surrounding environment, ensuring the refrigerant can cycle back into the system and continue cooling. Without efficient condenser coils, the refrigerator’s ability to maintain low temperatures would collapse, leading to spoiled food and wasted energy.
To maximize the efficiency of condenser coils, regular maintenance is non-negotiable. Dust, pet hair, and debris accumulate on the coils over time, insulating them and hindering heat transfer. For refrigerators with rear coils, use a vacuum cleaner with a brush attachment every 3–6 months to remove buildup. Bottom-mounted coils require a coil brush to clean between the fins. Pro tip: Unplug the refrigerator before cleaning to avoid electrical hazards. Neglecting this task can reduce efficiency by up to 30%, forcing the compressor to work harder and shortening its lifespan.
Comparing condenser coil designs reveals their adaptability to different environments. In-door refrigerators often feature compact, flat coils optimized for space efficiency, while commercial units may use larger, finned coils for heavy-duty cooling. Airflow is another critical factor—coils paired with condenser fans expel heat faster, making them ideal for high-temperature kitchens. However, fan-assisted systems require additional maintenance to prevent dust clogs. Understanding these design variations helps in selecting a refrigerator suited to your specific needs and environment.
A lesser-known fact is that condenser coils can also impact energy consumption. When operating optimally, they allow the refrigerator to reach its set temperature faster, reducing run time and electricity usage. For instance, a clean coil system can save up to 5–10% on energy bills annually. Pairing this with a smart thermostat can further enhance efficiency by adjusting cooling cycles based on usage patterns. This dual approach not only lowers costs but also reduces the appliance’s carbon footprint, making it a win-win for both your wallet and the planet.
Finally, troubleshooting condenser coil issues can save you from costly repairs. If your refrigerator is running constantly but failing to cool, the coils may be overheating due to blockages or refrigerant leaks. A quick visual inspection can reveal frost buildup (indicating low refrigerant) or excessive dust. For persistent problems, consult a technician to check for leaks or compressor issues. Remember, addressing coil-related problems early can prevent system-wide failures and extend the life of your refrigerator by years.
Perfectly Crisp: When Can You Enjoy Homemade Refrigerator Pickles?
You may want to see also
Explore related products
Heat dissipation to environment
The condenser in a refrigerator is the unsung hero of heat dissipation, a critical process that ensures your food stays cold. Positioned typically at the back or bottom of the unit, this coiled tube filled with hot, pressurized refrigerant acts as the bridge between your kitchen’s cool interior and the warmer environment outside. As the refrigerant flows through the condenser, it transitions from a high-pressure gas to a high-pressure liquid, releasing heat in the process. This heat, absorbed from inside the fridge, must be efficiently expelled to maintain the cooling cycle. Without effective heat dissipation, the system would overheat, reducing efficiency and potentially causing long-term damage.
Consider the condenser’s design and placement as key factors in optimizing heat dissipation. Most residential refrigerators use air-cooled condensers, which rely on ambient air to carry away heat. The condenser coils are often exposed to allow for maximum airflow, but this design requires regular maintenance. Dust, pet hair, and debris can accumulate on the coils, acting as an insulator and reducing heat transfer efficiency. To combat this, clean the coils every six months using a soft brush or vacuum. For built-in refrigerators, ensure there’s at least 1 inch of clearance around the unit to promote adequate airflow. Commercial or larger systems may employ water-cooled condensers, which use a water supply to dissipate heat more rapidly but require additional infrastructure and maintenance.
The environment itself plays a significant role in how effectively a condenser dissipates heat. In hotter climates, the temperature differential between the refrigerant and the surrounding air is smaller, making heat transfer less efficient. This can lead to longer compressor run times and increased energy consumption. To mitigate this, position your refrigerator away from heat sources like ovens, dishwashers, or direct sunlight. In extreme cases, consider installing a condenser fan or using a shaded location to improve performance. Conversely, in colder environments, the condenser may operate more efficiently, but the reduced ambient temperature can also lead to frost buildup on the evaporator coils, requiring periodic defrosting.
For those looking to maximize efficiency, understanding the thermodynamics of heat dissipation can provide actionable insights. The rate of heat transfer is governed by Newton’s Law of Cooling, which states that heat loss is proportional to the temperature difference between the refrigerant and the environment. This means that even small improvements in airflow or temperature differential can yield significant energy savings. For example, lowering the ambient temperature around the condenser by just 5°F can reduce energy consumption by up to 10%. Practical steps include using a thermostat to monitor room temperature and ensuring the condenser is not obstructed by furniture or other objects.
Finally, advancements in condenser technology offer promising solutions for enhanced heat dissipation. Microchannel condensers, for instance, use a network of tiny tubes to increase surface area, improving heat transfer efficiency by up to 30% compared to traditional designs. These are commonly found in high-efficiency refrigerators and HVAC systems. Another innovation is the use of phase-change materials (PCMs) integrated into the condenser, which absorb excess heat during peak operation and release it slowly when demand is lower. While these technologies are more expensive upfront, they can lead to long-term energy savings and reduced environmental impact. By staying informed about such advancements, consumers can make smarter choices when upgrading their refrigeration systems.
Lantus Storage Guide: How Long Can It Stay Unrefrigerated?
You may want to see also
Explore related products
Interaction with compressor cycle
The condenser and compressor in a refrigerator are inseparable partners in the heat exchange process, working in tandem to remove heat from the interior and expel it outside. As the compressor begins its cycle, it pressurizes and heats the refrigerant gas, turning it into a high-pressure, high-temperature state. This superheated gas then flows into the condenser, where the interaction between these two components becomes critical. The condenser’s primary role is to dissipate this heat, converting the refrigerant back into a liquid form. Without this interaction, the refrigerant cycle would stall, and cooling efficiency would plummet.
Consider the timing and synchronization required for this process. When the compressor activates, it relies on the condenser to immediately begin shedding heat to the surrounding environment. This interaction is not passive; the condenser’s coils, often aided by fans, actively accelerate heat transfer. For instance, in a standard household refrigerator, the condenser coils might operate at temperatures between 100°F and 150°F (38°C to 65°C) during peak compressor activity. If the condenser fails to keep pace—due to dust buildup, inadequate ventilation, or a malfunctioning fan—the compressor’s efficiency drops, leading to longer run times and increased energy consumption.
From a maintenance perspective, understanding this interaction is key to troubleshooting common refrigerator issues. For example, if the refrigerator isn’t cooling effectively, check the condenser coils for obstructions. Dust and debris can insulate the coils, reducing their ability to release heat. A simple cleaning routine—vacuuming or wiping the coils every six months—can restore efficiency. Additionally, ensure the area around the condenser is well-ventilated; placing a refrigerator too close to a wall or cabinet can restrict airflow, forcing the compressor to work harder.
Comparatively, commercial refrigerators often employ more sophisticated condenser-compressor interactions to handle larger cooling loads. These systems may use water-cooled condensers or multiple fans to enhance heat dissipation, ensuring the compressor operates within optimal temperature ranges. For homeowners, while such advanced systems aren’t necessary, the principle remains: the smoother the condenser-compressor interaction, the more efficient and longer-lasting the refrigerator will be. Regularly monitoring this relationship can prevent costly repairs and extend the appliance’s lifespan.
In conclusion, the interaction between the condenser and compressor cycle is a delicate dance of heat and pressure, requiring precision and maintenance to perform effectively. By understanding this relationship, users can take proactive steps to optimize their refrigerator’s performance, from routine cleaning to ensuring proper ventilation. This knowledge not only saves energy but also ensures the appliance operates reliably, keeping food fresh and safe for consumption.
Exploring the Potential of Refrigeration Cycles as Power Generation Systems
You may want to see also
Frequently asked questions
The condenser in a refrigerator acts as a heat exchanger, releasing the absorbed heat from the refrigerant to the surrounding environment. It converts the high-pressure, hot refrigerant gas into a liquid by cooling it down, preparing it for the next cycle in the refrigeration process.
The condenser works by receiving hot, compressed refrigerant gas from the compressor. As the refrigerant flows through the condenser coils, air (via fans) or water (in water-cooled systems) passes over the coils, dissipating the heat. This process condenses the refrigerant from a gas to a high-pressure liquid, which then moves to the expansion valve.
If the condenser is dirty or blocked, it cannot efficiently release heat, causing the refrigerator to work harder and consume more energy. This can lead to reduced cooling performance, increased wear on the compressor, and potentially higher utility bills. Regular cleaning of the condenser coils is essential for optimal operation.
