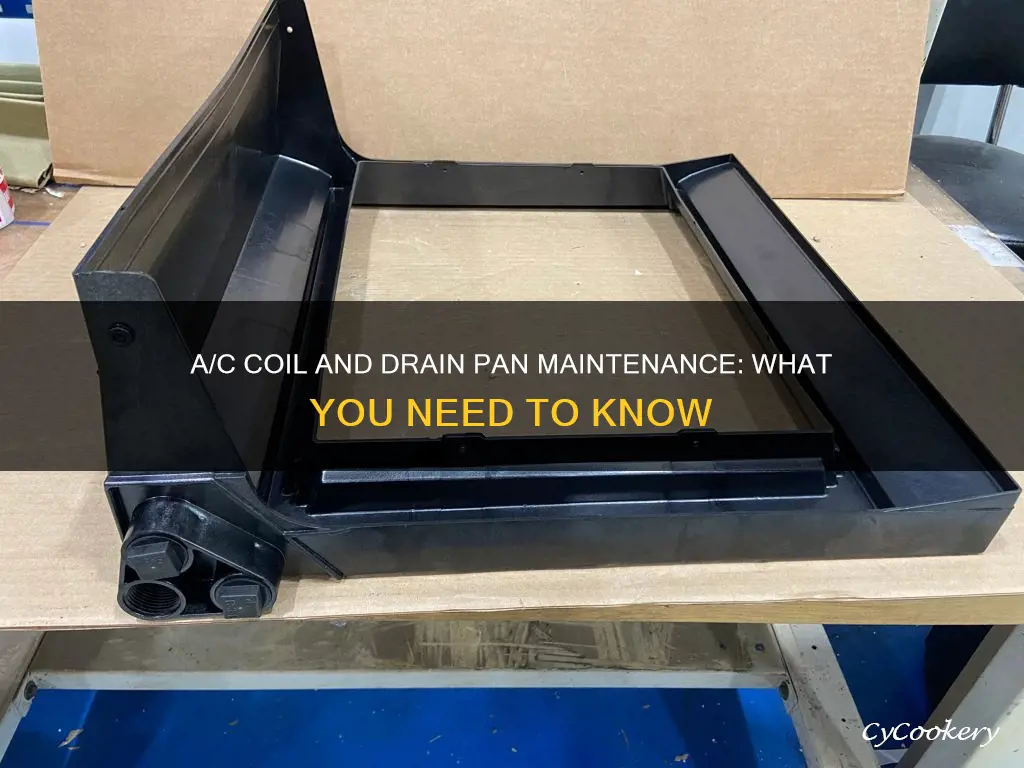

Air conditioners usually have two drain pans: a primary pan and an auxiliary or backup pan. The primary pan is welded to the evaporator coil, while the auxiliary pan is located below the primary pan inside the unit or under the unit on the exterior. The role of the drain pan is to collect the water droplets that form when warm air passes over the evaporator coils. However, issues such as clogs, leaks, and cracks can affect the proper functioning of the drain pans, leading to water accumulation and potential damage to the AC unit and the property. Regular maintenance and inspection of the drain pans and coils are crucial to prevent these issues and ensure the efficient operation of the air conditioning system.
| Characteristics | Values |
|---|---|
| Number of pans | 2 |
| Location | Beneath the evaporator coils |
| Material | Metal |
| Maintenance | Regular duct cleaning to prevent pest infestations |
| Common issues | Clogging, cracks, rust, corrosion, leaks |
| Solutions | Epoxy glue, biocide tablets, vinegar, bleach |
Explore related products
What You'll Learn
AC drain pans are usually located underneath the evaporator coils
Air conditioners usually have two drain pans: one that is permanently affixed to the air handler, and an auxiliary one that is removable. The AC drain pans are usually located directly underneath the evaporator coils. As warm air passes over the evaporator coils in the AC, water droplets form and drip into the condensate pan below. From there, the condensate flows out through the condensate drain line.
It is important to regularly inspect and clean your AC drain pans and condensate drain lines to prevent leaks and water damage to your property. You can do this by first turning on your AC for about 20 to 30 minutes to generate enough condensate to identify any issues. Then, turn off the power to the AC and remove the access panel to inspect the drain pans and drain lines for any debris, clogs, cracks, dents, holes, rust, or mold/algae buildup. If you notice any issues, you can clean the drain pans and lines and use epoxy glue to repair small cracks. However, if there is a large leak or damage to the permanent drain pan, it is recommended to contact a professional for repairs.
While it is tempting to handle AC drain pan maintenance yourself, there are times when a professional should tackle the job. Regular professional servicing can help identify and repair issues before they become bigger problems. Professionals can also provide guidance on proper maintenance and cleaning techniques to help prolong the life of your cooling system.
If you notice any issues with your AC not turning on or leaks around your unit, it is important to first check the drainage system, including the drain pans and condensate drain lines, as clogs or damage to these components can lead to system shutdowns and water damage.
Cleaning Your Lennox AC: Drain Pan Maintenance Guide
You may want to see also
Explore related products
Water droplets form and drip into the condensate pan
When an air conditioner is turned on, the chilling process produces water droplets. This process is similar to the condensation that forms on the outside of a cold glass on a hot day. These water droplets eventually drip into a condensate drip pan, which is located beneath the evaporator coils. The drip pan collects the condensation and prevents it from leaking onto the floor, which could cause water damage or create slippery surfaces.
The drip pan is connected to a water drain line that safely channels the water out of the AC unit and your home. This drainage system is crucial in preventing water from accumulating and overflowing. Over time, dust, dirt, and other debris can accumulate in the drain pan and line, leading to clogs and potential water backup. Regular maintenance and cleaning of the drip pan and drain line are necessary to prevent these issues.
If water is pooling in the drip pan, it could be due to excessive condensation caused by high humidity levels or improper drainage from clogged drain lines or a malfunctioning condensate pump. Restricted airflow caused by clogged air filters can also lead to ice formation on the evaporator coil. When the ice melts, it creates more water than the drip pan can handle, resulting in potential overflowing. Low refrigerant levels can also cause the evaporator coil to freeze and produce excessive condensation.
It is important to routinely inspect and clean the drip pan to prevent water accumulation and potential water damage. This can be done by locating the drip pan, removing any excess moisture, and cleaning the interior with mild soap and warm water. Additionally, the condensate drain line should be cleaned regularly using a stiff brush to remove any dirt and debris.
Extinguishing Oil Fires: Quick and Safe Methods
You may want to see also
Explore related products
Regularly check the drain pan for clogs, cracks, and rust
To keep your AC in good condition, it's important to regularly check the drain pan for clogs, cracks, and rust. This is a crucial step in AC maintenance, as any issues with the drain pan can lead to water damage or even cause your AC to shut down unexpectedly. Here are some detailed instructions to guide you through the process:
Preparing for Inspection:
Before inspecting the drain pan, it is recommended to turn on your AC for about half an hour. This will help generate sufficient condensate to reveal any potential issues with the drainage system. During this time, observe the area around the indoor unit of your air conditioner for any signs of moisture or leaks. If you notice any moisture, it could indicate a problem with the drain pan or drain line.
Inspecting for Clogs:
Once your AC has been running for a while, turn it off and proceed to inspect the drain pan. Start by emptying the drain pan using a wet/dry vacuum. Remove any debris from around the drain to ensure that it is clear. Use a flashlight to closely examine the drain pan and the drain line leading away from it. Look for any visible debris, accumulations, or blockages that might be causing a clog. If you notice water backing up in the drain pan, it is a good indication of a blockage in the drain line.
Clearing Clogs:
If you suspect a clog, clean out any debris from the drain pan and the opening of the drain line. Use a stiff brush to gently remove any obstructions. After clearing the debris, pour a continuous stream of water into the drain pan and observe the drainage. If the water drains slowly or backs up, it confirms the presence of a clog or blockage in the drain line. To address this issue, you can use a small wire brush to clear the blockage at the end of the drainpipe, which is typically located outside your home.
Inspecting for Cracks and Leaks:
In addition to clogs, carefully inspect the drain pan for any signs of cracks or leaks. Even small cracks can lead to water leakage. If you discover a minor crack, you can use epoxy glue to seal it and prevent further leakage. However, if the leak is large or the drain pan is significantly damaged, it is advisable to call a professional to replace the drain pan.
Checking for Rust:
Rust is another common issue with AC drip pans. If you notice any rust formation, it's important to address it promptly. After emptying the drain pan, inspect it thoroughly for any signs of rust. If the pan is rusty, schedule a preventative maintenance visit with a licensed HVAC technician. They will be able to clean and treat the rust to prevent further corrosion and ensure the proper functioning of your AC system.
Remember, while regular inspections and basic maintenance can help identify and resolve minor issues, it is always recommended to consult a professional for more complex problems or if you feel uncomfortable performing the checks and repairs yourself.
When to Retire Your Cast Iron Pan
You may want to see also
Explore related products
Drain pans can be cleaned with a stiff brush and vinegar
Air conditioners usually have two drain pans: one permanently affixed to the air handler, located higher up, and an auxiliary one that can be easily removed. It is recommended to clean the condensate drain line regularly to prevent dirt and debris from building up inside it.
To clean your AC drain pan with vinegar, first, turn off your AC and locate your AC's drain line. This is usually a PVC pipe near your outdoor air conditioning unit. You may also find it inside near the inside system, in the air handler closet. Remove any blockage or debris from the end of the drain line using a stiff brush.
Next, remove the plug or cap from the access point (the T-shaped vent) and slowly pour one cup of distilled vinegar into the drain line. Allow the vinegar to sit for about 30 minutes, and then flush the pipe with water. If the drain line doesn't flush completely, repeat the process until all blockages are removed.
By cleaning your AC drain pan and line with vinegar, you can effectively remove unwanted bacteria, fungi, mold, and algae, allowing your AC to run more efficiently.
Smart Slide-Out Pan Rack: DIY Guide
You may want to see also
Explore related products
Contact a professional for maintenance and replacement
If you notice any issues with your AC coil or drain pan, it is important to contact a professional for maintenance and replacement. While you may be tempted to attempt repairs yourself, it is always best to leave it to the experts to ensure the job is done correctly and safely. Here are some reasons why you should contact a professional:
Expert Knowledge
Professional HVAC technicians have extensive knowledge and experience in maintaining and repairing AC coils and drain pans. They understand the complex workings of these systems and can quickly identify any issues. Their expertise can save you time and money by providing efficient and effective solutions.
Safety First
Working on an AC system can be dangerous if you are not trained or qualified. Professionals have the necessary skills and equipment to handle any potential hazards, such as electrical components or refrigerant leaks, ensuring the safety of your home and family.
Proper Tools and Equipment
Specialized tools and equipment are often required for AC coil and drain pan maintenance. Professionals will have access to these tools, ensuring that the job is done correctly and minimizing the risk of further damage to your system.
Warranty and Guarantee
When you hire a professional, their work is typically backed by a warranty or guarantee. This means that if the issue occurs again or is not properly resolved, they will return to fix it at no additional cost. This provides peace of mind and ensures the longevity of your AC system.
Regular Maintenance
Professional HVAC companies can provide regular maintenance services to keep your AC coil and drain pan in optimal condition. They can set up a maintenance schedule tailored to your system's needs, helping to prevent future problems and extend the lifespan of your equipment.
Replacement Parts
In some cases, your AC coil or drain pan may need to be replaced. Professionals will have access to high-quality replacement parts that meet the specifications of your system, ensuring a proper fit and restoring your AC to its full functionality.
When it comes to maintaining and replacing your AC coil and drain pan, don't hesitate to contact a professional. Their expertise, tools, and warranties will ensure the job is done right, saving you time, money, and hassle in the long run. Prioritize the care of your AC system by putting it in the hands of trusted professionals.
Slip Stone Pans: Dishwasher-Safe?
You may want to see also
Frequently asked questions
If you notice a leak, inspect the drain pan with a flashlight to check for any cracks or holes. If the leak is minor, epoxy glue can be used to seal the crack. However, if the leak is large, it is recommended to replace the drain pan.
An AC coil is typically located within the indoor unit of an HVAC system, often in the basement or attic. The coils are usually made of metal and can be accessed by removing the panel of the AC unit.
If you notice water dripping from the AC unit or pooling around it, the AC coil may be damaged. Other signs of a damaged AC coil include an overflow in the drain pan, a frozen coil, or a decrease in the cooling performance of the AC unit.
