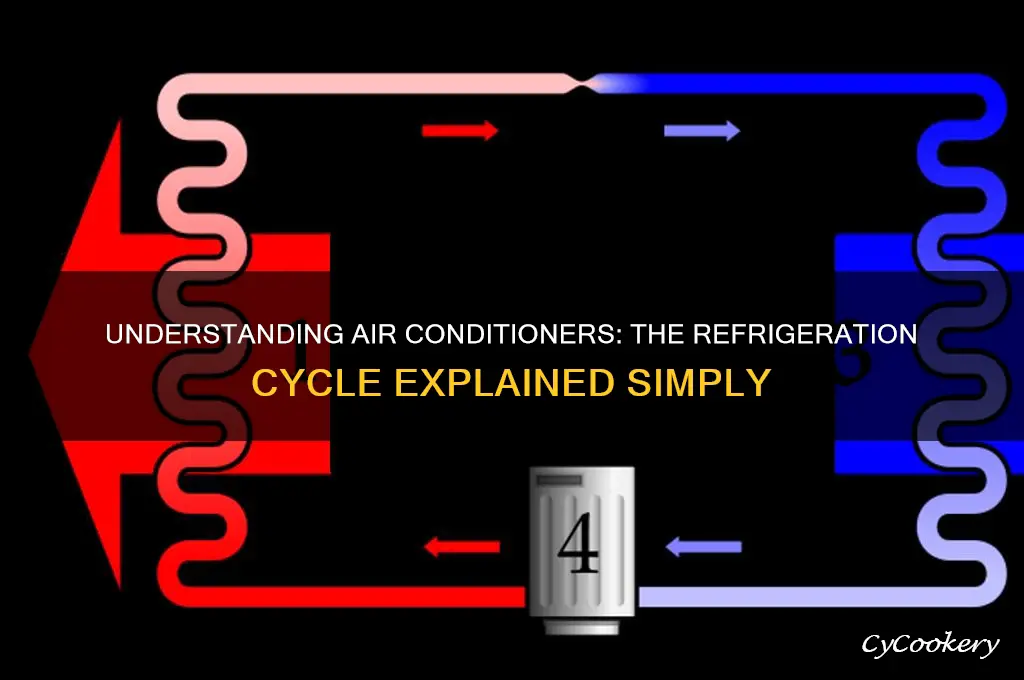

An air conditioner operates by utilizing the refrigeration cycle, a process that efficiently transfers heat from one location to another, typically from inside a building to the outdoors. At its core, the cycle involves four main components: the compressor, condenser, expansion valve, and evaporator. The process begins when the compressor pressurizes and heats refrigerant gas, which then moves to the condenser where it releases heat to the outside environment, condensing into a high-pressure liquid. This liquid passes through the expansion valve, where it rapidly depressurizes and cools, becoming a low-pressure, low-temperature mixture of liquid and vapor. Finally, the refrigerant flows into the evaporator, where it absorbs heat from the indoor air, cooling the space, and the cycle repeats. This continuous process ensures consistent temperature control and humidity regulation, making air conditioning systems essential for comfort in various environments.
Explore related products
What You'll Learn
- Compression Process: Intake of refrigerant gas, compressed to high pressure and temperature by the compressor
- Condensation Stage: Hot refrigerant releases heat, condenses into liquid in the condenser coils
- Expansion Valve: Liquid refrigerant depressurizes, cools, and expands into low-pressure gas-liquid mix
- Evaporation Cycle: Cool refrigerant absorbs indoor heat, evaporates back into gas in evaporator coils
- Refrigerant Circulation: Continuous cycle repeats, facilitated by the compressor and refrigerant flow
Compression Process: Intake of refrigerant gas, compressed to high pressure and temperature by the compressor
The compression process is the heart of an air conditioner's refrigeration cycle, where the transformation of refrigerant from a low-pressure gas to a high-pressure, high-temperature state occurs. This stage is critical because it sets the foundation for the subsequent phases of condensation, expansion, and evaporation, which together facilitate heat transfer and cooling. The compressor, often referred to as the "workhorse" of the system, plays a pivotal role in this process by mechanically increasing the pressure and temperature of the refrigerant gas.
Consider the intake phase: the compressor draws in low-pressure, low-temperature refrigerant vapor from the evaporator. This gas is essentially a mixture of refrigerant and the heat absorbed from the indoor environment. The compressor’s design—typically a reciprocating, rotary, or scroll type—ensures efficient suction of this gas. For instance, a residential air conditioner might operate with a refrigerant like R-410A, which enters the compressor at a pressure of around 68–70 psi (pounds per square inch) and a temperature of approximately 40°F (4°C). These values are crucial because they dictate the compressor’s workload and energy efficiency.
Once inside the compressor, the refrigerant undergoes compression, a process governed by the laws of thermodynamics. The compressor’s mechanical action reduces the volume of the gas while increasing its pressure and temperature. For example, the discharge pressure of R-410A might reach 250–300 psi, with temperatures soaring to 150°F (65°C) or higher. This dramatic change is essential for the refrigerant to release heat during the condensation phase. However, this step is not without challenges: excessive compression can lead to inefficiencies or even damage the compressor if not managed properly. Manufacturers often incorporate safety features like pressure switches and thermal cutoffs to prevent such issues.
A comparative analysis highlights the importance of this process. In older systems using refrigerants like R-22, the compression ratios were lower due to the refrigerant’s properties, leading to slightly different operating pressures and temperatures. Modern systems, however, are designed for higher efficiency and environmental compliance, necessitating precise control over the compression process. For instance, variable-speed compressors in advanced units adjust their output based on cooling demand, optimizing energy use while maintaining consistent temperatures.
Practical tips for homeowners and technicians include regular maintenance to ensure the compressor operates within optimal parameters. Dirty coils, low refrigerant levels, or electrical issues can impair the compressor’s performance, leading to higher energy bills or system failure. Additionally, understanding the specific refrigerant used in your system—whether it’s R-410A, R-32, or another type—is crucial for troubleshooting and ensuring compatibility with replacement parts. By focusing on the compression process, one gains insight into the core mechanics of air conditioning, enabling better care and longer system life.
Easy Guide to Replacing Your Whirlpool Refrigerator Thermostat
You may want to see also
Explore related products
Condensation Stage: Hot refrigerant releases heat, condenses into liquid in the condenser coils
The condensation stage is a critical phase in the refrigeration cycle of an air conditioner, where the hot, high-pressure refrigerant gas transitions into a liquid state. This process occurs within the condenser coils, typically located outside the building. As the refrigerant enters these coils, it comes into contact with the cooler outdoor air, facilitated by a fan that blows air across the coils. The temperature difference between the hot refrigerant and the ambient air allows for efficient heat exchange, causing the refrigerant to release the heat it absorbed from inside the home. This heat dissipation is essential for the refrigerant to condense from a gas to a liquid, preparing it for the next stage of the cycle.
From an analytical perspective, the efficiency of the condensation stage hinges on several factors, including the cleanliness of the condenser coils and the ambient temperature. Dirty or clogged coils can significantly impede heat transfer, reducing the system’s overall efficiency. For optimal performance, it’s recommended to clean the coils at least once a year, particularly in dusty or pollen-rich environments. Additionally, the ambient temperature plays a crucial role; higher outdoor temperatures make it harder for the refrigerant to release heat, which can strain the system. In such conditions, ensuring proper airflow around the outdoor unit and considering shade solutions can help maintain efficiency.
Instructively, homeowners can take proactive steps to enhance the condensation stage. Regularly inspect the area around the outdoor unit to ensure it’s free from debris, plants, or other obstructions that could block airflow. During peak summer months, when the system works hardest, schedule professional maintenance to check refrigerant levels and coil condition. For DIY enthusiasts, gently cleaning the coils with a soft brush and coil cleaner can improve heat exchange. However, avoid using high-pressure water, as it can damage the fins. These simple measures can extend the lifespan of the air conditioner and reduce energy consumption.
Comparatively, the condensation stage in modern air conditioners is far more efficient than in older models, thanks to advancements in coil design and materials. Newer systems often feature microchannel or aluminum coils, which offer better heat transfer capabilities and are more resistant to corrosion. Additionally, variable-speed fans in contemporary units adjust airflow based on demand, optimizing energy use. While older systems may struggle in extreme temperatures, newer models maintain performance even in challenging conditions. Upgrading to a modern air conditioner not only improves efficiency but also reduces long-term maintenance costs.
Descriptively, the condensation stage is a symphony of thermodynamics and engineering. As the hot refrigerant flows through the condenser coils, it transforms from a high-energy gas to a calm, cool liquid, releasing heat in the process. The outdoor fan hums softly, pulling in fresh air to facilitate this exchange, while the coils themselves glisten with condensation on particularly humid days. This phase is both a release and a preparation—a release of the heat extracted from indoors and a preparation for the refrigerant to cycle back inside and repeat the process. It’s a testament to the precision of HVAC design, where every component works in harmony to create comfort.
Why Chlorambucil Requires Refrigeration: Understanding Storage Needs
You may want to see also
Explore related products
Expansion Valve: Liquid refrigerant depressurizes, cools, and expands into low-pressure gas-liquid mix
The expansion valve is a critical component in the refrigeration cycle of an air conditioner, acting as the gateway between the high-pressure and low-pressure sides of the system. Its primary function is to regulate the flow of liquid refrigerant, ensuring it undergoes a precise transformation from a high-pressure liquid to a low-pressure gas-liquid mixture. This process is essential for heat absorption in the evaporator, which ultimately cools your indoor space.
Analytical Perspective:
Imagine a bottleneck in a water pipe. The expansion valve creates a similar restriction, forcing the high-pressure liquid refrigerant to experience a sudden drop in pressure as it passes through. This depressurization causes the refrigerant to rapidly cool and partially vaporize, resulting in a mixture of gas and liquid. The degree of cooling and vaporization is carefully controlled by the valve's opening, which is adjusted based on the system's needs. This precise control is crucial for maintaining optimal cooling efficiency.
Instructive Approach:
Think of the expansion valve as a thermostat for your refrigerant. It monitors the temperature and pressure of the refrigerant leaving the condenser (the hot side) and entering the evaporator (the cold side). When the system needs more cooling, the valve opens wider, allowing more refrigerant to flow and undergo this depressurization process. Conversely, when less cooling is required, the valve restricts the flow, reducing the amount of refrigerant entering the evaporator.
Comparative Analysis:
Unlike a simple capillary tube, which provides a fixed restriction, the expansion valve offers dynamic control. This adjustability allows the air conditioner to adapt to varying cooling demands, ensuring consistent performance regardless of outdoor temperatures or indoor settings. This adaptability is a key factor in the efficiency and effectiveness of modern air conditioning systems.
Practical Tip:
While the expansion valve is a durable component, it can become clogged with debris or refrigerant oil over time, leading to reduced cooling performance. Regular maintenance, including cleaning or replacing the valve if necessary, is essential to ensure your air conditioner operates at its best. If you notice a decrease in cooling capacity or unusual noises coming from the unit, a malfunctioning expansion valve could be the culprit.
Breast Milk Refrigeration: How Often Can You Safely Store It?
You may want to see also
Explore related products
Evaporation Cycle: Cool refrigerant absorbs indoor heat, evaporates back into gas in evaporator coils
The evaporation cycle is the heart of an air conditioner's cooling process, where the magic of heat absorption and transformation occurs. Imagine a cool refrigerant, typically a chemical compound like R-410A, entering the evaporator coils at a low temperature and pressure. As warm indoor air is blown across these coils, the refrigerant absorbs the heat from the air, causing it to evaporate from a liquid into a gas. This phase change is crucial, as it allows the refrigerant to carry away a significant amount of thermal energy, effectively cooling the indoor environment. For instance, a typical residential air conditioner can remove about 12,000 BTUs (British Thermal Units) of heat per hour during this process, which is equivalent to the heat produced by burning 12,000 wooden matches in an hour.
To understand the efficiency of this cycle, consider the role of the evaporator coils. These coils are designed to maximize surface area, often featuring a series of thin, corrugated fins that increase contact with the indoor air. The refrigerant flows through these coils at a temperature of around 40°F (4°C), which is significantly cooler than the indoor air, typically ranging from 75°F to 80°F (24°C to 27°C). This temperature differential ensures rapid heat transfer. For optimal performance, it’s essential to keep the evaporator coils clean, as dirt and debris can insulate the coils, reducing their ability to absorb heat. A simple maintenance tip is to vacuum or gently brush the coils annually and check for any signs of corrosion or damage.
From a practical standpoint, the evaporation cycle is not just about cooling but also about dehumidification. As the warm, moist indoor air passes over the cold evaporator coils, the moisture in the air condenses on the coils, similar to how water droplets form on a cold drink on a hot day. This condensed water is then drained away, reducing indoor humidity levels. For example, an air conditioner can remove about 2 to 3 pints of water per hour from the air, which is particularly beneficial in humid climates. However, if the air is too dry, consider using a humidifier in conjunction with your air conditioner to maintain a comfortable indoor environment.
Comparing the evaporation cycle to other cooling methods highlights its efficiency and versatility. Unlike evaporative coolers, which rely on water evaporation and work best in dry climates, air conditioners with refrigeration cycles can operate effectively in any climate. Additionally, the closed-loop nature of the refrigeration cycle means the refrigerant can be reused continuously, making it a sustainable option when paired with energy-efficient systems. Modern air conditioners with SEER (Seasonal Energy Efficiency Ratio) ratings of 16 or higher can provide significant energy savings compared to older units, reducing both environmental impact and utility bills.
In conclusion, the evaporation cycle is a finely tuned process that leverages the principles of thermodynamics to cool and dehumidify indoor spaces. By understanding how cool refrigerant absorbs heat and evaporates in the evaporator coils, homeowners can better appreciate the importance of regular maintenance and the benefits of investing in high-efficiency systems. Whether you’re in a sweltering summer or a humid monsoon season, the evaporation cycle ensures your air conditioner works reliably to keep your home comfortable.
Refrigerating Leftover Smoothies: Tips for Freshness and Storage
You may want to see also
Explore related products
Refrigerant Circulation: Continuous cycle repeats, facilitated by the compressor and refrigerant flow
The heart of an air conditioner's operation lies in the continuous circulation of refrigerant, a process driven by the compressor. This component acts as the system's pump, drawing in low-pressure, low-temperature refrigerant vapor from the evaporator and compressing it into a high-pressure, high-temperature gas. This transformation is crucial, as it enables the refrigerant to release heat in the condenser and absorb it in the evaporator, creating the cooling effect. The compressor's role is akin to a heartbeat, ensuring the refrigerant flows through the system in a perpetual loop, facilitating heat exchange and maintaining the desired indoor temperature.
Consider the refrigerant's journey as a cyclical process with distinct phases. After compression, the hot, high-pressure gas moves to the condenser, typically located outside the building. Here, the refrigerant condenses into a liquid as it releases heat to the outdoor environment. This phase is essential for expelling the absorbed heat from indoors. The condensed liquid then passes through an expansion valve, which reduces its pressure and temperature, preparing it for the evaporator. In this final stage, the cold, low-pressure refrigerant absorbs heat from the indoor air, evaporating back into a gas and completing the cycle. This continuous flow, regulated by the compressor, ensures efficient cooling without interruption.
From a practical standpoint, understanding this cycle highlights the importance of maintaining the air conditioner’s components. For instance, a clogged air filter can restrict airflow over the evaporator, reducing its ability to absorb heat and decreasing system efficiency. Similarly, refrigerant leaks disrupt the cycle, leading to inadequate cooling and potential compressor damage. Regular maintenance, such as cleaning filters and inspecting for leaks, ensures the refrigerant circulates optimally. For homeowners, scheduling annual inspections can prevent costly repairs and extend the system’s lifespan. Technicians often recommend checking refrigerant levels and pressure during these visits to ensure the cycle operates seamlessly.
Comparing this process to other cooling methods underscores its efficiency. Unlike evaporative coolers, which rely on water and are effective only in dry climates, air conditioners use refrigerant circulation to cool air regardless of humidity. This makes them versatile for various environments. Additionally, modern systems incorporate eco-friendly refrigerants with lower global warming potential, aligning with sustainability goals. For example, R-410A, a common refrigerant, has replaced older, ozone-depleting substances, demonstrating how advancements in refrigerant technology enhance both performance and environmental impact.
In essence, refrigerant circulation is the lifeblood of an air conditioner, enabled by the compressor’s relentless action. This cycle’s efficiency depends on precise component interaction and regular upkeep. By grasping its mechanics, users can better appreciate their system’s capabilities and take proactive steps to ensure its longevity. Whether through routine maintenance or adopting newer refrigerants, optimizing this cycle is key to achieving consistent, energy-efficient cooling.
Eco-Friendly Guide: Recycling Your Clear Choice Refrigerator Filter Easily
You may want to see also
Frequently asked questions
The refrigeration cycle is the process by which an air conditioner removes heat from indoor air and expels it outdoors. It consists of four main components: the compressor, condenser, expansion valve, and evaporator. The refrigerant absorbs heat from indoor air at the evaporator, turns into a gas, is compressed into a high-pressure hot gas by the compressor, releases heat at the condenser, and then returns to a low-pressure liquid state through the expansion valve to repeat the cycle.
The compressor is the heart of the refrigeration cycle. It takes the low-pressure, low-temperature refrigerant gas from the evaporator and compresses it into a high-pressure, high-temperature gas. This increases the refrigerant’s energy, allowing it to release heat efficiently at the condenser. Without the compressor, the refrigerant wouldn’t circulate, and the cooling process wouldn’t occur.
The evaporator coil gets cold because the low-pressure refrigerant absorbs heat from the indoor air, causing the coil to cool down. Conversely, the condenser coil gets hot because the high-pressure refrigerant releases the absorbed heat to the outdoor air. This heat exchange process is fundamental to the refrigeration cycle, ensuring the air conditioner can effectively cool indoor spaces.
