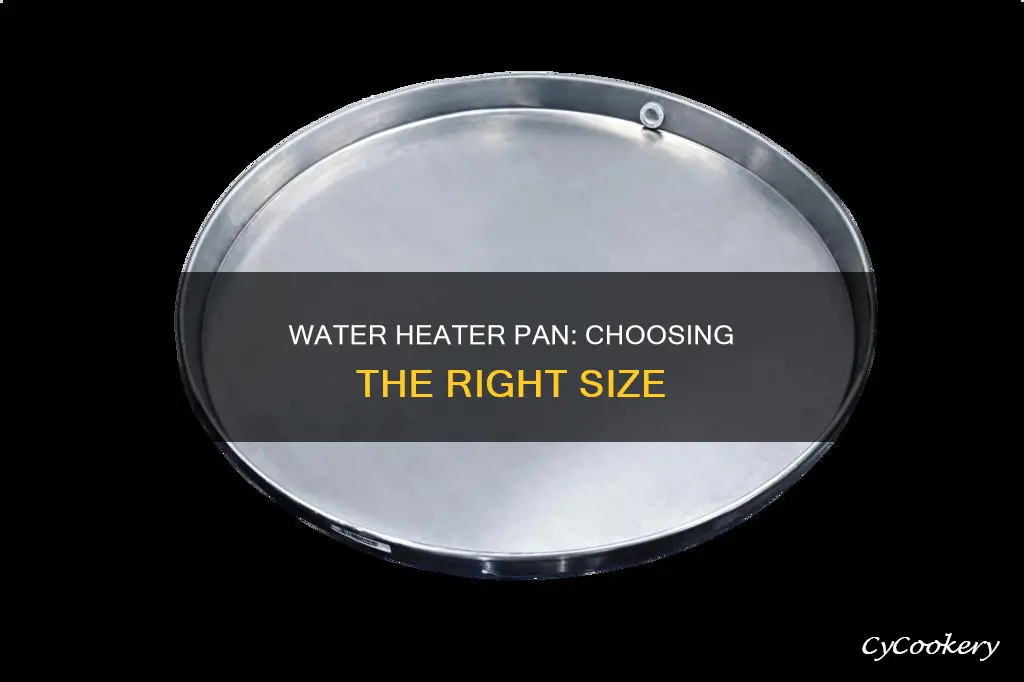

Water heater pans are essential for preventing water damage in homes, as they catch any leaks or overflows from water heaters. When selecting a water heater pan, it is important to consider the size of the pan relative to the water heater. The pan should be slightly larger than the water heater's diameter to allow for a drain fitting, with a depth of at least 1.5 inches to contain a sufficient amount of water. The size of the water heater tank in gallons does not always correlate to its diameter, so it is crucial to measure the diameter accurately when choosing the right-sized pan.
| Characteristics | Values |
|---|---|
| Purpose | Catch leaks or overflows from the water heater, preventing water damage to your home |
| Placement | Underneath the water heater |
| Materials | Aluminum or plastic |
| Outlet | Yes, to attach a drain line |
| Drain line attachment | Connects to an external drainage system or sump pump |
| Diameter | Slightly larger than the water heater's diameter |
| Depth | Minimum of 1 1/2 inches (38 mm) |
| Drain fitting | Accessible, with a pre-cut hole of 1-1/2 inch for the drain adapter |
| Drain pipe | Not less than 3/4 inch (19 mm) in diameter |
| Capacity | Able to contain approximately 3-4 gallons of water |
| Maintenance | Regular maintenance and inspection to identify corrosion |
Explore related products
What You'll Learn
The water heater pan should be slightly larger than the heater's diameter
Water heaters are a common feature in homes, providing hot water for daily tasks and hygiene. They are often circular or cylindrical in shape, resembling a round tank. Due to their function and placement, water heaters pose a significant risk of water damage if leaks occur. This is where a water heater pan comes in—it is placed under the water heater to catch any leaks or overflows, thereby protecting your home from water damage.
When selecting a water heater pan, it is crucial to choose one that is slightly larger than the heater's diameter. This extra space allows for the installation of a drain fitting and provides clearance for accessing drain fittings and adapters. A larger pan also accommodates any attachments or cords connected to the water heater, ensuring they are not interfered with by the pan.
The depth of the pan is another important consideration. It should be at least 1.5 inches (38 mm) deep, as stipulated by residential codes. This depth ensures that the pan can effectively contain and collect dripping or condensate from the water heater. A deeper pan may be more suitable to contain approximately three to four gallons of water in the event of a leak.
To determine the appropriate size of the water heater pan, you can refer to the water heater's manual, which should specify the diameter. If the manual is unavailable, you can search for the manufacturer and model number online to find the necessary information. Alternatively, you can measure the diameter of the tank directly with a tape measure.
By selecting a water heater pan that is slightly larger than the heater's diameter and ensuring it has sufficient depth, you can effectively prevent water damage and maintain the proper functioning of your water heater. This simple yet crucial accessory acts as insurance against the costly and unhealthy consequences of water damage in your home.
Calphalon Recoating: How to Restore Your Pans
You may want to see also
Explore related products
The pan should be deep enough to hold 3-4 gallons of water
Water heaters come in various sizes and configurations, so it is important to select the correct-sized pan for your unit. The function of a drip pan is to prevent damage from slow leaks, whereas a drain pan has a greater liquid capacity and will discharge the liquid.
The size of the water heater pan depends on the water heater's diameter, which is why it is important to review the measured diameter when choosing a water heater pan. The manufacturers of water heaters describe the size of their tanks in volume (based on gallons). For example, an 80-gallon tank may be considered large, and anything under 30 gallons is considered small. However, the size of the tank in gallons does not always correlate to its diameter.
Therefore, it is important to measure the diameter of your water heater to select the appropriately-sized pan. If you do not know the diameter of your water heater, you can check the manual or search for the water heater manufacturer and model online to find the information.
The Secret to Using a Broiler Pan: Preheating
You may want to see also
Explore related products
The pan should be large enough to accommodate attachments
When selecting a water heater pan, it is important to ensure that it is large enough to accommodate any attachments on the hot water heater. While the primary purpose of a water heater pan is to catch leaks and prevent water damage, it should also be able to accommodate the various components and connections of the water heater.
Water heaters come in various sizes and configurations, with circular or cylindrical shapes being the most common. The size of the water heater tank is typically described in volume, such as gallons, but this does not always correlate directly to the diameter of the tank. Therefore, when selecting a water heater pan, it is crucial to consider the diameter of the water heater and choose a pan that is slightly larger to allow for proper drainage and the attachment of drain fittings.
The presence of attachments, such as cords or pipes, can impact the required size of the water heater pan. It is essential to ensure that the pan is large enough so that the attachments do not interfere with the water heater itself or the drainage system. This includes allowing for sufficient clearance around the sides of the pan to access drain fittings and adapters.
In addition to the size of the water heater and its attachments, it is also important to consider the depth of the water heater pan. The pan should be deep enough to contain a sufficient volume of water, typically around three to four gallons. This ensures that any leaks or overflows are adequately captured, preventing potential water damage to the surrounding area.
By considering the size and shape of the water heater, the presence of any attachments, and the required depth, you can select a water heater pan that is appropriately sized to accommodate all the necessary components while effectively serving its function of leak prevention and water damage protection.
Sichuan Hot Pot: A Keto Conundrum
You may want to see also
Explore related products
The TPR valve should not be covered by the pan
Water heaters are a significant source of water damage in homes. A drip pan is used to prevent damage from slow leaks. It is important to ensure that the water heater has the correct-sized pan.
The Temperature/Pressure Relief (TPR) valve is a safety device installed on water heating appliances. It is designed to automatically release water if the pressure or temperature in the water tank exceeds safe levels. If the temperature sensors and safety devices such as TPRs malfunction, the water in the system may exceed the boiling point. This can cause the tank to rupture and the water to expand into steam, potentially causing personal injury and property damage.
The discharge piping serving a TPR valve should meet the following requirements:
- It should not be directly connected to the drainage system.
- It should discharge through an air gap located in the same room as the water heater.
- It should not be smaller than the diameter of the outlet of the valve served and should discharge full size to the air gap.
- It should serve a single relief device and should not connect to piping serving any other relief device or equipment.
- It should discharge to the floor, to the pan serving the water heater or storage tank, to a waste receptor, or to the outdoors.
- It should discharge in a manner that does not cause personal injury or structural damage.
- It should discharge to a termination point that is readily observable by the building occupants.
Pots and Pans: Water Marks Explained
You may want to see also
Explore related products
Water in the pan may indicate a leaking water heater
Water heater pans are designed to collect water that may escape due to leaks or overflow. Its primary function is to prevent water damage to your floors and substructures while redirecting leaking water to a proper drain. A water heater pan is placed under a water heater to catch any leaks or overflows, preventing water damage to your home.
If the connectors have corrosion or cracks, tightening them will not fix the leak. For this type of damage, a plumber needs to inspect the system and make any necessary repairs to the inlet and outlet connections. If the connectors are corroded to the point that they’re stuck on the pipes, the plumbers might need to cut the connectors off and rework the pipes. If the leak isn’t coming from your drain valve, look at the tank itself next. A leaky internal tank causes water to slowly seep out and pool at the bottom of the tank and in the water heater pan.
The worst-case scenario is a leak due to deep internal corrosion. This may only be a small leak at first, but it will gradually get worse and occasionally cause a blowout that leaves your utility room a sopping mess. Water minerals can corrode the tank's interior over time, leading to leaks. Regular maintenance and inspection can help identify corrosion early.
Wolfgang Puck Pans: Oven-Safe?
You may want to see also
Frequently asked questions
A water heater pan should be slightly larger than the water heater's diameter to allow room for a drain fitting to be installed. It should also be deep enough to contain approximately 3-4 gallons of water.
A water heater pan is placed under a water heater to catch any leaks or overflows, preventing water damage to your home.
If you don't know the diameter of your water heater, you can check the manual that came with it or search online using the manufacturer and model number.
In addition to size, it is important to consider the pan's depth and the type of material it is made from. The pan should be made from a material that is compatible with the drain fittings and adapters you plan to use.
Water heater pans can be purchased from various online and physical stores, including specialty plumbing or hardware stores. Some companies also offer custom water heater pans to fit your specific requirements.
