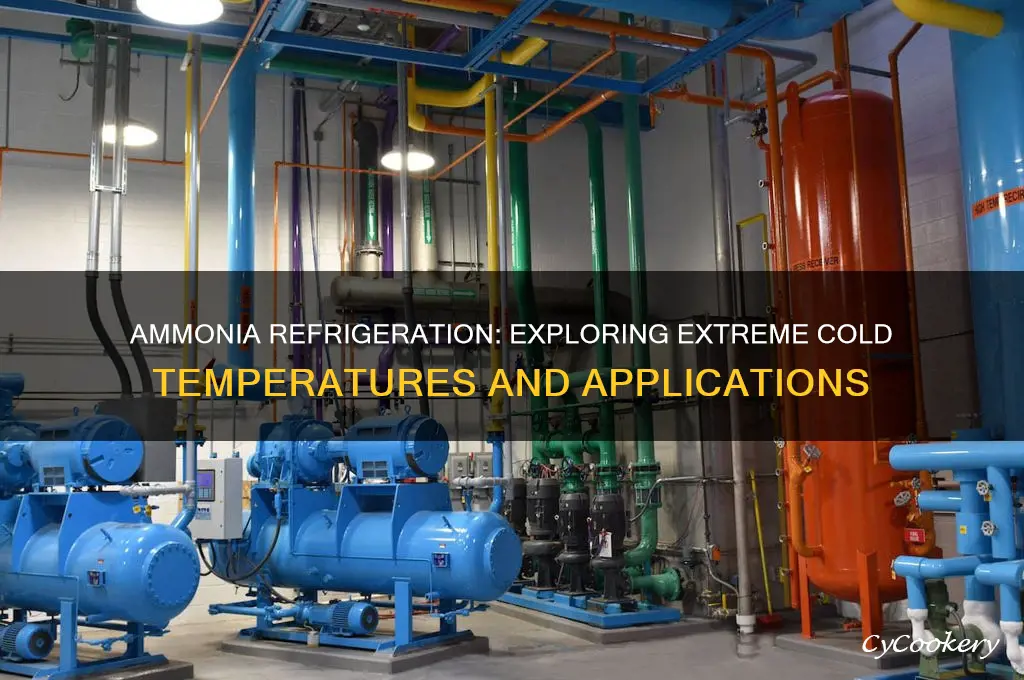

Ammonia refrigeration systems are renowned for their efficiency and ability to achieve extremely low temperatures, making them a preferred choice in industrial applications such as food processing, cold storage, and chemical manufacturing. These systems can reliably operate at temperatures as low as -40°C (-40°F) or even lower, depending on the design and pressure of the system. The effectiveness of ammonia refrigeration in reaching such frigid levels is attributed to its excellent thermodynamic properties, including a high latent heat of vaporization and favorable pressure-temperature characteristics. However, achieving and maintaining these ultra-low temperatures requires precise engineering, robust safety measures, and careful management of ammonia’s unique properties, ensuring both operational efficiency and compliance with safety standards.
| Characteristics | Values |
|---|---|
| Minimum Temperature Achievable | -70°C (-94°F) to -80°C (-112°F) |
| Typical Operating Range | -50°C (-58°F) to +10°C (+50°F) |
| Boiling Point of Ammonia at 1 atm | -33.34°C (-28.01°F) |
| Efficiency at Low Temperatures | High (due to favorable thermodynamic properties) |
| Pressure Requirements | Moderate to high (varies with temperature) |
| Environmental Impact | Low GWP (Global Warming Potential) |
| Safety Considerations | Toxic and flammable at certain concentrations |
| Common Applications | Industrial refrigeration, cold storage, food processing |
| Energy Efficiency | High compared to other refrigerants at low temps |
| Cost-Effectiveness | Economical for large-scale systems |
Explore related products
What You'll Learn
Ammonia Refrigeration Temperature Limits
Ammonia refrigeration systems are renowned for their efficiency and environmental friendliness, but their temperature limits are a critical factor in their application. These systems can achieve temperatures as low as -70°C (-94°F), making them suitable for a wide range of industrial and commercial cooling needs. This capability is particularly valuable in industries such as food processing, pharmaceuticals, and chemical manufacturing, where ultra-low temperatures are essential for preserving product quality and integrity.
To understand the temperature limits of ammonia refrigeration, it’s essential to consider the thermodynamic properties of ammonia (NH₃). Ammonia has a low boiling point of -33.34°C (-28.01°F) at atmospheric pressure, which allows it to efficiently absorb and release heat. However, achieving temperatures below -50°C (-58°F) requires careful system design, including the use of multi-stage compression and specialized heat exchangers. For example, a typical single-stage ammonia system might struggle to reach temperatures below -40°C (-40°F), but a two-stage system can reliably operate at -55°C (-67°F) or lower.
When designing an ammonia refrigeration system for ultra-low temperatures, several factors must be considered. First, the compressor must be capable of handling the increased pressure ratios required for lower temperatures. Second, the system must be equipped with efficient evaporators and condensers to maximize heat transfer. Third, proper insulation and piping materials are crucial to minimize heat gain and ensure system efficiency. For instance, using insulated stainless steel piping can reduce energy losses and maintain the desired temperature more effectively.
One practical example of ammonia refrigeration at extreme temperatures is its use in cold storage warehouses for frozen foods. In such applications, maintaining temperatures around -60°C (-76°F) is common. To achieve this, engineers often employ a combination of low-temperature evaporators and high-efficiency compressors. Additionally, the system must be designed to handle the thermal stresses associated with such low temperatures, ensuring components like expansion valves and pressure vessels are rated for the specific conditions.
In conclusion, ammonia refrigeration systems can achieve temperatures as low as -70°C (-94°F) with proper design and optimization. This makes them a versatile and sustainable choice for applications requiring ultra-low temperatures. By understanding the thermodynamic properties of ammonia and implementing advanced system designs, engineers can maximize the efficiency and reliability of these systems. Whether for industrial freezing, pharmaceutical storage, or chemical processing, ammonia refrigeration remains a powerful solution for extreme cooling needs.
Recharging AC with R22 Refrigerant: Is It Still Possible?
You may want to see also
Explore related products
![ComplianceSigns.com Hpl Liq Ammonia [High Pressure Liquid] Pipe Label Decal, 17.5x2.5 inch 5-Pack Vinyl for Pipe Markers Hazmat](https://m.media-amazon.com/images/I/51y6cANF7qL._AC_UY218_.jpg)
![ComplianceSigns.com Ltrl Liq Ammonia Low [Low Temperature Recirculated Liquid] Pipe Label Decal, 17.5x2.5 inch 5-Pack Vinyl for Pipe Markers Hazmat](https://m.media-amazon.com/images/I/516YdifR8EL._AC_UY218_.jpg)
Lowest Achievable Temperatures with Ammonia
Ammonia refrigeration systems are renowned for their efficiency and versatility, but their temperature limits are often a subject of curiosity. The lowest achievable temperatures with ammonia refrigeration typically range from -33°C to -40°C (-27°F to -40°F) under standard operating conditions. This range is sufficient for most industrial applications, such as food processing, cold storage, and chemical manufacturing. However, pushing ammonia systems to their coldest limits requires careful engineering and consideration of thermodynamic principles.
To achieve temperatures below -40°C, ammonia systems often employ cascade refrigeration, where ammonia operates in the higher-temperature stage, and another refrigerant, such as carbon dioxide (CO₂) or a synthetic refrigerant, handles the lower-temperature stage. This approach leverages ammonia’s efficiency at moderate temperatures while overcoming its limitations at extreme cold. For example, a cascade system can achieve temperatures as low as -60°C (-76°F) or even lower, depending on the secondary refrigerant and system design. This method is particularly useful in applications like cryogenic research, pharmaceutical production, and liquefaction of gases.
One critical factor in achieving these low temperatures is the pressure-temperature relationship of ammonia. At extremely low temperatures, ammonia’s vapor pressure drops significantly, requiring higher compression ratios and specialized equipment. Engineers must also address challenges such as oil management, as conventional lubricants can solidify at these temperatures. Synthetic oils or oil-free compressors are often used to mitigate this issue. Additionally, the system must be designed to prevent ammonia from dissolving in lubricants, which can lead to operational inefficiencies.
For those seeking to implement ammonia refrigeration at its coldest limits, practical considerations include selecting appropriate materials for piping and components to withstand low temperatures and high pressures. Stainless steel or other corrosion-resistant materials are typically recommended. Regular maintenance and monitoring of the system are essential to ensure safety and efficiency, as ammonia is toxic and flammable. Operators should also be trained in handling ammonia at extreme conditions, including emergency response protocols.
In conclusion, while ammonia refrigeration is traditionally limited to temperatures above -40°C, innovative designs like cascade systems can extend its capabilities to much colder ranges. By understanding the thermodynamic constraints and engineering solutions, industries can harness ammonia’s efficiency even in applications requiring extreme cold. This makes ammonia a versatile and sustainable choice in the evolving landscape of refrigeration technology.
Top Spots to Buy a Used Refrigerator in Las Vegas
You may want to see also
Explore related products
$198.25 $225.25
Ammonia vs. Other Refrigerants in Cold Applications
Ammonia refrigeration systems can achieve temperatures as low as -70°C (-94°F), making them a formidable choice for ultra-low temperature applications. This capability is particularly crucial in industries like food processing, pharmaceuticals, and chemical manufacturing, where precise temperature control is essential. However, the effectiveness of ammonia in cold applications must be weighed against other refrigerants, each with its own strengths and limitations.
Consider the comparative efficiency of ammonia versus synthetic refrigerants like R-134a or R-404A. While ammonia boasts a high latent heat of vaporization, enabling it to absorb more heat per unit of refrigerant, synthetic alternatives often require larger equipment to achieve similar cooling capacities. For instance, a system using R-404A might need 20% more refrigerant charge to match the cooling output of an ammonia system. This disparity becomes critical in space-constrained environments, such as compact industrial facilities or research labs, where ammonia’s compact footprint offers a distinct advantage.
Safety and environmental impact are pivotal factors in this comparison. Ammonia is natural, non-ozone-depleting, and has a global warming potential (GWP) of 0, making it an environmentally friendly option. In contrast, R-404A has a GWP of 3,922, posing significant environmental risks if leaked. However, ammonia’s toxicity and flammability necessitate stringent safety protocols, including proper ventilation and leak detection systems. For example, OSHA mandates that ammonia systems in enclosed spaces must have ventilation capable of exchanging air at least six times per hour to mitigate risks.
Cost-effectiveness is another critical dimension. Ammonia systems typically have higher upfront installation costs due to the need for specialized materials like stainless steel or fiberglass to prevent corrosion. However, their lower operating costs, driven by ammonia’s energy efficiency and the refrigerant’s low price (approximately $1.50 per kg compared to $15 per kg for R-404A), often result in long-term savings. A case study from a large-scale food processing plant revealed that switching to ammonia refrigeration reduced annual energy costs by 15% and paid off the initial investment within five years.
Finally, the choice between ammonia and other refrigerants hinges on application-specific requirements. For ultra-low temperature applications below -40°C (-40°F), ammonia’s performance is unmatched, particularly in large-scale industrial settings. However, for smaller, less critical applications, synthetic refrigerants may offer simplicity and lower initial costs. Practitioners should conduct a thorough lifecycle analysis, considering factors like temperature demands, safety infrastructure, and environmental regulations, to determine the optimal refrigerant for their needs.
Can You Turn On a Refrigerator Right After Delivery? Expert Tips
You may want to see also
Explore related products
Industrial Uses of Ammonia at Extreme Colds
Ammonia refrigeration systems can achieve temperatures as low as -70°C (-94°F), making them indispensable in industries requiring extreme cold. This capability stems from ammonia’s favorable thermodynamic properties, including its high latent heat of vaporization and excellent heat transfer efficiency. Such extreme temperatures are not merely theoretical; they are routinely employed in sectors where precision cooling is non-negotiable. For instance, the food processing industry relies on ammonia refrigeration to freeze products rapidly, preserving texture and nutritional value. Similarly, the pharmaceutical sector uses these systems to store temperature-sensitive vaccines and biologics, ensuring efficacy and safety.
Consider the process of flash freezing fish at sea, a practice that hinges on ammonia refrigeration. By dropping temperatures to -40°C (-40°F) within minutes, the system prevents ice crystal formation in the fish’s cellular structure, maintaining quality during transport. This application requires meticulous control, as even slight temperature deviations can compromise the product. Engineers must account for factors like compressor efficiency, heat exchanger design, and refrigerant charge to optimize performance. A common rule of thumb is to maintain an ammonia charge of 2-3 pounds per ton of refrigeration capacity, ensuring sufficient heat absorption without overloading the system.
In the petrochemical industry, ammonia refrigeration plays a critical role in liquefying gases like ethylene and natural gas. These processes often demand temperatures below -100°C (-148°F), pushing the limits of conventional refrigeration. Ammonia’s ability to operate at such extremes, coupled with its low cost and environmental friendliness (zero ozone depletion potential), makes it the refrigerant of choice. However, safety is paramount; ammonia is toxic and flammable, necessitating robust leak detection systems and emergency protocols. Facilities typically employ ammonia concentration monitors set to alarm at 25 ppm, well below the 50 ppm exposure limit recommended by OSHA.
A comparative analysis highlights ammonia’s edge over alternative refrigerants like carbon dioxide or hydrofluorocarbons (HFCs). While CO2 systems can achieve similar temperatures, they require higher operating pressures, increasing equipment costs and complexity. HFCs, though easier to handle, have high global warming potentials, making them less sustainable. Ammonia’s efficiency at extreme colds, combined with its low environmental impact, positions it as a superior choice for large-scale industrial applications. However, its use demands expertise; operators must undergo specialized training to manage its unique challenges, such as corrosion prevention and system maintenance.
Finally, the integration of ammonia refrigeration into emerging technologies underscores its versatility. For example, cryogenic energy storage systems, which store excess renewable energy as liquid air, rely on ammonia refrigeration to achieve temperatures as low as -196°C (-320°F). This application not only showcases ammonia’s capability to handle ultra-low temperatures but also its role in advancing sustainable energy solutions. As industries continue to push the boundaries of cold, ammonia’s unique properties ensure its place at the forefront of refrigeration innovation.
Refrigerating or Freezing Cake Batter: Tips for Perfect Results
You may want to see also
Explore related products
Safety Considerations for Ammonia at Low Temperatures
Ammonia refrigeration systems can achieve temperatures as low as -70°C (-94°F), making them ideal for applications like food processing, cold storage, and industrial freezing. However, operating at these extreme temperatures introduces unique safety challenges. Ammonia, a highly efficient refrigerant, becomes more volatile and reactive under such conditions, necessitating rigorous safety measures to prevent leaks, exposure, and potential hazards.
Understanding Ammonia’s Behavior at Low Temperatures
At subzero temperatures, ammonia’s physical properties shift significantly. Its vapor pressure decreases, reducing the risk of sudden releases, but its toxicity remains a critical concern. Even small leaks can pose severe health risks, including respiratory irritation, chemical burns, or asphyxiation. For instance, exposure to 300 ppm of ammonia vapor for 30 minutes can cause severe lung damage. In enclosed spaces, such as cold storage facilities, the risk of accumulation is heightened, making ventilation and leak detection systems indispensable.
Critical Safety Measures for Low-Temperature Operations
To mitigate risks, implement a multi-layered safety approach. First, install ammonia detectors with alarms set to trigger at 25 ppm, the OSHA permissible exposure limit for short-term exposure. Ensure detectors are strategically placed in low-lying areas, as ammonia is heavier than air. Second, equip workers with personal protective equipment (PPE), including self-contained breathing apparatus (SCBA) for emergency response. Regularly inspect and maintain refrigeration equipment to identify cracks, corrosion, or weak points that could lead to leaks under thermal stress.
Emergency Response and Training
In the event of a leak, immediate action is crucial. Train personnel to isolate the affected area, evacuate non-essential staff, and neutralize the spill using water or specialized ammonia neutralizers. Develop a comprehensive emergency response plan (ERP) that includes evacuation routes, assembly points, and communication protocols. Conduct drills biannually to ensure readiness. For facilities operating below -40°C (-40°F), consider investing in remote shutdown systems to minimize human exposure during emergencies.
Regulatory Compliance and Continuous Monitoring
Adherence to regulations such as the EPA’s Risk Management Program (RMP) and OSHA’s Process Safety Management (PSM) standards is non-negotiable. Regularly audit systems to ensure compliance and address gaps. Implement continuous monitoring systems that track temperature, pressure, and ammonia levels in real-time. For example, use digital sensors with cloud-based analytics to predict potential failures before they occur. By combining proactive maintenance with stringent oversight, facilities can safely harness the benefits of ammonia refrigeration at ultra-low temperatures.
How Long Can Eggs Sit Out Safely Before Refrigerating?
You may want to see also
Frequently asked questions
Ammonia refrigeration systems can achieve temperatures as low as -70°F (-57°C), making them suitable for applications like food processing, cold storage, and industrial freezing.
No, ammonia refrigeration is not designed for cryogenic temperatures (below -150°C). For such low temperatures, other refrigerants like liquid nitrogen or specialized systems are used.
The minimum temperature is limited by the properties of ammonia, system design, and the efficiency of heat exchange. Extremely low temperatures can also lead to issues like oil viscosity and system pressure.
While ammonia refrigeration can achieve temperatures suitable for some medical storage (e.g., vaccines at -20°C), it is not ideal for ultra-low temperatures required for certain biologics or research materials.
Ammonia refrigeration offers a wider temperature range than many synthetic refrigerants, making it versatile for medium to low-temperature applications. However, it is not as effective as specialized systems for extremely low temperatures.
