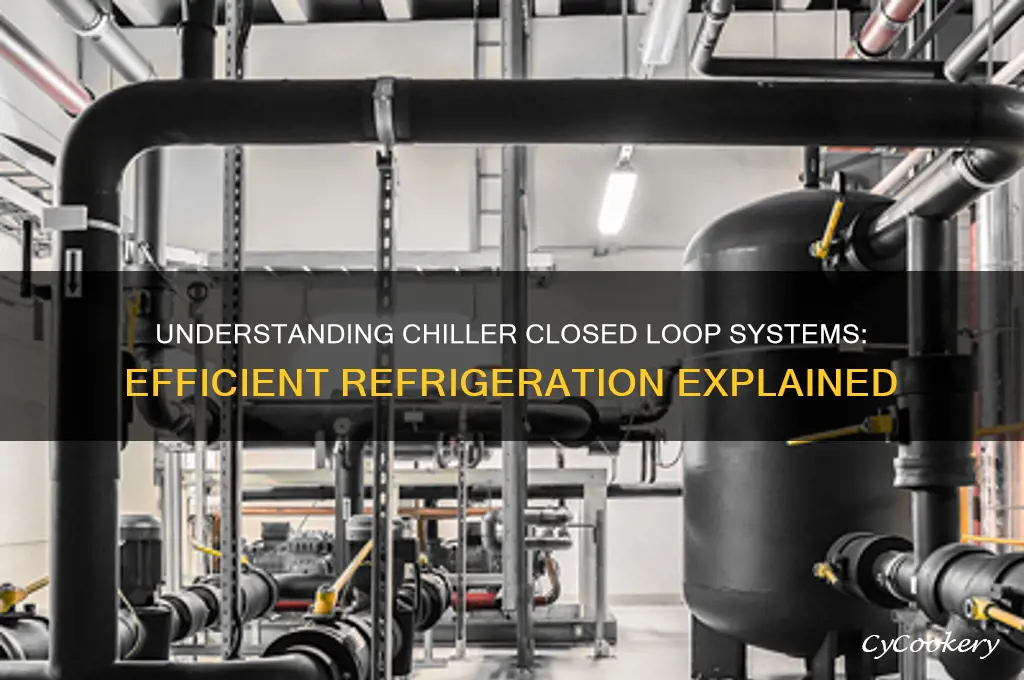

Chiller or closed-loop refrigeration systems operate by circulating a coolant, typically water or a glycol mixture, through a series of components to remove heat from a process or environment. The system begins with a chiller unit, which houses a compressor, condenser, expansion valve, and evaporator. The compressor pressurizes and heats the refrigerant, which then moves to the condenser where it releases heat to the surroundings, cooling and condensing into a liquid. This liquid passes through the expansion valve, where it undergoes a pressure drop, evaporates, and absorbs heat from the coolant in the evaporator. The cooled coolant is then circulated through a closed loop, extracting heat from the target area before returning to the chiller to repeat the cycle. This efficient process ensures consistent temperature control in applications ranging from industrial processes to HVAC systems.
Explore related products
What You'll Learn
- Compressor Functionality: Compresses refrigerant, raising pressure and temperature for heat exchange in the system
- Condenser Role: Releases heat from the refrigerant, converting it back into a liquid state
- Expansion Valve Operation: Reduces refrigerant pressure, causing rapid cooling for evaporation
- Evaporator Process: Absorbs heat from the cooled space, evaporating refrigerant into a gas
- Refrigerant Cycle: Continuous loop of compression, condensation, expansion, and evaporation for cooling
Compressor Functionality: Compresses refrigerant, raising pressure and temperature for heat exchange in the system
The compressor is the heart of any chiller or closed-loop refrigeration system, performing the critical task of compressing refrigerant gas. This process increases both the pressure and temperature of the refrigerant, transforming it from a low-pressure, low-temperature state to a high-pressure, high-temperature state. This transformation is essential for the heat exchange process that underpins the system’s ability to cool. Without the compressor, the refrigerant would remain in a low-energy state, incapable of absorbing and releasing heat effectively. Think of the compressor as a pump for the refrigerant, but instead of moving liquid, it raises the energy level of the gas, setting the stage for efficient cooling.
To understand the compressor’s role, consider the refrigeration cycle. The refrigerant enters the compressor as a low-pressure, low-temperature vapor. Inside the compressor, mechanical energy is applied to the gas, compressing it into a smaller volume. This compression raises the pressure and temperature significantly—often to levels well above ambient temperature. For example, a typical chiller system might compress refrigerant from 60°F and 70 psi to 160°F and 230 psi. This high-energy state allows the refrigerant to release heat in the condenser, a process that wouldn’t be possible without the compressor’s work. The efficiency of this step directly impacts the system’s overall performance, making compressor selection and maintenance critical.
Not all compressors operate the same way. Reciprocating, screw, scroll, and centrifugal compressors are common types, each with unique mechanisms for compressing refrigerant. For instance, reciprocating compressors use pistons to compress gas, while screw compressors rely on rotating helical rotors. The choice of compressor depends on factors like system size, required capacity, and efficiency goals. For small-scale applications, a reciprocating compressor might suffice, but large industrial chillers often use screw or centrifugal compressors for their higher capacity and reliability. Understanding these differences helps in designing systems that balance performance, energy consumption, and cost.
Proper compressor operation requires attention to key parameters. Overheating, caused by excessive compression ratios or inadequate lubrication, can lead to system inefficiencies or even failure. Regular maintenance, such as checking oil levels and ensuring clean filters, is essential to prevent such issues. Additionally, monitoring discharge temperatures—ideally kept below 225°F for most refrigerants—can prevent damage to the compressor and other system components. For systems using variable-speed drives, adjusting compressor speed based on load can optimize efficiency, reducing energy consumption by up to 30% compared to fixed-speed units.
In summary, the compressor’s functionality is a cornerstone of chiller and closed-loop refrigeration systems. By compressing refrigerant, it enables the heat exchange necessary for cooling. Whether in a small HVAC unit or a large industrial chiller, the compressor’s role remains central, demanding careful selection, operation, and maintenance. Understanding its mechanics and requirements ensures not only system efficiency but also longevity, making it a critical focus for anyone working with refrigeration technology.
How Long Do Corn Tortillas Last in the Fridge?
You may want to see also
Explore related products
Condenser Role: Releases heat from the refrigerant, converting it back into a liquid state
The condenser is the unsung hero of any chiller or closed-loop refrigeration system, tasked with a critical phase transition: transforming hot, high-pressure refrigerant vapor back into a liquid. This process is not merely about cooling; it’s about heat rejection. As the refrigerant enters the condenser, it carries thermal energy absorbed from the evaporator. The condenser’s primary function is to expel this heat to the surrounding environment—whether air, water, or another medium—lowering the refrigerant’s temperature until it condenses into a liquid. Without this step, the refrigeration cycle would stall, as the compressor requires liquid refrigerant to operate efficiently.
Consider the condenser as a heat exchanger with a dual personality. On one side, the hot refrigerant flows through coils or tubes; on the other, a coolant (air or water) passes to absorb and dissipate the heat. In air-cooled systems, fans force ambient air over the condenser coils, while water-cooled systems circulate coolant through a cooling tower or heat exchanger. The efficiency of this heat transfer depends on factors like surface area, coolant flow rate, and temperature differential. For instance, a condenser with larger coils or fins increases contact area, enhancing heat dissipation. However, if the ambient temperature is too high or the coolant flow is restricted, the condenser’s performance suffers, leading to higher head pressures and reduced system efficiency.
From a practical standpoint, maintaining the condenser is as vital as its design. Dirt, debris, or even biological growth on the coils can insulate the refrigerant, hindering heat transfer. Regular cleaning—monthly in dusty environments or annually in cleaner settings—is essential. For water-cooled systems, monitoring water quality and treating it to prevent scaling or corrosion ensures longevity. Additionally, ensuring proper airflow or coolant circulation is non-negotiable. Blocked vents, malfunctioning fans, or clogged water filters can throttle the condenser’s ability to reject heat, forcing the system to work harder and consume more energy.
Comparing condenser types reveals trade-offs. Air-cooled condensers are simpler to install and maintain, making them ideal for smaller systems or locations without access to a water supply. However, they are less efficient in hot climates, as the temperature difference between the refrigerant and ambient air narrows. Water-cooled condensers, while more complex and costly, offer superior heat rejection capabilities, especially in industrial applications. They are also quieter and more compact, but their reliance on a water source and additional equipment like cooling towers adds to maintenance demands.
Ultimately, the condenser’s role is both straightforward and indispensable: it’s the system’s exhaust valve for heat. By mastering its operation and maintenance, you ensure the refrigeration cycle remains balanced, energy-efficient, and reliable. Whether you’re designing a new system or troubleshooting an existing one, understanding the condenser’s function and optimizing its performance is key to achieving peak efficiency. After all, in the world of refrigeration, heat rejection isn’t just a step—it’s the linchpin of the entire process.
Mazda 3 Refrigerant Capacity: Understanding the Correct Amount
You may want to see also
Explore related products
Expansion Valve Operation: Reduces refrigerant pressure, causing rapid cooling for evaporation
The expansion valve is a critical component in chiller and closed-loop refrigeration systems, acting as the gatekeeper for refrigerant flow and pressure. Its primary function is to meter the refrigerant, reducing its pressure as it moves from the high-pressure side (condenser) to the low-pressure side (evaporator) of the system. This pressure drop is not arbitrary; it is precisely controlled to facilitate the phase change of the refrigerant from a high-pressure liquid to a low-pressure vapor, which is essential for the cooling process.
Consider the thermodynamic principles at play: as the refrigerant passes through the expansion valve, its pressure drops significantly, often from around 200-300 psi (high side) to 50-100 psi (low side), depending on the system design and ambient conditions. This sudden pressure reduction causes the refrigerant to undergo rapid cooling, a process known as flash evaporation. The temperature drop is dramatic, often falling below 0°C (32°F), which is crucial for effective heat absorption in the evaporator. For instance, in a typical water-cooled chiller, the refrigerant might enter the expansion valve at 100°C (212°F) and exit at -5°C (23°F), ready to absorb heat from the chilled water loop.
From a practical standpoint, the expansion valve’s operation is a delicate balance. If the valve opens too much, the refrigerant flow increases, but the pressure drop may not be sufficient for complete evaporation, leading to liquid refrigerant entering the compressor (a condition known as liquid slugging, which can damage the compressor). Conversely, if the valve is too restrictive, the refrigerant flow is inadequate, reducing the system’s cooling capacity. Technicians often adjust the valve’s superheat setting—the temperature difference between the refrigerant vapor leaving the evaporator and the saturation temperature—to ensure optimal performance. A typical superheat setting ranges from 5°C to 10°C (9°F to 18°F), depending on the system and refrigerant type.
Comparing expansion valve types highlights their unique advantages. Thermostatic expansion valves (TXVs) are self-regulating, using a temperature-sensing bulb to adjust refrigerant flow based on evaporator outlet temperature, making them ideal for systems with variable loads. In contrast, electronic expansion valves (EXVs) offer precise digital control, often integrated with building management systems for energy optimization. For smaller systems, capillary tubes provide a simple, cost-effective solution, though they lack adjustability. Each type has its application, but all share the common goal of maintaining the critical pressure drop for efficient evaporation.
In conclusion, the expansion valve’s role in reducing refrigerant pressure is not merely a step in the refrigeration cycle—it is the catalyst for the rapid cooling necessary for evaporation. Understanding its operation, from pressure differentials to valve types, empowers technicians and engineers to optimize system performance, ensuring reliable and efficient cooling in chiller and closed-loop applications. Proper calibration and maintenance of the expansion valve are essential to avoid inefficiencies, such as high energy consumption or system failures, making it a cornerstone of refrigeration technology.
Fresh Ground Turkey Shelf Life: Refrigerator Storage Tips and Duration
You may want to see also
Explore related products
Evaporator Process: Absorbs heat from the cooled space, evaporating refrigerant into a gas
The evaporator is the heart of heat absorption in a chiller or closed-loop refrigeration system. Positioned within the cooled space, it acts as a thermal sponge, drawing warmth from the surrounding environment. This process is driven by the refrigerant, a specially formulated fluid with a low boiling point. As the refrigerant circulates through the evaporator coils, it encounters the relatively warmer air or liquid from the cooled space. This temperature differential triggers the refrigerant to undergo a phase change, transitioning from a liquid to a gas. Think of it as a microscopic army of refrigerant molecules gaining energy from the surroundings, breaking their liquid bonds, and transforming into a vaporous state.
This heat absorption is crucial. It's the mechanism by which the chiller system achieves its primary goal: cooling. The evaporator essentially acts as a heat exchanger, facilitating the transfer of thermal energy from the desired cool zone to the refrigerant, which then carries this heat away for dissipation elsewhere in the system.
The efficiency of this process hinges on several factors. Firstly, the temperature difference between the refrigerant and the cooled space must be sufficient to drive the phase change. This is why chillers are designed to maintain a specific refrigerant temperature within the evaporator. Secondly, the surface area of the evaporator coils plays a vital role. Larger surface areas provide more contact points for heat exchange, enhancing the overall efficiency. Imagine a sprawling network of tiny capillaries compared to a single, thick pipe – the former offers far greater surface area for interaction.
Additionally, the flow rate of the refrigerant through the evaporator is critical. A balanced flow ensures optimal heat absorption without causing excessive pressure drops or inefficient cooling.
Understanding the evaporator process allows for informed troubleshooting and maintenance. If a chiller system struggles to maintain desired temperatures, inspecting the evaporator for fouling (accumulation of dirt or debris) or refrigerant leaks is a logical first step. Fouling reduces heat transfer efficiency, while leaks compromise the refrigerant charge, hindering its ability to absorb heat effectively. Regular cleaning and preventative maintenance are essential to ensure the evaporator operates at peak performance.
In essence, the evaporator process is a delicate dance of thermodynamics, leveraging the properties of refrigerants and strategic design to achieve efficient cooling. By grasping the principles at play, we can better appreciate the intricacies of chiller systems and ensure their reliable operation in various applications, from industrial processes to climate control in buildings.
Step-by-Step Guide to Safely Draining Refrigerator Coolant
You may want to see also
Explore related products
Refrigerant Cycle: Continuous loop of compression, condensation, expansion, and evaporation for cooling
The refrigerant cycle is the backbone of chiller and closed-loop refrigeration systems, a continuous process that efficiently transfers heat to achieve cooling. This cycle consists of four key stages: compression, condensation, expansion, and evaporation, each playing a critical role in maintaining the system's functionality. Understanding this cycle is essential for anyone looking to optimize or troubleshoot refrigeration systems, as it directly impacts energy efficiency and cooling performance.
Compression: The Heart of the Cycle
The refrigerant cycle begins with compression, where a low-pressure, low-temperature gas is drawn into the compressor. Here, the refrigerant is pressurized, raising its temperature significantly. For example, in a typical air conditioning system, the refrigerant might enter the compressor at 40°F (4°C) and exit at around 160°F (71°C). This stage is energy-intensive, often accounting for 70-80% of the system’s total power consumption. To maximize efficiency, ensure the compressor is properly sized and maintained, as oversized or worn-out compressors can lead to unnecessary energy waste.
Condensation: Heat Rejection in Action
After compression, the hot, high-pressure refrigerant moves to the condenser, where it releases heat to the surrounding environment. This phase change from gas to liquid is crucial for cooling. In water-cooled systems, the refrigerant condenses as it passes through coils cooled by a water flow, while air-cooled systems use fans to dissipate heat. A key tip is to keep condenser coils clean and free of debris, as even a thin layer of dirt can reduce heat transfer efficiency by up to 30%. For optimal performance, maintain a condenser temperature 20-30°F (11-16°C) above the ambient air temperature.
Expansion: Controlled Pressure Drop
The high-pressure liquid refrigerant then passes through an expansion valve, where its pressure and temperature drop dramatically. This stage is critical for creating the low-pressure environment needed for evaporation. The expansion process is precise; too much restriction can lead to freezing, while too little reduces cooling capacity. For instance, in a DX (direct expansion) system, the refrigerant might drop from 120°F (49°C) to 40°F (4°C) in this phase. Regularly inspect expansion valves for wear or blockages to ensure consistent performance.
Evaporation: The Cooling Effect
Finally, the low-pressure, low-temperature refrigerant enters the evaporator, where it absorbs heat from the space or fluid being cooled, returning to a gaseous state. This is the stage where actual cooling occurs. In chiller systems, the refrigerant might evaporate at 40°F (4°C), providing chilled water for HVAC or industrial processes. To enhance efficiency, ensure proper airflow over the evaporator coils and maintain a consistent load. Overloading the system can lead to inefficient operation and increased wear on components.
Practical Takeaway
The refrigerant cycle is a delicate balance of thermodynamic principles, requiring precise control and maintenance for optimal performance. By understanding each stage—compression, condensation, expansion, and evaporation—operators can identify inefficiencies and implement targeted solutions. For example, upgrading to a variable-speed compressor can reduce energy consumption by 30-50%, while regular cleaning of heat exchangers can improve heat transfer by up to 25%. Whether for HVAC, industrial cooling, or process refrigeration, mastering the refrigerant cycle is key to achieving reliable, energy-efficient cooling.
