Transmission identification is a common issue, especially among classic car enthusiasts. It is important to know what type of transmission your vehicle has so you can take better care of it. There are several ways to identify your transmission. You can start by checking your owner's manual to locate the transmission under the hood. You can also look for the Vehicle Identification Number (VIN) on your vehicle or its paperwork, and contact a transmission specialist. Another way to identify your transmission is by examining the transmission pan, which is connected to the underside of the transmission. Transmission pans come in various shapes, and the shape often indicates the type of transmission. You can also check for a code stamped on the transmission case or a tag riveted to the housing.
| Characteristics | Values |
|---|---|
| Transmission pan identification | Compare the shape of the transmission pan to online diagrams. |
| Transmission type | Check if the vehicle has a clutch pedal and a shifting stick with a range of gears. |
| Vehicle Identification Number (VIN) | Look at the top left corner of the dashboard, the driver-side door frame, under the spare tire, in the rear wheel well, or on the front of the engine block. |
| Transmission code | Take a picture of the transmission and check it online by comparing images or diagrams for your vehicle's make, model, and year. |
| Continuously Variable Transmission (CVT) | Cannot be visually identified, but provides a smoother ride and greater fuel efficiency. |
| Transmission identification tag | Check for a tag riveted to the transmission housing. |
| Transmission dimensions | Measure the dimensions of the transmission or check the engine compartment diagram in the owner's manual. |
| Transmission pan bolts | Count the number of bolts on the transmission pan for confirmation. |
Explore related products
What You'll Learn
Compare the transmission pan to online diagrams
Transmission pans come in a wide variety of shapes, so it is important to sketch out a diagram of the pan shape and bolt placements from underneath the vehicle. You can then search online for "transmission pan identification chart" or similar search terms to compare the shape to diagrams provided online. This pan info often reveals the specifications of the transmission itself.
You can also take a picture of the transmission and check it online. Search for transmissions for your make, model, and year of vehicle, then compare the images or diagrams you find to your photos. The shape of the case, markings on the case, and number and locations of the bolts on the case can help reveal the specifications of the transmission and its time and place of manufacture.
It is also possible to identify common automatic transmissions by the shape and bolt pattern of the transmission pan. Some transmissions may have a code stamped into their case or a tag riveted to them.
Avoiding Pan Oil Burns: Tips for Safe Cooking
You may want to see also
Explore related products
Check the engine compartment diagram in the owner's manual
If you're unsure about what transmission pan your vehicle has, you can refer to the engine compartment diagram in your owner's manual. This diagram will help you locate the transmission under the hood. In many front-wheel-drive vehicles, the transmission is located in front of and slightly below the engine, roughly level with the oil pan.
The owner's manual will also contain information on the vehicle's make, model, and year, which can be used to look up the transmission online. Some manuals may even indicate the type of transmission or provide basic information about it.
If you're unable to find the information you need in the owner's manual, you can try looking up the vehicle's make, model, and year online to get more detailed information about the transmission. This information can be used to compare with diagrams or specifications provided online.
Additionally, you can try locating the transmission pan by looking under your vehicle. Transmission pans come in various shapes, and identifying the shape and bolt placements of your pan can help you determine the type of transmission.
By following these steps and referring to the engine compartment diagram in the owner's manual, you should be able to find out what transmission pan your vehicle has.
Cleaning Cast Iron: Removing Carbon, Restoring Pans
You may want to see also
Explore related products
Identify the vehicle's VIN
The Vehicle Identification Number (VIN) is a unique serial number that contains valuable vehicle details, including the type of transmission. Running a VIN search will provide information such as the make, model, year, transmission type, drivetrain, engine specifications, and more. This is especially useful if you don't have your owner's manual or don't want to get under your car.
The VIN is typically located in several places on a vehicle, including the dashboard near the windshield, inside the driver's side door jamb or door frame, on the vehicle's registration documents, or on a plaque in the engine bay. Once you've located the VIN, you can use a free online VIN decoder to get a transmission report. There are several websites that offer this service, such as NHTSA, VinCheck.info, and EpicVIN.
It's important to note that while the VIN can provide transmission information, it primarily offers details about the vehicle's model, engine size, manufacturing plant, and more. If the VIN does not reveal the transmission type, you can visually inspect the vehicle. For manual transmissions, look for a clutch pedal to the left of the brake pedal, and for automatic transmissions, notice the absence of a clutch pedal. The shape and size of the oil pan, the presence of a gear shift label, and the location of the gear selector can also help identify the transmission type.
Additionally, the owner's manual of the car should provide explicit details about the transmission system. Consulting the manual and comparing the transmission code and shape to online diagrams can help you get detailed specifications for repairs or replacements.
Springform Pans: To Serve or Not to Serve?
You may want to see also
Explore related products
Identify the transmission by sight
Transmission pans are located in the undercarriage of a vehicle and act as a reservoir for automatic transmission fluid (ATF). The ATF is the key element that keeps the transmission running smoothly. The transmission pan can also impact transmission performance.

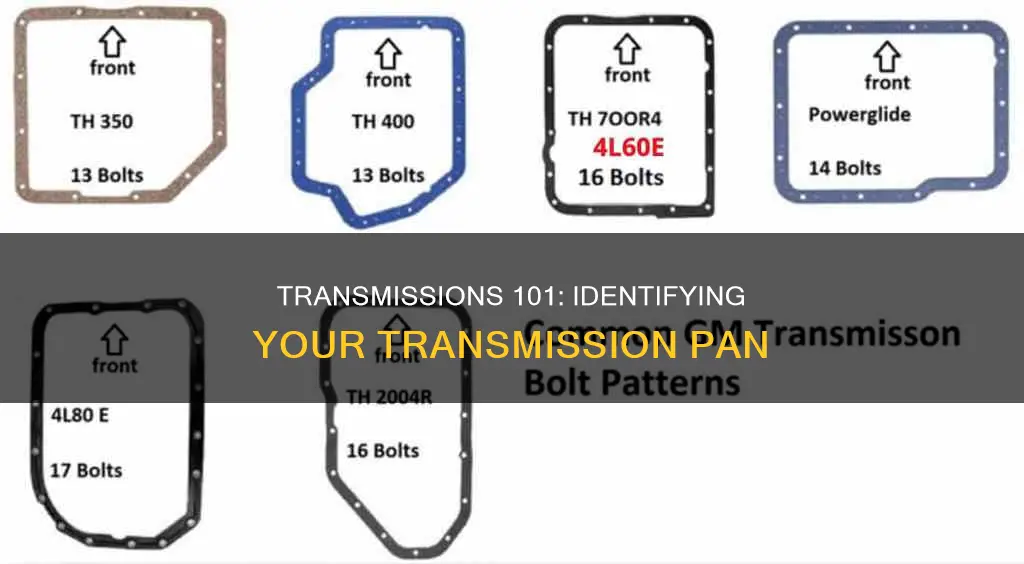

The easiest way to identify an automatic transmission is by looking at the transmission pan shape and bolt pattern. Some transmission pans are square, while others are shaped like states such as Louisiana or Texas. For example, a pan that is square with 14 bolts indicates an FMX transmission. Another example is the 4L80E fluid pan, which is shaped like a rectangle with the rear corners rounded.
