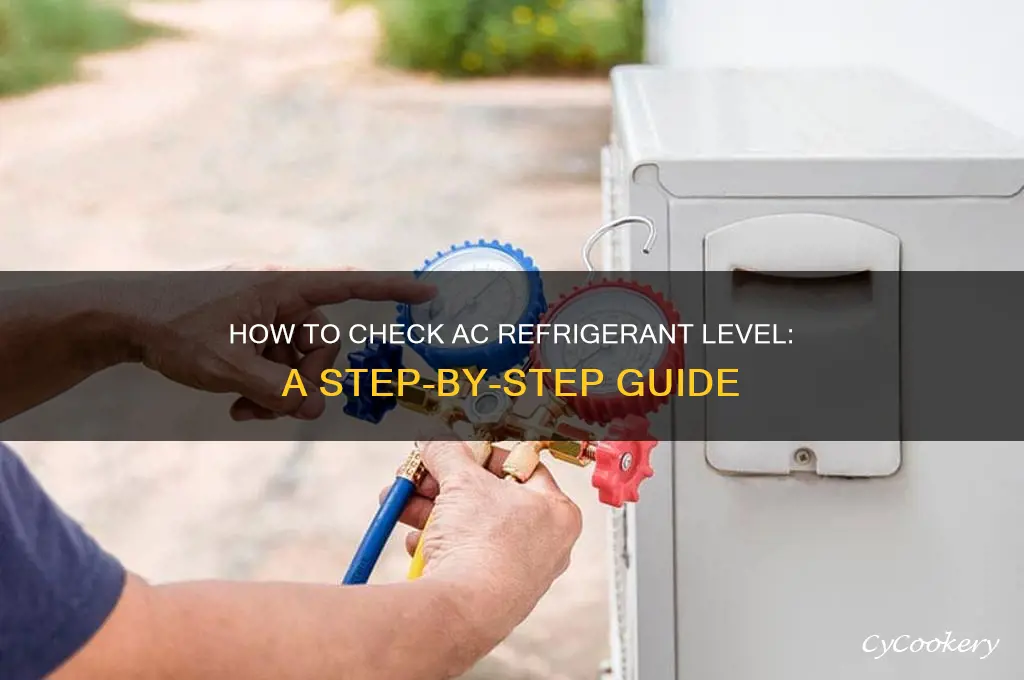

Checking the AC refrigerant level is a crucial step in maintaining the efficiency and performance of your air conditioning system. Proper refrigerant levels ensure optimal cooling, prevent system damage, and extend the lifespan of your AC unit. To check the refrigerant level, you’ll typically need a set of gauges that connect to the low and high-pressure ports of the AC system. Start by turning on the AC and allowing it to run for a few minutes to stabilize the pressures. Then, attach the gauges to the ports and observe the readings, comparing them to the manufacturer’s specifications for your specific vehicle or system. If the levels are low, it may indicate a leak or the need for a refrigerant recharge, which should be handled by a certified technician to ensure safety and compliance with environmental regulations. Regularly monitoring refrigerant levels can help identify issues early and keep your AC running smoothly.
| Characteristics | Values |
|---|---|
| Method | Visual inspection, pressure gauge, manifold gauge set, refrigerant scale |
| Tools Required | Pressure gauges, manifold gauge set, refrigerant scale, thermometer |
| Safety Precautions | Wear protective gear (gloves, goggles), ensure system is off, avoid leaks |
| Optimal Pressure Range | Varies by system; typically 25-45 PSI (low side), 250-300 PSI (high side) |
| Temperature Consideration | Check when ambient temperature is above 60°F (15°C) |
| Refrigerant Types | R-134a, R-410A, R-22 (phased out), etc. |
| Visual Inspection Signs | Frost on lines, oil stains, bubbling in sight glass |
| Frequency of Check | Annually or when AC performance decreases |
| Professional Recommendation | Consult a certified HVAC technician for accurate diagnosis |
| Environmental Impact | Proper handling required to avoid refrigerant leaks (harms ozone layer) |
| Cost of Tools | $20-$200 depending on tool type and quality |
| DIY vs. Professional | DIY possible for basic checks; professional required for precise charging |
| System Compatibility | Methods vary based on AC system type (automotive, residential, commercial) |
| Legal Regulations | EPA regulations require certification for handling refrigerants |
| Common Issues | Low refrigerant, leaks, clogged filters, faulty compressor |
Explore related products
What You'll Learn
- Using Pressure Gauges: Attach gauges to AC system, compare readings to pressure-temperature chart for refrigerant level
- Visual Inspection: Check sight glass for bubbles (low refrigerant) or fogging (normal level)
- Manifold Gauge Set: Connect gauges, measure high/low side pressures to determine refrigerant charge
- Temperature Method: Measure suction line temperature, compare to charts for proper refrigerant level
- Electronic Leak Detector: Scan AC system for leaks, low refrigerant often indicates a leak
Using Pressure Gauges: Attach gauges to AC system, compare readings to pressure-temperature chart for refrigerant level
One of the most accurate methods to check your AC refrigerant level is by using pressure gauges. This technique involves attaching a set of manifold gauges to the AC system’s service ports, typically located near the compressor and the firewall. The gauges measure the pressure of the refrigerant in both the high-side (condenser) and low-side (evaporator) of the system. These readings are then compared to a pressure-temperature chart specific to the type of refrigerant your system uses, such as R-134a or R-410A. This method is particularly useful because it provides a direct measurement of the refrigerant’s state, allowing you to diagnose whether the system is overcharged, undercharged, or operating within optimal parameters.
To begin, ensure the AC system is running and the compressor is engaged. Attach the blue hose of the manifold gauge set to the low-side service port and the red hose to the high-side port. The yellow hose, if present, is typically used for adding or removing refrigerant but is not necessary for this diagnostic step. Once connected, observe the gauge readings. For R-134a systems, a typical low-side pressure ranges between 25–45 PSI when the ambient temperature is around 80°F, while the high-side pressure should be approximately 150–250 PSI. These values vary with temperature, which is why consulting a pressure-temperature chart is essential for accurate interpretation.
Comparing the gauge readings to the chart allows you to determine the refrigerant’s saturation temperature, which correlates directly to its charge level. For example, if the low-side pressure reads 35 PSI and the ambient temperature is 85°F, the chart might indicate a saturation temperature of 38°F. If this aligns with the evaporator’s expected operating temperature, the refrigerant charge is likely correct. However, if the pressure is significantly lower or higher than the chart’s recommendation, it suggests an undercharge or overcharge, respectively. This method not only helps diagnose refrigerant issues but also identifies potential problems like leaks or component failures.
While using pressure gauges is effective, it requires caution. Always wear safety goggles and gloves, as refrigerant under pressure can cause injury. Ensure the AC system is off before connecting or disconnecting the gauges to prevent damage to the system or gauges. Additionally, be mindful of local regulations regarding refrigerant handling, as some areas require certification for such tasks. For DIY enthusiasts, this method is a valuable tool, but if you’re unsure, consulting a professional is always a safer option. Properly diagnosing refrigerant levels ensures your AC system operates efficiently, prolonging its lifespan and maintaining comfort.
