Checking the refrigerant level in a running system requires careful attention to safety and proper procedures. Begin by ensuring the system is operating under normal conditions, with the compressor actively running and the system stabilized at its typical operating pressures and temperatures. Use a manifold gauge set to connect to the service ports and read the suction and discharge pressures, comparing them to the manufacturer’s specifications for the specific refrigerant and ambient conditions. Observe the sight glass or liquid line for proper refrigerant flow, looking for bubbles in a liquid line or a full liquid line with no bubbles, depending on the system type. Additionally, monitor the superheat or subcooling values using temperature measurements at key points to ensure the refrigerant charge is within the optimal range. Always follow safety guidelines and consult the system’s documentation for accurate reference values.
| Characteristics | Values |
|---|---|
| Method | Observe sight glass or use manifold gauge set while the system is running. |
| Sight Glass Indication (Normal) | Clear or slight bubble flow indicates proper refrigerant charge. |
| Sight Glass Indication (Overcharged) | Continuous bubble flow or foggy appearance. |
| Sight Glass Indication (Undercharged) | Continuous liquid flow with no bubbles. |
| Manifold Gauge Pressure | Compare suction and discharge pressures to manufacturer specifications. |
| System Operation | Must be running in cooling mode for accurate readings. |
| Safety Precautions | Wear protective gear; avoid contact with refrigerant or moving parts. |
| Tools Required | Sight glass (if equipped) or manifold gauge set. |
| Frequency of Check | Only when suspecting refrigerant issues or during maintenance. |
| Environmental Considerations | Ensure proper disposal of refrigerant if system is opened. |
| Professional Recommendation | Consult a certified HVAC technician for precise diagnosis and adjustments. |
Explore related products
What You'll Learn
- Using Pressure Gauges: Connect gauges to service ports, compare readings to pressure-temperature chart for correct refrigerant level
- Superheat Measurement: Measure temperature at suction line, calculate superheat to verify proper refrigerant charge
- Subcooling Check: Measure liquid line temperature, calculate subcooling to ensure adequate refrigerant in system
- Visual Inspection: Observe sight glass for bubbles (undercharged) or fog (overcharged) while system operates
- Manufacturer Guidelines: Refer to system specifications for target pressures and temperatures during operation

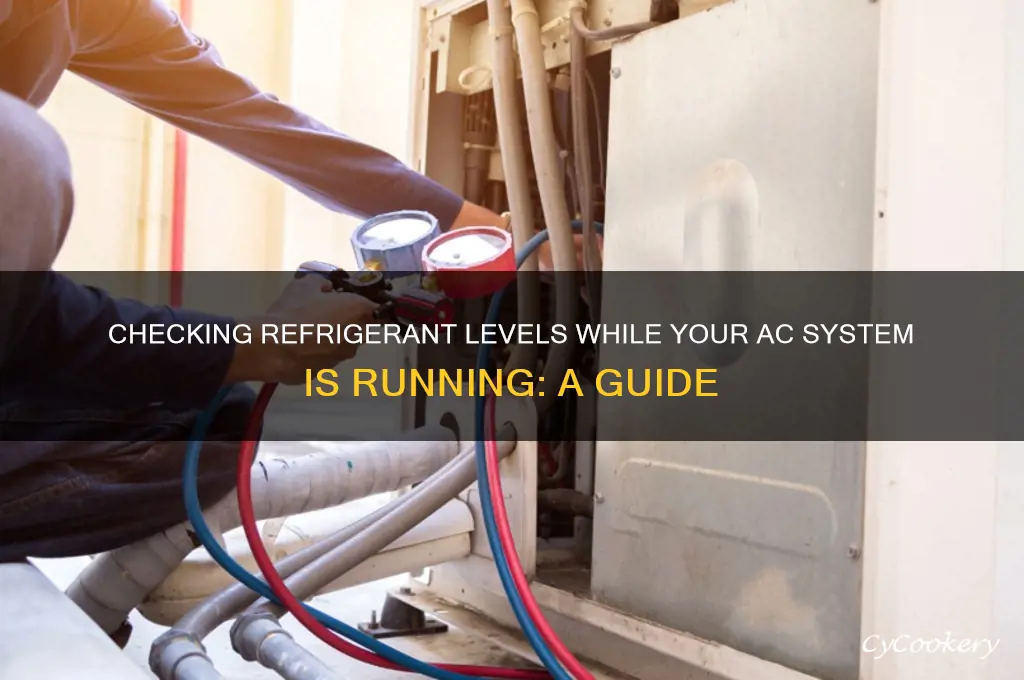

Using Pressure Gauges: Connect gauges to service ports, compare readings to pressure-temperature chart for correct refrigerant level
Pressure gauges are indispensable tools for assessing refrigerant levels in a running system, offering a precise and reliable method to ensure optimal performance. By connecting these gauges to the service ports of the system, technicians can measure the pressure of the refrigerant, which directly correlates to its temperature and, consequently, its level. This method is particularly effective because it provides real-time data, allowing for immediate adjustments if the refrigerant level is found to be inadequate. The process begins with identifying the low-side and high-side service ports, typically located near the compressor and the condenser, respectively. Once the gauges are securely attached, they will display the current pressure readings, which serve as the foundation for further analysis.
To interpret these readings accurately, a pressure-temperature (PT) chart specific to the refrigerant type in use is essential. For instance, R-134a, a common refrigerant in automotive and residential systems, has a distinct PT chart that correlates pressure values to corresponding temperatures. By cross-referencing the gauge readings with this chart, technicians can determine the refrigerant’s saturation temperature, which indicates whether the system is undercharged, overcharged, or operating within the correct parameters. For example, if the low-side gauge reads 40 psi and the ambient temperature is 80°F, the PT chart for R-134a would show that the refrigerant is at approximately 40°F, suggesting a properly charged system. Deviations from these values signal the need for adjustments, such as adding or removing refrigerant.
While the process appears straightforward, precision is critical. Even minor discrepancies in gauge placement or readings can lead to inaccurate diagnoses. For instance, ensuring the gauges are connected to the correct ports and that the system is running under normal conditions (e.g., no unusual loads or ambient temperature extremes) is vital. Additionally, the PT chart must match the refrigerant type exactly, as different refrigerants have varying pressure-temperature relationships. Misapplication of a chart can result in incorrect conclusions, potentially leading to system damage or inefficiency. Therefore, technicians must verify the refrigerant type before proceeding, often by checking the system’s label or consulting the manufacturer’s documentation.
One practical tip for using pressure gauges effectively is to allow the system to stabilize for at least 15 minutes before taking readings. This ensures that the pressures have reached equilibrium, providing a more accurate representation of the refrigerant level. Another useful practice is to compare the high-side and low-side pressures simultaneously, as the differential between these readings can reveal issues such as restrictions or leaks in the system. For example, a high-side pressure significantly above the expected range might indicate a clogged condenser or an overcharged system, while a low-side pressure that is too low could suggest a refrigerant leak or an undercharged condition. By analyzing both readings in conjunction with the PT chart, technicians can diagnose and address problems more comprehensively.
In conclusion, using pressure gauges to check refrigerant levels in a running system is a methodical process that combines technical skill with careful analysis. By connecting the gauges to the service ports and comparing the readings to a PT chart, technicians can ensure the system operates efficiently and safely. Attention to detail, such as verifying the refrigerant type and allowing for system stabilization, enhances the accuracy of this method. While it requires some expertise, mastering this technique empowers technicians to maintain optimal refrigerant levels, prolonging the life of the system and ensuring consistent performance. With practice and adherence to best practices, this approach becomes an invaluable tool in the technician’s arsenal.
Step-by-Step Guide to Adding Refrigerant to Your Fujitsu Mini Split
You may want to see also
Explore related products
Superheat Measurement: Measure temperature at suction line, calculate superheat to verify proper refrigerant charge
Superheat measurement is a critical technique for verifying the proper refrigerant charge in a running system. By measuring the temperature at the suction line and calculating superheat, technicians can ensure the system operates efficiently without overcharging or undercharging. This method is particularly useful because it provides a real-time assessment of refrigerant levels, allowing for immediate adjustments if needed.
To begin, locate the suction line—typically the larger of the two refrigerant lines—and attach a thermocouple or digital thermometer to measure its temperature. Simultaneously, measure the suction pressure using a manifold gauge set. These two values are essential for calculating superheat. The formula for superheat is: Superheat = Suction Line Temperature – Saturation Temperature (at measured suction pressure). For example, if the suction line temperature is 55°F and the saturation temperature at the measured suction pressure is 40°F, the superheat is 15°F.
The ideal superheat range varies by system but typically falls between 8°F to 20°F for air conditioning systems and 10°F to 25°F for refrigeration systems. If the calculated superheat is within this range, the refrigerant charge is likely correct. However, if superheat is too low, it indicates an overcharge, which can lead to liquid refrigerant returning to the compressor and causing damage. Conversely, high superheat suggests an undercharge, resulting in inefficient heat absorption and increased energy consumption.
When performing this measurement, ensure the system has been running long enough to stabilize—typically 15 to 20 minutes. Ambient conditions, such as outdoor temperature and humidity, can influence readings, so account for these factors when interpreting results. Additionally, use accurate tools: a high-precision thermometer and reliable gauges are essential for obtaining trustworthy data.
In practice, superheat measurement is a proactive approach to system maintenance. It not only verifies refrigerant charge but also helps diagnose issues like restricted metering devices or airflow problems. By mastering this technique, technicians can optimize system performance, extend equipment lifespan, and reduce energy costs. Regularly monitoring superheat ensures the system operates at peak efficiency, making it an indispensable skill for HVAC/R professionals.
Refrigerator and Freezer Survival Guide: Power Outage Duration Tips
You may want to see also
Explore related products
Subcooling Check: Measure liquid line temperature, calculate subcooling to ensure adequate refrigerant in system
The subcooling check is a precise method to assess refrigerant levels in a running system, offering a clear picture of the refrigerant's state as it flows through the liquid line. This technique hinges on measuring the liquid line temperature and comparing it to the refrigerant's saturation temperature at the same pressure, a process that reveals the degree of subcooling. Subcooling, essentially the difference between these two temperatures, indicates how thoroughly the refrigerant has been cooled below its saturation point, a critical factor in system efficiency and performance.
To perform a subcooling check, start by identifying the liquid line, typically the larger of the two lines connecting the condenser to the expansion valve or metering device. Use a digital thermometer with a thermocouple or a specialized HVAC manifold gauge set to measure the temperature of the liquid line. Simultaneously, determine the refrigerant's saturation temperature at the corresponding pressure, which can be found using a pressure-temperature (PT) chart specific to the refrigerant in use. Common refrigerants like R-22, R-410A, or R-134a each have their own PT charts, so ensure you’re referencing the correct one.
Once you have both the liquid line temperature and the saturation temperature, subtract the latter from the former to calculate the subcooling value. For instance, if the liquid line temperature reads 90°F and the saturation temperature is 80°F, the subcooling is 10°F. Ideal subcooling values vary by system and refrigerant type, but generally, residential systems aim for 10°F to 15°F of subcooling. Commercial systems may require higher values, often between 15°F and 20°F. Insufficient subcooling suggests low refrigerant levels, while excessive subcooling may indicate overcharging or other issues like a blocked filter drier.
Practical tips for accuracy include ensuring the liquid line is fully condensed and that measurements are taken under stable operating conditions. Avoid taking readings during startup or shutdown, as these periods can yield inconsistent results. Additionally, always account for ambient temperature and its potential impact on the liquid line temperature. For example, if the condenser is exposed to direct sunlight, the liquid line temperature may be artificially elevated, skewing the subcooling calculation.
In summary, the subcooling check is a diagnostic powerhouse, providing actionable insights into refrigerant levels and system health. By mastering this technique, technicians can pinpoint issues with precision, ensuring optimal performance and longevity of HVAC systems. Whether troubleshooting or performing routine maintenance, this method is an indispensable tool in the refrigerant management toolkit.
Refrigerating Sushi: How Long Can You Safely Store Leftovers?
You may want to see also
Explore related products
Visual Inspection: Observe sight glass for bubbles (undercharged) or fog (overcharged) while system operates
A clear sight glass is a technician's window into the refrigerant flow, offering immediate clues about system health. During operation, the sight glass should display a steady, uninterrupted flow of refrigerant. Any deviation from this norm signals a potential issue. Bubbles, for instance, indicate an undercharged system. These pockets of vapor disrupt the liquid refrigerant flow, reducing cooling efficiency. Conversely, a foggy or opaque sight glass suggests overcharging. Excess refrigerant floods the system, leading to inefficiency and potential damage.
Observation is key: a trained eye can quickly assess the refrigerant charge by simply monitoring the sight glass.
This visual inspection method is a cornerstone of HVAC troubleshooting, offering a non-invasive, real-time diagnosis. Imagine a doctor listening to a patient's heartbeat – the sight glass provides a similar, immediate insight into the system's "circulatory" health. By understanding the language of bubbles and fog, technicians can pinpoint charging issues without invasive procedures, saving time and resources.
Unlike pressure gauge readings, which require interpretation and can be influenced by external factors, the sight glass provides a direct, visual representation of refrigerant flow.
However, accuracy hinges on proper sight glass placement and system operation. The sight glass should be located on the liquid line, downstream of the condenser and before the expansion valve. This ensures the observed refrigerant is in its liquid state, providing a clear indication of charge. Additionally, the system must be operating under normal conditions – at design load and with stable ambient temperatures. Only then can the sight glass truly reflect the refrigerant charge.
Caution: Misinterpreting sight glass readings can lead to incorrect diagnoses and potentially worsen the problem. For example, mistaking oil for fog or debris for bubbles can lead to unnecessary refrigerant adjustments.
Mastering sight glass interpretation is a skill honed through experience and a keen eye for detail. Technicians should familiarize themselves with the nuances of different refrigerants and system designs. Regularly observing the sight glass during routine maintenance allows for early detection of potential issues, preventing costly breakdowns and ensuring optimal system performance. Remember, the sight glass is not just a window; it's a powerful diagnostic tool, offering a glimpse into the heart of the refrigeration cycle.
Refrigerating Pre-Cooked Ham: Safe Storage Duration and Tips
You may want to see also
Explore related products
Manufacturer Guidelines: Refer to system specifications for target pressures and temperatures during operation
Every HVAC or refrigeration system is designed with specific operating parameters that ensure optimal performance and longevity. These parameters, outlined in the manufacturer’s guidelines, include target refrigerant pressures and temperatures for various operating conditions. Ignoring these specifications can lead to inefficiency, component damage, or system failure. For instance, a residential air conditioner may specify a suction pressure of 65–80 PSI and a discharge pressure of 220–250 PSI during normal operation, while a commercial refrigeration unit might require different ranges based on load and ambient conditions. Always consult the system’s manual or technical documentation before attempting to assess refrigerant levels.
Analyzing these specifications reveals a critical relationship between pressure, temperature, and refrigerant charge. For example, if the suction pressure is lower than the target range, it could indicate an undercharge, while a higher-than-normal discharge pressure might suggest an overcharge or restricted airflow. However, these symptoms alone are not definitive. Ambient temperature, indoor load, and system design all influence these readings. A technician must cross-reference live data with manufacturer guidelines to accurately interpret the results. Tools like pressure-temperature charts, often included in manuals, help translate gauge readings into meaningful insights.
To effectively check refrigerant levels while the system is running, follow a structured process. First, record ambient and indoor temperatures to contextualize your findings. Next, measure suction and discharge pressures using a manifold gauge set, ensuring the system has stabilized under normal operating conditions. Compare these readings to the manufacturer’s target ranges, accounting for any adjustments based on environmental factors. For instance, a system operating in 95°F ambient conditions may have slightly higher pressures than one running in 80°F weather. If discrepancies arise, verify other factors like airflow, coil cleanliness, and component functionality before concluding a refrigerant issue.
One common mistake is assuming all systems operate within the same pressure ranges. Residential, commercial, and industrial units often have distinct specifications due to differences in design, capacity, and refrigerant type. For example, a system using R-410A will have significantly higher operating pressures than one using R-22. Misapplying guidelines from one system to another can lead to misdiagnosis. Always confirm the refrigerant type and model-specific data before proceeding. Additionally, be cautious of generic pressure-temperature charts, as they may not account for the nuances of your particular unit.
In conclusion, manufacturer guidelines are the cornerstone of accurate refrigerant level assessment. They provide the benchmarks against which live data is measured, ensuring diagnostics are both precise and safe. By adhering to these specifications, technicians can avoid common pitfalls like overcharging or misinterpreting system behavior. Remember, refrigerant management is not a one-size-fits-all task—it requires careful attention to detail and a deep understanding of the system’s unique requirements. Always prioritize manufacturer data over assumptions or general rules of thumb.
Refrigerators with Blue Interior Lighting: Top Brands and Models
You may want to see also
Frequently asked questions
Yes, you can check the refrigerant level while the system is running, but it’s important to use the correct tools and methods, such as observing the sight glass or using gauges, to ensure accuracy and safety.
With the system running, inspect the sight glass. If you see bubbles or a clear appearance, it indicates low refrigerant. If the sight glass is full with no bubbles, the refrigerant level is likely adequate.
Yes, it’s safe to check refrigerant levels while the system is running, but always follow proper procedures and avoid contact with refrigerant lines or components, as they can be cold or under pressure.
If you suspect low refrigerant levels, turn off the system immediately and contact a certified HVAC technician to diagnose and repair the issue, as running an AC with low refrigerant can damage the compressor.
