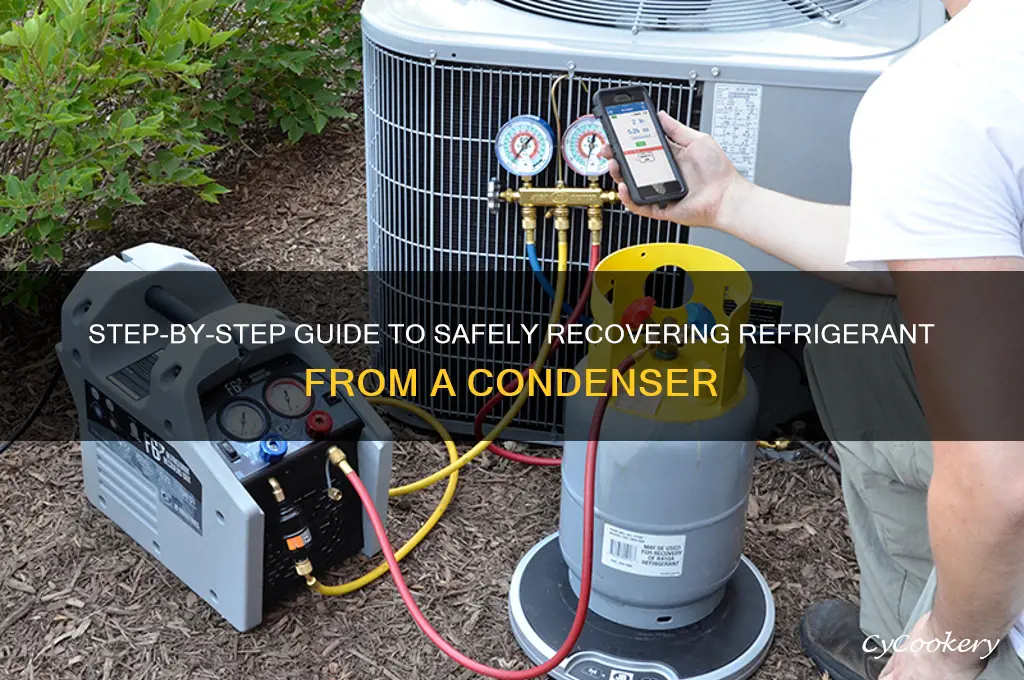

Pulling refrigerant out of a condenser, also known as recovering refrigerant, is a critical process in HVAC and refrigeration system maintenance or repairs. This procedure involves safely removing the refrigerant from the system using specialized equipment, such as a recovery machine, to ensure compliance with environmental regulations and prevent the release of harmful gases into the atmosphere. Proper evacuation techniques, including connecting the recovery unit to the condenser’s service ports, initiating the recovery process, and monitoring the system’s pressure, are essential to effectively remove the refrigerant while maintaining system integrity. This step is often necessary before servicing, replacing, or disposing of a condenser unit.
| Characteristics | Values |
|---|---|
| Process Overview | Requires recovery machine to safely extract refrigerant from the condenser. |
| Tools Needed | Recovery machine, manifold gauge set, hoses, protective gear (gloves, goggles). |
| Safety Precautions | Wear protective gear; ensure proper ventilation; follow local regulations. |
| Steps | 1. Connect recovery machine to condenser via manifold gauges. 2. Evacuate refrigerant into recovery machine. 3. Monitor pressure and temperature during extraction. 4. Disconnect and seal system after complete recovery. |
| Refrigerant Compatibility | Works with all types (R-22, R-410A, etc.), but recovery machine must be compatible. |
| Environmental Impact | Prevents refrigerant release into atmosphere, complying with EPA regulations. |
| Legal Requirements | Must follow local and federal laws (e.g., EPA Section 608 for the U.S.). |
| Time Required | Varies based on system size and refrigerant quantity, typically 30–60 minutes. |
| Cost | Depends on recovery machine rental/purchase and refrigerant disposal fees. |
| Professional Recommendation | Recommended for certified HVAC technicians due to complexity and safety risks. |
| Alternative Methods | None; recovery machine is the only safe and legal method for extraction. |
Explore related products
What You'll Learn
Safety precautions and equipment needed for refrigerant recovery
Refrigerant recovery is a critical process that requires meticulous attention to safety and the right equipment to prevent environmental harm and personal injury. Before initiating the recovery, ensure the area is well-ventilated to avoid inhaling refrigerant fumes, which can cause dizziness, headaches, or more severe health issues. Always wear personal protective equipment (PPE), including safety goggles, nitrile gloves, and a respirator rated for chemical exposure. Refrigerants like R-410A operate at high pressures, so a single mistake can lead to frostbite or shrapnel injuries from ruptured components.
The equipment needed for safe refrigerant recovery includes a recovery machine certified for the specific refrigerant type, such as a single-stage or dual-stage vacuum pump. For example, R-22 requires a different recovery machine than R-410A due to its higher pressure. Additionally, use a manifold gauge set with hoses rated for the refrigerant’s pressure and temperature range. Ensure all connections are secure and leak-free by applying thread sealant or Teflon tape to fittings. A digital scale is essential for accurately measuring recovered refrigerant, as overfilling the recovery cylinder can lead to dangerous pressure buildup.
One often overlooked precaution is the condition of the recovery cylinder. Always inspect it for dents, corrosion, or expired certification dates, as a compromised cylinder can fail under pressure. Recovery cylinders must be evacuated to a pressure below 1 psi before use to ensure maximum refrigerant capacity. For instance, a 60-pound cylinder can safely hold 120 pounds of R-22 but only 40 pounds of R-410A due to its higher density. Never attempt to recover refrigerant into a cylinder already containing a different type, as this can cause a chemical reaction or contamination.
During the recovery process, monitor the system’s pressure and temperature continuously to prevent overloading the recovery machine or freezing internal components. If the ambient temperature drops below 50°F (10°C), use a blanket or heat tape to keep the recovery cylinder warm, as cold temperatures reduce the machine’s efficiency. Always follow manufacturer guidelines for shutdown procedures, such as closing the service valves before powering off the recovery unit. Properly label recovered refrigerant cylinders with the date, type, and amount to comply with EPA regulations and ensure safe handling in the future.
Finally, dispose of or recycle recovered refrigerant through certified channels to avoid environmental penalties. The EPA mandates that technicians recover refrigerant whenever feasible, even in small systems like window units. Failure to comply can result in fines up to $37,500 per day per violation. By adhering to these safety precautions and using the correct equipment, technicians can perform refrigerant recovery efficiently while minimizing risks to themselves and the environment.
