Marianne Martinez
Testing a refrigerator defrost thermostat is essential to ensure it functions correctly, preventing issues like excessive frost buildup or improper cooling. The process involves first unplugging the refrigerator for safety. Next, locate the thermostat, typically found near the evaporator coils or behind a cover in the freezer compartment. Use a multimeter set to the ohms (resistance) setting to check the thermostat’s continuity. At room temperature, the thermostat should show continuity (low resistance), indicating it’s closed. When cooled below its set temperature (usually around 20°F or -7°C), it should open, showing no continuity. To simulate cooling, place the thermostat in ice water or use a cold pack, then recheck the multimeter reading. If the thermostat fails to switch between open and closed states, it’s likely defective and needs replacement. This simple test ensures the defrost cycle operates efficiently, maintaining optimal refrigerator performance.
| Characteristics | Values |
|---|---|
| Purpose of Test | Determine if the defrost thermostat is functioning correctly, allowing the refrigerator to defrost at the right temperature. |
| Tools Required | Multimeter, screwdriver, gloves (optional) |
| Safety Precautions | Unplug refrigerator before testing, discharge capacitor if present |
| Location of Thermostat | Usually near the evaporator coils, often clipped to the evaporator tube |
| Normal Resistance Range | Closed (cold): Near 0 ohms, Open (warm): Infinite ohms |
| Testing Procedure | 1. Locate thermostat, 2. Disconnect wires, 3. Set multimeter to ohms/resistance, 4. Touch probes to thermostat terminals, 5. Observe resistance change when thermostat is heated/cooled |
| Expected Results | Resistance should be near 0 ohms when cold (closed circuit) and infinite ohms when warm (open circuit) |
| Diagnosis | If resistance doesn't change with temperature, thermostat is faulty and needs replacement |
| Replacement | Replace with thermostat of same type and temperature rating |
Explore related products
What You'll Learn
- Tools Needed: Gather multimeter, screwdriver, and safety gloves for accurate and safe testing procedures
- Locate Thermostat: Find the defrost thermostat near the evaporator coils in the freezer
- Disconnect Power: Unplug refrigerator or turn off power at the circuit breaker
- Test Continuity: Use multimeter to check if thermostat shows continuity at freezing temperatures
- Inspect for Damage: Look for physical damage, corrosion, or loose connections on the thermostat
Tools Needed: Gather multimeter, screwdriver, and safety gloves for accurate and safe testing procedures
Testing a refrigerator defrost thermostat requires precision and safety, making the right tools indispensable. A multimeter, screwdriver, and safety gloves form the core toolkit for this task. The multimeter measures electrical continuity, ensuring the thermostat functions correctly, while the screwdriver allows access to the component. Safety gloves protect against electrical shocks and sharp edges, a critical precaution in any appliance repair. Together, these tools enable an accurate diagnosis without compromising safety.
The multimeter is the star of this process, serving as the diagnostic tool for the defrost thermostat. Set it to the continuity or resistance mode (typically 20kΩ or less) to test whether the thermostat closes and opens at the correct temperatures. Touch the probes to the thermostat’s terminals: if the circuit is closed, the multimeter will beep or show a low resistance reading. This step confirms the thermostat’s ability to regulate defrost cycles effectively. Without a multimeter, guesswork replaces certainty, risking misdiagnosis and unnecessary part replacements.
A screwdriver, often overlooked, is equally vital. Refrigerators vary in design, but most require a Phillips or flathead screwdriver to remove the thermostat’s cover or access panel. Choose the correct type and size to avoid stripping screws or damaging components. For instance, some models may have tamper-proof screws, necessitating a specialty bit. This simple tool ensures you can physically reach the thermostat, bridging the gap between theory and practice in the testing process.
Safety gloves are the unsung heroes of appliance repair, providing a protective barrier against electrical hazards and sharp metal edges. Opt for insulated gloves rated for electrical work, especially when handling components near live wires. Additionally, gloves prevent skin oils from transferring to sensitive parts, reducing the risk of corrosion. While testing, avoid wearing loose clothing or jewelry that could snag, and ensure the refrigerator is unplugged before beginning. These precautions transform a potentially risky task into a safe, controlled procedure.
In summary, the multimeter, screwdriver, and safety gloves are not just tools but enablers of accuracy and safety in testing a refrigerator defrost thermostat. Each serves a distinct purpose, from diagnosis to access and protection. By gathering these items beforehand, you streamline the process, minimize risks, and ensure a reliable outcome. This toolkit is the foundation of effective troubleshooting, turning a complex task into a manageable, step-by-step procedure.
Easy Steps to Clean Your Whirlpool Fridge Compressor Efficiently
You may want to see also
Explore related products
Locate Thermostat: Find the defrost thermostat near the evaporator coils in the freezer

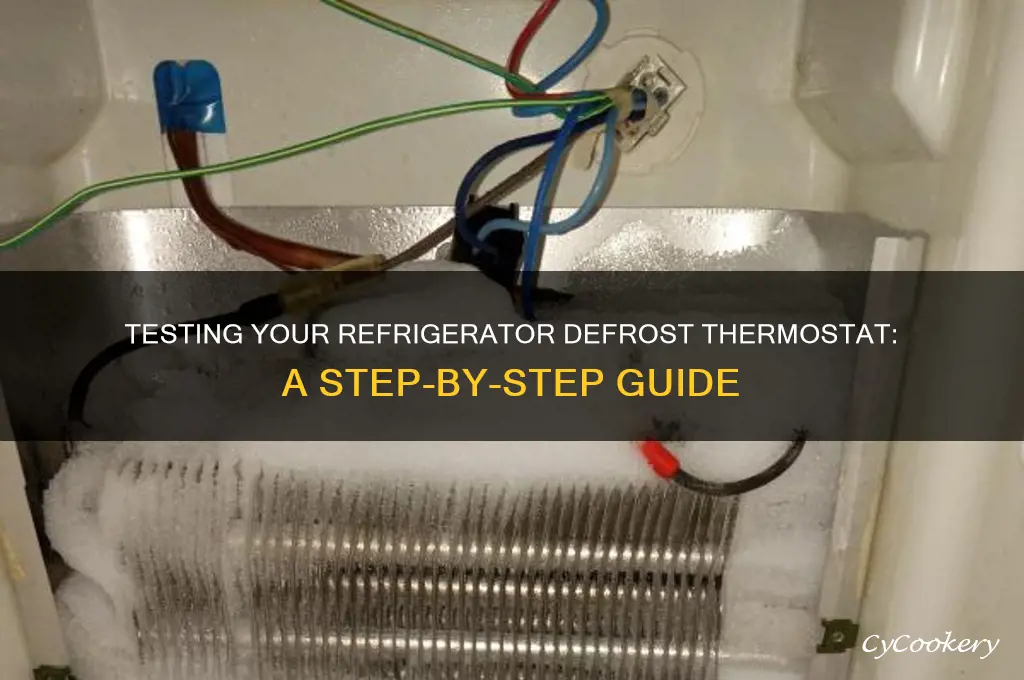

The defrost thermostat is a small but critical component in your refrigerator's defrost system, typically located near the evaporator coils in the freezer compartment. This strategic placement allows it to monitor the temperature of the coils, initiating the defrost cycle when ice buildup reaches a certain thickness. To locate it, start by unplugging the refrigerator for safety. Remove the freezer’s back panel or floor covering, depending on your model. You’ll find the thermostat clipped or fastened near the coils, often with wires connected to it. Its proximity to the coils ensures accurate temperature sensing, making it the first place to look when troubleshooting defrost issues.
Identifying the defrost thermostat requires a keen eye, as it’s often concealed among other components. It resembles a small, cylindrical or rectangular device with two wires attached. Some models may have it encased in a protective housing. If you’re unsure, consult your refrigerator’s manual for a diagram or description. Once located, gently inspect the thermostat for signs of damage, such as cracks or loose connections, which could indicate a malfunction. Understanding its placement near the evaporator coils is crucial, as this is where frost accumulates, and the thermostat’s role is to detect when it’s time to melt it away.
Testing the defrost thermostat begins with its location, but knowing where to find it is only half the battle. After locating it near the evaporator coils, you’ll need to disconnect the wires (label them first to avoid confusion). Use a multimeter set to the ohms (resistance) setting to test continuity. At room temperature, the thermostat should show no continuity (open circuit). When cooled below its threshold (typically around 20°F or -6°C), it should close the circuit, indicating continuity. If it fails this test, it’s likely faulty and needs replacement. This process highlights why its placement near the coils is essential—it must respond accurately to the freezer’s temperature fluctuations.
For DIY enthusiasts, locating the defrost thermostat is a straightforward task with significant payoff. By finding it near the evaporator coils, you’re already halfway to diagnosing potential defrost problems. Keep in mind that some refrigerators may require additional steps, such as removing ice or debris around the coils for better access. Always handle components with care to avoid damage. Once located and tested, you’ll have a clearer understanding of whether the thermostat is the culprit behind excessive frost buildup or defrosting failures. This knowledge can save you from unnecessary repairs or costly service calls, making it a valuable skill for any homeowner.
Can Your Fridge Compressor Spark a Fire? Safety Insights
You may want to see also
Explore related products
Disconnect Power: Unplug refrigerator or turn off power at the circuit breaker
Safety is paramount when testing a refrigerator defrost thermostat, and the first critical step is to disconnect power. This isn't just a precautionary measure—it's a necessity. Refrigerators operate on high voltage, typically 120 volts in the U.S., which poses a severe electrocution risk if mishandled. Unplugging the refrigerator or turning off the power at the circuit breaker ensures that no live current flows through the appliance during testing, safeguarding both you and the unit from potential damage.
From a practical standpoint, unplugging the refrigerator is the most straightforward method. Simply locate the power cord and disconnect it from the wall outlet. If the cord is hard to reach or the outlet is inconveniently placed, turning off the power at the circuit breaker is an equally effective alternative. Identify the correct breaker in your electrical panel—usually labeled for the kitchen or refrigerator—and flip it to the "off" position. Verify that the power is indeed off by checking if the refrigerator’s interior light or digital display turns off. This dual-check ensures no residual power remains in the system.
While both methods achieve the same goal, the choice between unplugging and using the circuit breaker depends on accessibility and personal preference. Unplugging is faster and doesn’t require knowledge of your home’s electrical system, but it may be impractical if the outlet is difficult to access. Using the circuit breaker, on the other hand, is ideal for hard-to-reach outlets but requires familiarity with your electrical panel. Regardless of the method chosen, the key is to completely sever the power supply before proceeding with any testing or repairs.
A common mistake is assuming that turning off the refrigerator’s control panel or thermostat knob is sufficient. This is incorrect—the appliance may still be live, and internal components could still carry a charge. Always prioritize complete power disconnection to avoid accidents. Additionally, if you’re unsure about handling electrical systems, consult a professional. The risk of injury or damage far outweighs the convenience of a DIY approach when safety is compromised.
In conclusion, disconnecting power is the foundational step in testing a refrigerator defrost thermostat. Whether you unplug the unit or turn off the circuit breaker, the goal is to eliminate any electrical hazard. This simple yet crucial action not only protects you but also ensures the integrity of the testing process. Always double-check that power is off before proceeding, and when in doubt, seek expert assistance. Safety should never be an afterthought—it’s the cornerstone of any repair or diagnostic task.
Can Refrigerated Breadstick Dough Be Used for Creative Recipes?
You may want to see also
Explore related products
Test Continuity: Use multimeter to check if thermostat shows continuity at freezing temperatures
A refrigerator defrost thermostat is a critical component that ensures your appliance cycles properly, preventing excessive frost buildup. Testing its continuity at freezing temperatures is a precise way to verify functionality, as this is the condition under which it should activate. Using a multimeter for this task provides an accurate reading, allowing you to diagnose whether the thermostat is operating as intended or needs replacement.
To begin, locate the defrost thermostat, typically found near the evaporator coils. Disconnect the power to the refrigerator to ensure safety during testing. Next, remove the thermostat from its mounting, taking care not to damage any surrounding components. Set your multimeter to the continuity or resistance setting, which measures the flow of electricity through the thermostat. At room temperature, the thermostat should show no continuity, as it remains closed to allow the refrigerator to cool.
Place the thermostat in a controlled environment, such as a freezer or a bowl of ice water, to simulate freezing temperatures. Allow it sufficient time to reach the target temperature—typically around 20°F (-6.7°C). Once cooled, touch the multimeter probes to the thermostat terminals. If the thermostat is functioning correctly, it should now show continuity, indicating the circuit is complete and the defrost cycle can initiate. A lack of continuity at this stage suggests a faulty thermostat.
When interpreting results, consider environmental factors that could affect accuracy. Ensure the thermostat is fully submerged or exposed to consistent cold, as partial cooling may yield inconclusive readings. Additionally, verify the multimeter is calibrated and functioning properly to avoid false diagnostics. This method not only confirms the thermostat’s ability to respond to temperature changes but also isolates its performance from other system variables, making it a reliable diagnostic tool.
In practice, testing continuity at freezing temperatures is a straightforward yet essential step in troubleshooting refrigerator defrost issues. It eliminates guesswork, saving time and potential costs associated with misdiagnosis. By mastering this technique, you gain the ability to pinpoint thermostat failures with confidence, ensuring your refrigerator operates efficiently and prolonging its lifespan.
Refrigerating Cologne: Benefits, Risks, and Proper Storage Tips
You may want to see also
Explore related products
Inspect for Damage: Look for physical damage, corrosion, or loose connections on the thermostat
Physical damage to a refrigerator defrost thermostat can render it ineffective, leading to prolonged defrost cycles or frost buildup. Begin by unplugging the refrigerator to ensure safety. Visually inspect the thermostat for cracks, burns, or warping in its housing. Even minor damage can compromise its ability to regulate temperature accurately. If the thermostat’s capillary tube—the thin, coiled tube connected to the sensing bulb—is kinked or severed, it will fail to detect temperature changes, necessitating replacement. Always compare the damaged part to a new one or consult the manufacturer’s diagram for reference.
Corrosion is another silent culprit that can disrupt thermostat functionality. Focus on the electrical contacts and terminals where the thermostat connects to the wiring harness. Corroded contacts appear discolored, pitted, or covered in a greenish residue. Use a multimeter to test continuity across these points; if the reading is erratic or nonexistent, corrosion is likely the cause. Clean the contacts gently with a mixture of baking soda and water or isopropyl alcohol, ensuring they are dry before reassembly. Persistent corrosion indicates a need for replacement to prevent recurring issues.
Loose connections are often overlooked but can cause intermittent defrosting problems. Check where the thermostat wires attach to the harness or control board. Gently tug on each wire to ensure they are securely seated. If a connection feels loose, reattach it firmly, but avoid over-tightening, which can strip the terminals. For clip-on thermostats, ensure the clip is snugly attached to the evaporator coil; a loose clip can lead to inaccurate temperature readings. Regularly inspecting these connections during routine maintenance can prevent sudden failures.
A systematic approach to damage inspection involves three steps: visual examination, functional testing, and environmental assessment. Start with a visual check for physical damage and corrosion, followed by a multimeter test for continuity and resistance. Finally, evaluate the thermostat’s environment—excessive moisture or proximity to heat sources can accelerate wear. For instance, a thermostat near a heating vent may give false readings, mimicking a faulty part. Addressing these environmental factors alongside physical damage ensures a comprehensive diagnosis.
Practical tips can streamline the inspection process. Keep a flashlight handy to illuminate hard-to-see areas, and use a magnifying glass to spot subtle cracks or corrosion. Label wires before disconnecting them to avoid confusion during reassembly. If the thermostat is mounted in a tight space, consider taking a photo before disassembly for reference. For older refrigerators, consult online forums or repair manuals specific to your model, as thermostat designs can vary significantly. These small precautions save time and reduce the risk of further damage during inspection.
Understanding Refrigerant Quantity in a 25-Pound Tank: A Comprehensive Guide
You may want to see also
Frequently asked questions
A refrigerator defrost thermostat is a temperature-sensitive switch that controls the defrost cycle by turning the heater on and off. Testing it ensures it functions correctly, preventing issues like excessive frost buildup or failure to defrost, which can affect cooling efficiency.
To test for continuity, remove the thermostat from the refrigerator, disconnect its wires, and set a multimeter to the continuity or resistance setting. Touch the probes to the thermostat terminals. At room temperature, it should show continuity (low resistance). When cooled below its setpoint, it should open (no continuity).
You’ll need a multimeter to check continuity or resistance, a refrigerator thermometer or ice to simulate cold temperatures, and possibly a hairdryer or warm water to simulate room temperature. Basic hand tools may be required to access the thermostat.
Signs include excessive frost buildup in the freezer, water leakage due to prolonged defrost cycles, or failure to defrost at all. If the thermostat fails to open or close at the correct temperature, it may need replacement. Testing confirms the issue before replacing parts.
