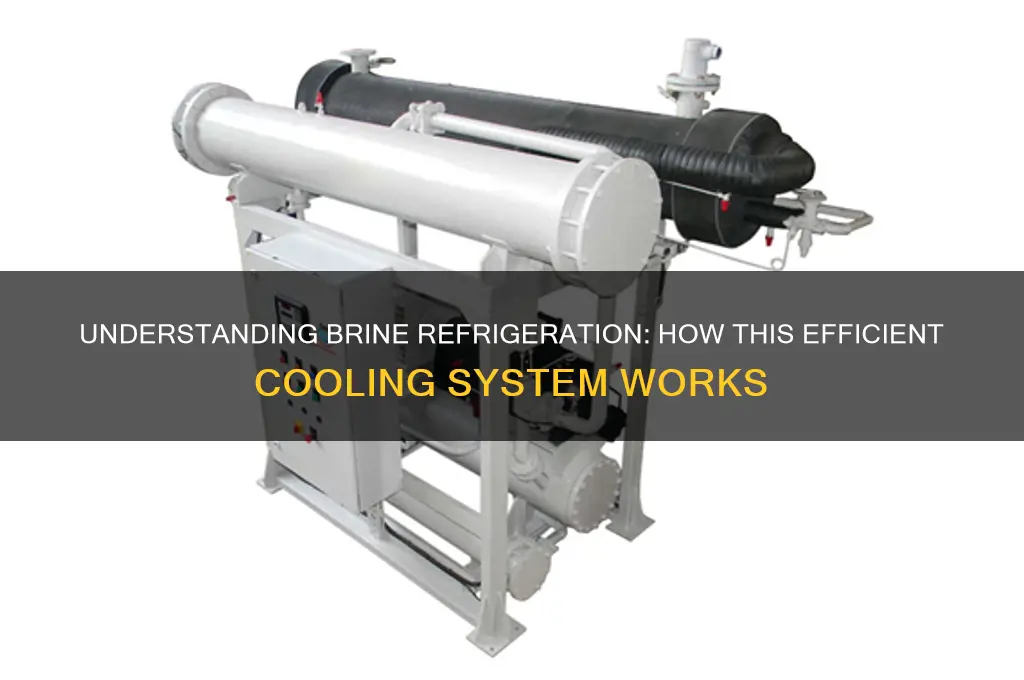

A brine refrigeration system operates by utilizing a brine solution, typically a mixture of water and salt or other antifreeze agents, as a secondary refrigerant to transfer thermal energy between the primary refrigerant and the cooling load. The process begins with the primary refrigerant, such as ammonia or a synthetic refrigerant, evaporating at low temperatures in the evaporator, absorbing heat from the brine. The chilled brine then circulates through a distribution system, cooling the desired space or product. After releasing its heat, the brine returns to the evaporator to be cooled again, while the primary refrigerant is compressed, condensed, and recycled in a closed loop. This system is highly efficient for large-scale cooling applications, such as in food processing or cold storage, as it minimizes the risk of refrigerant leaks and allows for precise temperature control.
Explore related products
What You'll Learn
- Compression Process: Compressing refrigerant gas increases pressure and temperature, initiating the refrigeration cycle
- Condensation Phase: Hot refrigerant condenses into liquid in the condenser, releasing heat to the environment
- Expansion Valve Role: Liquid refrigerant expands, drops in pressure, and cools before entering the evaporator
- Evaporation Cycle: Liquid refrigerant absorbs heat from brine, evaporates, and cools the system
- Brine Circulation: Brine solution transfers cold temperatures to the load, maintaining desired refrigeration levels
Compression Process: Compressing refrigerant gas increases pressure and temperature, initiating the refrigeration cycle
The compression process is the heartbeat of any brine refrigeration system, and it begins with the refrigerant gas entering the compressor. Here, the gas is compressed, a mechanical action that significantly increases its pressure and temperature. This transformation is not merely a physical change but a critical step that sets the entire refrigeration cycle in motion. The compressor, often a reciprocating, rotary, or screw type, is designed to handle specific volumes of gas, ensuring efficiency and reliability. For instance, a typical industrial compressor might operate at a suction pressure of 2-3 bar and discharge the gas at 8-12 bar, depending on the system’s requirements. This pressure increase is essential because it allows the refrigerant to release heat effectively in the subsequent stages.
Consider the analogy of squeezing a sponge filled with water. As you compress it, the water is forced out, and the sponge becomes denser. Similarly, compressing the refrigerant gas forces it into a higher energy state, making it ready to release heat. This process is governed by the principles of thermodynamics, specifically the ideal gas law, which states that pressure and temperature are directly proportional when volume is constant. In practical terms, this means that the compressor’s work is directly translated into the refrigerant’s ability to carry and reject heat, a cornerstone of the refrigeration cycle.
One of the key challenges in the compression process is managing the heat generated. As the refrigerant is compressed, its temperature can rise to 80-100°C or higher, depending on the system design. This heat must be dissipated efficiently to prevent damage to the compressor and ensure the refrigerant can condense effectively in the next stage. Most systems achieve this through air-cooled or water-cooled condensers, which transfer the heat to the surrounding environment. For example, in a brine refrigeration system used in food processing, the compressor might be paired with a water-cooled condenser to maintain optimal operating temperatures, even under heavy loads.
To optimize the compression process, it’s crucial to match the compressor’s capacity to the system’s demands. Oversized compressors can lead to short-cycling, reducing efficiency and increasing wear, while undersized units may struggle to meet cooling requirements. A rule of thumb is to select a compressor with a capacity 10-15% higher than the peak load to account for inefficiencies and future expansion. Additionally, regular maintenance, such as checking for refrigerant leaks and ensuring proper lubrication, can extend the compressor’s lifespan and maintain system performance.
In conclusion, the compression process is a delicate balance of physics and engineering, where the precise control of pressure and temperature drives the refrigeration cycle. By understanding the mechanics and challenges of this stage, operators can ensure their brine refrigeration systems operate efficiently, reliably, and sustainably. Whether in industrial cooling, food preservation, or HVAC applications, mastering the compression process is key to unlocking the full potential of any refrigeration system.
Is 28 Too Late to Start Learning HVAC and Refrigeration?
You may want to see also
Explore related products
Condensation Phase: Hot refrigerant condenses into liquid in the condenser, releasing heat to the environment
The condensation phase is a critical step in the brine refrigeration cycle, where the hot, high-pressure refrigerant gas transitions into a liquid state, shedding excess heat in the process. This transformation occurs within the condenser, a heat exchanger designed to facilitate efficient heat transfer from the refrigerant to the surrounding environment. As the refrigerant condenses, its temperature drops significantly, preparing it for the next stage of the cycle. This phase is essential for maintaining the system's efficiency, as it ensures the refrigerant is in the correct state to absorb heat from the brine solution later on.
Consider the condenser as the system's radiator, analogous to the cooling system in a car. Just as a car’s radiator dissipates heat from the engine, the condenser releases heat from the refrigerant to the ambient air or a cooling medium like water. For instance, in large industrial brine systems, water-cooled condensers are often used, where a continuous flow of water absorbs the heat from the refrigerant. The effectiveness of this process depends on factors like the condenser’s design, the flow rate of the cooling medium, and the temperature differential between the refrigerant and the environment. Proper maintenance, such as cleaning condenser coils to prevent dust buildup, is crucial to ensure optimal heat rejection.
From a practical standpoint, the condensation phase directly impacts the overall performance of the brine refrigeration system. If the condenser fails to release heat efficiently, the refrigerant’s pressure and temperature remain elevated, reducing the system’s cooling capacity. For example, in a dairy processing plant using a brine refrigeration system, inadequate condensation could lead to inconsistent cooling of milk storage tanks, compromising product quality. To mitigate this, operators should monitor condenser performance regularly, ensuring that fans (in air-cooled systems) or water pumps (in water-cooled systems) are functioning correctly and that there are no obstructions to airflow or water flow.
A comparative analysis highlights the advantages of different condenser types in brine refrigeration systems. Air-cooled condensers are simpler to install and maintain, making them suitable for smaller applications, but they may struggle in high ambient temperatures. Water-cooled condensers, on the other hand, offer higher efficiency and better performance in extreme conditions, though they require a reliable water supply and additional maintenance to prevent scaling or corrosion. Evaporative condensers combine air and water cooling, providing a balance between efficiency and simplicity, often used in regions with moderate climates. Selecting the right condenser type depends on the specific application, environmental conditions, and operational constraints.
In conclusion, the condensation phase is a cornerstone of brine refrigeration systems, enabling the refrigerant to transition from a high-energy gas to a liquid ready for the next cycle. By understanding the mechanics and nuances of this phase, operators can optimize system performance, reduce energy consumption, and ensure consistent cooling. Whether through regular maintenance, careful design choices, or the selection of appropriate condenser types, mastering the condensation phase is key to the longevity and efficiency of any brine refrigeration system.
Using a Compressor Refrigerator in Your RV: Benefits and Considerations
You may want to see also
Explore related products
![Baking Sheet with Rack Set [2 Pans + 2 Racks], Wildone Stainless Steel Cookie Sheet Baking Pan Tray with Cooling Rack, Size 10 x 8 x 1 Inch, Non Toxic & Heavy Duty & Easy Clean](https://m.media-amazon.com/images/I/81G5KnqKFwL._AC_UL320_.jpg)
Expansion Valve Role: Liquid refrigerant expands, drops in pressure, and cools before entering the evaporator
The expansion valve is a critical component in a brine refrigeration system, acting as the gatekeeper for refrigerant flow and pressure control. Its primary function is to regulate the transition of liquid refrigerant from the high-pressure side to the low-pressure side of the system. As the liquid refrigerant passes through the expansion valve, it undergoes a rapid reduction in pressure, which causes it to expand and cool significantly. This process is essential for the refrigerant to absorb heat effectively in the evaporator.
Consider the thermodynamic principles at play: when a liquid expands, it requires energy, which it draws from its surroundings in the form of heat. In this case, the refrigerant absorbs latent heat from the brine solution as it evaporates, thereby cooling the brine. For instance, in a typical ammonia-based brine system, the refrigerant might enter the expansion valve at a temperature of 10°C (50°F) and a pressure of 15 bar, only to exit at -15°C (5°F) and a pressure of 2 bar. This dramatic drop in temperature and pressure is precisely what enables the refrigerant to perform its cooling function in the evaporator.
From a practical standpoint, selecting the correct expansion valve is crucial for system efficiency. Thermostatic expansion valves (TXVs) are commonly used due to their ability to self-adjust based on evaporator load and superheat. For example, in a system designed to maintain a brine temperature of -10°C (14°F), a TXV ensures that the refrigerant enters the evaporator at the optimal degree of subcooling, typically around 5°C (9°F) below its saturation temperature. This precision minimizes energy waste and prevents issues like liquid slugging or insufficient cooling capacity.
However, improper sizing or calibration of the expansion valve can lead to inefficiencies or system failures. For instance, an oversized valve may allow too much refrigerant to flow, resulting in low superheat and potential liquid carryover to the compressor. Conversely, an undersized valve restricts flow, leading to high superheat and reduced cooling capacity. Technicians should regularly check the superheat value—ideally between 5°C to 10°C (9°F to 18°F)—to ensure the valve is operating within its design parameters.
In summary, the expansion valve’s role in a brine refrigeration system is both precise and transformative. By controlling the pressure drop and cooling of the refrigerant, it enables the system to efficiently remove heat from the brine. Proper selection, installation, and maintenance of this component are vital to achieving optimal performance and energy efficiency. Whether in food processing, ice rinks, or chemical cooling applications, understanding and respecting the expansion valve’s function ensures the longevity and reliability of the entire refrigeration system.
Should You Refrigerate Vitamin C Serum? Storage Tips for Freshness
You may want to see also
Explore related products
Evaporation Cycle: Liquid refrigerant absorbs heat from brine, evaporates, and cools the system
The evaporation cycle is the heart of a brine refrigeration system, where the magic of heat transfer occurs. Imagine a scenario where a liquid refrigerant, such as ammonia or a hydrofluorocarbon (HFC), comes into contact with a brine solution, typically a mixture of water and glycol or salt. As the refrigerant absorbs heat from the brine, its temperature and pressure rise, causing it to evaporate. This phase change from liquid to vapor is crucial, as it enables the refrigerant to extract heat from the brine, thereby cooling it. In a typical system, the brine temperature might drop from 35°F (1.7°C) to 25°F (-3.9°C) during this process, making it ideal for applications like food processing or ice rink cooling.
To visualize this process, consider a heat exchanger where the brine flows through tubes surrounded by the liquid refrigerant. As the refrigerant evaporates, it creates a cooling effect on the brine, which then circulates to the area requiring refrigeration. For instance, in a brewery, the brine might cool fermentation tanks to maintain a precise temperature of 50°F (10°C). The efficiency of this cycle depends on factors like refrigerant type, brine concentration, and flow rates. A common refrigerant, R-404A, has a boiling point of -46.4°F (-43.6°C) at atmospheric pressure, making it effective for low-temperature applications. However, newer refrigerants like R-1234yf are gaining popularity due to their lower global warming potential.
From a practical standpoint, maintaining the evaporation cycle requires careful monitoring of pressure and temperature. The refrigerant’s evaporation pressure must be controlled to ensure optimal heat absorption. For example, in a system using calcium chloride brine, the refrigerant might operate at a suction pressure of 12-15 psig to achieve a brine temperature of 20°F (-6.7°C). Operators should regularly check for leaks, as even small refrigerant losses can reduce efficiency. Additionally, ensuring proper insulation of brine pipes minimizes heat gain, enhancing the system’s overall performance. For DIY enthusiasts, understanding this cycle is key to troubleshooting issues like inadequate cooling or high energy consumption.
Comparing this cycle to other refrigeration methods highlights its advantages. Unlike direct expansion systems, where refrigerant evaporates directly in the evaporator, brine systems offer better temperature control and uniformity. This is particularly useful in large-scale applications like cold storage warehouses, where maintaining consistent temperatures is critical. For instance, a brine system can deliver a more stable -10°F (-23.3°C) environment compared to a direct expansion system, which might fluctuate due to compressor cycling. However, brine systems require more components, such as pumps and secondary heat exchangers, making them more complex to install and maintain.
In conclusion, the evaporation cycle in a brine refrigeration system is a finely tuned process that leverages the principles of heat absorption and phase change. By understanding how liquid refrigerant evaporates to cool the brine, operators can optimize system performance and address issues effectively. Whether for industrial cooling or specialized applications, this cycle remains a cornerstone of modern refrigeration technology. Practical tips, such as monitoring pressure and using appropriate refrigerants, ensure the system operates efficiently, providing reliable cooling where it’s needed most.
How Long Does Organic Pumpkin Last in the Fridge?
You may want to see also
Explore related products
Brine Circulation: Brine solution transfers cold temperatures to the load, maintaining desired refrigeration levels
Brine circulation is the lifeblood of a brine refrigeration system, acting as the medium through which cold temperatures are efficiently transferred to the load. This process relies on a carefully formulated brine solution—typically a mixture of water and glycol or salt—that circulates through a network of pipes or heat exchangers. The brine’s low freezing point ensures it remains liquid even at subzero temperatures, allowing it to absorb and distribute cold energy effectively. For instance, in industrial food storage, a brine solution cooled to -10°C can maintain a freezer at -5°C by continuously circulating and extracting heat from the environment.
The effectiveness of brine circulation hinges on precise control of flow rates and temperature differentials. A well-designed system ensures the brine solution moves at an optimal speed—typically 1.5 to 2.5 meters per second—to maximize heat transfer without causing excessive pressure drop. Too slow, and the system becomes inefficient; too fast, and energy consumption spikes. For example, in a dairy processing plant, a brine solution circulating at 2 meters per second can cool 500 liters of milk from 20°C to 4°C in under 30 minutes, maintaining product quality and safety.
Practical implementation of brine circulation requires attention to maintenance and monitoring. Over time, brine solutions can degrade due to evaporation, contamination, or chemical imbalance, reducing their thermal efficiency. Regular testing of brine concentration—ideally every 3–6 months—ensures the solution remains within the optimal range (e.g., 20–30% glycol for most applications). Additionally, strainers and filters should be installed to prevent debris from clogging the system, and pumps must be inspected annually to avoid failures that could disrupt refrigeration.
Comparatively, brine circulation offers distinct advantages over direct refrigeration systems, particularly in large-scale or multi-zone applications. Unlike direct systems, which require separate cooling units for each area, a brine system can distribute cold energy to multiple loads from a single chiller. This modularity reduces equipment costs and energy consumption, making it ideal for facilities like supermarkets or breweries. For instance, a single brine chiller can simultaneously cool a beer fermentation tank to 12°C and a cold storage room to 4°C, optimizing efficiency across diverse needs.
In conclusion, brine circulation is a cornerstone of effective refrigeration, blending science and practicality to maintain precise temperature control. By understanding its mechanics, optimizing flow rates, and adhering to maintenance protocols, operators can ensure their systems perform reliably and efficiently. Whether cooling perishable goods or industrial processes, the brine solution’s role in transferring cold temperatures underscores its indispensability in modern refrigeration technology.
Transform Your Old Fridge into a DIY Smoker: A Creative Guide
You may want to see also
Frequently asked questions
A brine refrigeration system uses a secondary refrigerant (brine, typically a water-glycol or salt solution) to transfer cold energy from the primary refrigerant (e.g., ammonia or CO2) to the load. Unlike traditional systems, it separates the primary refrigeration cycle from the end-use application, allowing for greater flexibility and efficiency in large-scale cooling.
The brine solution circulates through a closed-loop system, starting from the evaporator (where it is chilled by the primary refrigerant) and then distributed to the cooling load (e.g., heat exchangers, cold rooms, or process equipment). After absorbing heat, the warmed brine returns to the evaporator to be re-cooled, completing the cycle.
The key components include the primary refrigeration unit (compressor, condenser, evaporator), a brine circulation pump, a brine tank or reservoir, heat exchangers, and control systems to regulate temperature and flow.
Brine is used because it allows for precise temperature control, reduces the risk of contamination in food or process applications, and enables the primary refrigerant to operate at higher efficiency. It also minimizes the need for extensive piping of the primary refrigerant, reducing costs and safety risks.
Advantages include improved energy efficiency, better temperature control, reduced maintenance requirements, and the ability to handle large cooling loads. Brine systems are also versatile, suitable for applications like food processing, cold storage, and industrial cooling.
