Cody Casey

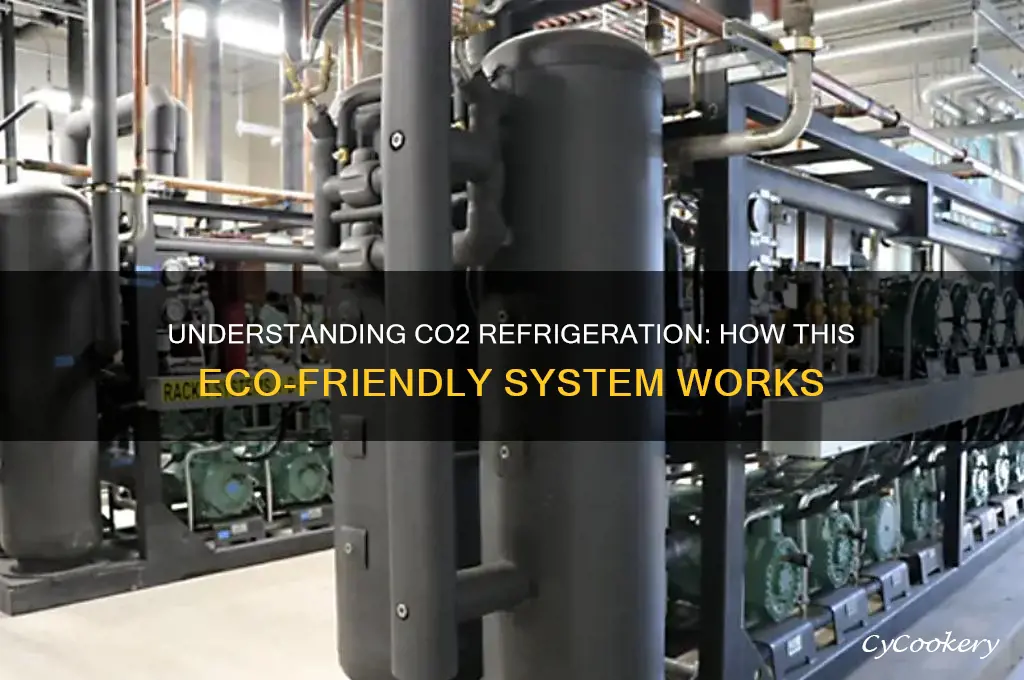

A CO2 refrigeration system, also known as a transcritical CO2 system, operates by utilizing carbon dioxide (CO2) as the primary refrigerant. Unlike traditional systems that rely on synthetic refrigerants, CO2 systems leverage the unique thermodynamic properties of CO2, which allow it to function efficiently under high-pressure conditions. The process begins with CO2 being compressed to a supercritical state, where it transitions from a gas to a high-pressure liquid-like state. This compressed CO2 is then cooled in a gas cooler, releasing heat to the environment. The cooled CO2 passes through an expansion valve, where it undergoes a rapid pressure drop, causing it to evaporate and absorb heat from the refrigeration space. The cold, low-pressure CO2 is then drawn back into the compressor, completing the cycle. This system is particularly advantageous for its environmental benefits, as CO2 has a low global warming potential (GWP) compared to conventional refrigerants, making it a sustainable choice for modern refrigeration applications.
Explore related products
What You'll Learn
- Compression Process: CO2 is compressed into a supercritical fluid, raising temperature and pressure significantly
- Condensation Phase: Heat is rejected, condensing CO2 into a high-pressure liquid state
- Expansion Mechanism: Liquid CO2 expands, rapidly cooling and becoming a low-pressure mixture
- Evaporation Cycle: CO2 absorbs heat, evaporating into gas, providing refrigeration effect
- System Control: Advanced controls manage pressure and temperature for optimal efficiency and safety
Compression Process: CO2 is compressed into a supercritical fluid, raising temperature and pressure significantly
The compression process is the heart of a CO2 refrigeration system, where carbon dioxide is transformed into a supercritical fluid, a state that combines properties of both gas and liquid. This phase change occurs when CO2 is subjected to pressures above 73.8 bar (1,070 psi) and temperatures exceeding 31.1°C (88°F), the critical point of CO2. At this stage, the fluid’s density and heat capacity become highly advantageous for heat transfer, making it an efficient medium for refrigeration. Unlike traditional refrigerants, CO2’s supercritical state allows it to absorb and release heat more effectively, particularly in high-temperature environments, such as commercial or industrial cooling applications.
To achieve this transformation, CO2 is drawn into a compressor, typically a multi-stage or booster design, where it is compressed to pressures ranging from 80 to 120 bar (1,160 to 1,740 psi). During compression, the temperature rises dramatically, often reaching 100°C (212°F) or higher, depending on the system’s design and ambient conditions. This high-pressure, high-temperature CO2 is then directed to a gas cooler, where it releases heat to the surroundings, cooling down while remaining in a supercritical state. The efficiency of this process is critical, as it directly impacts the system’s coefficient of performance (COP) and overall energy consumption.
One of the key advantages of compressing CO2 into a supercritical fluid is its ability to operate efficiently in transcritical cycles, where the refrigerant never condenses into a liquid. Instead, it transitions directly from the supercritical state to a lower-pressure, lower-temperature state in the evaporator. This eliminates the need for a separate condensation process, simplifying system design and reducing the risk of pressure drops. However, this also requires precise control of the expansion process to ensure optimal heat absorption in the evaporator, typically operating at pressures around 60 bar (870 psi).
Practical implementation of this compression process demands careful consideration of equipment selection and system design. Compressors must be robust enough to handle the high pressures involved, often requiring specialized materials and lubrication systems. Additionally, the gas cooler must be designed to effectively dissipate the significant heat generated during compression, which can be achieved through the use of large heat exchange surfaces or hybrid cooling systems. For optimal performance, engineers often incorporate variable-speed drives to modulate compressor output based on cooling demand, ensuring energy efficiency across varying load conditions.
In summary, the compression of CO2 into a supercritical fluid is a cornerstone of its refrigeration cycle, leveraging unique thermodynamic properties to achieve high efficiency and performance. While the process presents engineering challenges, such as managing extreme pressures and temperatures, its benefits—including superior heat transfer capabilities and compatibility with high-temperature applications—make it a compelling choice for modern refrigeration systems. By mastering this process, designers can unlock the full potential of CO2 as a sustainable and effective refrigerant.
Refrigerated Cassava: Safe to Eat or Toss? Expert Tips Inside
You may want to see also
Explore related products
Condensation Phase: Heat is rejected, condensing CO2 into a high-pressure liquid state
The condensation phase is a critical juncture in the CO2 refrigeration cycle, where the system transitions from managing gas to handling liquid. Here, the high-temperature, high-pressure CO2 vapor exiting the compressor encounters a cooler environment, typically within the gas cooler or condenser. This temperature differential forces the CO2 to release its latent heat, a process that transforms it from a gaseous to a liquid state. The efficiency of this phase is paramount, as it directly impacts the overall performance and energy consumption of the refrigeration system.
Consider the gas cooler, a component specifically designed for CO2 systems due to its ability to handle the unique thermodynamic properties of this refrigerant. Unlike traditional condensers, the gas cooler operates at transcritical conditions, meaning the CO2 does not change phase at a constant temperature but rather over a range. For instance, at a critical point of 31°C (87.8°F) and 73.8 bar, CO2 transitions from gas to a high-pressure liquid. To optimize this process, engineers often employ strategies such as increasing the surface area of the heat exchanger or using advanced fin designs to enhance heat transfer. A well-designed gas cooler can reduce the discharge temperature of the CO2, minimizing the risk of overheating and improving system longevity.
From a practical standpoint, maintaining the correct operating pressure during the condensation phase is essential. For CO2 systems, this typically ranges between 60 to 90 bar, depending on ambient conditions. If the pressure drops too low, the CO2 may not fully condense, leading to inefficient cooling. Conversely, excessive pressure can strain the system components, potentially causing mechanical failure. Technicians should regularly monitor pressure levels using precision gauges and adjust the system accordingly. For example, in a supermarket refrigeration setup, a pressure drop below 70 bar during peak hours might necessitate recalibrating the expansion valve or checking for leaks in the gas cooler.
A comparative analysis highlights the advantages of CO2 refrigeration systems in this phase. Unlike synthetic refrigerants, CO2 has a lower global warming potential (GWP) and is non-toxic, making it an environmentally friendly choice. However, its operation at high pressures requires robust components and meticulous maintenance. For instance, while a traditional R-410A system operates at around 15-20 bar, a CO2 system operates at pressures three to four times higher. This necessitates the use of thicker-walled pipes, high-pressure rated valves, and specialized lubricants. Despite the initial investment, the long-term benefits, including reduced carbon footprint and compliance with stringent environmental regulations, make CO2 systems a compelling option for modern refrigeration applications.
In conclusion, the condensation phase in a CO2 refrigeration system is a complex yet highly efficient process that hinges on precise heat rejection and pressure management. By understanding the thermodynamic principles and practical considerations involved, operators can ensure optimal performance and sustainability. Whether in large-scale industrial applications or smaller commercial setups, mastering this phase is key to unlocking the full potential of CO2 as a refrigerant.
Should You Refrigerate Apple Cider Vinegar? Storage Tips Revealed
You may want to see also
Explore related products
Expansion Mechanism: Liquid CO2 expands, rapidly cooling and becoming a low-pressure mixture
Liquid CO2, when subjected to a sudden drop in pressure, undergoes a dramatic transformation that lies at the heart of its refrigeration potential. This process, known as expansion, is a key step in the CO2 refrigeration cycle. Imagine a sealed container filled with liquid CO2 at high pressure. When a valve is opened, allowing the CO2 to flow into a lower-pressure environment, it rapidly expands. This expansion requires energy, which is drawn from the surrounding environment in the form of heat.
As a result, the CO2 itself cools significantly, often dropping to temperatures well below freezing. This principle, known as the Joule-Thomson effect, is the driving force behind the cooling power of CO2 refrigeration systems.
The expansion process doesn't just cool the CO2; it also transforms its state. The high-pressure liquid CO2, upon expansion, becomes a mixture of vapor and liquid, often referred to as a two-phase mixture. This low-pressure mixture is crucial for efficient heat absorption in the evaporator stage of the refrigeration cycle. The large surface area created by the vapor-liquid interface allows for rapid heat transfer from the refrigerated space to the CO2, effectively chilling the desired area.
Understanding the precise control of this expansion process is vital for optimizing the performance of CO2 refrigeration systems. Factors like the initial pressure and temperature of the liquid CO2, the expansion valve design, and the desired cooling capacity all play a role in determining the ideal expansion conditions.
While the expansion mechanism is fundamental to CO2 refrigeration, it's important to consider the practical implications. Expansion valves, the components responsible for controlling the pressure drop, come in various types, each with its own advantages and disadvantages. Thermostatic expansion valves, for example, offer precise control based on temperature, while electronic expansion valves provide greater flexibility and can be integrated with advanced control systems. Selecting the appropriate valve type depends on factors like system size, required accuracy, and cost considerations.
Regular maintenance of expansion valves is crucial to ensure optimal performance and prevent issues like frosting or inefficient cooling.
The beauty of the CO2 expansion mechanism lies in its simplicity and environmental friendliness. Unlike traditional refrigerants, CO2 is a natural substance with a low global warming potential. Its unique properties allow for efficient cooling without contributing significantly to climate change. By harnessing the power of expansion, CO2 refrigeration systems offer a sustainable and effective solution for a wide range of cooling applications, from supermarkets and cold storage facilities to heat pumps and even some industrial processes.
Does Pop Century Resort Have Refrigerators? A Complete Guide
You may want to see also
Explore related products
Evaporation Cycle: CO2 absorbs heat, evaporating into gas, providing refrigeration effect
CO2 refrigeration systems leverage a unique evaporation cycle that hinges on the ability of CO2 to absorb heat and transition from liquid to gas, creating a cooling effect. This process begins when liquid CO2, under specific pressure and temperature conditions, encounters a heat source. As it absorbs thermal energy, the CO2 molecules gain enough kinetic energy to break free from their liquid state, evaporating into a gas. This phase change is the cornerstone of the refrigeration effect, as it efficiently removes heat from the surrounding environment.
To understand this cycle, consider the role of pressure in CO2 systems. Unlike traditional refrigerants, CO2 operates at significantly higher pressures, often exceeding 80 bar in transcritical cycles. This high-pressure environment allows CO2 to remain in a supercritical state during parts of the cycle, where it exhibits both gas and liquid properties. However, during evaporation, the focus is on the liquid-to-gas transition, which occurs at the evaporator. Here, the CO2 absorbs heat from the refrigerated space, causing it to evaporate and produce a cooling effect. For optimal performance, the evaporator must be designed to handle CO2’s unique thermodynamic properties, ensuring efficient heat transfer without compromising system integrity.
A critical aspect of this evaporation cycle is the temperature differential required for CO2 to absorb heat effectively. In subcritical systems, evaporation typically occurs at temperatures between -20°C and 0°C, depending on the application. For instance, in supermarket refrigeration, the evaporating temperature is often set around -10°C to maintain product freshness. In transcritical systems, where CO2 operates above its critical point (31.1°C), the evaporation process is more complex, requiring precise control to maximize cooling efficiency. Engineers must account for these temperature ranges when designing CO2 refrigeration systems to ensure the evaporation cycle aligns with the desired cooling requirements.
Practical implementation of this cycle demands careful consideration of system components and operating conditions. For example, the expansion valve plays a pivotal role in regulating the flow of liquid CO2 into the evaporator, controlling the pressure drop that facilitates evaporation. Additionally, the use of parallel compressors and gas coolers in transcritical systems helps manage the high pressures and temperatures associated with CO2. Technicians should monitor these components regularly, ensuring they operate within specified parameters to maintain the efficiency of the evaporation cycle. By optimizing these elements, CO2 refrigeration systems can achieve superior cooling performance while minimizing energy consumption.
In conclusion, the evaporation cycle in CO2 refrigeration systems is a testament to the versatility of CO2 as a refrigerant. Its ability to absorb heat and evaporate into a gas provides a robust refrigeration effect, making it an attractive option for sustainable cooling solutions. Whether in subcritical or transcritical applications, understanding the nuances of this cycle—from pressure and temperature requirements to component design—is essential for harnessing CO2’s full potential. As the industry continues to prioritize eco-friendly alternatives, mastering the evaporation cycle will remain a key focus for engineers and technicians alike.
Refrigerating Egg Whites: Optimal Storage Time and Safety Tips
You may want to see also
Explore related products
System Control: Advanced controls manage pressure and temperature for optimal efficiency and safety
In CO₂ refrigeration systems, precise control of pressure and temperature is critical to achieving both efficiency and safety. Advanced control systems leverage real-time data and algorithms to modulate these variables, ensuring the system operates within optimal parameters. For instance, transcritical CO₂ systems require tight control of the gas cooler’s discharge pressure, which fluctuates with ambient temperatures. Without advanced controls, the system risks inefficiency or even damage. These controls continuously monitor conditions, adjusting compressor speeds, expansion valves, and other components to maintain performance while minimizing energy consumption.
Consider the role of pressure control in a transcritical CO₂ cycle. When ambient temperatures rise, the discharge pressure increases, reducing the system’s cooling capacity. Advanced controls counteract this by modulating the compressor’s speed or activating parallel circuits to stabilize pressure. For example, a system operating at 100 bar discharge pressure in summer might reduce compressor speed by 20% to maintain efficiency. Similarly, temperature control is vital during the evaporation phase, where maintaining a precise evaporating temperature ensures optimal heat transfer. Deviations of as little as 1°C can reduce efficiency by 2–3%, making precise control indispensable.
Safety is another critical aspect managed by advanced controls. CO₂ systems operate under high pressures, reaching up to 120 bar in transcritical cycles. Pressure relief valves and safety shutdowns are integrated into the control system to prevent over-pressurization. For instance, if the discharge pressure exceeds 90% of the safety limit (e.g., 108 bar), the control system automatically reduces compressor capacity or shuts down the system. Temperature controls also play a safety role by preventing thermal shocks or freezing in evaporators, which can occur if the evaporating temperature drops below -30°C.
Practical implementation of these controls involves integrating sensors, actuators, and a programmable logic controller (PLC). Sensors measure pressure, temperature, and flow rates at critical points, feeding data to the PLC. The PLC executes control algorithms, such as PID (Proportional-Integral-Derivative) controllers, to adjust system parameters in real time. For example, a PID controller might modulate an electronic expansion valve to maintain a superheat of 5–10°C at the evaporator outlet, ensuring efficient heat absorption without risking liquid floodback to the compressor.
The takeaway is clear: advanced controls are not optional in CO₂ refrigeration systems—they are essential. By dynamically managing pressure and temperature, these controls optimize energy efficiency, extend system lifespan, and ensure safe operation. For operators, investing in robust control systems and regular calibration of sensors pays dividends in reduced energy costs and minimized downtime. Whether in supermarkets, industrial plants, or district cooling systems, the precision of advanced controls transforms CO₂ refrigeration from a technical challenge into a sustainable, high-performance solution.
Baking Refrigerated Bread Dough: Tips for Perfect Homemade Loaves
You may want to see also
Frequently asked questions
A CO2 refrigeration system operates using carbon dioxide (CO2) as the refrigerant. It follows the standard refrigeration cycle: compression, condensation, expansion, and evaporation. CO2 is compressed into a supercritical fluid, then cooled and condensed into a liquid. It expands through an expansion valve, evaporates by absorbing heat, and the cycle repeats.
CO2 refrigeration systems differ from traditional systems (e.g., R-410A or R-134a) because CO2 operates at higher pressures and requires specialized components like robust compressors and heat exchangers. Additionally, CO2 is a natural refrigerant with low global warming potential (GWP), making it environmentally friendly.
CO2 refrigeration systems offer several benefits, including high energy efficiency, especially in cold climates, and a minimal environmental impact due to CO2's low GWP. They also perform well in both refrigeration and heat pump applications, making them versatile for various industries.
