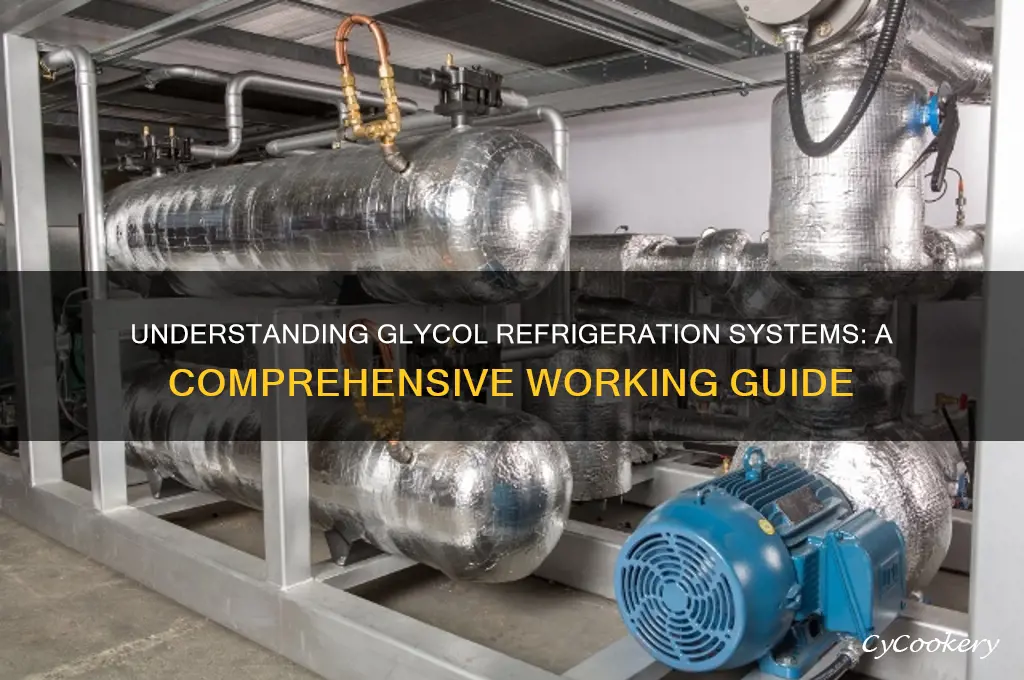

A glycol refrigeration system operates by circulating a mixture of water and glycol (typically propylene or ethylene glycol) through a closed-loop system to transfer heat and maintain precise temperature control. The glycol solution acts as a secondary refrigerant, absorbing heat from the space or product being cooled and carrying it to the refrigeration unit, where the heat is dissipated. The system consists of key components such as a chiller, pumps, evaporators, and a glycol reservoir. The chiller cools the glycol mixture, which is then pumped through the evaporators to extract heat from the target area. Glycol is used instead of water in applications requiring lower freezing points or where water-based systems are impractical, making it ideal for industries like food and beverage, brewing, and HVAC. Its efficiency and ability to maintain consistent temperatures make it a popular choice for specialized cooling needs.
| Characteristics | Values |
|---|---|
| System Overview | Uses glycol (typically propylene or ethylene glycol) as the secondary refrigerant to transfer heat from the load to the primary refrigerant. |
| Primary Components | Compressor, condenser, expansion valve, evaporator, glycol pump, heat exchanger, and glycol reservoir. |
| Glycol Type | Propylene glycol (non-toxic, food-safe) or ethylene glycol (toxic, used in industrial applications). |
| Glycol Concentration | Typically 30-50% glycol mixed with water to prevent freezing and maintain optimal heat transfer efficiency. |
| Temperature Range | Operates effectively between -20°C to 10°C (-4°F to 50°F), depending on glycol concentration. |
| Heat Transfer Mechanism | Glycol absorbs heat from the load (e.g., beverage lines, ice machines) and transfers it to the primary refrigerant in the heat exchanger. |
| Energy Efficiency | Less efficient than direct refrigeration systems due to the additional energy required to pump glycol. |
| Applications | Commonly used in breweries, restaurants, supermarkets, and cold storage facilities for cooling beverage lines, food displays, and more. |
| Maintenance Requirements | Regular monitoring of glycol concentration, pH levels, and system pressure; cleaning to prevent bacterial growth and corrosion. |
| Environmental Impact | Propylene glycol is environmentally friendly, while ethylene glycol is toxic and requires careful handling and disposal. |
| Cost | Higher initial and operational costs compared to direct refrigeration systems due to additional components and maintenance needs. |
| Advantages | Allows for longer piping runs, flexibility in system design, and the ability to cool multiple zones independently. |
| Disadvantages | Higher energy consumption, potential for glycol contamination, and increased maintenance requirements. |
Explore related products
What You'll Learn
- Glycol Solution Basics: Understanding the role and composition of glycol in refrigeration systems
- Heat Transfer Process: How glycol absorbs and releases heat in the refrigeration cycle
- System Components: Overview of pumps, evaporators, condensers, and expansion valves in glycol systems
- Temperature Control: Mechanisms for maintaining consistent temperatures using glycol solutions
- Applications: Common uses of glycol refrigeration in industries like food, brewing, and HVAC
Glycol Solution Basics: Understanding the role and composition of glycol in refrigeration systems
Glycol solutions are the lifeblood of many refrigeration systems, particularly those requiring precise temperature control over extended distances. At its core, a glycol solution is a mixture of water and glycol—typically ethylene glycol or propylene glycol—designed to lower the freezing point of water, prevent corrosion, and enhance heat transfer efficiency. This unique blend allows refrigeration systems to operate effectively in sub-zero temperatures without the risk of the coolant freezing and damaging the system.
Consider the composition: ethylene glycol, a toxic but highly effective variant, is commonly used in industrial settings due to its superior thermal properties and cost-efficiency. Propylene glycol, while slightly less efficient, is non-toxic and preferred in food and beverage applications where safety is paramount. The typical concentration of glycol in these solutions ranges from 20% to 50%, depending on the required freeze protection and system design. For instance, a 30% glycol solution provides protection down to -17°C (1.4°F), making it suitable for most commercial refrigeration needs.
The role of glycol extends beyond freeze prevention. It acts as a lubricant for pumps, reduces scaling by inhibiting mineral buildup, and enhances the overall longevity of the system. However, improper mixing or concentration can lead to inefficiencies. For example, a solution too dilute may freeze, while one too concentrated can increase viscosity, straining the pump and reducing heat transfer efficiency. Regular testing with a refractometer or hydrometer is essential to maintain optimal glycol levels, typically checked quarterly or after significant system changes.
When selecting a glycol solution, consider the application’s specific demands. For breweries or wineries, propylene glycol is non-negotiable to avoid contamination. In contrast, data centers or industrial chillers might prioritize ethylene glycol for its performance. Additionally, inhibitors—additives that protect against corrosion and microbial growth—are often included in pre-mixed solutions, ensuring system integrity. Always consult manufacturer guidelines for compatibility and dosage recommendations, as using the wrong type or concentration can void warranties or cause system failure.
In practice, maintaining a glycol system involves more than just monitoring concentration. Regularly inspect for leaks, ensure proper circulation to prevent stagnant zones, and flush the system periodically to remove debris. For outdoor applications, insulate pipes to minimize heat loss and protect against freezing. By understanding the composition and role of glycol, operators can optimize system performance, reduce downtime, and extend the lifespan of their refrigeration infrastructure.
Refrigerated Sweetened Condensed Milk: Shelf Life and Storage Tips
You may want to see also
Explore related products
Heat Transfer Process: How glycol absorbs and releases heat in the refrigeration cycle
Glycol refrigeration systems rely on the unique heat transfer capabilities of glycol solutions, typically a mixture of water and ethylene or propylene glycol. This mixture acts as a secondary refrigerant, absorbing and releasing heat as it circulates through the system. The process begins in the evaporator, where the glycol solution absorbs heat from the space or product being cooled. As the glycol warms, its temperature rises, but it remains in a liquid state due to its lowered freezing point, a critical advantage over water-only systems. This heat absorption is driven by the temperature differential between the glycol and the surrounding environment, with the glycol’s thermal conductivity facilitating efficient heat exchange.
The heated glycol solution then travels to the condenser, where it releases the absorbed heat to a cooling medium, often air or water. This phase change occurs as the glycol passes through coils or plates, maximizing surface area for heat dissipation. The effectiveness of this heat release depends on factors like flow rate, temperature difference, and the glycol concentration, which typically ranges from 20% to 50% by volume to balance freeze protection and heat transfer efficiency. For example, a 30% glycol solution can safely operate in temperatures as low as -18°C (0°F) while maintaining optimal heat transfer properties.
A critical aspect of glycol’s role in heat transfer is its ability to suppress freezing, preventing system damage in cold environments. However, this property must be balanced with its impact on viscosity and heat capacity. Higher glycol concentrations increase viscosity, which can reduce flow efficiency and require more powerful pumps. Conversely, lower concentrations improve flow but risk freezing at extreme temperatures. System designers must carefully select glycol concentration based on the application’s temperature range and heat load requirements.
Practical tips for optimizing glycol-based heat transfer include maintaining consistent flow rates to ensure even heat distribution and regularly monitoring glycol concentration to account for evaporation or dilution. For instance, in brewery cooling systems, a 35% glycol solution is often used to cool fermentation tanks, with flow rates adjusted to match the heat output of the fermentation process. Additionally, periodic testing of the glycol mixture’s inhibitor package is essential to prevent corrosion and maintain system longevity.
In summary, glycol’s heat transfer process in refrigeration systems hinges on its ability to absorb and release heat efficiently while remaining liquid at subzero temperatures. By understanding the interplay between glycol concentration, flow dynamics, and system design, operators can maximize cooling performance and reliability. Whether in food processing, HVAC, or industrial applications, glycol’s role as a heat transfer medium is indispensable for maintaining precise temperature control in demanding environments.
Does Sauerkraut Spoil Without Refrigeration? Storage Tips Revealed
You may want to see also
Explore related products
System Components: Overview of pumps, evaporators, condensers, and expansion valves in glycol systems
Glycol refrigeration systems rely on a quartet of essential components working in harmony: pumps, evaporators, condensers, and expansion valves. Each plays a distinct role in the cycle, ensuring efficient heat transfer and temperature control.
Let’s dissect their functions and interplay.
Pumps: The heart of the system, pumps circulate the glycol-water mixture through the entire loop. Centrifugal or positive- displacement pumps are commonly used, with selection based on flow rate, pressure requirements, and system size. Proper sizing is critical; undersized pumps lead to inadequate flow, while oversized ones waste energy. Regular maintenance, including checking for leaks and ensuring proper lubrication, is essential to prevent system downtime.
Evaporators: Here, the magic happens. Evaporators absorb heat from the space or product being cooled, causing the glycol mixture to evaporate. Plate heat exchangers or shell-and-tube designs are typical, chosen based on application and temperature differentials. Evaporator efficiency directly impacts system performance, so factors like fouling, scaling, and proper refrigerant charge must be meticulously managed.
Condensers: After absorbing heat, the vaporized glycol mixture travels to the condenser, where it’s cooled and condensed back into a liquid. Air-cooled or water-cooled condensers are common, with the latter offering higher efficiency in many cases. Condenser cleanliness is paramount; dirt and debris reduce heat transfer efficiency, increasing energy consumption. Regular cleaning and inspection are vital to maintain optimal performance.
Expansion Valves: These valves act as the system’s throttle, controlling the flow of liquid glycol into the evaporator. They also create a pressure drop, allowing the refrigerant to expand and evaporate at the desired temperature. Thermostatic expansion valves (TXVs) are widely used for their ability to self-adjust based on evaporator load. Proper valve sizing and calibration are crucial to prevent issues like flooding or starvation, which can damage the compressor.
In essence, these four components form a closed-loop symphony, each contributing to the system’s ability to efficiently transfer heat and maintain precise temperatures. Understanding their individual roles and interdependencies is key to designing, operating, and maintaining a reliable glycol refrigeration system.
Using Refrigerated Cookie Dough Past Expiration Date: Safe or Risky?
You may want to see also
Explore related products
Temperature Control: Mechanisms for maintaining consistent temperatures using glycol solutions
Glycol refrigeration systems excel at maintaining precise temperatures across diverse applications, from breweries to data centers, by leveraging the unique properties of glycol solutions. At the heart of this mechanism is the glycol mixture, typically a blend of water and either ethylene glycol or propylene glycol, which acts as the heat transfer fluid. This solution circulates through a closed-loop system, absorbing heat from the space or process that requires cooling and transporting it to a heat exchanger, where it is dissipated into the environment. The key to consistent temperature control lies in the glycol’s ability to remain liquid over a wide temperature range, preventing freezing in cold environments and maintaining efficiency in warmer conditions.
To achieve precise temperature control, glycol systems rely on a combination of components working in harmony. A pump circulates the glycol solution through the system, ensuring even heat distribution. Temperature sensors strategically placed throughout the loop monitor the fluid’s temperature, feeding real-time data to a control unit. This control unit adjusts the system’s operation based on setpoints, activating or deactivating components like chillers, heaters, or valves to maintain the desired temperature. For example, in a brewery, the glycol solution might be kept at a consistent 38°F (3°C) to chill fermenting beer, with the control system adjusting the flow rate or chiller output to compensate for ambient temperature fluctuations.
One critical aspect of glycol-based temperature control is the concentration of the glycol solution, which directly impacts its freezing point and heat transfer efficiency. A typical ethylene glycol solution is mixed at a ratio of 30-50% glycol to water, depending on the application’s temperature requirements. For instance, a 40% ethylene glycol solution lowers the freezing point to approximately -25°F (-32°C), making it suitable for sub-zero applications. However, higher glycol concentrations reduce the solution’s heat capacity, so balancing freezing protection with thermal efficiency is essential. Regular testing of the glycol mixture’s concentration and inhibitor levels ensures optimal performance and prevents system damage.
Practical implementation of glycol systems requires careful design and maintenance. Insulation of pipes and tanks minimizes heat loss, ensuring the glycol solution remains at the desired temperature as it travels through the system. Expansion tanks accommodate the thermal expansion of the glycol mixture, preventing pressure buildup. Additionally, periodic flushing and replacement of the glycol solution prevent bacterial growth and corrosion, which can degrade system efficiency. For instance, in a large-scale food processing facility, a scheduled maintenance plan might include quarterly inspections and annual glycol replacement to maintain hygiene and performance standards.
In conclusion, glycol refrigeration systems offer a robust solution for maintaining consistent temperatures by leveraging the thermal properties of glycol solutions and integrating precise control mechanisms. By carefully selecting glycol concentrations, designing efficient system layouts, and adhering to maintenance protocols, operators can ensure reliable temperature control across a wide range of applications. Whether cooling sensitive laboratory equipment or stabilizing temperatures in industrial processes, glycol systems provide the flexibility and precision needed to meet demanding thermal requirements.
Freezing or Refrigerating Dough After Rising: Best Practices Explained
You may want to see also
Explore related products
Applications: Common uses of glycol refrigeration in industries like food, brewing, and HVAC
Glycol refrigeration systems are indispensable in industries requiring precise temperature control, leveraging a mixture of water and glycol to efficiently transfer thermal energy. In the food industry, these systems are critical for preserving perishables like dairy, meat, and produce. For instance, glycol chillers maintain temperatures between 34°F and 38°F in cold storage facilities, ensuring products remain fresh without freezing. This is achieved by circulating a 30-40% propylene glycol solution, which prevents bacterial growth and extends shelf life. A key advantage is the system’s ability to operate in sub-zero environments without freezing, making it ideal for blast freezers and refrigerated transport.
The brewing industry relies heavily on glycol refrigeration for fermentation control, a process demanding temperature accuracy within ±1°F. Breweries use glycol chillers to cool fermentation tanks, stabilizing temperatures between 60°F and 70°F for ales or 45°F and 55°F for lagers. This precision ensures consistent flavor profiles and reduces batch spoilage. Additionally, glycol systems are used in bright tanks and serving lines to keep beer at optimal serving temperatures (38°F–45°F). Ethylene glycol is commonly used here due to its lower freezing point, though food-grade propylene glycol is preferred for safety in case of leaks.
In HVAC systems, glycol refrigeration plays a vital role in large-scale climate control, particularly in data centers and commercial buildings. Here, glycol mixtures are used in hydronic systems to prevent freezing in outdoor heat exchangers during winter, ensuring uninterrupted operation. A typical solution contains 25-30% glycol, providing freeze protection down to -20°F. This application is especially critical in northern climates, where traditional water-based systems would fail. The glycol’s corrosion-inhibiting additives also protect HVAC components, extending system lifespan.
Comparatively, glycol refrigeration offers versatility across industries, but its application requires careful consideration of glycol type and concentration. For instance, while ethylene glycol is more efficient, its toxicity makes it unsuitable for food and beverage applications. Propylene glycol, though less efficient, is safer and FDA-approved for food contact. Maintenance is another critical factor; systems must be regularly monitored for glycol concentration and inhibitor levels to prevent bacterial growth or corrosion. Properly managed, glycol refrigeration systems provide reliable, energy-efficient cooling tailored to the unique demands of each industry.
Refrigerating Chocolate Chip Cookie Dough: Tips for Freshness and Safety
You may want to see also
Frequently asked questions
A glycol refrigeration system uses a mixture of water and glycol (typically propylene glycol or ethylene glycol) as the heat transfer fluid instead of refrigerants like Freon. This system is designed to maintain lower temperatures over longer distances, making it ideal for applications like cooling beer lines, ice rinks, or food processing. Unlike traditional systems, glycol systems rely on a secondary loop to transport the coolant, allowing for more flexibility in cooling multiple points.
The system circulates the glycol mixture through a closed-loop system using a pump. The glycol absorbs heat from the area or product being cooled (e.g., beer kegs or ice rinks) and carries it to a heat exchanger, where the heat is transferred to a refrigerant (like Freon) in the primary refrigeration system. The cooled glycol is then recirculated back to the cooling points.
The glycol mixture acts as a secondary coolant, preventing freezing in the system while maintaining consistent temperatures. Glycol lowers the freezing point of water, allowing the solution to remain liquid at sub-zero temperatures. This ensures the system can operate efficiently without ice buildup, which could block flow and damage equipment.
Key components include a glycol chiller (to cool the glycol mixture), a pump (to circulate the glycol), a reservoir tank (to store and balance the glycol), a heat exchanger (to transfer heat from glycol to refrigerant), and supply/return lines (to distribute the glycol to cooling points). Temperature controls and sensors are also critical for monitoring and maintaining desired temperatures.
Regular maintenance includes checking glycol concentration (to ensure proper freeze protection and efficiency), inspecting pumps and valves for wear, cleaning or replacing filters, and monitoring for leaks. The glycol mixture should be tested annually and replaced every 2–5 years, depending on usage and system conditions. Proper maintenance ensures longevity and efficient operation.
