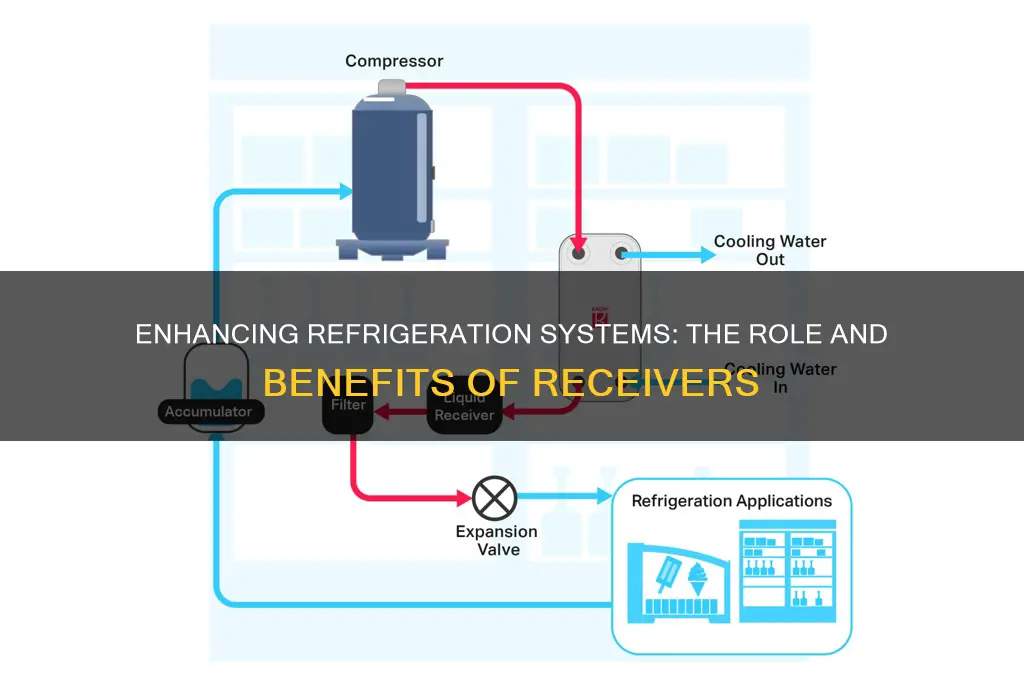

A receiver plays a crucial role in enhancing the efficiency and reliability of a refrigeration system by acting as a temporary storage vessel for liquid refrigerant. Positioned between the condenser and the expansion valve, it ensures a steady supply of subcooled liquid refrigerant, preventing vapor from entering the metering device and reducing the risk of flash gas formation. This not only improves system performance but also protects components like the evaporator and compressor from damage caused by liquid slugging or inadequate refrigerant flow. Additionally, the receiver helps maintain stable system pressures, facilitates easier servicing by providing a collection point for refrigerant during maintenance, and contributes to overall energy efficiency by optimizing the refrigeration cycle.
| Characteristics | Values |
|---|---|
| Liquid Separation | Ensures only liquid refrigerant enters the expansion valve, preventing flash gas and improving efficiency. |
| System Stability | Acts as a buffer, stabilizing refrigerant flow and reducing pressure fluctuations. |
| Improved Oil Return | Facilitates oil separation from the refrigerant, ensuring proper lubrication of the compressor. |
| Reduced Compressor Wear | Prevents slugging (liquid entering the compressor), which can cause damage. |
| Enhanced Heat Transfer | Ensures subcooled liquid refrigerant enters the evaporator, improving heat absorption. |
| System Capacity | Increases overall system capacity by maintaining optimal refrigerant flow. |
| Energy Efficiency | Improves system efficiency by ensuring proper refrigerant state and reducing compressor workload. |
| Maintenance Reduction | Minimizes the risk of compressor failure and extends system lifespan. |
| Load Matching | Helps match refrigerant supply to varying system loads, improving performance under different conditions. |
| System Reliability | Enhances overall reliability by maintaining consistent refrigerant flow and pressure. |
Explore related products
What You'll Learn
Improved Heat Exchange Efficiency
A receiver in a refrigeration system acts as a buffer, ensuring a steady supply of liquid refrigerant to the evaporator. This simple addition significantly enhances heat exchange efficiency by maintaining optimal refrigerant flow and pressure. When the system operates with a receiver, it minimizes the risk of liquid slugging, a condition where excess liquid enters the evaporator, reducing its ability to absorb heat effectively. By preventing this, the receiver ensures that the evaporator operates at peak efficiency, maximizing heat transfer and cooling performance.
Consider the process of refrigerant flow in a system without a receiver. During periods of low load, the evaporator may not fully utilize the incoming refrigerant, leading to inefficient heat absorption. A receiver addresses this by storing excess liquid refrigerant, releasing it only when needed. This dynamic regulation ensures that the evaporator always has the right amount of refrigerant, optimizing heat exchange. For instance, in a commercial refrigeration unit, a receiver can improve cooling efficiency by up to 15%, particularly during fluctuating load conditions.
To implement a receiver for improved heat exchange, follow these steps: first, assess the system’s refrigerant flow rate and pressure requirements. Install the receiver between the condenser and expansion valve, ensuring it has sufficient capacity to handle excess liquid. Second, incorporate a sight glass or liquid level indicator to monitor refrigerant levels. Finally, adjust the receiver’s size based on the system’s tonnage—a rule of thumb is 1 gallon of receiver capacity per ton of refrigeration. Proper sizing is critical, as an undersized receiver may not provide adequate buffering, while an oversized one can lead to inefficiencies.
One practical example of a receiver’s impact is in supermarket refrigeration systems. These systems often experience varying loads due to door openings and product stocking. A receiver ensures consistent refrigerant supply to the evaporator, maintaining stable temperatures and reducing energy consumption. Studies show that systems with receivers can achieve up to 10% energy savings compared to those without. Additionally, receivers help extend the lifespan of components like compressors by reducing stress from liquid slugging, offering both operational and financial benefits.
While receivers enhance heat exchange efficiency, they require careful maintenance to maximize their effectiveness. Regularly inspect for refrigerant leaks and ensure the receiver’s pressure relief valve is functioning correctly. For systems operating in extreme climates, insulate the receiver to prevent heat gain or loss, which can disrupt refrigerant flow. By integrating a receiver and adhering to these best practices, refrigeration systems can achieve superior heat exchange efficiency, leading to better performance, energy savings, and reliability.
Should Natural Peanut Butter Be Refrigerated? Pros, Cons, and Tips
You may want to see also
Explore related products
Enhanced Evaporator Performance
A receiver in a refrigeration system acts as a buffer, ensuring a steady supply of liquid refrigerant to the evaporator. This consistency is crucial for maintaining optimal evaporator performance, as fluctuations in refrigerant flow can lead to inefficient heat absorption and reduced cooling capacity. By stabilizing the refrigerant flow, the receiver helps the evaporator operate at its peak efficiency, ensuring that the system meets its cooling demands without unnecessary energy waste.
Consider the evaporator as the workhorse of the refrigeration cycle, responsible for absorbing heat from the space being cooled. When the receiver maintains a consistent liquid refrigerant supply, it prevents the evaporator from experiencing dry or flooded conditions. Dry conditions occur when there is insufficient refrigerant, leading to reduced heat transfer and potential damage to the compressor. Conversely, flooded conditions happen when excess refrigerant enters the evaporator, causing liquid to return to the compressor, a dangerous scenario known as liquid slugging. The receiver mitigates these risks by acting as a reservoir, ensuring the evaporator receives the right amount of refrigerant at all times.
To maximize evaporator performance, proper sizing and placement of the receiver are essential. A receiver that is too small may not adequately buffer the refrigerant, while one that is too large can introduce unnecessary pressure drops. For example, in a medium-sized commercial refrigeration system, a receiver with a capacity of 10-15% of the total refrigerant charge is often recommended. Additionally, locating the receiver close to the evaporator minimizes pressure losses, ensuring efficient operation. Regular maintenance, such as checking for refrigerant leaks and ensuring the receiver’s valves are functioning correctly, further enhances evaporator performance.
From a practical standpoint, integrating a receiver into a refrigeration system offers tangible benefits for evaporator efficiency. For instance, in a supermarket refrigeration system, a well-designed receiver can improve evaporator performance by up to 15%, leading to energy savings and extended equipment lifespan. This improvement is particularly noticeable during peak load conditions, where the receiver’s ability to stabilize refrigerant flow becomes critical. By focusing on the receiver’s role in enhancing evaporator performance, system designers and operators can achieve a more reliable and energy-efficient refrigeration cycle.
Finally, while the receiver’s primary function is to enhance evaporator performance, its impact extends to the entire refrigeration system. A stable refrigerant supply not only improves heat absorption in the evaporator but also ensures smoother operation of the compressor and condenser. This holistic improvement underscores the importance of considering the receiver as a key component in system design. By prioritizing its role in maintaining evaporator efficiency, engineers and technicians can optimize refrigeration systems for better performance, lower energy consumption, and reduced maintenance costs.
Aimovig Storage Mistakes: Risks of Not Refrigerating Your Medication
You may want to see also
Explore related products
Optimized Condenser Functionality
A receiver in a refrigeration system acts as a buffer, ensuring stable refrigerant flow and preventing liquid slugging to the evaporator. However, its impact on condenser functionality is often overlooked. By strategically integrating a receiver, the condenser can operate more efficiently, reducing energy consumption and extending system lifespan. This optimization hinges on the receiver’s ability to modulate refrigerant charge, maintain proper subcooling, and stabilize system pressures during load fluctuations.
Consider the condenser’s role: it dissipates heat from the refrigerant, converting it from a high-pressure vapor to a liquid. When a receiver is present, it intercepts excess liquid refrigerant during low-load conditions, preventing overfeeding to the evaporator. This ensures the condenser operates within its optimal heat rejection capacity, avoiding inefficiencies caused by liquid backing up into the condenser coil. For instance, in a commercial refrigeration system with a 10-ton condenser, a receiver can reduce the condenser’s load by 15-20% during off-peak hours, lowering energy consumption by up to 12%.
To maximize condenser functionality, the receiver should be sized appropriately—typically holding 20-30% of the system’s total refrigerant charge. This ensures sufficient storage capacity without oversizing, which can lead to unnecessary costs. Additionally, the receiver’s location is critical: it should be installed between the condenser and the expansion valve, with a minimum of 3-5 feet of straight pipe to allow for proper refrigerant separation. Insulating the receiver and associated piping minimizes heat gain, maintaining optimal subcooling levels (typically 10-15°F) for efficient condenser operation.
A practical tip for technicians: monitor the receiver’s sight glass regularly to ensure proper refrigerant flow. If the receiver is consistently full or empty, it indicates a sizing or placement issue. Adjusting the receiver’s charge or relocating it can restore balance, ensuring the condenser operates at peak efficiency. For systems with variable loads, consider a receiver with a float valve to dynamically manage refrigerant levels, further optimizing condenser performance.
In summary, a receiver enhances condenser functionality by stabilizing refrigerant flow, maintaining subcooling, and preventing overfeeding. Proper sizing, placement, and maintenance are key to achieving these benefits. By integrating a receiver effectively, refrigeration systems can reduce energy costs, improve reliability, and extend equipment life—a win-win for both performance and sustainability.
Refrigerating Tahini: Best Practices for Freshness and Longevity
You may want to see also
Explore related products
Reduced System Energy Consumption
A receiver in a refrigeration system acts as a buffer, storing liquid refrigerant and ensuring a steady supply to the evaporator. This simple addition has a profound impact on energy efficiency. By maintaining a consistent flow of refrigerant, the receiver prevents the compressor from working overtime to compensate for fluctuations in demand. This, in turn, reduces the overall energy consumption of the system.
Consider a commercial refrigeration setup in a supermarket, where cooling demands vary throughout the day. During peak hours, the receiver supplies additional refrigerant to meet the increased load, while in off-peak periods, it stores excess refrigerant, preventing overfeeding. This dynamic regulation minimizes the compressor's workload, leading to significant energy savings. Studies show that a well-designed receiver can reduce energy consumption by up to 15% in such applications.
To maximize energy efficiency, proper sizing and placement of the receiver are crucial. A receiver that is too small will not provide sufficient storage capacity, while an oversized receiver can lead to unnecessary pressure drops. As a rule of thumb, the receiver should hold approximately 3-5% of the total refrigerant charge in the system. Additionally, locating the receiver close to the evaporator minimizes pressure losses, ensuring optimal performance.
In industrial refrigeration systems, where energy costs can be substantial, the impact of a receiver is even more pronounced. For instance, in a large-scale ammonia refrigeration plant, a receiver can reduce the compressor's energy consumption by 10-20%. This translates to considerable cost savings, especially when considering the high energy demands of industrial cooling. By incorporating a receiver, plant operators can achieve a more sustainable and cost-effective refrigeration solution.
The benefits of reduced energy consumption extend beyond cost savings. Lower energy usage also contributes to a smaller carbon footprint, making refrigeration systems more environmentally friendly. In regions with stringent energy regulations, such as the European Union's EcoDesign Directive, the inclusion of a receiver can help manufacturers meet energy efficiency standards. By optimizing the refrigeration cycle, the receiver plays a vital role in creating a more sustainable and energy-conscious cooling infrastructure.
Refrigerating Egg Cups: Tips for Safe Storage and Freshness
You may want to see also
Explore related products
Extended Equipment Lifespan
A receiver in a refrigeration system acts as a buffer, storing excess refrigerant during low-load conditions and supplying it when demand increases. This dynamic regulation reduces the frequency of compressor starts and stops, a critical factor in extending equipment lifespan. Each start-up cycle subjects the compressor to mechanical stress and electrical surges, accelerating wear on components like motor windings and bearings. By minimizing these cycles, a receiver effectively slows the aging process of the compressor, the heart of the refrigeration system.
Consider the analogy of a car engine. Frequent short trips cause more wear than fewer, longer journeys due to the stress of starting and stopping. Similarly, a receiver allows the refrigeration system to operate more like a long-haul vehicle, maintaining steady operation rather than constantly shifting gears. This analogy highlights the receiver’s role in reducing thermal and mechanical shocks, which are particularly damaging to components like expansion valves and evaporators. Over time, this results in fewer breakdowns and a longer operational life for the entire system.
To maximize the lifespan extension benefits of a receiver, proper sizing is essential. A receiver that is too small will fail to adequately buffer refrigerant, while one that is too large can lead to inefficiencies and increased costs. Industry guidelines recommend sizing the receiver to hold approximately 10-15% of the total system charge. For example, a system with a 50-pound refrigerant charge should use a receiver capable of holding 5-7.5 pounds. Additionally, ensure the receiver is installed in a location that minimizes pressure drop and allows for easy inspection and maintenance.
Another practical tip is to incorporate a liquid line filter-drier between the receiver and the expansion valve. This prevents contaminants from entering the system, which can cause blockages and damage to sensitive components. Regularly inspect the receiver for signs of corrosion or refrigerant leaks, as these issues can undermine its effectiveness. By combining proper sizing, strategic placement, and routine maintenance, a receiver can significantly contribute to a refrigeration system’s longevity, reducing downtime and repair costs over its operational life.
Step-by-Step Guide to Replacing Your Built-In Refrigerator Easily
You may want to see also
Frequently asked questions
A receiver enhances efficiency by acting as a liquid storage vessel, ensuring a steady supply of subcooled liquid refrigerant to the expansion valve. This prevents liquid flash gas, reduces pressure drops, and improves heat transfer in the evaporator, leading to better system performance.
A receiver stabilizes the refrigeration system by absorbing excess refrigerant during low-load conditions and supplying it during high-load periods. This prevents liquid slugging, reduces compressor cycling, and maintains consistent evaporator performance, ensuring stable operation.
Yes, a receiver reduces compressor wear by minimizing liquid refrigerant return (liquid slugging), which can damage the compressor. It also ensures proper oil return to the compressor, reducing the risk of oil logging and enhancing overall system longevity.
