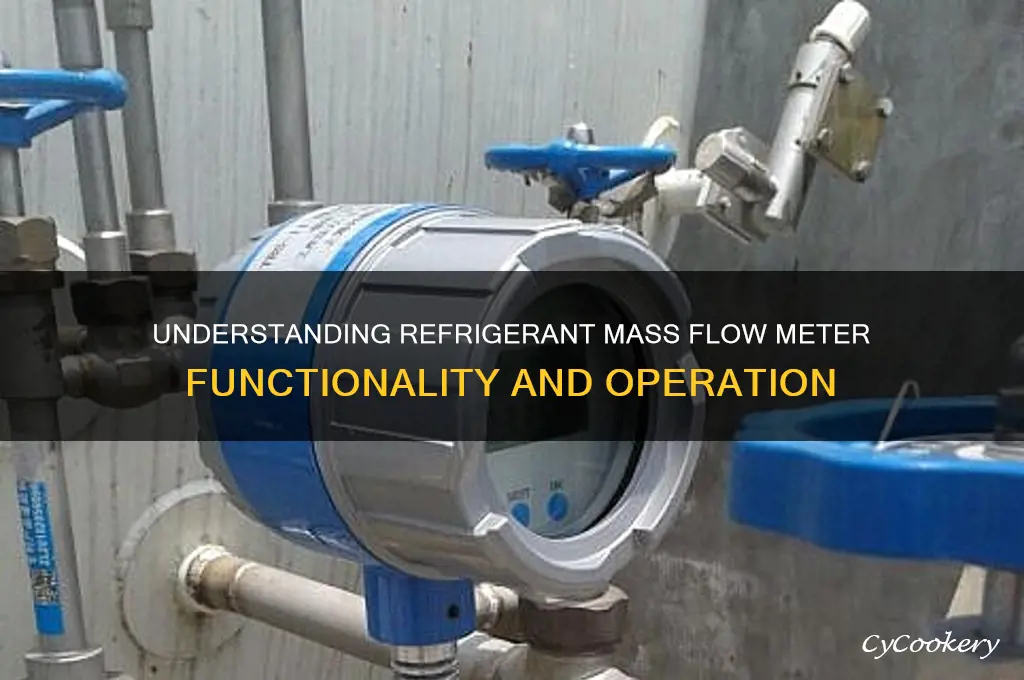

A refrigerant mass flow meter is a critical device used in HVAC and refrigeration systems to accurately measure the mass flow rate of refrigerants, ensuring optimal system performance and energy efficiency. It operates by utilizing principles such as thermal dispersion, Coriolis force, or differential pressure to determine the mass of refrigerant passing through a pipe. In thermal dispersion meters, for example, a heated sensor is placed in the refrigerant flow, and the cooling effect of the fluid is measured to calculate mass flow. Coriolis meters, on the other hand, detect the twisting motion of a vibrating tube caused by the flowing refrigerant, directly correlating it to mass flow. These meters provide real-time data, enabling precise control of refrigerant flow, which is essential for maintaining system efficiency, preventing overcharging, and ensuring compliance with environmental regulations. Understanding how these meters work is key to optimizing refrigeration and air conditioning systems for reliability and sustainability.
| Characteristics | Values |
|---|---|
| Operating Principle | Measures mass flow rate of refrigerant using thermal or Coriolis methods. |
| Measurement Type | Direct mass flow measurement (not volumetric). |
| Sensor Technology | Thermal dispersion, Coriolis, or differential pressure-based. |
| Accuracy | ±1% to ±5% of full scale, depending on model and application. |
| Response Time | 100 ms to 1 second, depending on fluid properties and flow rate. |
| Temperature Range | -40°C to 200°C (varies by model and refrigerant type). |
| Pressure Range | Up to 500 psi (varies by application and refrigerant). |
| Flow Range | 0.1 kg/h to 10,000 kg/h (depends on pipe size and refrigerant). |
| Compatibility | Compatible with common refrigerants (e.g., R-410A, R-32, R-134a). |
| Installation | Requires straight pipe runs (5D upstream, 2D downstream) for accuracy. |
| Output Signals | 4-20 mA, pulse, or digital (e.g., Modbus, HART). |
| Material Construction | Stainless steel, brass, or PTFE for corrosion resistance. |
| Power Supply | 12-24 VDC or 100-240 VAC, depending on model. |
| Applications | HVAC systems, refrigeration plants, heat pumps, and industrial cooling. |
| Maintenance | Periodic calibration and sensor cleaning to ensure accuracy. |
| Advantages | High accuracy, direct mass measurement, unaffected by density changes. |
| Disadvantages | Higher cost compared to volumetric flow meters, requires careful installation. |
Explore related products
What You'll Learn
- Operating Principle: Measures refrigerant mass flow using thermal dispersion or Coriolis force principles
- Sensor Types: Includes thermal, Coriolis, and differential pressure sensors for accurate measurement
- Installation Requirements: Proper placement and orientation ensure precise and reliable readings
- Calibration Process: Regular calibration maintains accuracy and compensates for environmental changes
- Applications in HVAC: Used in HVAC systems to optimize refrigerant flow and efficiency
Operating Principle: Measures refrigerant mass flow using thermal dispersion or Coriolis force principles
Refrigerant mass flow meters operate on two primary principles: thermal dispersion and Coriolis force, each leveraging distinct physical phenomena to measure mass flow accurately. Thermal dispersion technology relies on the cooling effect of the refrigerant as it passes over heated sensors. By measuring the temperature difference between two sensors—one heated and one unheated—the meter calculates the mass flow rate based on the refrigerant’s thermal properties. This method is particularly effective in low-flow applications, such as in HVAC systems or small refrigeration units, where precision is critical. For instance, in a split air conditioning system, a thermal dispersion meter can detect flow rates as low as 0.1 kg/min, ensuring optimal performance and energy efficiency.
In contrast, Coriolis force meters operate on the principle of inertia, exploiting the deflection caused by mass flow in a vibrating tube. As refrigerant flows through the meter, the tube oscillates, and the resulting Coriolis forces cause a phase shift between the tube’s inlet and outlet. The magnitude of this phase shift is directly proportional to the mass flow rate. This method is highly accurate across a wide range of flow rates, making it ideal for larger industrial refrigeration systems or chillers. For example, a Coriolis meter can measure flows up to 10,000 kg/h with an accuracy of ±0.1%, ensuring reliable performance in demanding environments like chemical plants or food processing facilities.
Choosing between thermal dispersion and Coriolis force meters depends on the application’s specific requirements. Thermal dispersion meters are cost-effective and excel in low-flow scenarios, but they may struggle with accuracy in high-flow or turbulent conditions. Coriolis meters, while more expensive, offer superior accuracy and versatility across flow rates and fluid types, including refrigerants with varying densities. For instance, in a supermarket refrigeration system, a Coriolis meter might be preferred for its ability to handle both low and high flow rates, ensuring consistent performance across multiple cooling units.
Practical considerations also play a role in meter selection. Thermal dispersion meters require minimal maintenance and are less sensitive to installation orientation, making them user-friendly for field technicians. Coriolis meters, however, demand precise installation to avoid measurement errors and may require periodic calibration, especially in systems with frequent flow rate fluctuations. For optimal results, ensure the meter is installed in a straight pipe section with adequate upstream and downstream lengths—typically 10 to 20 pipe diameters—to minimize flow disturbances.
In summary, both thermal dispersion and Coriolis force principles offer robust solutions for measuring refrigerant mass flow, each with unique advantages. Thermal dispersion meters shine in low-flow, cost-sensitive applications, while Coriolis meters dominate in high-flow, precision-critical environments. By understanding these principles and their practical implications, engineers and technicians can select the most appropriate meter for their specific refrigeration system, ensuring efficiency, accuracy, and reliability.
