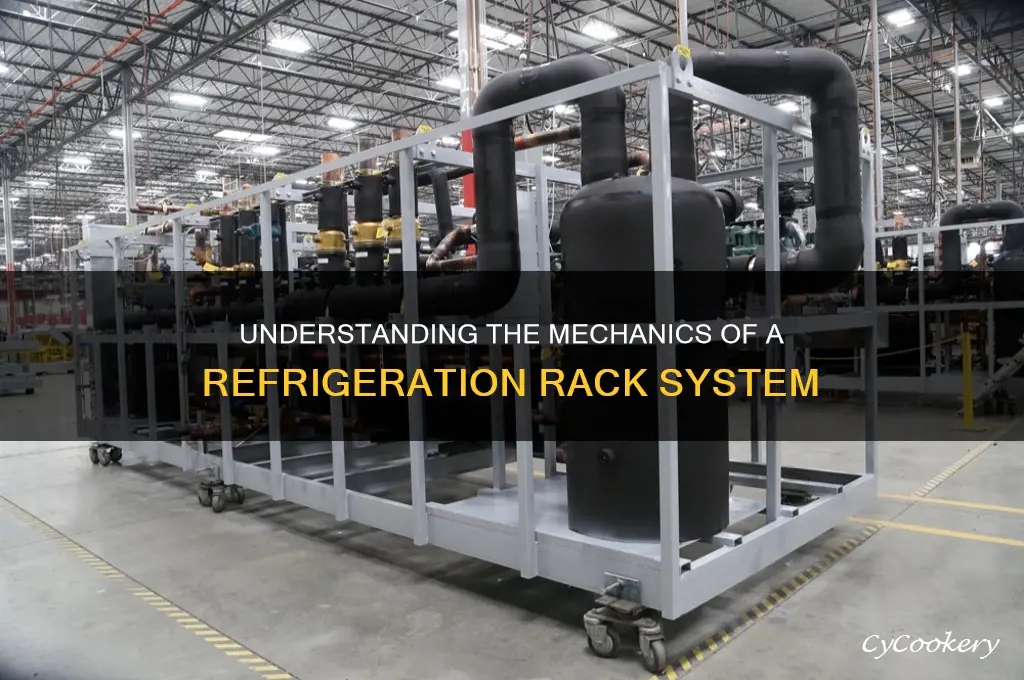

A refrigeration rack system is a centralized cooling solution that efficiently manages multiple refrigeration units by consolidating their components into a single, integrated system. At its core, the system consists of a rack housing compressors, condensers, and other critical components, which work together to circulate refrigerant and remove heat from connected refrigeration units. The process begins with compressors pressurizing the refrigerant, turning it into a high-temperature gas, which then moves to the condenser where it is cooled and condensed back into a liquid. This liquid refrigerant flows through expansion valves, reducing pressure and temperature, before entering evaporators located in individual refrigeration units. As the refrigerant evaporates, it absorbs heat from the surrounding environment, cooling the unit. The refrigerant then returns to the compressors, completing the cycle. This centralized approach optimizes energy efficiency, simplifies maintenance, and ensures consistent temperature control across multiple refrigeration units.
Explore related products
What You'll Learn
- Compressor Functionality: Compressors raise refrigerant pressure and temperature, initiating the cooling cycle efficiently
- Condenser Role: Condensers release heat, converting refrigerant from gas to liquid state
- Expansion Valve Process: Expansion valves reduce pressure, cooling refrigerant before it enters the evaporator
- Evaporator Operation: Evaporators absorb heat, cooling the space while refrigerant evaporates back to gas
- Refrigerant Cycle Overview: Continuous loop of compression, condensation, expansion, and evaporation sustains cooling
Compressor Functionality: Compressors raise refrigerant pressure and temperature, initiating the cooling cycle efficiently
The compressor is the heart of any refrigeration rack system, and its primary function is to increase the pressure and temperature of the refrigerant, setting the stage for the cooling cycle. This process begins with the compressor drawing in low-pressure, low-temperature refrigerant vapor from the evaporator. As the refrigerant enters the compressor, it is compressed, which significantly raises its pressure and temperature. This transformation is crucial because it allows the refrigerant to release heat more effectively in the next stages of the cycle. Without this initial compression, the refrigerant would lack the energy needed to efficiently absorb and dissipate heat from the cooled space.
Consider the analogy of squeezing a sponge: just as applying pressure forces water out, the compressor’s action forces the refrigerant molecules closer together, increasing both pressure and temperature. This mechanical process is typically achieved through one of three compressor types: reciprocating, screw, or centrifugal, each suited to different system sizes and load demands. For instance, reciprocating compressors are common in smaller systems due to their simplicity and cost-effectiveness, while screw compressors are favored in larger industrial applications for their reliability and high capacity. Understanding the compressor type and its operational parameters is essential for optimizing system efficiency and ensuring consistent cooling performance.
One critical aspect of compressor functionality is its role in maintaining the refrigerant’s thermodynamic cycle. After compression, the high-pressure, high-temperature refrigerant moves to the condenser, where it releases heat to the surrounding environment. This heat rejection is only possible because the compressor has elevated the refrigerant’s energy state. For example, in a typical supermarket refrigeration rack system, the compressor might raise the refrigerant pressure from 20 psi (low-pressure side) to 150 psi (high-pressure side), enabling it to condense at a temperature suitable for heat exchange. This precise control of pressure and temperature is what makes efficient cooling possible.
However, improper compressor operation can lead to inefficiencies or system failures. Overheating, caused by inadequate lubrication or excessive load, can damage compressor components and reduce its lifespan. To mitigate this, regular maintenance, such as checking oil levels and ensuring proper airflow around the compressor, is essential. Additionally, monitoring the suction and discharge pressures can provide early indicators of issues like refrigerant leaks or fouling in the heat exchangers. For instance, a sudden drop in suction pressure might signal a leak, while a rise in discharge pressure could indicate a blocked condenser.
In conclusion, the compressor’s role in raising refrigerant pressure and temperature is fundamental to the operation of a refrigeration rack system. By understanding its mechanics, selecting the appropriate type, and implementing proactive maintenance, operators can ensure the system runs efficiently and reliably. Whether in a small convenience store or a large-scale industrial facility, the compressor’s functionality remains a cornerstone of effective cooling, making it a critical component to monitor and maintain.
Refrigerating Geode Cakes: Tips for Preserving Your Edible Gemstone Masterpiece
You may want to see also
Explore related products
Condenser Role: Condensers release heat, converting refrigerant from gas to liquid state
The condenser is the unsung hero of a refrigeration rack system, tasked with a critical phase transition: converting refrigerant from a high-pressure, high-temperature gas into a liquid. This process is essential for the system’s efficiency, as it prepares the refrigerant to absorb heat again in the evaporator. Without the condenser, the refrigeration cycle would stall, leaving the system unable to cool effectively. Think of it as the system’s heat exhaust, releasing thermal energy into the surrounding environment to maintain the cycle’s continuity.
To understand the condenser’s role, consider the refrigeration cycle as a four-step process: compression, condensation, expansion, and evaporation. After the compressor raises the refrigerant’s pressure and temperature, the condenser steps in to shed the excess heat. This is achieved through a heat exchange process, where the hot refrigerant gas passes through coils exposed to cooler air or water. For example, in air-cooled condensers, fans blow ambient air over the coils, while water-cooled systems circulate coolant through a separate loop. The key takeaway is that the condenser’s efficiency directly impacts the system’s overall performance, making proper maintenance and design critical.
From a practical standpoint, optimizing condenser performance involves regular cleaning and monitoring. Dirt, debris, or scale buildup on condenser coils can reduce heat transfer efficiency, forcing the system to work harder and consume more energy. For instance, a 10% increase in coil fouling can lead to a 5–10% rise in energy consumption. To prevent this, schedule quarterly inspections and cleanings, especially in dusty or humid environments. Additionally, ensure proper airflow around the condenser unit by maintaining a clearance of at least 12 inches from walls or obstructions. These steps not only extend the condenser’s lifespan but also improve the system’s cooling capacity and energy efficiency.
Comparatively, the condenser’s role in a refrigeration rack system mirrors the function of a car’s radiator, both serving as heat rejection components. However, the condenser operates under higher pressures and temperatures, requiring robust materials like copper or aluminum for durability. Unlike a radiator, which primarily cools engine coolant, the condenser must handle phase changes, making its design more complex. This highlights the condenser’s unique challenge: managing both heat dissipation and phase transition simultaneously. By understanding this distinction, technicians can better diagnose issues and implement targeted solutions.
In conclusion, the condenser’s ability to release heat and convert refrigerant from gas to liquid is a cornerstone of refrigeration rack system functionality. Its efficiency hinges on design, maintenance, and environmental factors, making it a critical component to monitor and optimize. Whether through routine cleaning, proper airflow management, or material selection, ensuring the condenser operates at peak performance is essential for reliable and energy-efficient cooling. Treat it as the system’s thermal safety valve, and you’ll safeguard both its longevity and effectiveness.
Refrigerating Formula Powder: Benefits, Risks, and Best Practices Explained
You may want to see also
Explore related products
Expansion Valve Process: Expansion valves reduce pressure, cooling refrigerant before it enters the evaporator
The expansion valve is a critical component in the refrigeration cycle, acting as the gatekeeper between the high-pressure liquid refrigerant and the low-pressure evaporator. Its primary function is to rapidly reduce the pressure of the refrigerant, causing it to expand and cool significantly. This process is essential for the refrigerant to absorb heat from the surrounding environment, which is the core principle of refrigeration. Without the expansion valve, the refrigerant would not undergo the necessary phase change from liquid to vapor, rendering the system ineffective.
Consider the thermodynamic principles at play: as the refrigerant passes through the expansion valve, its pressure drops dramatically, often from around 150-250 psi (high-pressure side) to 20-50 psi (low-pressure side). This sudden pressure reduction causes the refrigerant to evaporate partially, absorbing latent heat from the surroundings. For example, in a typical commercial refrigeration system using R-404A, the refrigerant temperature can drop from approximately 100°F (38°C) at the condenser outlet to around 20°F (-7°C) at the evaporator inlet. This temperature differential is crucial for efficient heat absorption in the evaporator.
Proper calibration of the expansion valve is vital for system performance. An overfed evaporator (too much refrigerant) can lead to liquid slugging and compressor damage, while an underfed evaporator (too little refrigerant) results in reduced heat transfer efficiency and higher energy consumption. Technicians often use superheat measurements to adjust the valve, aiming for a target superheat of 5-15°F (3-8°C), depending on the system design. For instance, in a medium-temperature refrigeration rack, a superheat setting of 8°F (4.5°C) might be optimal, ensuring the evaporator is fully active without risking liquid refrigerant return to the compressor.
One practical tip for maintaining expansion valves is to regularly check for frosting or sweating on the suction line, which can indicate improper refrigerant flow. Additionally, ensure the valve’s strainer is clean to prevent debris from obstructing the orifice. For systems using thermostatic expansion valves (TXVs), verify that the sensing bulb is securely attached to the suction line and insulated to accurately reflect the refrigerant’s temperature. Electronic expansion valves (EXVs), on the other hand, require periodic software updates and sensor calibration to maintain precision.
In summary, the expansion valve’s role in reducing pressure and cooling the refrigerant is indispensable for the refrigeration rack system’s efficiency. By understanding its operation, thermodynamic impact, and maintenance requirements, operators can optimize performance, extend equipment lifespan, and minimize energy costs. Whether using a TXV or EXV, precise control of the refrigerant flow ensures the system operates within its design parameters, delivering reliable cooling for commercial and industrial applications.
Wheat Germ Storage Tips: Refrigerate or Not? Expert Advice
You may want to see also
Explore related products
Evaporator Operation: Evaporators absorb heat, cooling the space while refrigerant evaporates back to gas
The evaporator is the unsung hero of any refrigeration rack system, silently absorbing heat from the environment to cool the designated space. This process begins when the low-pressure, low-temperature refrigerant enters the evaporator coil. As warm air from the space passes over these coils, the refrigerant absorbs the heat, causing it to evaporate from its liquid state back into a gas. This phase change is the cornerstone of refrigeration, efficiently transferring thermal energy out of the space and into the refrigerant cycle. For optimal performance, ensure the evaporator coils are clean and free of debris, as even a thin layer of dust can reduce heat absorption efficiency by up to 30%.
Consider the evaporator’s role in a supermarket refrigeration system, where maintaining precise temperatures is critical for food safety. Here, the evaporator operates under specific conditions: the refrigerant enters at approximately 5°F (-15°C) and leaves as a vapor at around 20°F (-6.7°C). The temperature differential allows the evaporator to effectively cool the surrounding air to the desired 35°F (1.7°C) for fresh produce or 0°F (-18°C) for frozen goods. To maximize efficiency, pair the evaporator with a well-designed airflow system, ensuring even distribution of cooled air and minimizing stratification.
From a practical standpoint, understanding the evaporator’s operation can help troubleshoot common issues. For instance, if the space isn’t cooling adequately, check for frost buildup on the evaporator coils, which indicates restricted airflow or low refrigerant charge. Defrost cycles, typically scheduled every 6–12 hours depending on humidity levels, prevent ice accumulation and maintain efficiency. Additionally, monitor the superheat—the difference between the refrigerant’s actual temperature and its saturation temperature—to ensure it stays within the manufacturer’s recommended range (e.g., 5°F to 15°F). Excessive superheat suggests underfeeding of refrigerant, while low superheat indicates overfeeding, both of which compromise performance.
Comparatively, the evaporator’s function in a refrigeration rack system mirrors the role of a heat sink in electronics, dissipating unwanted thermal energy to protect sensitive components. However, unlike a passive heat sink, the evaporator actively participates in a closed-loop cycle, continuously regenerating the refrigerant for repeated use. This cyclical process underscores the importance of maintaining system integrity—leaks or inefficiencies in the compressor, condenser, or expansion valve directly impact the evaporator’s ability to cool effectively. Regular maintenance, including refrigerant charge checks and coil cleaning, ensures the evaporator operates at peak efficiency, reducing energy consumption and extending system lifespan.
Finally, the evaporator’s operation is a delicate balance of thermodynamics and engineering, requiring precise control to achieve desired cooling outcomes. For industrial applications, such as cold storage warehouses, evaporators are often designed with multiple circuits to ensure redundancy and uniform cooling. In residential or small commercial systems, single-circuit evaporators suffice but still demand attention to detail. By understanding the evaporator’s role and maintaining its optimal conditions, operators can ensure consistent performance, energy efficiency, and longevity of the entire refrigeration rack system. Treat the evaporator as the heart of the cooling process, and the system will reward you with reliable, cost-effective operation.
Is Unrefrigerated Pumpkin Pie Safe to Eat? Find Out Now
You may want to see also
Explore related products
Refrigerant Cycle Overview: Continuous loop of compression, condensation, expansion, and evaporation sustains cooling
The refrigerant cycle is the lifeblood of any refrigeration rack system, a continuous loop that transforms heat energy to maintain cool temperatures. This process hinges on four key stages: compression, condensation, expansion, and evaporation. Each phase is critical, and their seamless integration ensures the system’s efficiency and reliability. Understanding this cycle not only demystifies how refrigeration works but also highlights the precision required to balance energy consumption and cooling performance.
Compression marks the beginning of the cycle. Here, a low-pressure, low-temperature refrigerant gas is drawn into the compressor, where it is pressurized and heated. This step is energy-intensive but essential, as it sets the stage for heat transfer. For instance, in a typical refrigeration rack system, the compressor raises the refrigerant temperature to around 100°F (38°C) and increases its pressure to approximately 150–250 psi. The choice of compressor—reciprocating, screw, or centrifugal—depends on the system’s size and cooling load, with larger systems often favoring screw or centrifugal types for their higher capacity and efficiency.
Next, the hot, high-pressure refrigerant moves to the condenser, where it releases heat to the surrounding environment. This phase transforms the refrigerant from a gas to a liquid, a process known as condensation. Air-cooled condensers, common in refrigeration racks, rely on fans to dissipate heat, while water-cooled systems use a separate cooling tower. Proper airflow or water flow is critical here; even a 10% reduction in airflow can decrease efficiency by up to 20%. Regular maintenance, such as cleaning coils and checking fan operation, ensures optimal heat rejection.
Expansion is the third stage, where the high-pressure liquid refrigerant passes through an expansion valve or device, experiencing a sudden drop in pressure and temperature. This rapid cooling prepares the refrigerant for evaporation. The expansion valve must be precisely calibrated to match the system’s load; an oversized valve can lead to inefficient cooling, while an undersized one may cause liquid slugging in the evaporator. For example, in a medium-sized refrigeration rack, the refrigerant temperature post-expansion might drop to around 40°F (4°C), ready to absorb heat in the next phase.
Evaporation completes the cycle. The cold, low-pressure refrigerant flows into the evaporator, where it absorbs heat from the space or product being cooled, returning to its gaseous state. This phase is where the actual cooling occurs. Evaporator design varies—direct expansion (DX) coils are common in walk-in coolers, while flooded systems are used in larger applications. Ensuring proper refrigerant flow and even heat distribution is key; uneven airflow can lead to hot spots and reduced efficiency. For optimal performance, maintain a 10°F to 15°F temperature difference between the evaporator and the cooled space.
In summary, the refrigerant cycle’s continuous loop of compression, condensation, expansion, and evaporation is a delicate balance of physics and engineering. Each stage relies on the others, and any inefficiency in one phase ripples through the entire system. By understanding and optimizing this cycle, operators can maximize cooling efficiency, reduce energy costs, and extend the lifespan of their refrigeration rack systems. Regular monitoring, precise calibration, and proactive maintenance are the cornerstones of achieving this balance.
Refrigerating Apple Cider Vinegar: Benefits, Shelf Life, and Best Practices
You may want to see also
Frequently asked questions
A refrigeration rack system is a centralized cooling system that uses multiple compressors and condensers connected to a common refrigerant piping network. It differs from other systems by serving multiple evaporators or cooling units simultaneously, making it ideal for large-scale applications like supermarkets, cold storage warehouses, and industrial facilities.
The system circulates refrigerant through a closed-loop cycle: compressors pressurize and heat the refrigerant, which then moves to the condenser where it cools and condenses into a liquid. The liquid refrigerant passes through an expansion valve, reducing pressure and temperature, before entering the evaporator to absorb heat and cool the desired space.
The key components include compressors (to pressurize refrigerant), condensers (to release heat), evaporators (to absorb heat), expansion valves (to control refrigerant flow), and a refrigerant distribution rack that connects all components. Additional parts like receivers, oil separators, and controls are also essential for efficient operation.
Temperature control is maintained through a combination of sensors, thermostats, and control systems that monitor the evaporator load. The system adjusts compressor capacity (via staging or variable speed drives) and refrigerant flow to meet cooling demands, ensuring consistent temperatures across all connected units.
Advantages include energy efficiency due to centralized control and reduced refrigerant charge per ton of cooling, scalability to accommodate growing cooling needs, and easier maintenance since all components are consolidated in one location. It also offers better redundancy, as multiple compressors can share the load if one fails.
